2 years
| Model Number | anchor-#8091 | Brand Name | LR |
|---|---|---|---|
| origin | China | Small Orders | Accepted |

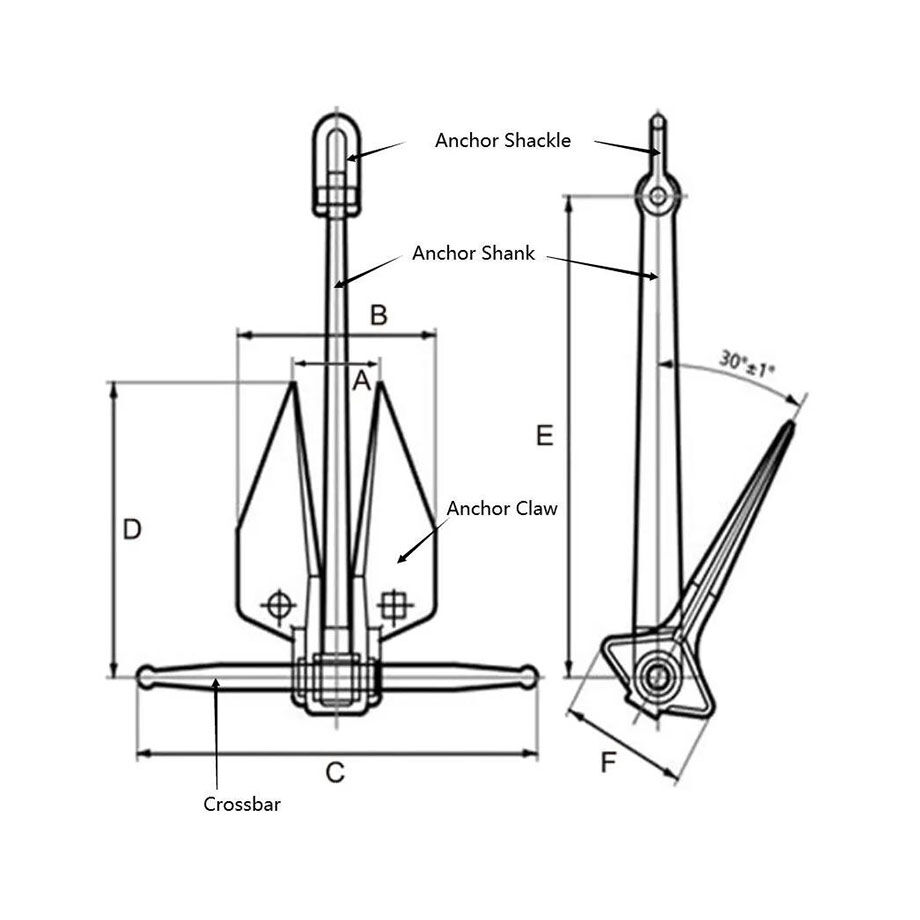

| LS DANFORTH HIGH HOLDING POWER ANCHOR | ||||||
| ANCHOR WEIGHT | A | B | C | D | E | F |
| (kg) | ||||||
| 20 | 130 | 280 | 540 | 370 | 690 | 170 |
| 25 | 135 | 300 | 580 | 400 | 740 | 185 |
| 30 | 148 | 330 | 620 | 430 | 790 | 200 |
| 40 | 160 | 360 | 680 | 470 | 860 | 220 |
| 50 | 172 | 390 | 720 | 510 | 940 | 230 |
| 60 | 186 | 408 | 755 | 535 | 985 | 240 |
| 75 | 200 | 450 | 830 | 590 | 1080 | 260 |
| 100 | 216 | 490 | 930 | 640 | 1180 | 290 |
| 120 | 220 | 505 | 970 | 670 | 1230 | 300 |
| 125 | 234 | 520 | 1000 | 690 | 1270 | 310 |
| 150 | 242 | 550 | 1060 | 732 | 1348 | 330 |
| 200 | 266 | 600 | 1150 | 810 | 1490 | 360 |
| 250 | 294 | 650 | 1240 | 870 | 1600 | 390 |
| 276 | 296 | 660 | 1250 | 885 | 1620 | 400 |
| 300 | 312 | 690 | 1320 | 925 | 1700 | 420 |
| 400 | 342 | 750 | 1460 | 1010 | 1810 | 460 |
| 500 | 368 | 800 | 1570 | 1100 | 2020 | 490 |
| 750 | 414 | 910 | 1800 | 1260 | 2300 | 560 |
| 1000 | 450 | 980 | 1980 | 1380 | 2540 | 620 |
| 1250 | 484 | 1070 | 2100 | 1490 | 2740 | 670 |
| 1500 | 512 | 1120 | 2220 | 1580 | 2910 | 700 |
| 2000 | 560 | 1130 | 2440 | 1730 | 2850 | 770 |
| 2500 | 605 | 1217 | 2628 | 1864 | 3070 | 830 |
| 4000 | 700 | 1420 | 3070 | 2170 | 3590 | 970 |
| 5000 | 735 | 1482 | 3200 | 2270 | 3840 | 1020 |
| 6000 | 800 | 1620 | 3500 | 2480 | 4100 | 1100 |
Product Description
1.All kinds of cleats, bollards, anchors, swivel anchor chain, bow chock, straight chock, Tee hand and so on.
2. Material : Q235 low carbon steel , 45# High carbon steel ,Alloy Steel , Stainless steel 201/202, Stainless steel 304/316
3.Size : ALL
4.Surface : Electric Galvanized , Hot dipped galv , Selfcolor .Powder paint
Detailed Photos
The ring nut refers to the part that the nut and the bolt or screw are screwed together for fastening, and it is an original part that all production machinery must use.Ring nuts are commonly used fixing pendants in engineering.There is a thread under the nut,which can be drilled according to its different specifications and fixed with a screw.
The eye nut is a part that tightly connects the mechanical equipment. Only through the inner thread, the eye nut and screw of the same specification can be connected together.Ring nuts are often used in conjunction with external threaded columns to lift various equipment, such as molds, chassis, motors, etc.
Product Parameters
Qingdao Luckreal is mainly doing Metallic Products with more than 15 years and we have our own manufacture. Luckreal is an eminent name in the market and has created a reputation as the reliable Manufacturer, Exporter, Importer & Supplier of rigging hardware and steel fabrication. We have been merited with several accolades like DIN Standard, Australian Standard, German & Indian Standard ISI & ISO and what our aim is to become the Industry and achieve unparallel growth and success. We are a company whose roots are based on ethics and our management believe in maintain lasting relations with our clients and hence we operate a transparent business. Our company believes in the core values of quality and client satisfaction. We respects the clients and aims at offering them only the best products and services. The dedication and sincerity we show toward our work has transformed us in to a reliable name among clients. We aspire to bring our high quality.Our advantage, firstly, our products are exported to Asia, Europe, the United States, South America, the Middle East, and Southeast Asia. So we can provide professional import trade services and provide complete and accurate customs clearance documents at once, so that customers can complete import customs clearance smoothly and efficiently. Secondly, we have a professional production and design team that can undertake ODM, OEM, and skilled packaging workers, ensuring timely delivery and superior product quality. Thirdly, our efficient after-sales service team will track the products that have already been sold in a timely manner and response customers' after-sales problems on time.
Product Parameters
Our product has a wide range of applications and can be applied in many fields,Our products are mainly used in the lifting industry, port transportation, electric lifting , construction industry, agriculture and greenhouse , and offroad 4x4 , Solar Photovoltaic .
Qingdao Luckreal is mainly doing Metallic Products with more than 15 years and we have our own manufacture .Luckreal is an eminent name in the market and has created a reputation as the reliable Manufacturer, Exporter, Importer & Supplier of rigging hardware and steel fabrication.We have been merited.
Raw material from big steel company with mill test certificate , 100 % finish testing and inspection before shipment,Press forging machine 8 lines, including 400 T, 630T, 1000T, 1200 T, 1600 T. Biggest forged products can produce is 35 kgs.
We have a perfect after-sales service department, including the use of products, the transportation path of products...
Our Advantages
Our advantage, firstly, our products are exported to Asia, Europe, the United States, South America, the Middle East, and Southeast Asia. So we can provide professional import trade services and provide complete and accurate customs clearance documents at once, so that customers can complete import customs clearance smoothly and efficiently. Secondly, we have a professional production and design team that can undertake ODM, OEM, and skilled packaging workers, ensuring timely delivery and superior product quality. Thirdly, our efficient after-sales service team will track the products that have already been sold in a timely manner and response customers' after-sales problems on time .
Packaging &shipping
>>>FAQ:
1. Can I be your agent?
Yes, welcome to deep cooperation. We have big promotion of L&R brand in the market now. For the details please contact me.
2. Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
3. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Free for the samples, but you need to pay for the freight.
4. What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
5. How about the delivery time?
The delivery time is depend on the products and the quantity. But generally, the delivery time for a container is about one month.
6. What's benefit will you bring?
Your client satisfied on the quality.
| FOB Port | Qingdao | Lead Time | 7–15 days |
|---|---|---|---|
| Weight per Unit | 2.0 Kilograms | Dimensions per Unit | 2.0 x 2.0 x 2.0 Centimeters |
| HTS Code | 7326.90.90 00 | Units per Export Carton | 10.0 |
| Export Carton Dimensions L/W/H | 20.0 x 10.0 x 10.0 Centimeters | Export Carton Weight | 1.0 Kilograms |
| Main Export Markets |
Central/South America,
Eastern Europe,
Mid East/Africa,
North America,
Western Europe,
Asia,
Australasia | ||
|---|---|---|---|
| Payment Method | Telegraphic Transfer (TT,T/T) | ||||
|---|---|---|---|---|---|
