| Model Number | HS-2003DP-#0615 | Brand Name | HCCTG |
|---|---|---|---|
| origin | China | Small Orders | Accepted |
General

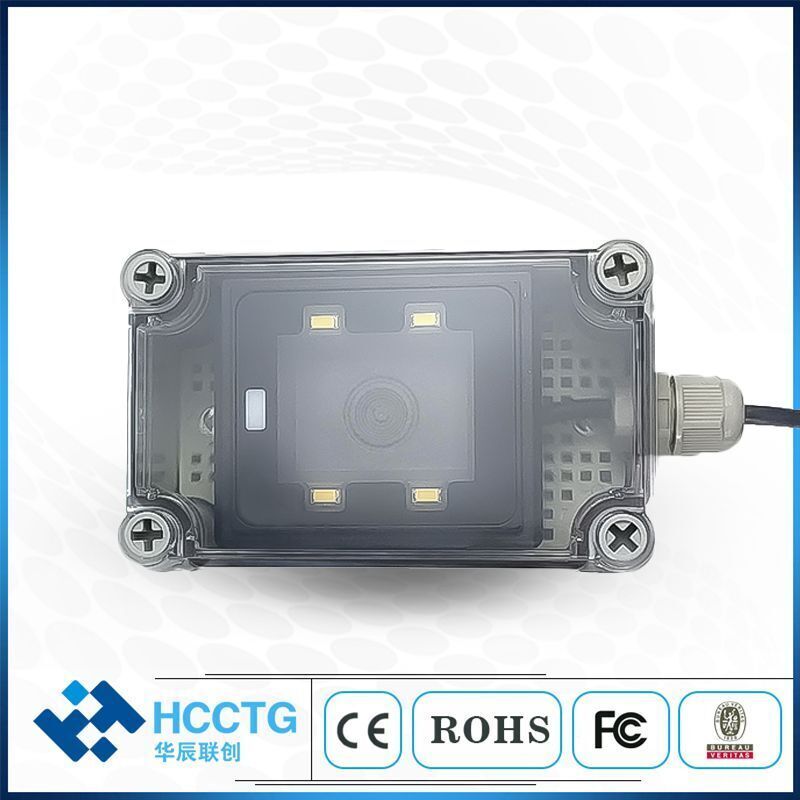

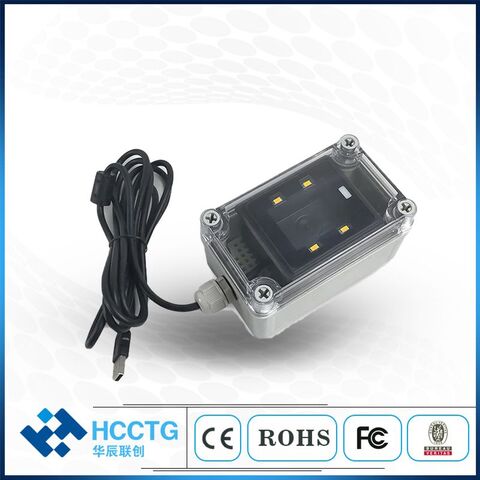

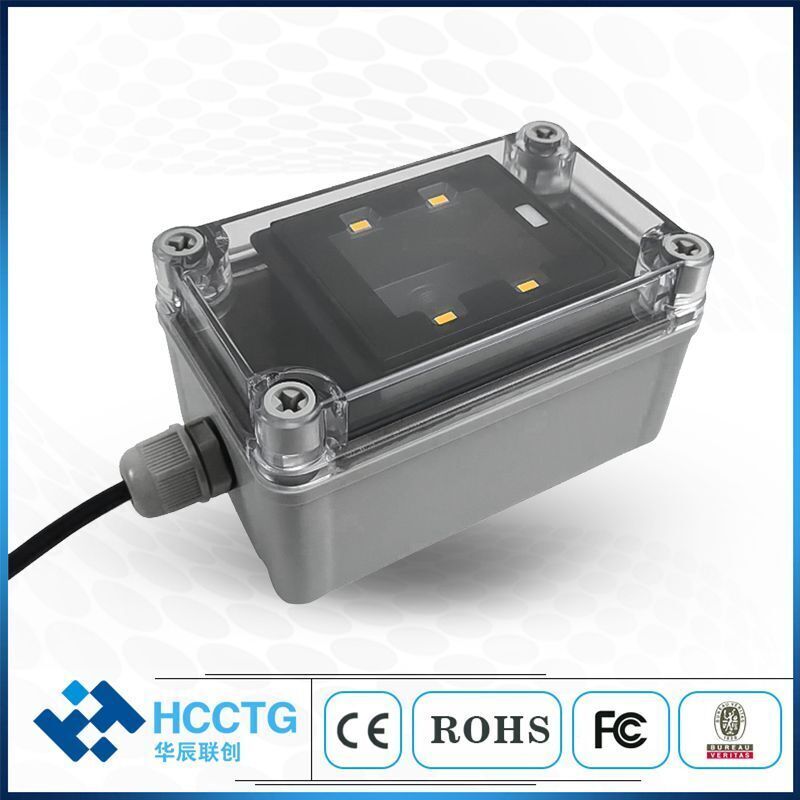

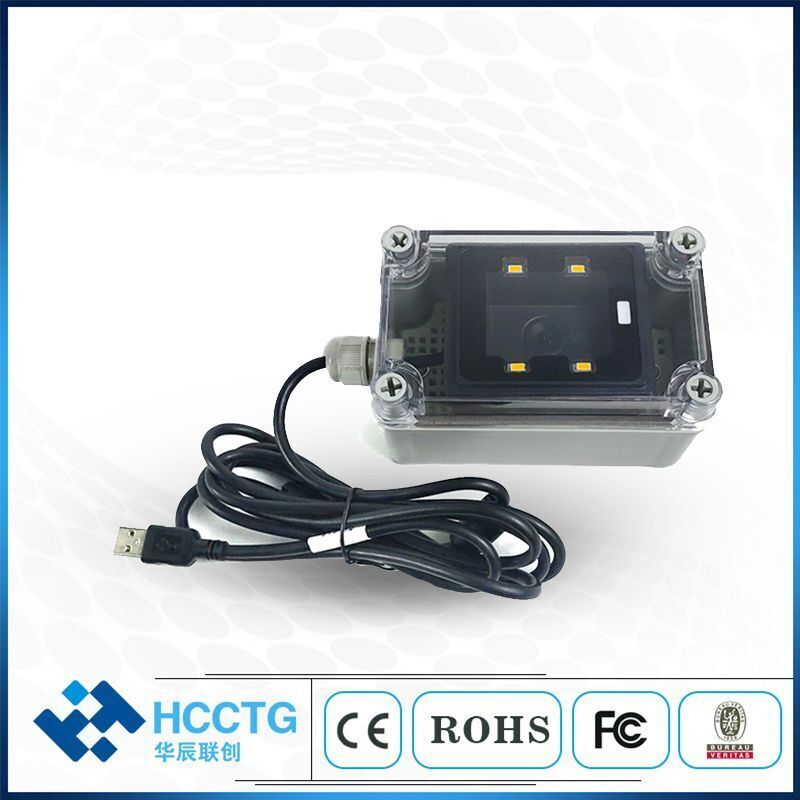

HS-2003DP is a waterproof 2D embedded module with excellent performance. It can quickly identify all kinds of 1D/2D codes, and has excellent ability to read bar codes on mobile phone screen. Support a variety of data mode, compatible with Win XP, Win7, Win10, IOS, Android, INDUSTRIAL PC, server and other devices, plug and play, simple and convenient.
| Performance parameters |
Image Sensor | CMOS | DPI(W*H) | 640px*480px | |
| Read Code System | 1D | Code128/AIM128/EAN128/NL128,UPC/EAN/ISSN/ISBN, Codabar, Code 39, Code 39,Code 93,Code11,ITF-25/ITF-14/ITF-6/Deutsche12/Deutsche14,Industrial25,Matrix25,JapanMatrix25/NEC25,Standard25,DataLogic25,MSI-Plessey,Plessey,RSS-EXP/RSS_14/GS1Data, Telepen | |||
| 2D | AZTEC,Data Matrix, MaxiCode, PDF417, Micro PDF, QR Code,Micro QR, Hanxin Code, OCR, DOTCODE | ||||
| Accuracy | 1D≥5mil | Typical | |||
| Contrast Ratio | ≥20% | 1D EAN-13 | 5mil 35-55mm | ||
| Sensitivity | tilt | ±65° | 13mil 15-135mm | ||
| rotate | 360° | 2D QR Code | 15mil 10-110mm | ||
| deflection | ±55° | 30mil 10-200mm | |||
| Field of view angle level:66.4° vertical:49.8° diagonal: 83° | |||||
| Data Interface | USB KBW ,USB CDC,USB HID POS,TTL, RS232 | ||||
| Electrical Parameters | Working Voltage | 5VDC±5% | |||
| Working Current | 185mA±10% | Standby Current | 160mA | ||
| Environmental Parameters | Working Temperature | -0℃~+50℃ | Storage Temperature | -20℃~+60℃ | |
| Relative Humidity | 5% ~ 95%(No condensation) | ||||
| Screen Brightness | 0~100000 Lux | ||||
| Protection Level | ±16kV(Air discharge) | ±8 kV(Direct discharge) | |||
| Physical Parameters | Communication Interface | USB、TTL 232、RS232 | |||
| Appearance Size | 78.4*67.2*53.2mm | Weight | 186.8g | ||
| Waterproof level | IP67 | ||||
Shenzhen Hcc Technology Co., Ltd. was established in 2008. The company has been committed to the research and development, production and sales of intelligent commercial terminal equipment. All the company's products have passed CE, ROHS, FCC and other quality certifications, and related financial payment terminal products have passed the professional certifications of Unionpay, EMV, PCI, Visa, MasterCard and other international payment organizations. The factory covers an area of 2,100 square meters, with an annual production capacity of 500,000 sets of various intelligent commercial products, and has passed the international ISO9001 quality system certification. HCCTG professional product design, high-quality and fast product delivery, perfect pre-sales technical support, and considerate and worry-free after-sales service guarantee that HCCTG intelligent commercial products have been sold to more than 100 countries and regions overseas, and It has won the trust and praise of customers in the industry (financial, telecommunications, government, police, retail, logistics, express, etc.). It is the mission of HCC Technology to make commercial products smarter and more credible. We will continue to innovate products and continuously empower industry customers with informatization.
| FOB Port | Shenzhen | Lead Time | 3–7 days |
|---|---|---|---|
| Weight per Unit | 1.0 Kilograms | Dimensions per Unit | 21.0 x 10.0 x 9.0 Centimeters |
| HTS Code | 8471.90.00 90 | Units per Export Carton | 1.0 |
| Export Carton Dimensions L/W/H | 21.0 x 10.0 x 9.0 Meters | Logistics attributes | Common |
| Export Carton Weight | 10.0 Grams | ||
| Main Export Markets |
Western Europe,
Asia,
Australasia,
Central/South America,
Eastern Europe,
Mid East/Africa,
North America | ||
|---|---|---|---|
| Payment Method | Telegraphic Transfer in Advance (Advance TT, T/T) | ||||
|---|---|---|---|---|---|
