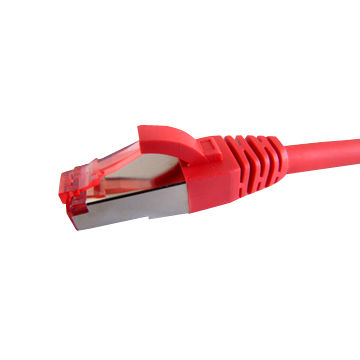

UL Approved FTP 24AWG Fluke Test Cat6 Patch Cord
US$ 1 -
5.5
/ 1 Piece
Minimum order: 500
Pieces
Get Latest Price
Sample Policy :
We offer free samples, with shipping and taxes paid by the buyer.
13 yrs
This supplier has a Global Sources Website for 13 years.
Trade Shows
Business Type
Manufacturer
,
Exporter
,
Exporter
Chat
Follow
Product Information
| Model Number | 60SFORB08850020LS-e | Brand Name | EXW |
|---|---|---|---|
| origin | China | Small Orders | Accepted |
Key Specifications/ Special Features:
- Certifications: ISO 9001:2001/ISO 14001/OHSAS 18001/UL/REACH
- RoHS directive-compliant
- Cable construction
- Conductor: Cat6 FTP stranded, 26AWG, 7x0.16 and bare copper
- Cable nominal diameters: 6.0, ±0.2mm
- Insulation: polyethylene with color marking on white cores
- Color code: BL/WH-BL, OR/WH-OR, GN/GN-WH and BR/BR-WH
- Shield: 4 pairs with overall foil
- Outer jacket and boots: PVC, CMX, CM, CMR, leaded and lead-free as well as LSZH versions available
- Cable colors: yellow, others colors from RAL and Pantone are available
- Mechanical characteristics:
- Cable to plug tensile strength: 9kgsf (90n) minimum
- Minimum bending radius: 22mm
- Storage temperature: -20 to +80°C
- Durability: 750 mating cycles
- Plug housing: UL 94-V0, UL 94-V2, polycarbonate
- Plug contact material: 50u gold plating over 100µ nickel plated copper alloy
- Fire performance: IEC 332.1, VW1 and IEC 332.3 versions available depending on jacket type
- Product length: 0.5 to 100m optional
- Electrical performance:
- Contact resistance: 20MΩ maximum
- Voltage rating: 75V maximum
- Dielectric strength: 1000V/1 minute minimum RMS
- Amperes: 1.0A maximum
- Insulation resistance: 500MΩ minimum at 500V DC
- Performance test: 100% patch cord test for Cat6A, Cat 6, and optional for Cat5e patch cord
- Test: 100% component test (patch cord test optional for Cat 5e patch cord)
- All products, including packing materials are REACH
- Packaging: 1 piece/bag
- Delivery lead-time: 3 to 4 weeks
- Urgent order: within 2 weeks
- Capability: 30,000 pieces/day
Shipping Information
| Lead Time | 7–10 days | ||
|---|---|---|---|
Main Export Markets
| Main Export Markets |
Asia,
Australasia,
Central/South America,
Eastern Europe,
Mid East/Africa,
North America,
Western Europe | ||
|---|---|---|---|
Payment Details
| Payment Method | Telegraphic Transfer in Advance (Advance TT, T/T) | ||||
|---|---|---|---|---|---|
