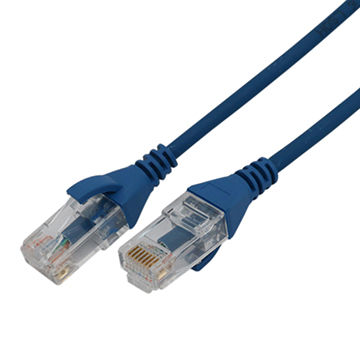

Economy solution/28AWG CM LSZH /0.5 to 100m length/Cat6 fluke tested patch cords
Click image to open expanded view

Economy solution/28AWG CM LSZH /0.5 to 100m length/Cat6 fluke tested patch cords

Lead Time: 7–15 days
US$ 0.85 - 5 / 1 Piece
Minimum order: 1 Piece
Get Latest Price
Sample Policy :
Free samples are available
Ningbo Excellence Communicated Connector Co. Ltd
Exhibitor

13 yrs

Verified Maufacturer
China
This supplier has a Global Sources Website for 13 years.
Trade Shows
We exhibited at 11 Global Sources Trade Shows. View More
Apr 11-14, Hong Kong, Booth: 9D15 View More
Business Type
Manufacturer,  Exporter
Chat
Product Information
Model Number60UTBLB00150025LS-c-#8659Brand NameEXW
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:

  • BC, 28AWG and LSZH jacket
  • Place of origin: Ningbo and China
  • Unit price: $0.5 to 3/piece
  • Certifications: ISO 9001:2001/ISO, 14001/OHSAS and 18001/UL/REACH
  • RoHS Directive-compliant
  • Cable construction:
    • Conductor: CAT6 UTP stranded, 28AWG and bare copper
    • Cable outer diameter: nominal 4.0 ±0.2mm
    • Insulation: polyethylene with color marking on white cores
    • Color codes: BL/WH-BL, OR/WH-OR, GN/GN-WH and BR/BR-WH
    • Shield: none
    • Outer jacket and boots: PVC, CMX, CM, CMR, leaded and lead-free as well as LSZH versions are available
    • Cable colors: green, others colors from RAL and Pantone
  • Mechanical characteristics:
    • Cable to plug tensile strength: 9kgsf (90n) minimum
    • Minimum bending radius: 22mm
    • Storage temperature: -20 to +80°C
    • Durability: 750 mating cycles
    • Plug housing: UL 94-V0, UL94-V2 and polycarbonate
    • Plug contact materials: 50μ inches gold plating over 100μ inches nickel-plated copper alloy
    • Fire performance: IEC 332.1, VW1, IEC 332.3 versions available depending on jacket type
    • Lengths: 0.5 to 100m (optional)
  • Electrical performance:
    • Contact resistance: 20mΩ maximum
    • Voltage rating: 75V maximum
    • Dielectric strength: 1000V/minute, minimum RMS
    • Current: 1.0A, maximum
    • Insulation resistance: 500MΩ, minimum at 500V DC
    • Performance test: 100% patch cord test for CAT 6a, CAT 6 and optional for CAT 5e patch cord
    • Test: 100% component test
  • All products, including packaging materials are REACH
  • RoHS Directive-compliant
  • Packaging: 1 piece/bag
  • Delivery lead-time: 3 to 4 weeks (urgent orders within 2 weeks)
  • Production capacity: 30,000 pieces/day

Shipping Information

Lead Time7–15 daysWeight per Unit10.0 Kilograms
Dimensions per Unit40.0 x 37.5 x 29.0 CentimetersHTS Code8544.42.11 00
Units per Export Carton100.0Export Carton Dimensions L/W/H40 x 37.5 x 29 Centimeters
Export Carton Weight10 Kilograms

Main Export Markets

Main Export Markets
Mid East/Africa,
North America,
Western Europe,
Asia,
Australasia,
Central/South America,
Eastern Europe
Payment Details
Payment MethodTelegraphic Transfer in Advance (Advance TT, T/T)
