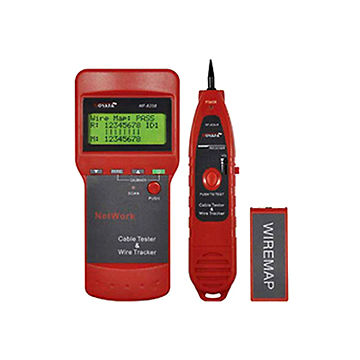

Name: Multifunction Network Cable Tester, The Function of Probing the Audio and Tracing the Cable
Brand: Qingdao Tlead International Co. Ltd

Product Information

Model Number	NF8208	Brand Name	TLead
Small Orders	Accepted

Key Specifications/ Special Features:

Feature:
- One person enough to complete cable continuity check
- The function of probing the audio and tracing the cable
- Check network cable faults, such as open, short, jumper wire, reverse connection or cross-talk interference
- Measure cable length and determine the distance of open and short circuit
- Dynamically calibrate cable length and make length measurement as accurate as 95%
- Far-end recognizer with prompting voice
- Self-checking function and automatically compensate any change in battery capacity or ambient temperature
- Single board computer software watchdog design and reliable operation
Specifications:
- Overall dimension:
  - Main tester: 180x80x40mm
  - Receiver: 218x46x29mm
  - Remote identifier: 77x31x21mm
- Power: main tester uses 6V DC for power supply, receiver uses 9V battery for power supply
- Display: special 4 x 16 character big screen LCD lattice (valid visual field 61.6 x 25.2mm)
- Type of cable tested: STP/UTP twin twisted cable, coaxial cable, telephone line
- Type of cable detected: 5E, 6E, telephone wire, coaxial cable and other metal wires
- Ambient temperature in work: -10-+60ºC
- Tester port: tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), hunting RJ45 port (SCAN), remote identifier RJ45 port (R), the extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line
- Length measurement of twin twisted cable:
  - Scope: 1-350M (3 ~200 ft)
  - Calibration accuracy: 3% (+/- 0.5M or +/- 1.5 ft) (calibrating cable > 5M)
  - Shipment accuracy: 5% (+/- 0.5M or +/- 1.5 ft). (AMP, AT&T Class 5 cable)
  - Display: M or ft
  - Length calibration: user can set calibration factor by himself with a given length cable
  - Length of calibrating cable is more than 5M
  - Wire sequence and locating cable error: check errors such as open circuit, short circuit, reverse connection, cross-over or cross-talk interference
  - Locating cable: 8 remote identifier test jacks (ID 1 ≥ ID 8)
  - Automatic time-delay shut off time: the tester does not operate for 30 minutes

Main Export Markets

Main Export Markets	Central/South America, Eastern Europe, North America, Mid East/Africa, Asia, Western Europe, Australasia
