DIP XTAL 49S-SMD 3~70MHz crystal resonator
US$ 0.03
≥1000
Pieces
Hefei Jingweite Electronics Co.,ltd.
Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.
Product Information
| Model Number | JWT 49S-SMD | Brand Name | JWT |
|---|---|---|---|
| origin | China | Small Orders | Accepted |

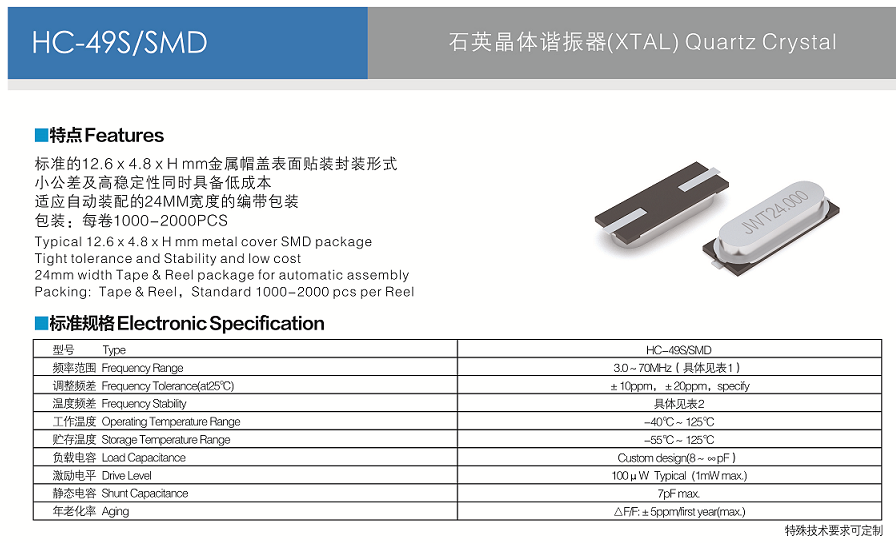

Key Specifications/ Special Features:
Typical HC-49S/SMD package
Tight tolerance and stability
Packing: Tape&Reel
| Type | HC-49S/SMD |
|---|---|
| Frequency range | 3.0~70Mhz |
| Frequency tolerance@25℃ | ±10ppm, ±20ppm or specify |

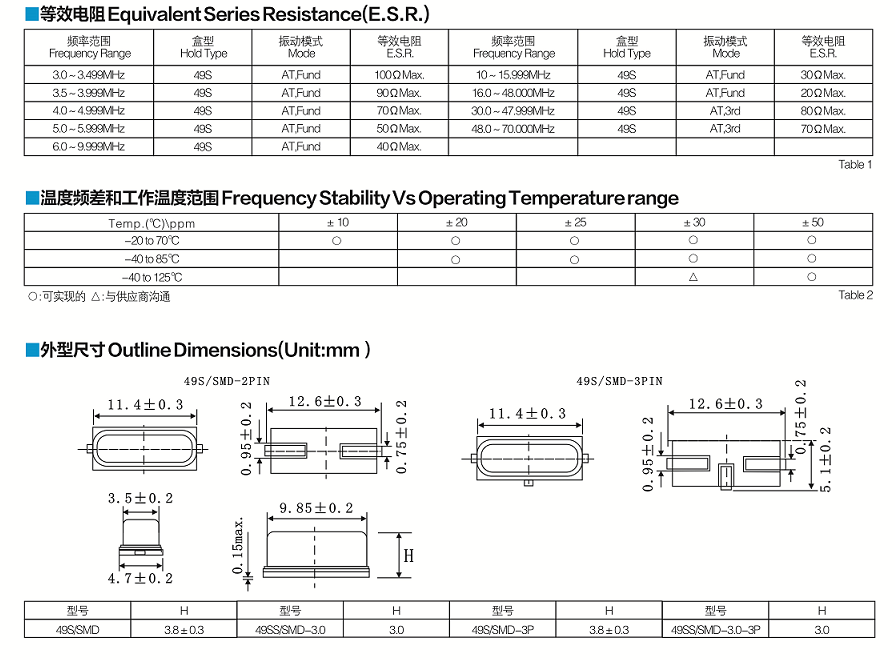

| Frequency stability | see table |
| Operating temperaure | -40~125℃ |
| Storage temperature | -55~125℃ |
| Load capacitance | Custom design |
| Drive level | 100uW |
| Shunt capacitance | 7pFmax |
| Aging | ±5ppm/1st year |

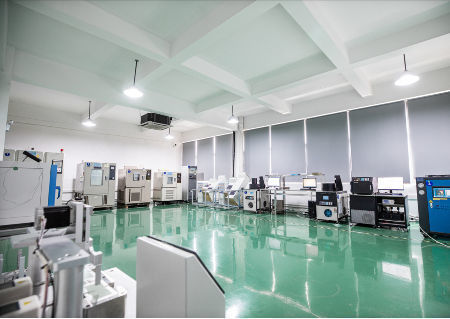

JWT invested to build quartz crystal components environment and cycle laboratory.The laboratory can carry out performance test, mechanical test,environmental test and reliability test of crystal components.

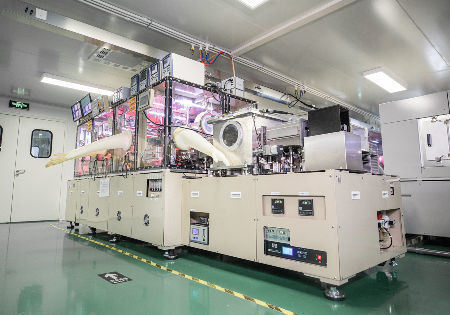

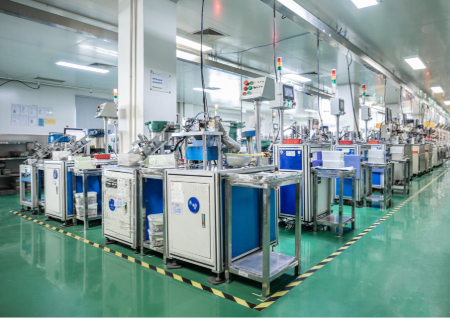

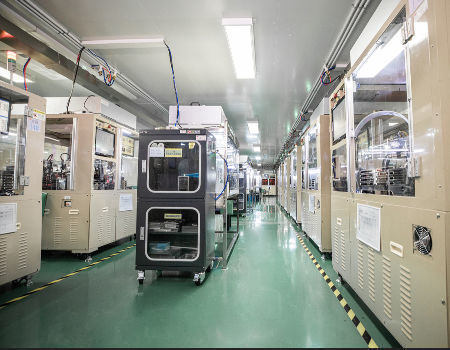

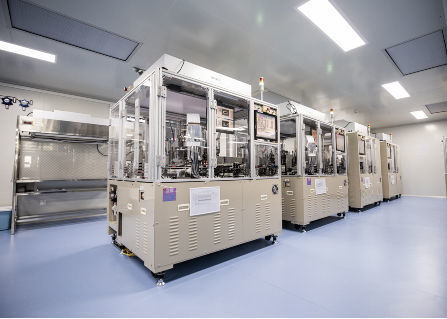

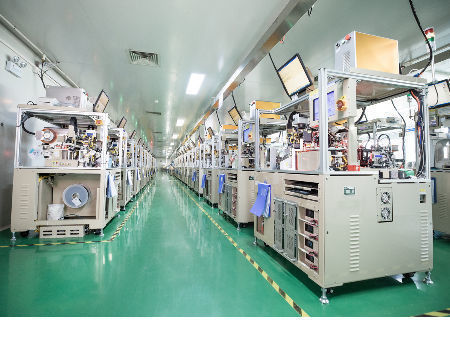

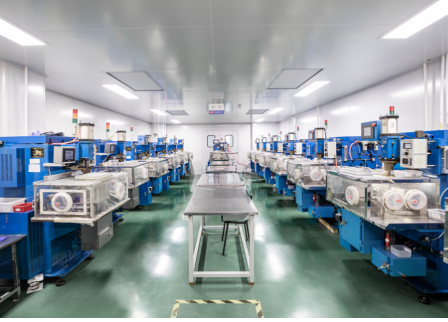

Production line
Production line
Product Certifications
| Certificate Standard |
REACH
| ||||
|---|---|---|---|---|---|
| Certificate Image |  Click on the picture to see a larger one | ||||
| Certificate Number | CANEC2211466177 | ||||
| Validity | From 2022/06/28 | ||||
| Issued By | SGS | ||||
| Certificate Standard |

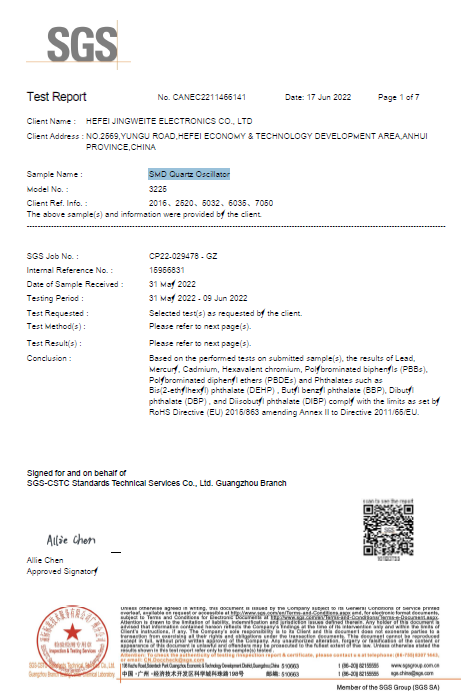

ROHS
| ||||
|---|---|---|---|---|---|
| Certificate Image |  Click on the picture to see a larger one | ||||
| Certificate Number | CANC2211466141 | ||||
| Validity | From 2022/06/17 | ||||
| Issued By | SGS | ||||

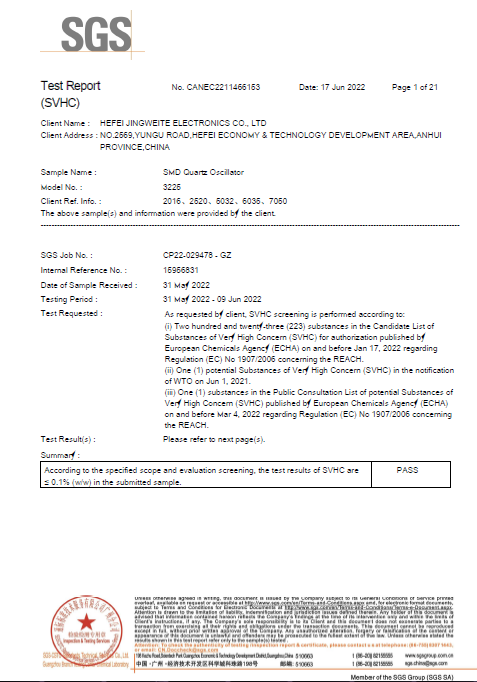

| Certificate Standard |
REACH
| ||||
|---|---|---|---|---|---|
| Certificate Image |  Click on the picture to see a larger one | ||||
| Certificate Number | CANEC2211466153 | ||||
| Validity | From 2022/06/17 | ||||
| Issued By | SGS | ||||
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.
Shipping Information
| FOB Port | China (Mainland) | Lead Time | 10–30 days |
|---|---|---|---|
| Weight per Unit | 0.16 Kilograms | Dimensions per Unit | 20.0 x 12.0 x 20.0 Centimeters |
| HTS Code | 8541.60.00 00 | Units per Export Carton | 15000.0 |
| Export Carton Dimensions L/W/H | 20.0 x 12.0 x 20.0 Centimeters | Export Carton Weight | 0.2 Kilograms |
Main Export Markets
| Main Export Markets |
Asia,
Australasia,
Central/South America,
Eastern Europe,
Mid East/Africa,
North America,
Western Europe | ||
|---|---|---|---|
Payment Details
| Payment Method | Telegraphic Transfer (TT,T/T) | ||||
|---|---|---|---|---|---|
