| Model Number | MINGYU-HLCPC30YE-1 | Brand Name | MINGYU |
|---|---|---|---|
| origin | China | Small Orders | Accepted |
Product Description
Product Parameters
| Model | CPC30SY | |
| Power type | diesel | |
| load capacity | 3000kg | |
| Load centre distance | 500mm | |
| lifting height | 3000mm | |
| fork size | Length × width × thickness | 45x125x1070mm |
| Mast tilt angle | front/rear | 5/15. |
| min turning radius | 3900mm | |
| min ground clearance | 250mm | |
| Overhead guard height | 2450mm | |
| front overhang distance | 595mm | |
| Max driving speed | without load | 30km/h |
| Max lifting speed | load/without load | 450/550mm/s |
| Descending speed | load/without load | ≤600/≥300mm/s |
| Max climbing capacity | 25% | |
| length | without fork | 3090mm |
| width | 1600mm | |
| Max lifting height of fork (with stopper shelf) | 4350mm | |
| Landing height of the gantry | 2235mm | |
| tyre | front | 12-16.5-12PR |
| rear | 12-16.5-12PR | |
| wheel base | 1840mm | |
| wheel track | front/rear | 1250/1320mm |
| weight | without load | 4900Kg |
| accumulator | voktage/capacity | 12/80 |
| engine | type | xinchai |
| rated power | 40kw | |
| transmission type | Real-time four-wheel drive | |
| Drive gear front/back | 2/2 | |
| working pressure | 20 | |

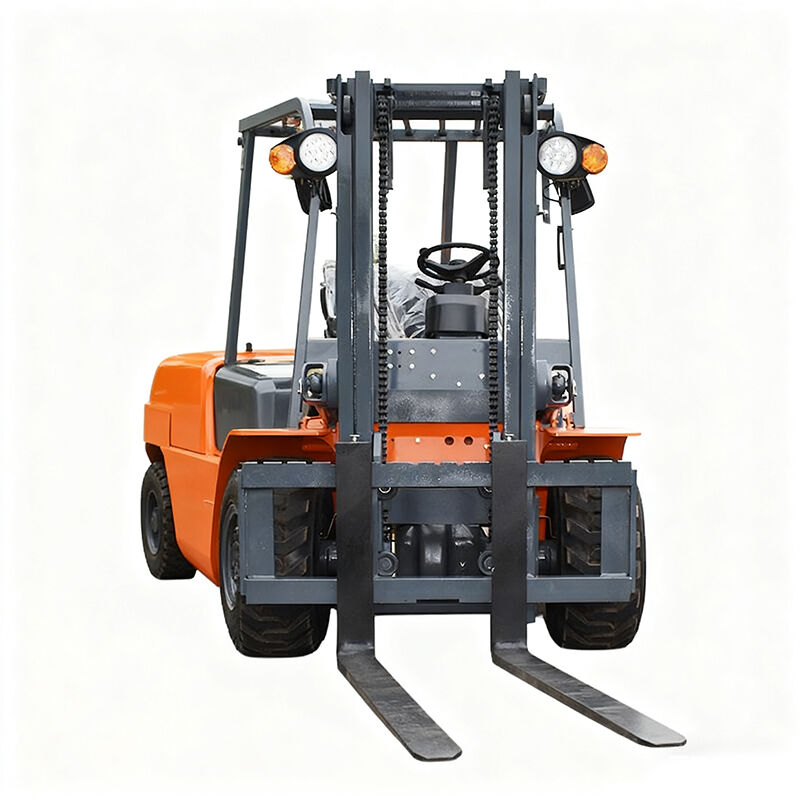

Detailed Photos

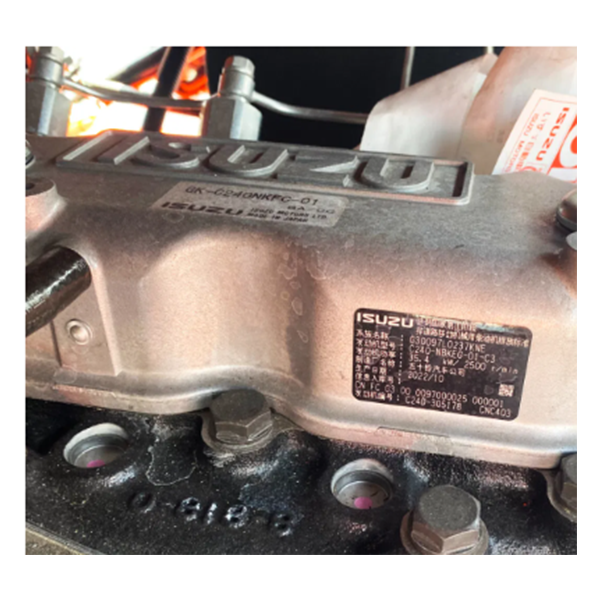

MYZG forklifts are all with reliable power accessories,like Mitsubishi/Cummins / Zhejiang Xinchai /Quanchai Engine.
Strong Power, dependable, easy to service ,and with low emissions and fuel consumption
Hydraulic Steering
Make the steering smoother and quicker to ensure the safety of the driver

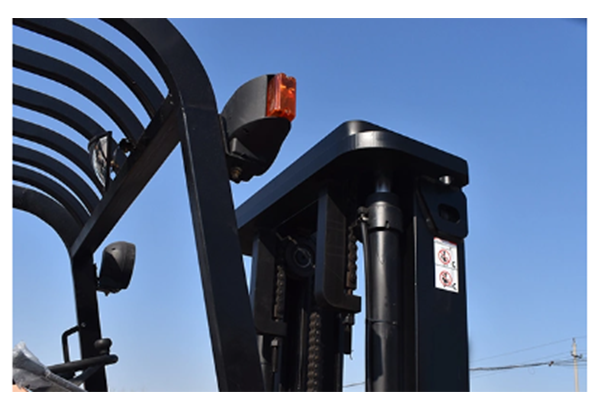

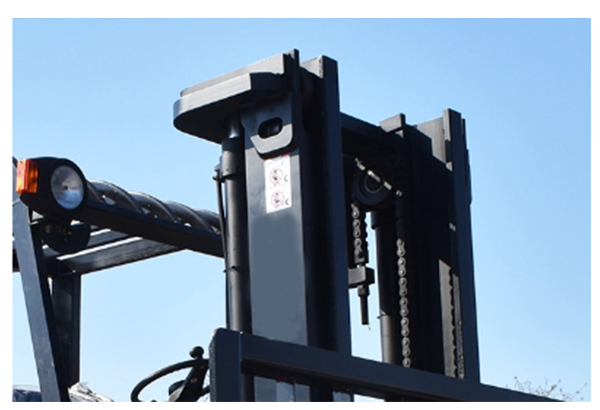

Compound Chain
Strong pull and easy lifting,thincking.
To prevent safety accidents
Tire
Wear-resistant Pneumatic tires.Adapt different roads and working environment.
Our Advantages

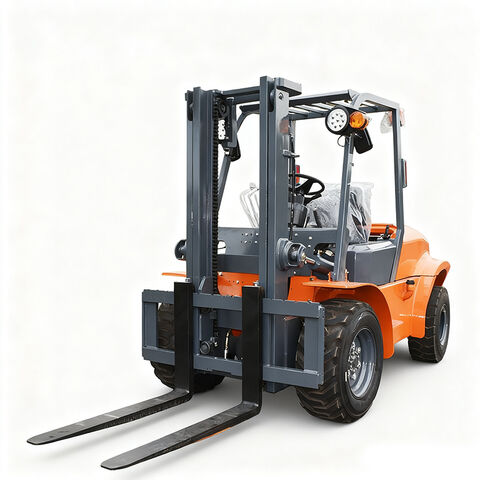

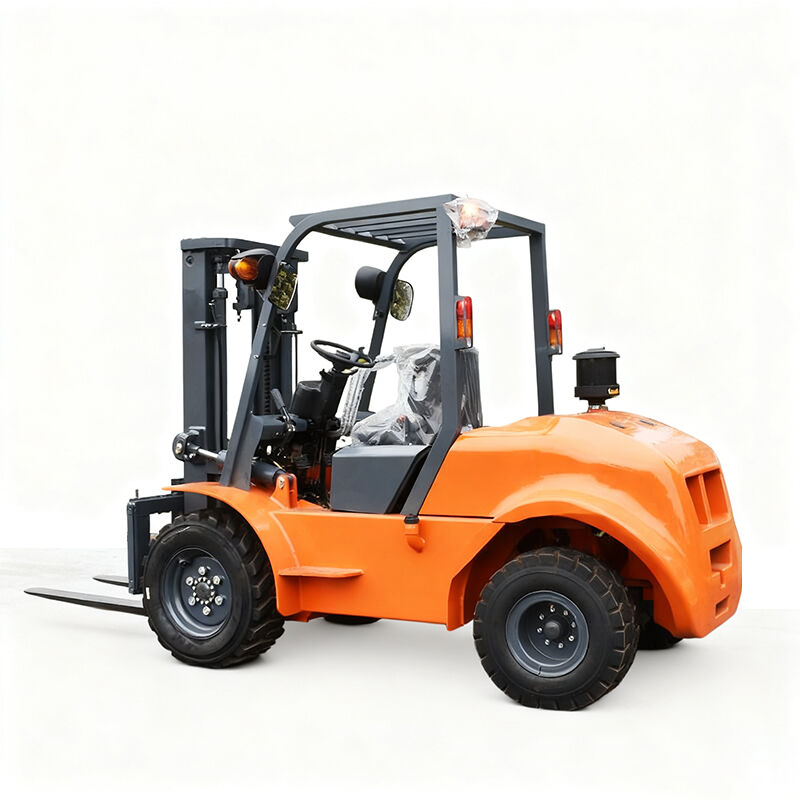

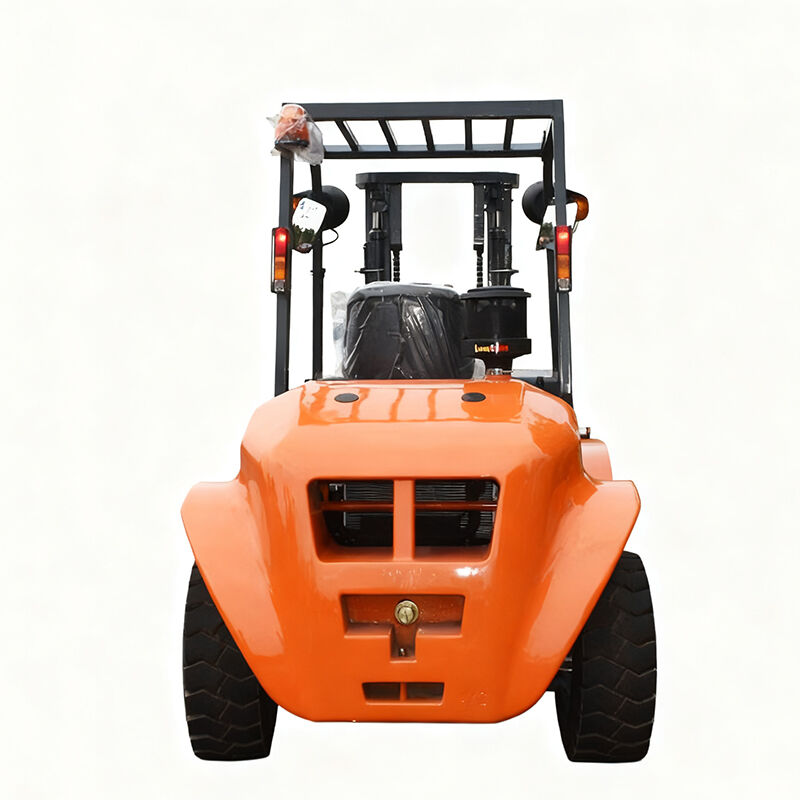

The CPCY30 Forklift is a reliable and cost-effective solution for various material handling needs. With a rated load capacity of 3 tons, this internal combustion counterbalanced forklift offers simplicity, elegance, and environmentally friendly design. The wide view mast design provides the operator with an expansive field of vision, ensuring enhanced safety and efficiency.
Equipped with a reliable LCD digital instrument panel, the CPCY30 Forklift allows for easy control and operation. The high-top and large-diameter air intake system design keeps the engine away from dust, thereby improving its lifespan. Additionally, this forklift can be optionally equipped with a cast steering axle, resulting in lower maintenance costs over time.
1.4-wheel drive
2.Fully enclose/close cab
3.Strong power,high reliability,few faults
4.Front axle is equipped with slip differential
5.Thickened articulated frame,small turning radius,flexible
6.High clearance from the ground to cross obstacles on the site
7.Hydraulic transmission,good maneuverability and p assability
8.Reinforced drive axle,wheel side planetary gear reduction,long working life
9.Load sensing hydraulic steering gear,easy to operate,stable and reliable movement

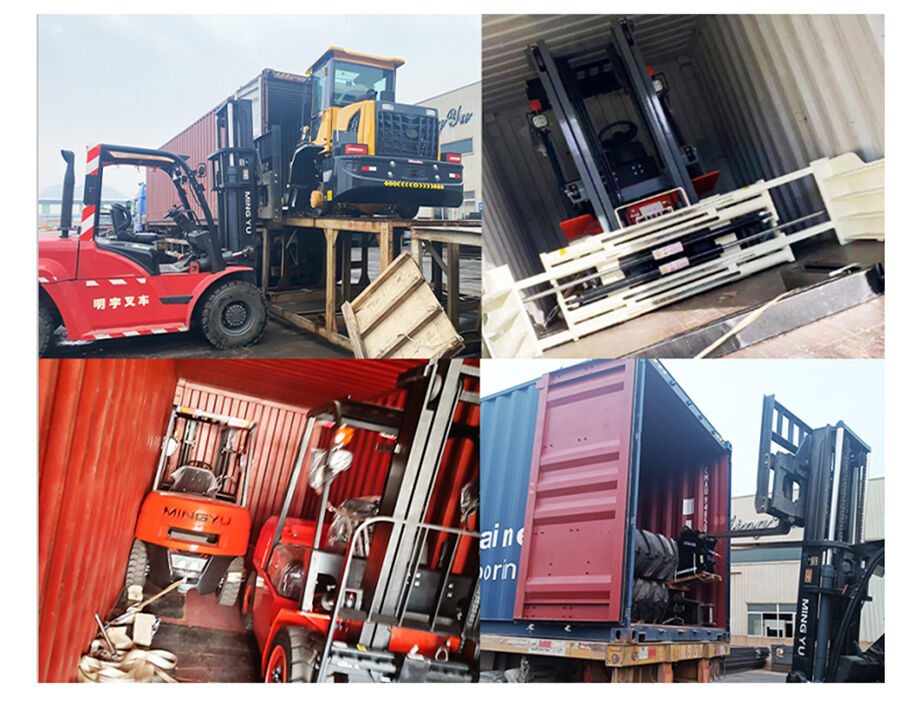

Packaging & Shipping
According to the delivery requirements of each customer, we carefully package each TRUCK. Before delivery, we will take photos and videos, and only after getting the customer's approval will we send them away.
After sales service
MYZG always treat after-sale service as important as sale.
Nowadays we have been sell more than 100 countries.
All the products of mingyu supplied with one year or 2000 working hours (which occurs first) period quality warranty.
Detail clauses and policies please see to our website and product's quality certificate.
Service in Philippines,Indonesia, Thailand, Vietnam, Brazil, Mexico, Russia , Chile,German, France,England, Ireland, New Zealand, Romania,etc 100+ Countries at Present.

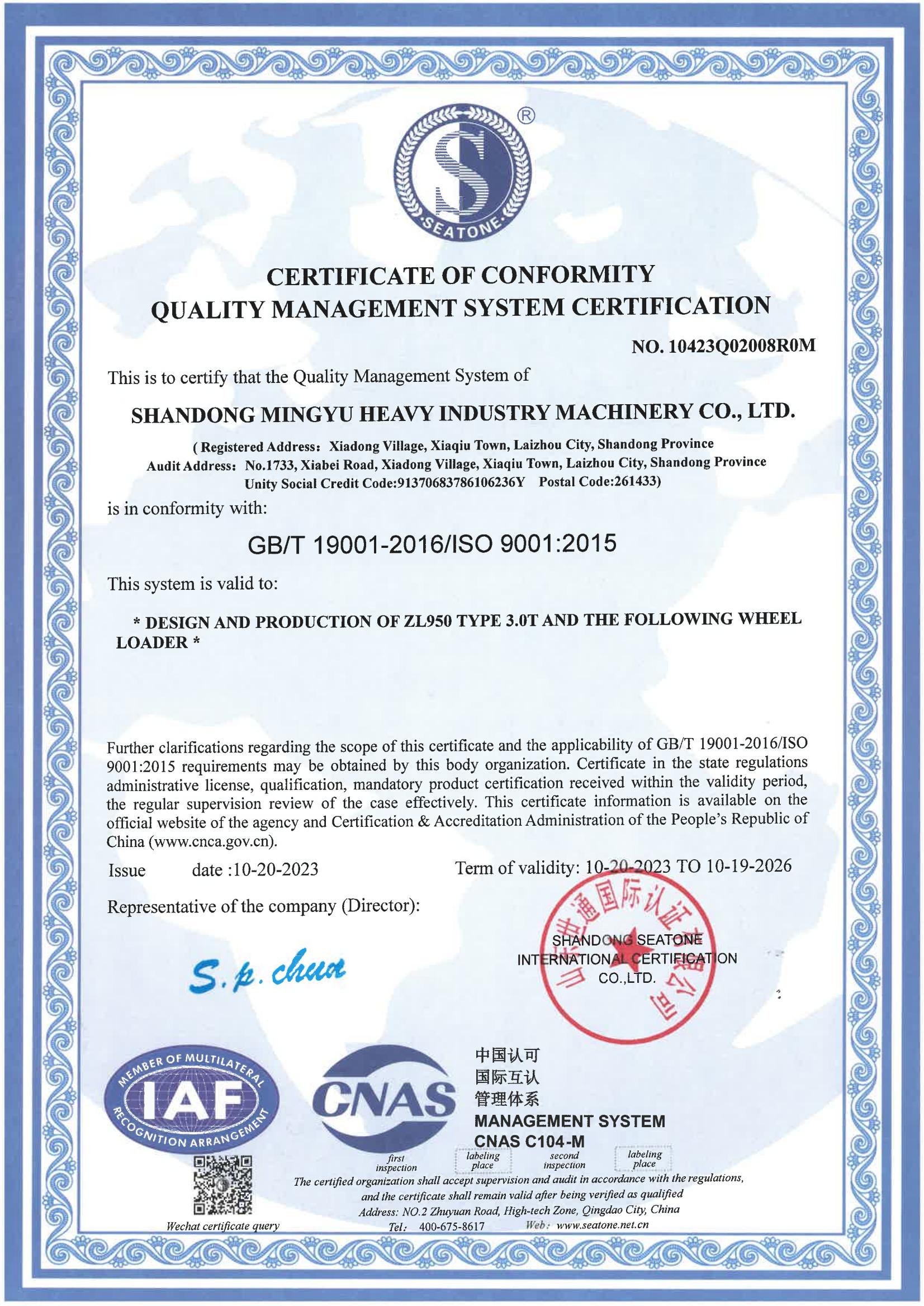

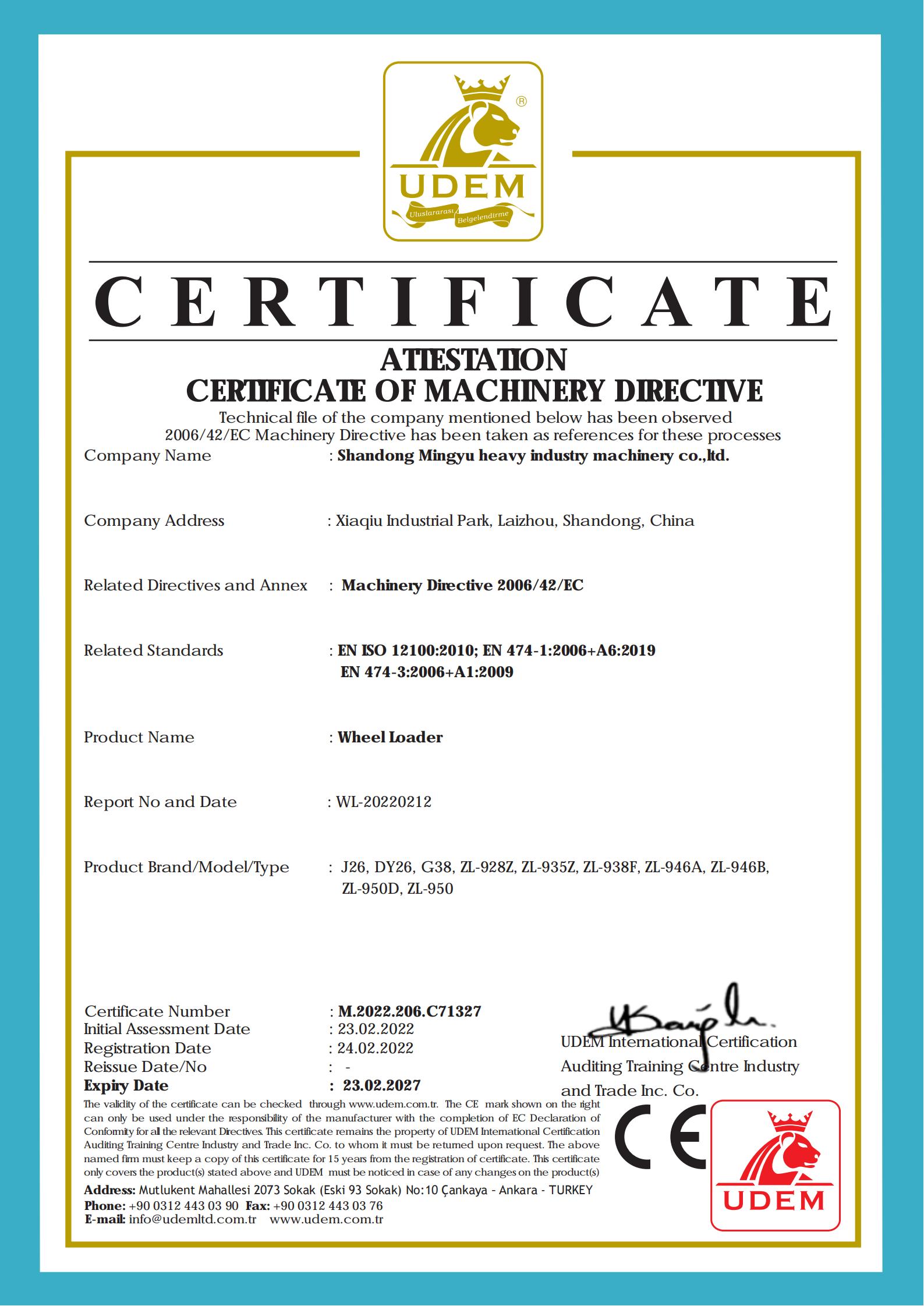

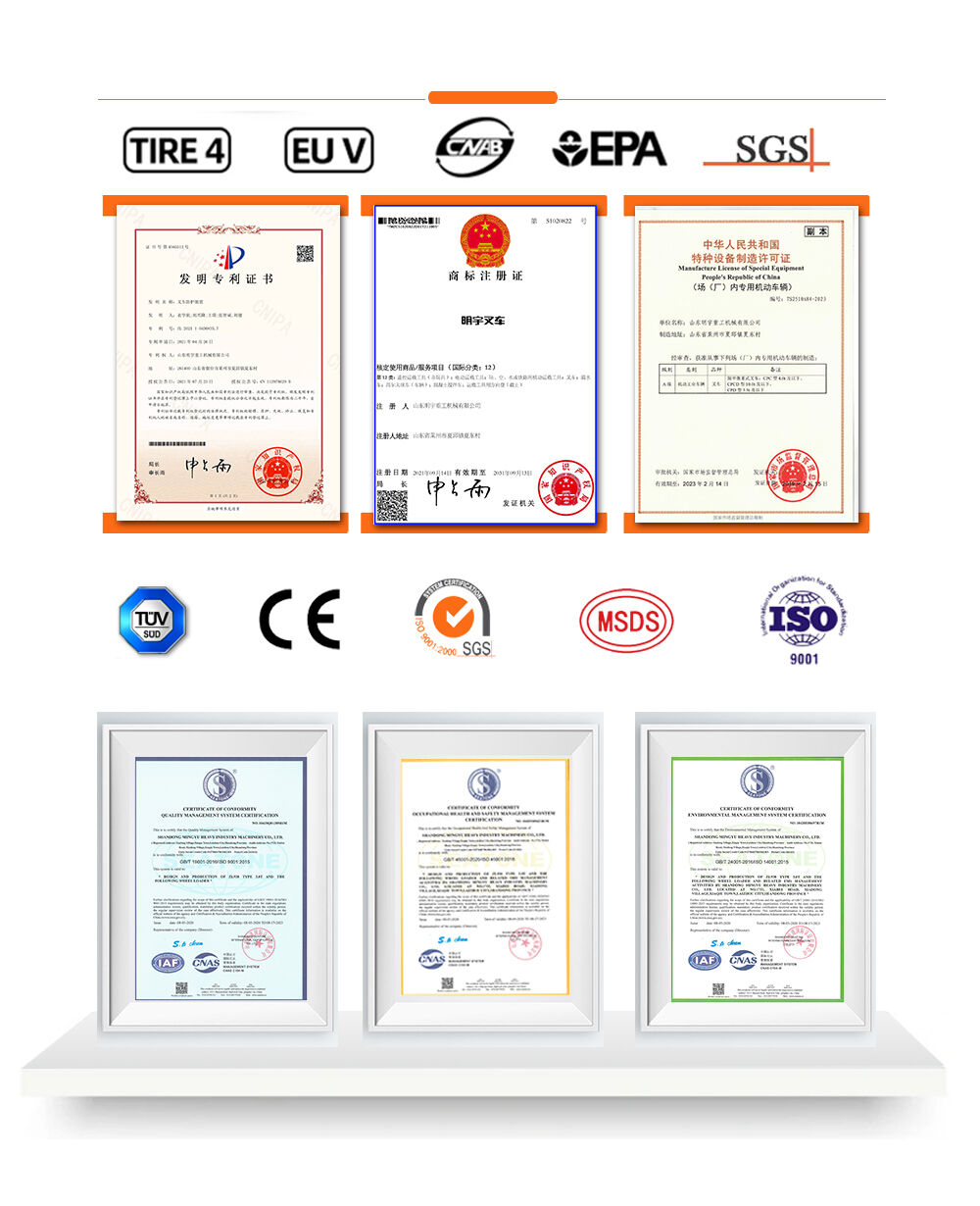

Certifications

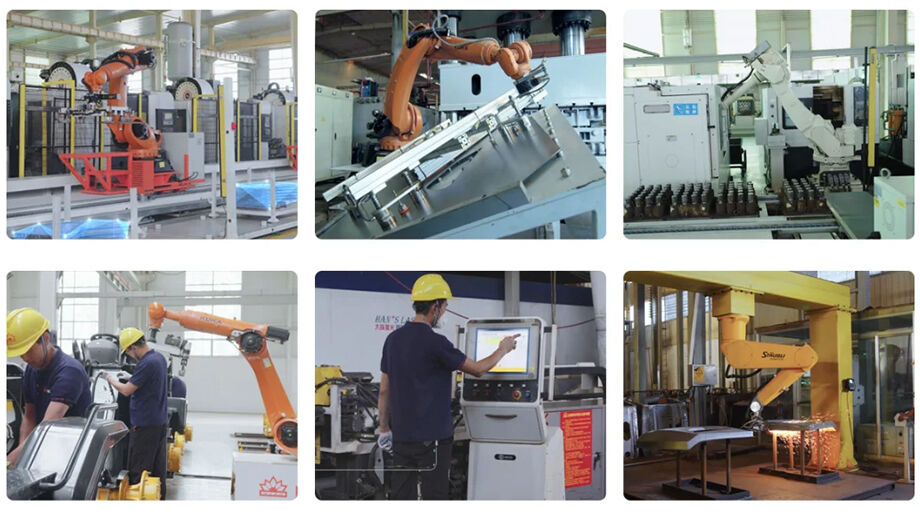

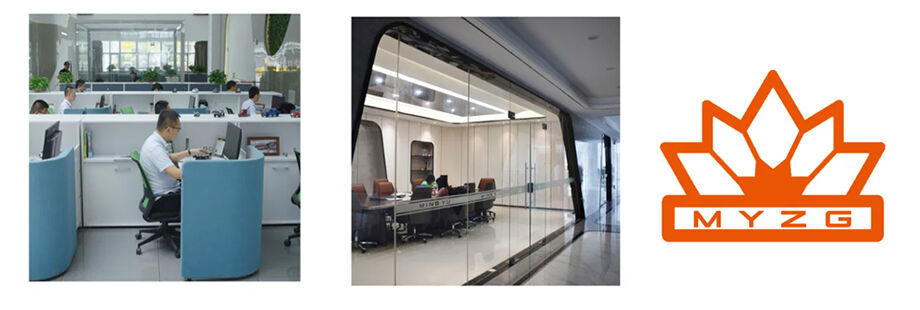

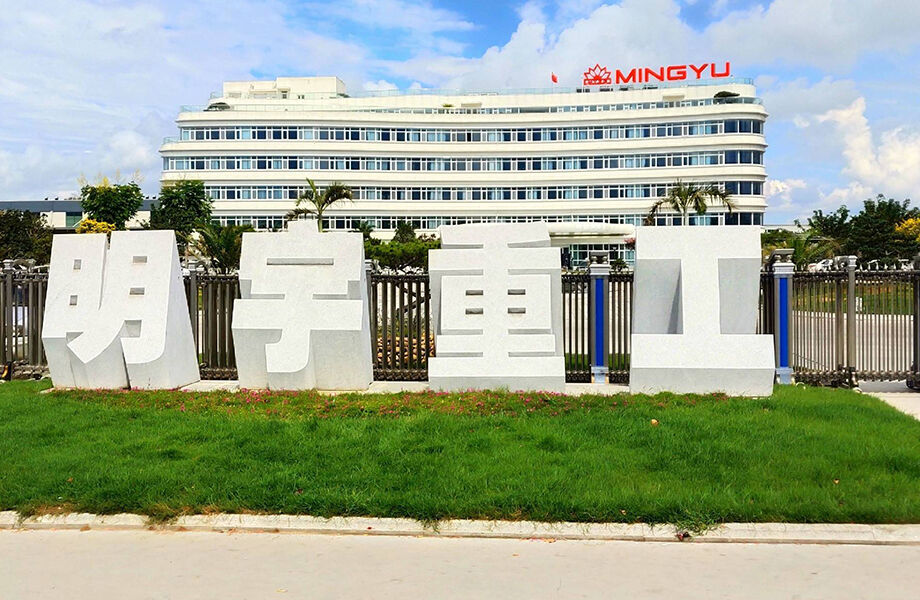

Our Factory
Shandong Mingyu heavy industry machinery co.,ltd. Shandong Zhuogong Machinery equipment Co.,Ltd. Laizhou Zhuo Kun Import And Export Trading Co.,Ltd.(MYZG) was founded in 1996. Since then, MYZG has stood at the forefront of the Chinese small heavy machinery industry and developed into one of the most influential, and the most competitive enterprise groups with the complete product varieties and series. Every machine produced by Mingyu has to undergo several rigorous tests, and it can be finally delivered to customers only after all tests are completed and qualified.
In terms of production management,we have professional training and learning and modern management mode,every worker and manager masters the most popular manufacturing and management concepts.The whole production process is controlled by ERP system,from the smallest stainless steel part, to the patented diamond shaft,the most advanced anti-corrosion technology.
MYZG machines are exported all over the world,about more than 130 countries.We use brand engine, the spare parts are easy to get,and the engine can be changed to many brand such as Quanchai,Yunnei,Deutz,Cummins, Mitsubishi,Changchai, Xinchai,Kubota,Yanmar ,etc.
MYZG have perfect after-sales service,and provide one year warranty .Our price is more competitive and the good service well received by customers.
Activity
Click on the item coupon to initiate an inquiry to contact us.
You will get the lowest price and the biggest discount from our factory.
Your satisfaction is our ultimate goal, MYZG beyond your needs.
We hope to cooperate with more customers for mutual development and benifits. Welcome to contact MINGYU with your demands.

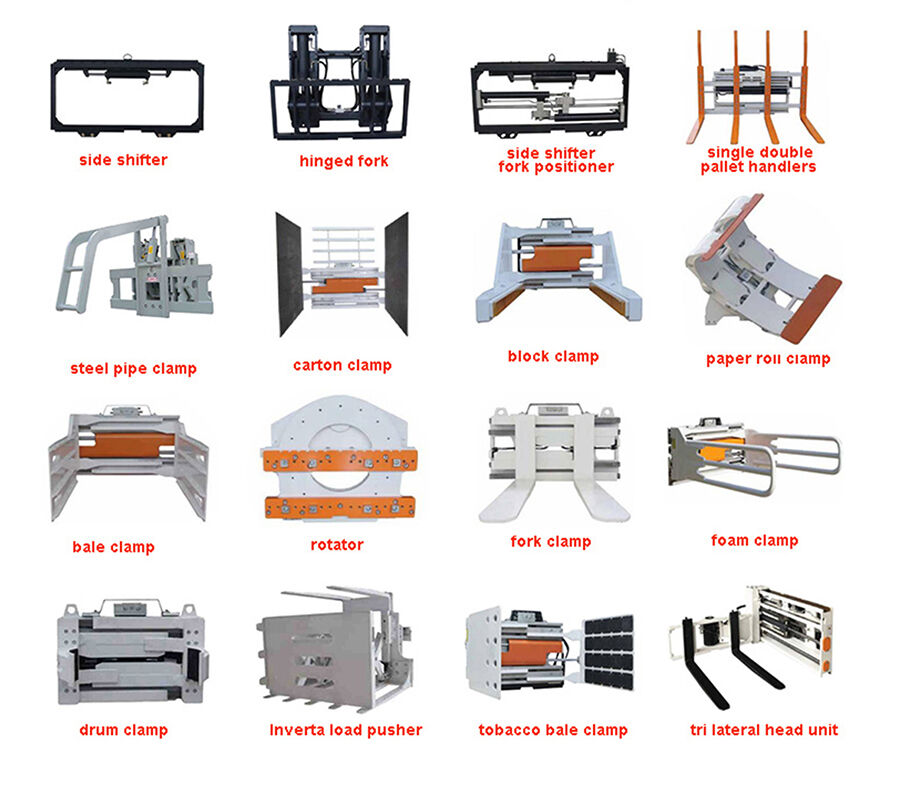

Other model options can be selected
FAQ
1. What the Certificate do you have?
LTMG workshop meet with the ISO9001:2008 Quality System. All of our products with CE certificate. Some of our products meets the EPA requirements.
2. Can you customize and design as the clients' requirement?
MYZG will try its best to meet all kinds of clients' special requirements. However, All the customizing and refit should be implemented safely and scientifically. The colors can be painted as client's need.
3. How long is the warranty of your products?
Normally 1 year or 2000 working hours whichever occurs first. Details to see the LTMG warranty policy for each model.
4. Can you produce the products labeled with the client's brand?
With the authorization of the brand, we can OEM for our clients.
5. What the payment terms do you accept?
On T/T term 30% down payment is required in advance,and 70% balance shall be settled before shipment.
6. What logistics ways we can work for shipment ?
We can ship construction machinery by various transportation tools.
1. For 90% of our shipment,we will go by sea,to all main continents such as South America,Middle East,Africa,Oceania and Europe etc,either by container or Bulk shipment.
2. For neighborhood countries of China,such as Russia,Mongolia, Kazakhstan,Uzbekistan etc., we can ship trucks by railway.
3. For light spare parts in urgent demand,we can ship it by international courier service,such as DHL,TNT,UPS,or Fedex.
7. Delivery time:
Standard configuration products are always in stock. The production period of Customizing products is from 7 days to 15 days.
| FOB Port | Qingdao | Lead Time | 7–15 days |
|---|---|---|---|
| Weight per Unit | 4900.0 Kilograms | Dimensions per Unit | 309.0 x 160.0 x 224.0 Centimeters |
| HTS Code | 8427.20.90 00 | Units per Export Carton | 5.0 |
| Export Carton Dimensions L/W/H | 12.1 x 2.35 x 2.7 Meters | Export Carton Weight | 4.5 Tons (UK) |
| Main Export Markets |
Asia,
Australasia,
Central/South America,
Eastern Europe,
Mid East/Africa,
North America,
Western Europe | ||
|---|---|---|---|
| Payment Method | Telegraphic Transfer (TT,T/T) | ||||
|---|---|---|---|---|---|
