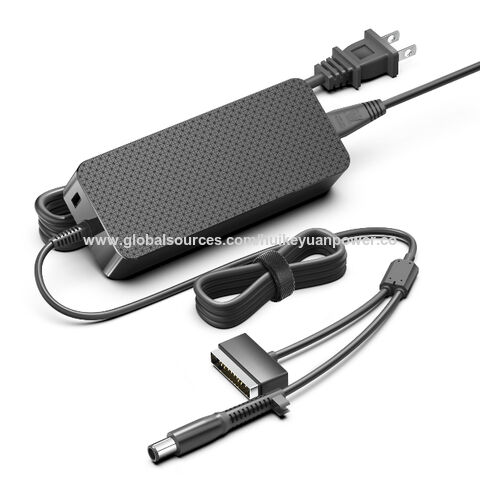

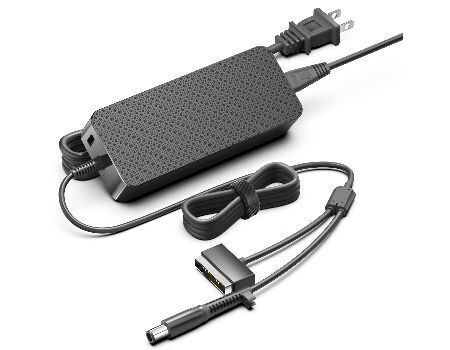

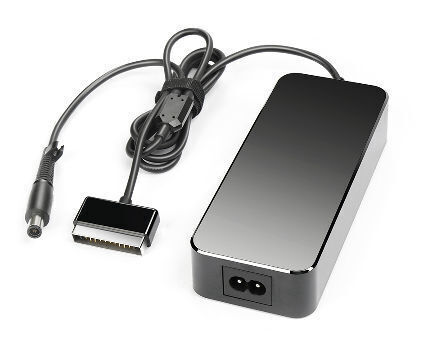

100W 17.5V 5.7A Power Supply for DJI Phantom 4 Pro + Drone Battery Charger 17.4V AC DC power adapter For DJI 4 Advanced Drone CE

Model Number: A100-drone charger

Brand Name: KFD / HKY

Origin: China (mainland)

Small Orders: Accepted

OEM/ODM: Accepted

17.5V 5.7A AC Adapter Charger Power Supply Cord for DJI Phantom 4, 4 Pro, 4 Pro V2.0, 4 Pro+, 4 Pro Plus, 4 Advanced Drone, DJI Phantom 4 Pro+ Obsidian Edition Drone Battery Charger US Plug Cable

100-240VAC Universal Input

Meet CEC,Energy Star 3.0 (EPA/DOE-Level VI)

Output: 17.5V5.7A

5 Years Warranty

Safety Approvals: CE FCC ROHS

Input

 Rated Input Voltage:100 - 240V AC

 Rated Frequency: 50/60Hz

 Steady AC current: 1.5A Max measured at 100Vac input and maximum load

 Inrush Current: Less than 100A

 Empty Loaded Wasting: 150mW at 5V output

Output

 Power: 100W Max

 Load Regulation: ±5%

 Turn on delay time: 3s Max at AC 115V,max output load

 Hold up time: 5ms Max at AC 115V,max output load

 Rise up time: 40ms Min at AC 115V, max output load

 Efficiency: Meet CEC,Energy Star 3.0 (EPA/DOE-Level VI)

 Protection

  Over Voltage Protection: Auto recovery

  Short Circuit Protection: Auto recovery

  Over Current Protection: Auto recovery

  Protection Class: Class I

Safety Standards

 LVD: UL62368-1/UL60950-1  IEC62368-1/IEC60950-1  EN62368-1

 EMC & EMI: EN55032 EN55024 EN61000-3-2 EN61000-3-3

 FCC: EN55032 FCC Part15 Class B

Mechanicals

 Case Dimension: 145.89mm*59.19mm*28.5mm

 Cable: UL20276 # 18AWG, 1750mm

 Case Material: UL94-V1

 Weight: 370g(Ref.)

Reliability Items

 Hi-Pot Test: AC 3000V 1min between input plug-DC plug

 Leakage current : 0.25mA maximum, at nominal AC input voltage and frequency

 Temperature Rise: case surface rise 95℃ or less

Environmental

 Operation Temperature: -10 °C – 40 °C

 Storage Temperature: -25 °C – 70 °C

 Operation Humidity: 5%( 0°C) ~ 90%( 40°C)

 Storage Humidity: 5%~ 95%

Usage

 For DJI Phantom 4/4 Pro/Pro+/Advanced Battery and Remote Controller.
