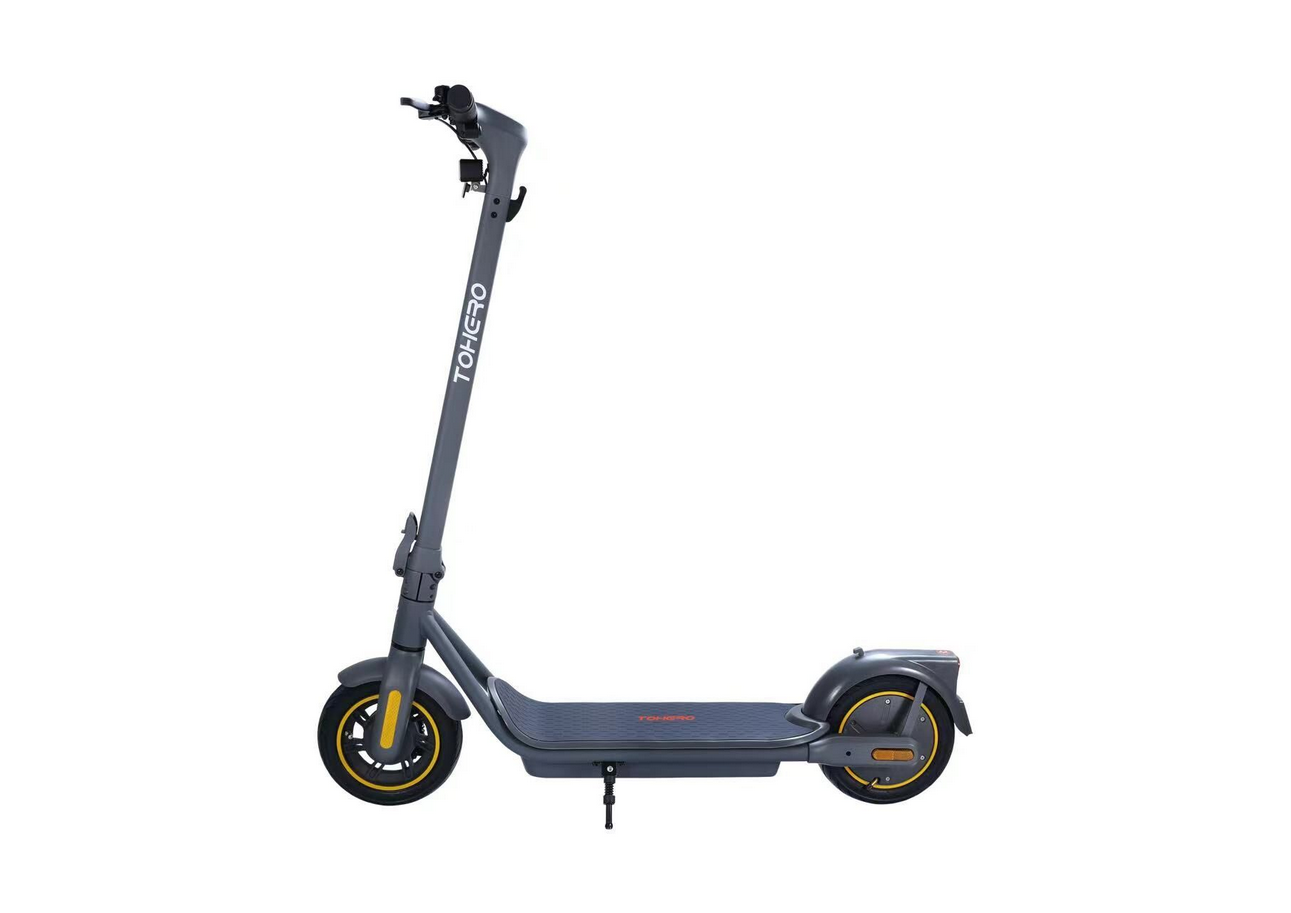

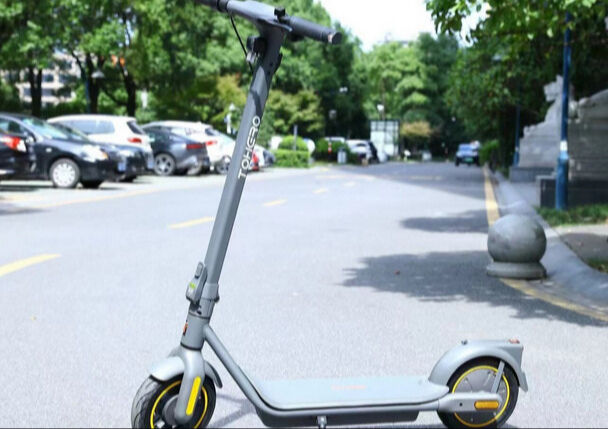

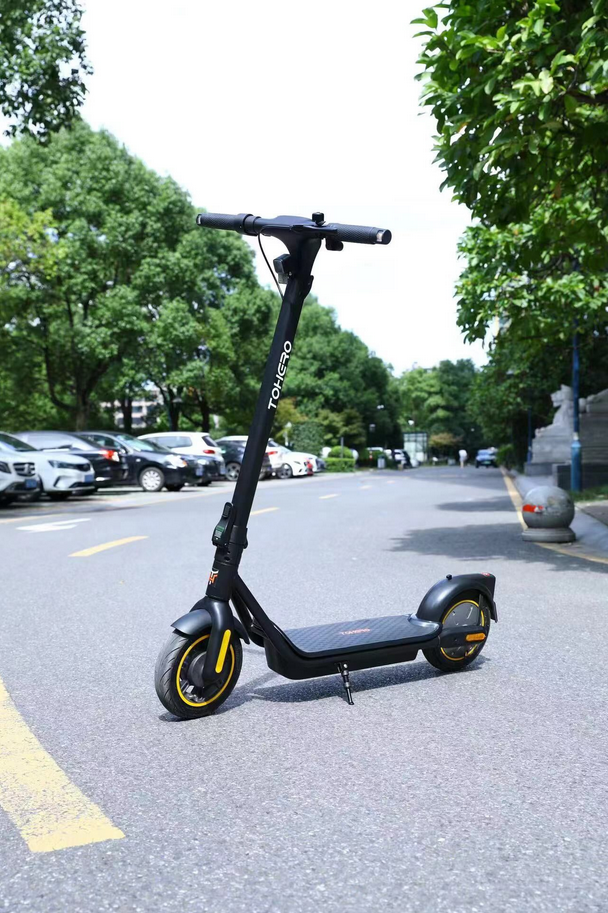

G30/G2 Max Electric Scooter 10-inch LED Screen, APP Control, CE/EN17128 Certified.Newly designed large-screen electric scooter

ELECTRIC SCOOTER Newly designed

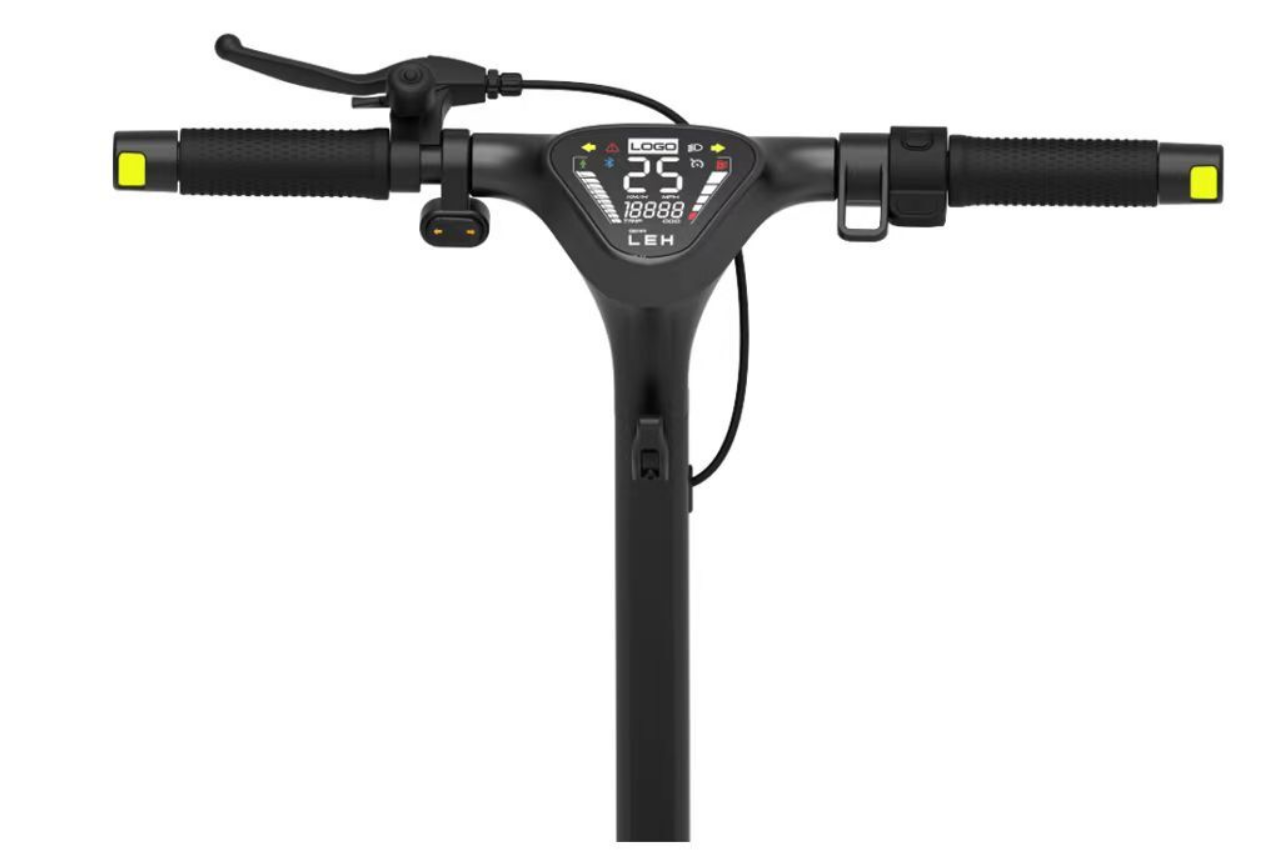

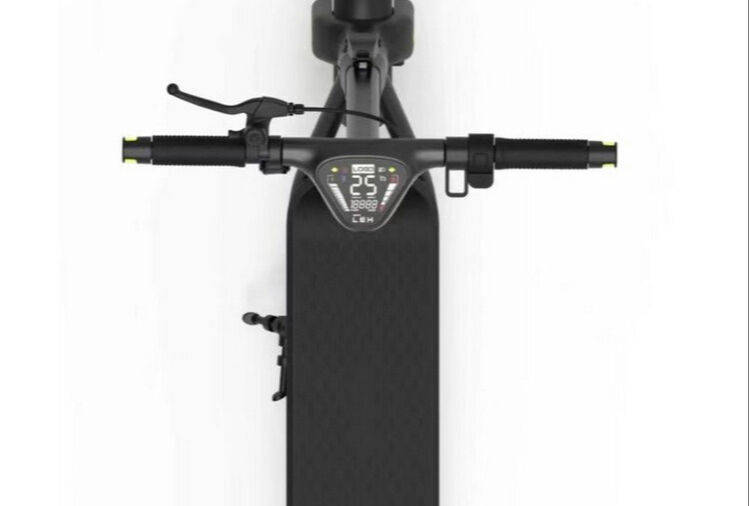

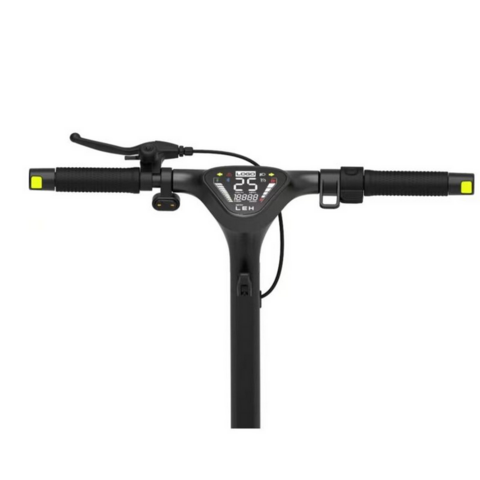

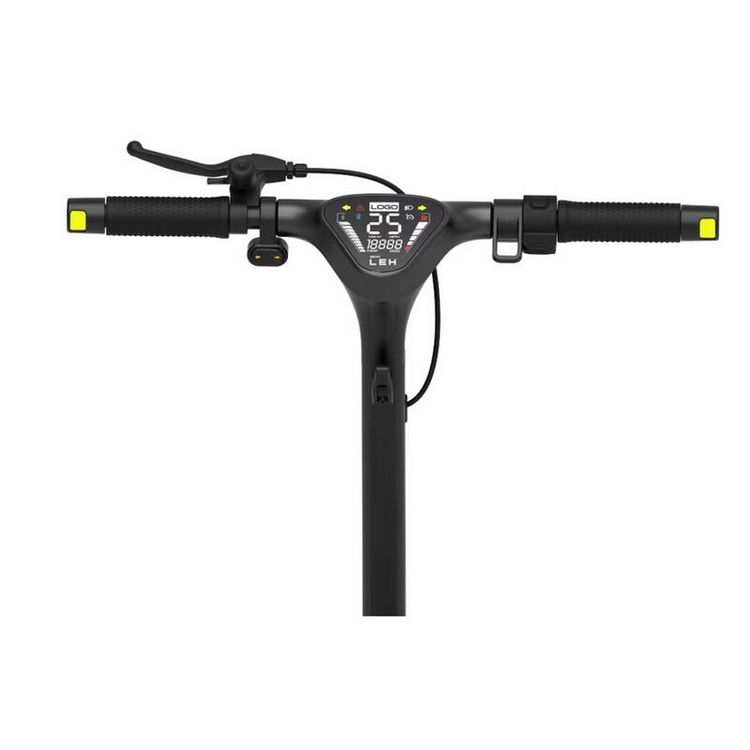

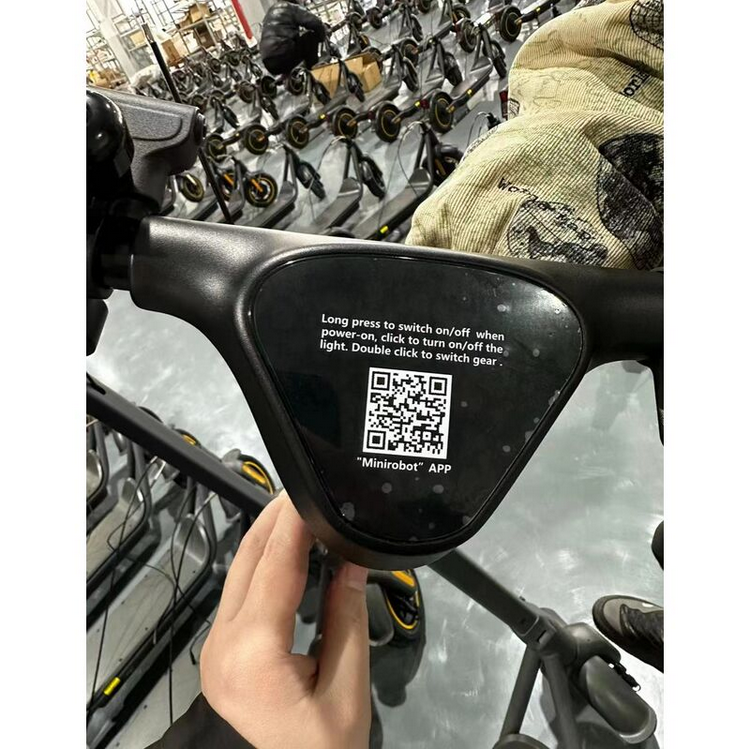

large-screen LED instrument cluster Turn signal light APP e scooter G30

G2 MAX 10INCH CE/ EN17128

Key Specifications/ Special Features:

Products Description

The electric scooter, equipped with 36V 10.4AH battery and 350W motor, features an exclusively designed large-screen meter, high-brightness turn signals, thick aluminum front straight bar, and a Bluetooth-linked APP, which brings a more convenient city life and more fun on the go.

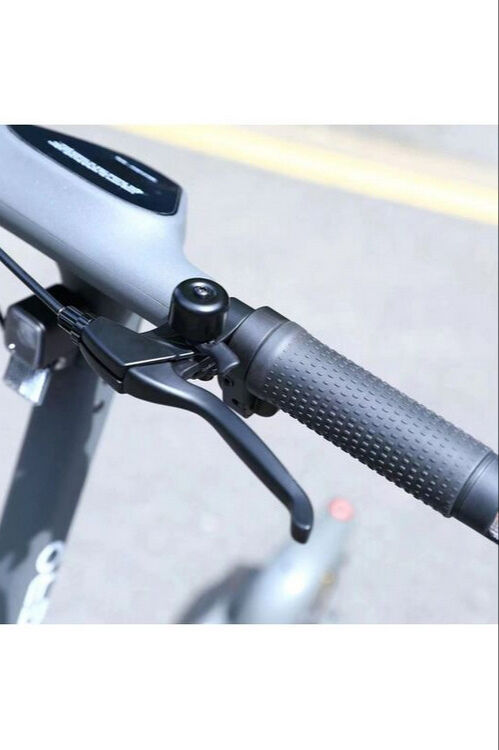

Customized dual brake handles are supported in Europe

Electric scooter support OEM/ODM, support the whole car LOGO design and customization, support the customization of packaging, support the motor and battery configuration upgrades, support the accessories specified brand, with a perfect technical team to deal with emergencies for the safety of customers to escort the use!

Parameters:

Wireless connection: smart phone APP, Bluetooth

Appearance patent and structure patent

Rated power and maximum power：350W/453W

Battery capacity： 36V (10.4Ah)

Brake: Front wheel drum brake, rear wheel electronic brake

Lights: Spotlight type headlights, two-way turn signals, brake lights

Scooter size：1160*600*1200mm

Outer Box size：1180*220*525mm

N.W/G.W: 19kgs/23kgs

Loading quantity：20GP:220pcs;40HQ/520pcs

Tire specifications ：10ich

Charging time:10.4AH:5-6 hours

Performances:

Private mold products, with appearance patents, exclusive integrated large instrument whole car waterproof, whole car waterproof IP55, electric control equipment waterproof IP67

Range :30-35km

Maximum load :150KG

Maximum speed :25km/h/ four-speed transmission

Tips for battery using as follows:

1: Shall we charge the batteries as soon as receiving new e-scooters?

Re:Yes, it must be. Pls check the battery production date, it should be about 2 months or longer time from the date the battery produced to the date you receive the goods. So when you receive the goods, you or your dealers should charge the batteries in time for about 10 hours until it's fully charged for the first time.

2. How to keep it if we don't drive the e-scooter for a long time?

Re: The e-scooter must be fully charged, and the air switch must be turned off, besides, the e-scooters should be recharged every 1~2 months.

3. What will be happened when using the e-scooters in Winter season?

Re: You will find that the rang per charge in winter season is shorter than that of other season. It's normal phenomenon. So, when using the e-scooter in winter season, pls don't keep the e-scooter in the open air overnight and don't charge the e-scooter in very low temperature.

4) What should be noticed when using the e-scooter in summer season?

Re: Pls don't keep the e-scooter under the strong sunlight, and don't charge the e-scooter under high temperature.

Don't charge the e-scooter immediately after driving it under high temperature, and don't charge it too long time (Normally about 8 hours)

5) Can we go on driving the e-scooter when the battery power is low?

Re: No, it will be harmful to battery lifetime, you must charge the battery in time.

6) Is it harmful to battery if it's over charged?

Re: The batteries can be swollen and the battery lifetime will come to en end in advance If keeping using poor quality or unmatched charger or charging the battery too long time.

7) When is the best time to recharge the battery?

Re: When it shows to or close to the "L" (low)place on the display, It will be the best time to recharge the battery.

8) Is it possible to change only one or two pcs of the battery for replacement?

Re: In a e-scooter, it should be a full set of battery ( 4 or 5 or 6 pcs together), if one or two pcs break down, the full set of batteries must be replaced together, but not only changing single pc.

9) Can be the charger keeping with the e-scooter?

Re: Not suggested. The e-scooter will be shake on rough road, if with charge in it, the charge will be shake as well, then the components in the charger will be drifting, it will influence the charging performance even make the battery damaged ( undercharge or swollen) .
