Electronic Wire Cable AWM10070 PVC Insulated Stranded 16AWG 600V 105C Engine Wire Harnesses

Lead Time: 15–30 days
US$ 0.01 - 0.5 / 1 Meter
Minimum order: 1000 Meters
Get Latest Price
Product Information
View More
Application
Heating, Overhead, Underground, Industrial, Construction, Power, Power Distribution, Telecommunication, Electronics, Home Appliance, Automotive, Marine, Photovoltaic Power
Conductor Material
Copper, Tinned Copper, Bare copper
Conductor Type
Stranded
Insulation Material
PVC
CB (XIAMEN) INDUSTRIAL CO., LTD.
Tour Now
Exhibitor O2O Supported

6 yrs

Verified Maufacturer
China
This supplier has a Global Sources Website for 6 years.
Response Rate:  High
Avg Response Time: ≤24 h
Trade Shows
We exhibited at 3 Global Sources Trade Shows. View More
Business Type
Manufacturer,  Exporter,  Trading Company
Chat
Product Information
Model NumberUL10070-#7484Brand NameBort
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:

Electronic Wire Cable AWM10070 PVC Insulated Stranded 16AWG 600V 105C Engine Wire Harnesses

PRODUCT DESCRIPTION:

●Rated temperature：105℃

●Rated voltage：600V

●Reference standard：UL758,UL1581,CSA C22.2No.210.2

●Solid or stranded ,tinned or bare copper conductor 18~4/0 AWG

●PVC insulation ,comply with ROHS environmental standard

●Passes UL VW-1,CSA FT1 flame test

●Uniform insulation thickness to ensure easy stripping and cutting

●For general purpose internal wiring of appliance


CONDUCTORINSULATIONOverall diameter(mm)MAX.COND.
RESISTANCE
Ω/km,(20℃，DC)		Approx.
weight
(g/m)		Standard
packing
(m)
SIZECONSTRUCTION (No./mm)DIA (mm)THICKNESS (mm)StandardTolerance
1841/0.161.200.792.75±0.122.9815610
1863/0.1271.160.792.80 ±0.115
1816/0.2541.200.792.75±0.115
181/1.0241.0240.792.65±0.114.4
1626/0.2541.500.793.10±0.1515.0621.2610
16105/0.1271.500.793.15±0.1521.2
161/1.291.290.792.90±0.120
14168/0.1272.050.793.70±0.159.5932305
1441/0.2541.900.793.50±0.1530
12259/0.1272.550.794.20 ±0.156.0743.5305
1265/0.2542.360.793.95±0.1543.5
107/15/0.2543.400.795.00±0.203.7570305
10413/0.1273.200.794.90±0.1568
1065/0.323.000.794.60±0.1565
87/24/0.2544.31.156.60±0.202.23115150
8660/0.1274.30 1.156.60±0.20
87/15/0.324.31.156.60±0.20
67/38/0.2545.431.558.55±0.301.403188100
61045/0.1275.151.538.45±0.30
67/24/0.325.431.558.55±0.30
47/60/0.2546.821.559.92±0.400.882278305/SPOOL
41666/0.1276.951.5310.2±0.40
47/38/0.326.821.539.92±0.40
32107/0.1278.661.5311.8±0.400.6996365152.5/SPOOL
22646/0.1278.80 1.5312.1±0.400.5548425152.5/SPOOL
13332/0.1279.652.0313.8±0.400.4398545152.5/SPOOL
1/04214/0.12710.82.0314.9±0.400.3487665152.5/SPOOL
2/05292/0.12712.22.0316.3±0.400.2766822152.5/SPOOL







FAQ
Q1: Can I get a free sample?
A1: We can provide the existing items samples free in freight collected. If there is any special samples requirement, please contact us for more details.
Q2: How could I pay?
A2: We prefer T/T or L/C at sight. If you prefer other payment terms, please contact us freely.

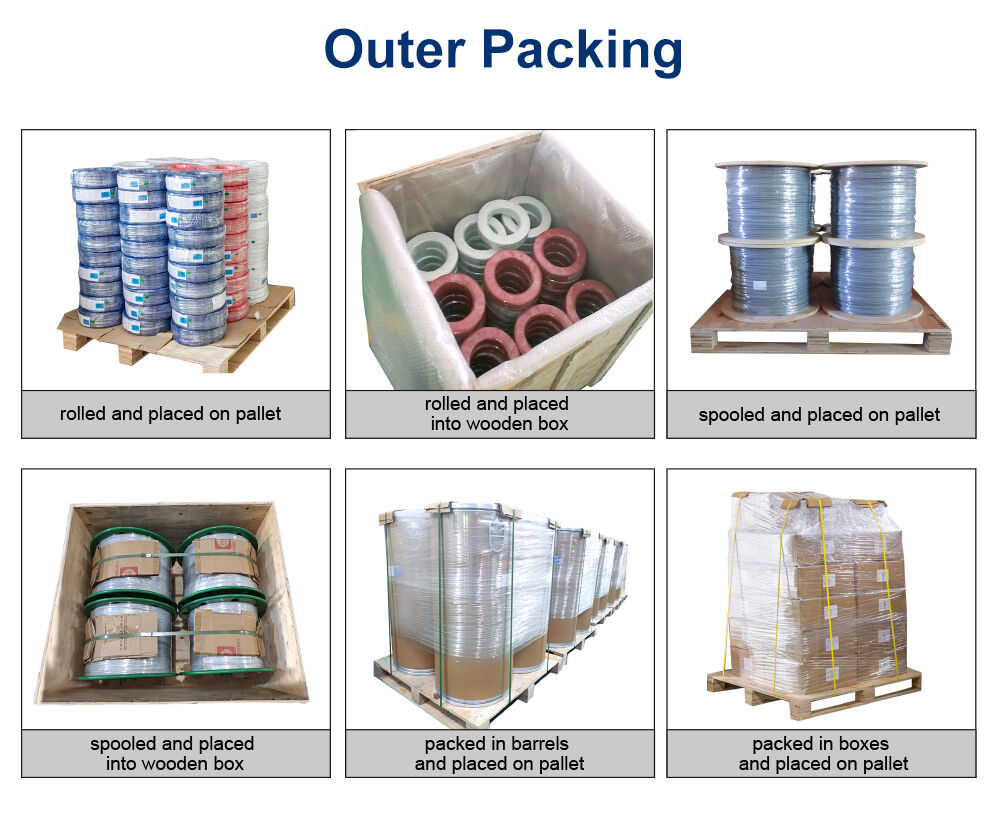

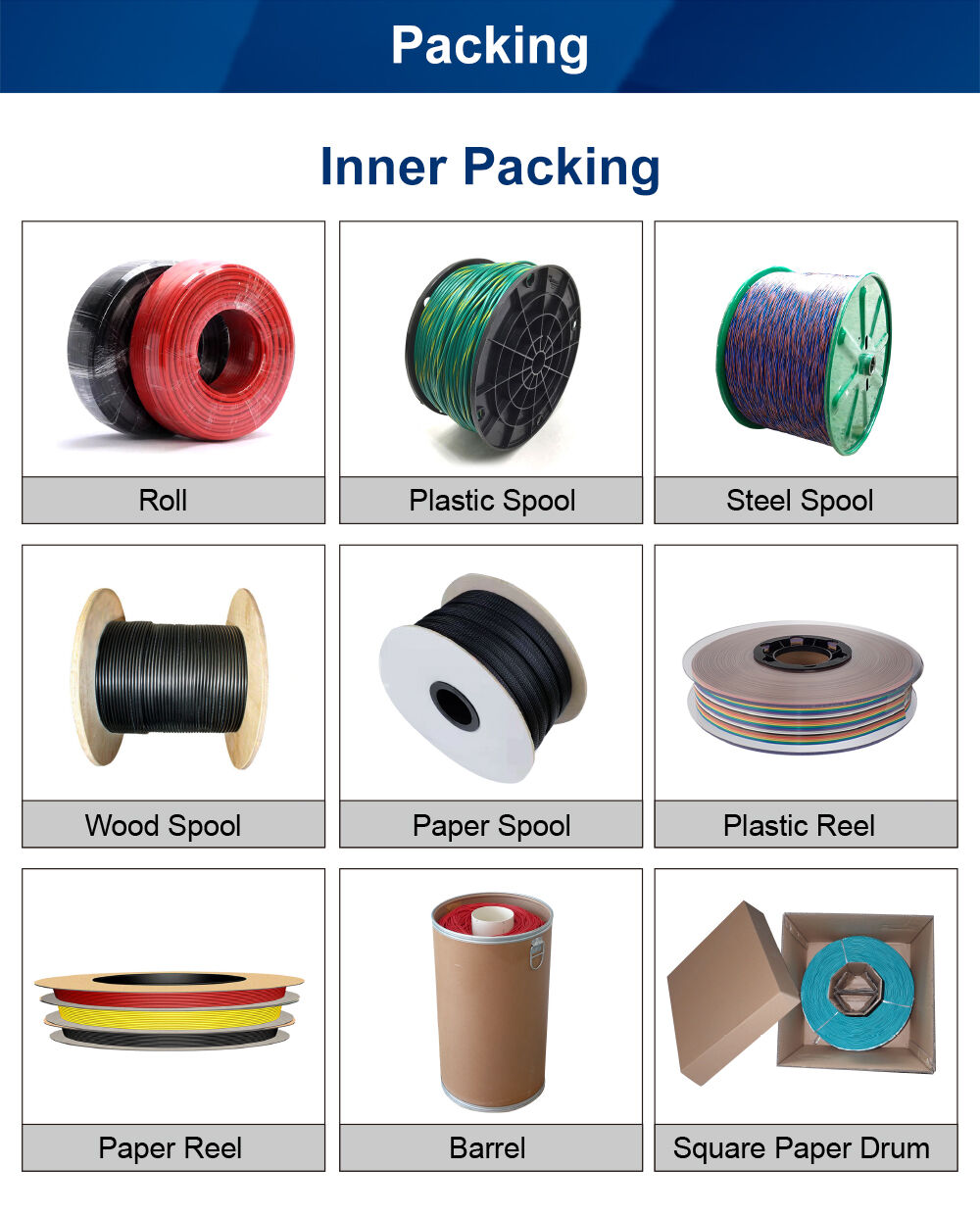

Q3: What is your packing way? Can I have the customized package?
A3: We have the standard export package. For more details about the customized package, please contact us.
Q4: What is the delivery lead time?
A4: It depends on the order quantities. The mass production lead time is about 7-12 days after receipt of the deposit.

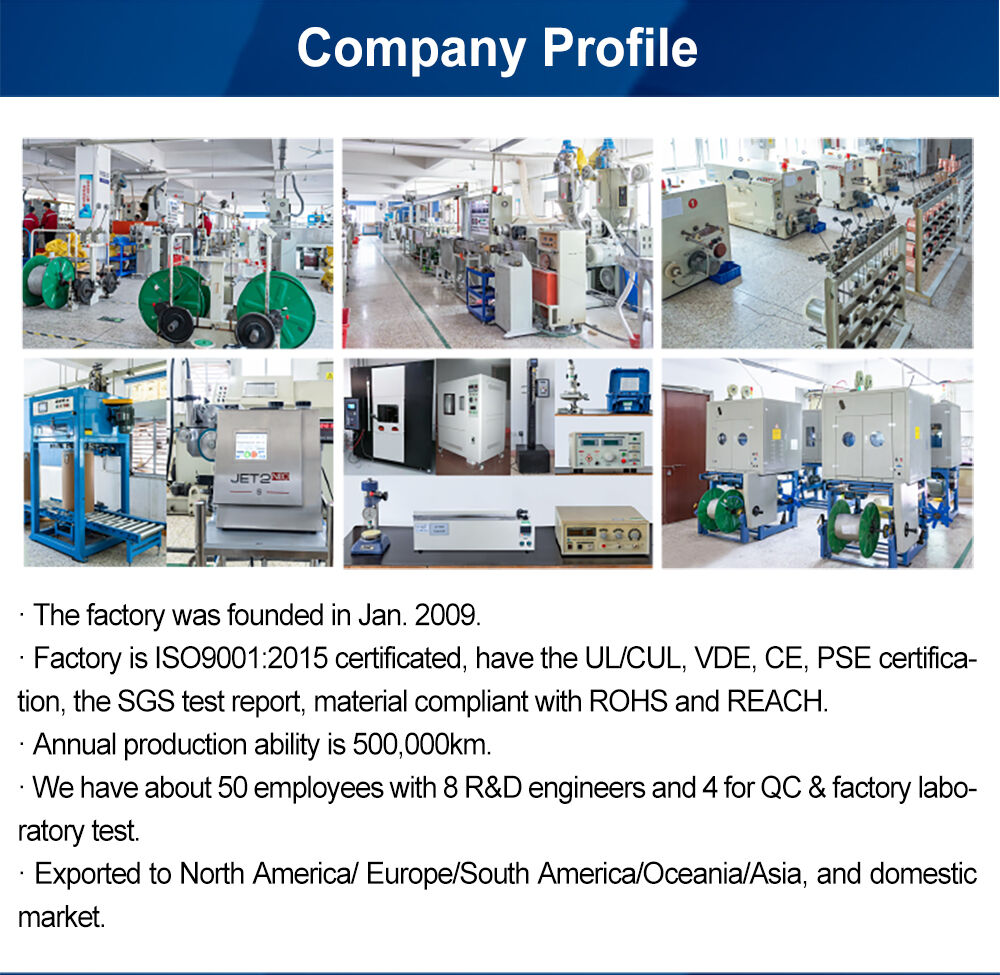

Q5: Are you a factory or a trading company?
A5: We are a factory. We provide all kinds of OEM/ODM services for clients around the world.
Q6: Where is your main market?
A6: We export to the North America, Southeast Asia, Europe, Korea, Japan, and other countries.

Our Services
1. Professional QC and QA team to make sure all products qualified before shipping.
2. Competitive price
3 .Standard package to ensure the safe transportation.
4. Professional service

Product Certifications
Certificate Standard UL
Certificate Image
UL
Click on the picture to see a larger one
Certificate NumberE330484
Validity From 2020/06/28 To 2030/06/18
Issued ByUnderwriters Laboratories Inc.
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

Shipping Information

FOB PortXiamenLead Time15–30 days
Weight per Unit20.0 KilogramsDimensions per Unit30.0 x 30.0 x 20.0 Centimeters
HTS Code8544.49.29 00Units per Export Carton610.0
Export Carton Dimensions L/W/H1.1 x 1.1 x 0.9 MetersExport Carton Weight500.0 Kilograms
