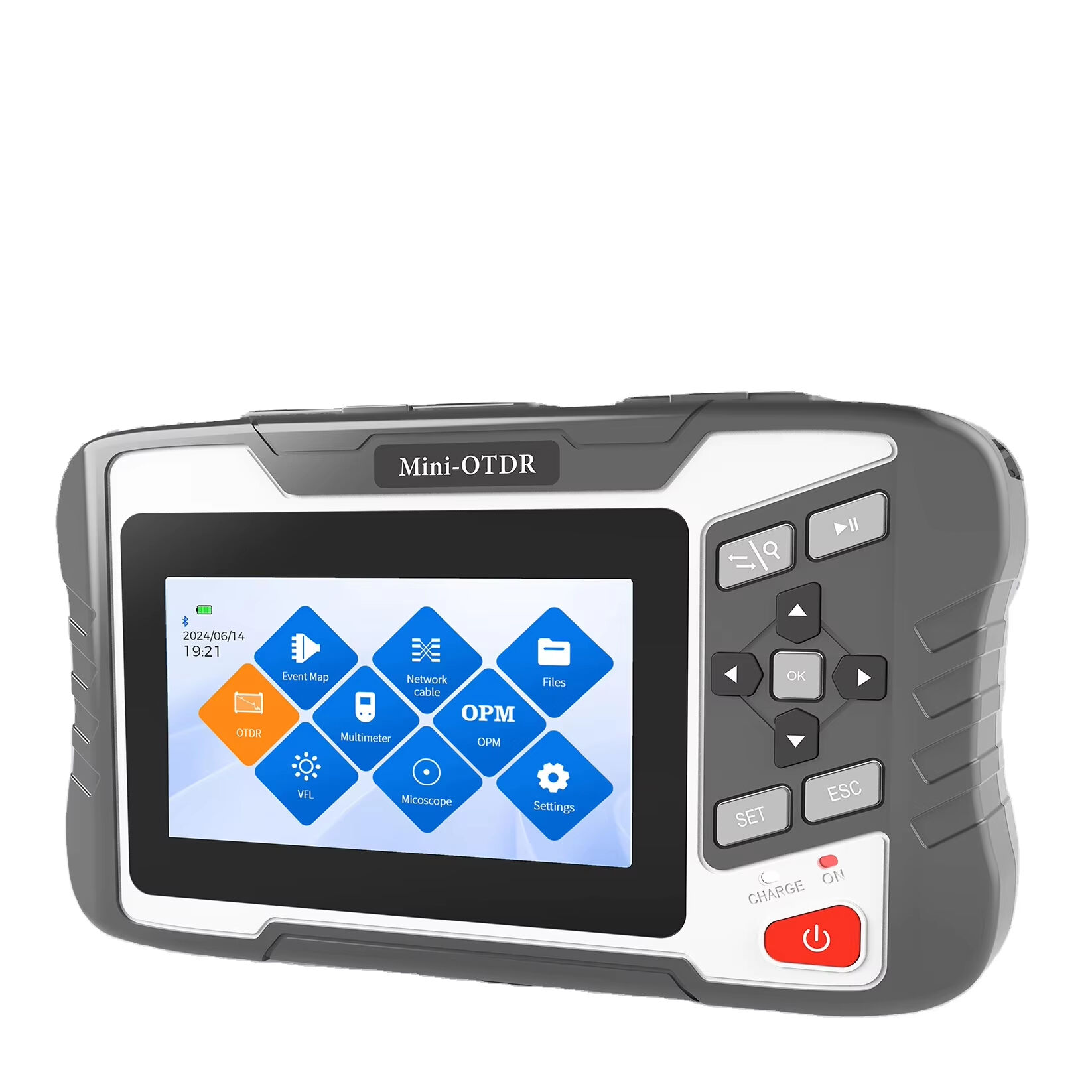

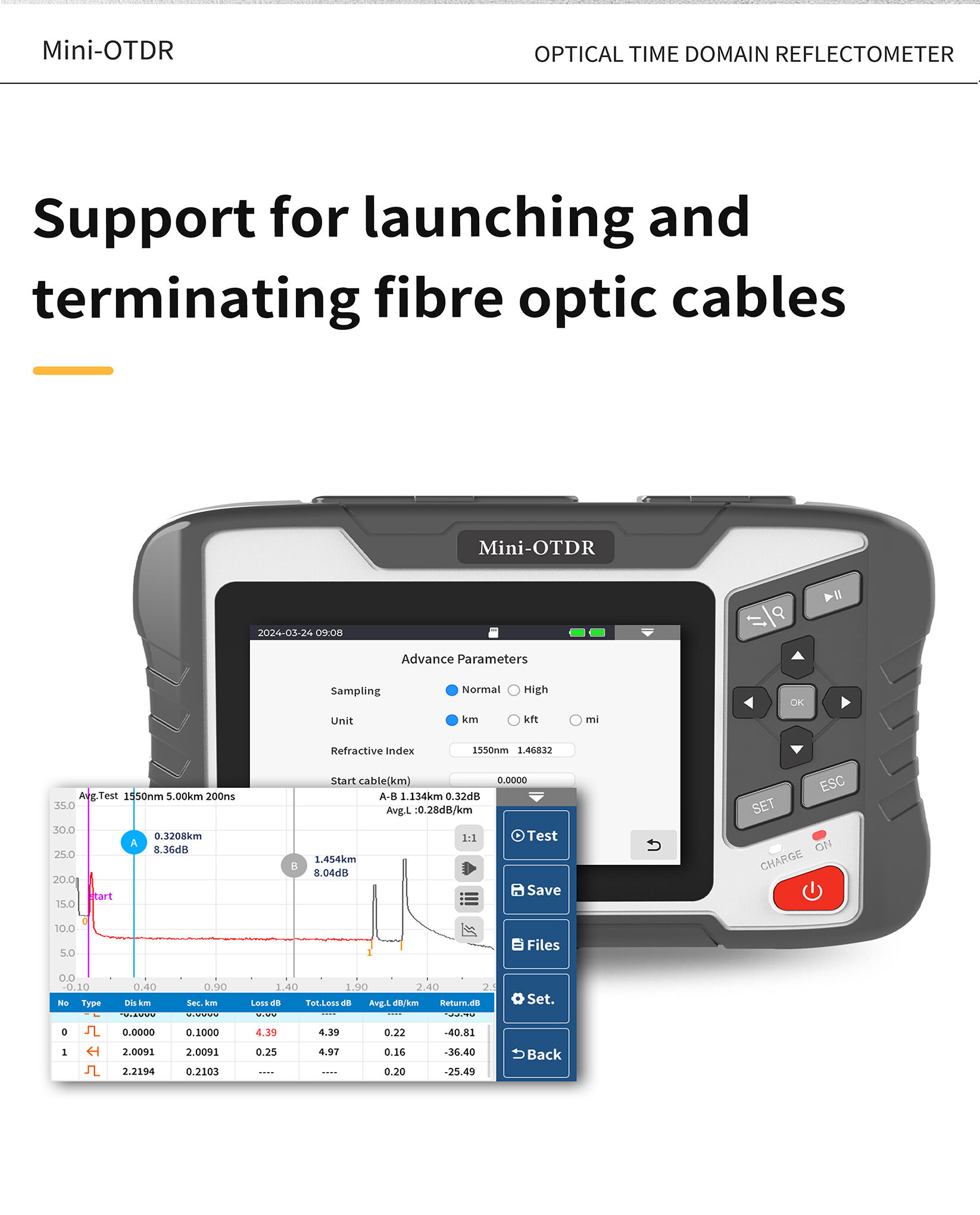

New NK4300 Optical Time Domain Reflectometer Tester 1310/1550NM 26/24dB OTDR VFL OPM Light Source FTTH Network Featuring UPC SC

In the intricate world of fiber - optic communication, Optical Time - Domain Reflectometers (OTDRs) stand as indispensable tools, enabling professionals to assess and maintain the integrity of fiber - optic networks. OTDRs are optoelectronic instruments that play a pivotal role in characterizing optical fibers, acting as the optical equivalent of electronic time - domain reflectometers used for measuring cable impedance.​

OTDRs operate on a fundamental principle. They inject a series of optical pulses into the fiber under test. As these pulses traverse the fiber, a portion of the light is scattered (Rayleigh backscatter) or reflected back from various points along the fiber's length. The scattered or reflected light is then collected from the same end of the fiber where the pulses were injected. By analyzing the strength of the return pulses as a function of time, OTDRs can create a detailed plot that reveals crucial information about the fiber, such as its length, attenuation characteristics, and the presence of any faults or splices.​

One of the key applications of OTDRs is in measuring fiber length. By accurately measuring the time it takes for the light pulses to travel to a certain point in the fiber and back, and knowing the speed of light in the fiber material (determined by its refractive index), OTDRs can precisely calculate the length of the fiber. This is crucial for ensuring that fiber - optic cables are installed to the correct specifications and for identifying any unexpected fiber length variations that could affect network performance.​

OTDRs are also highly effective in assessing fiber attenuation. Attenuation, or the loss of light signal strength as it travels through the fiber, can be caused by a variety of factors, including impurities in the fiber material, micro - bends, and macro - bends. OTDRs measure the decrease in the strength of the backscattered light over the length of the fiber, providing valuable data on the fiber's attenuation characteristics. This information is essential for determining whether a fiber - optic link can support the required data transmission rates over a given distance.​

In addition to measuring fiber length and attenuation, OTDRs are invaluable for detecting and locating faults in fiber - optic networks. When a fiber is broken or there is a significant splice loss, the OTDR will detect a sudden change in the backscattered light signal. By analyzing the location of this change on the OTDR trace, technicians can quickly identify the exact position of the fault, enabling them to carry out repairs efficiently. This is particularly important in large - scale fiber - optic networks, where minimizing downtime is crucial.​

There are different types of OTDRs available, each designed to meet specific needs. Full - feature OTDRs are traditional instruments that are rich in functionality. They are often larger and heavier compared to other types but offer a greater measurement range. These OTDRs are commonly used in laboratories and in the field for complex fiber measurements. They may have a main frame that can be equipped with multi - function plug - in units to perform a wide range of fiber measurement tasks.​

Hand - held OTDRs, on the other hand, are designed for portability and ease of use in the field. They are typically smaller, lighter, and more battery - powered, making them convenient for technicians who need to troubleshoot fiber networks on - site. Hand - held OTDRs are capable of performing basic fiber measurements, such as measuring fiber links, locating fiber breaks, and determining end - to - end loss. Some hand - held models can also be used in conjunction with PC - based software for more in - depth data analysis.​

Fiber break locators are a specialized type of OTDR - like instrument. Their primary function is to quickly and accurately determine the location of a fiber break or other catastrophic events in the fiber. These instruments are designed to be cost - effective and easy to operate, making them an ideal choice for situations where the main focus is on finding the source of a fiber failure.​

The reliability and quality of an OTDR are determined by several factors. Accuracy is of utmost importance, as it ensures that the measured values closely reflect the true characteristics of the fiber. The measurement range of an OTDR defines the maximum attenuation that can be placed between the instrument and the event being measured while still allowing for accurate measurement. Instrument resolution is another critical factor, as it determines how well the OTDR can distinguish between two closely spaced events in the fiber.​

In conclusion, Optical Time - Domain Reflectometers are essential tools for anyone involved in the installation, maintenance, or troubleshooting of fiber - optic networks. Whether it's a large - scale telecommunications network, a data center infrastructure, or a local area network, OTDRs provide the detailed information needed to ensure the smooth operation of fiber - optic systems. Their ability to accurately measure fiber length, attenuation, and locate faults makes them an indispensable part of the fiber - optic toolkit. As fiber - optic technology continues to evolve and expand, the role of OTDRs in maintaining the integrity of these networks will only become more critical.
