Product Information

Model Number	G62-0003	Brand Name	OEM ODM OR Neutral
origin	China	Small Orders	Accepted

Key Specifications/ Special Features:

OEM 4g gps tracker sos panic button real time gps +wifi+lbs positioning sos emergecy call one key SOS tracker for kids and elderly

Item	Information

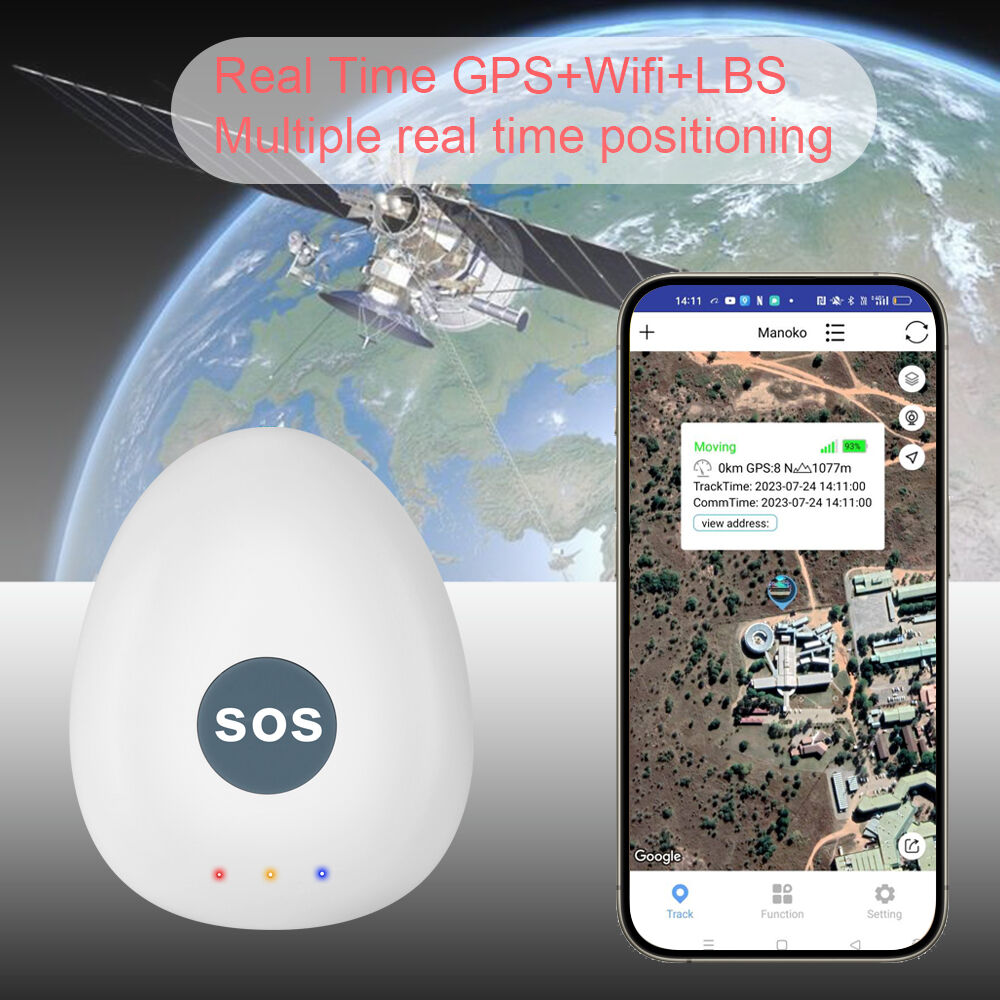

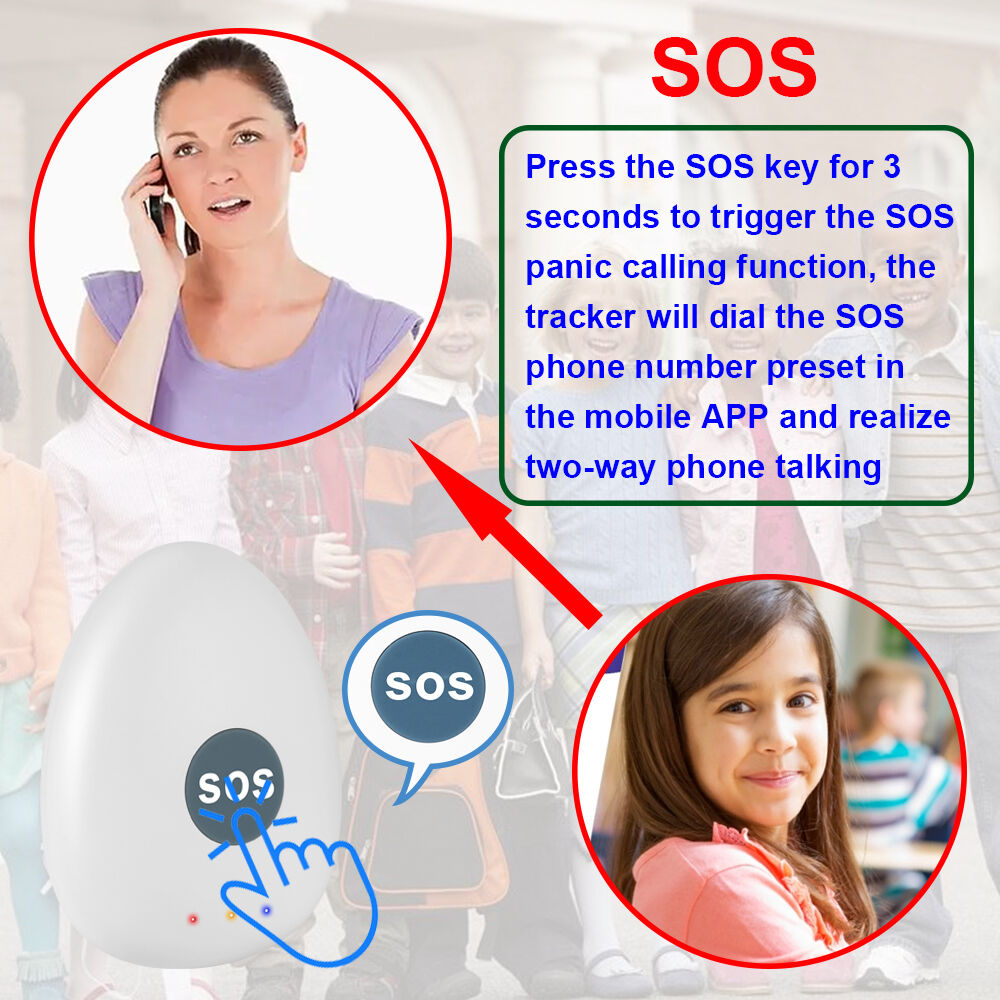

Main Function	Real time GPS/AGPS/WIFI/LBS location，SOS Emergency call，GeoFence Alarm，Historical trace playback，power saving
4G Band-CAT1 Asia	FDD-B1/3/5/8；TDD-B34/38/39/40/41
4G Band-CAT1 Europe	LTE-FDD：B1/3/5/7/8/20/28
4G Band-CAT1 America	LTE-FDD：B2/3/4/5/7/8/28/66
Data performance	LTE: Max 10 Mbps (DL)/Max 5 Mbps (UL) EDGE: Max 236.8 kbps (DL)/Max 236.8 kbps (UL) GPRS: Max 85.6 kbps (DL)/Max 85.6 kbps (UL)
GNSS chip	GPS，GLONASS，BeiDou/Compass，Galileo，QZSS

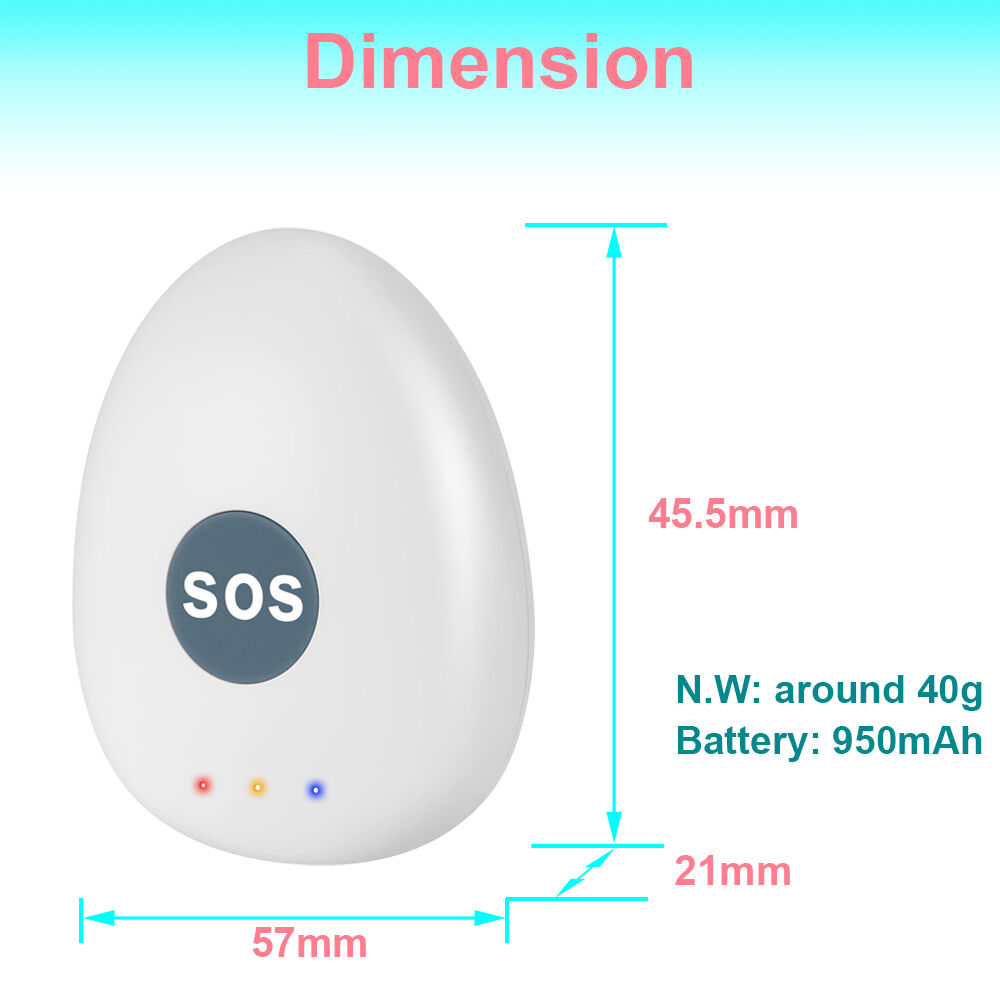

Product Dimension	45.5mm57mm21mm
Working Temperature	-20℃ - +70℃
Working Humidity	20%-80%RH
SIM Slot	Nano SIM slot
Battery	3.7V 950mAh
Standby Average Current	Less than 5mA（Depends on the connection between device and server）

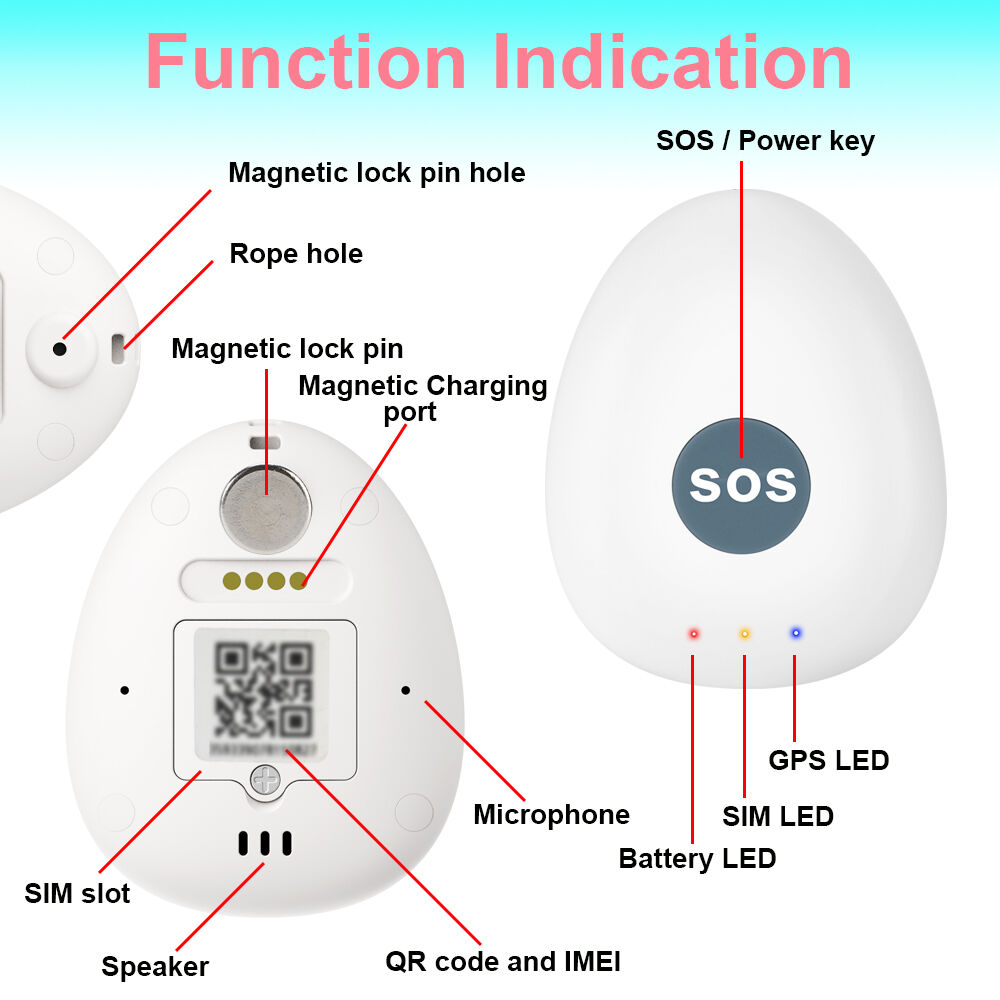

I/O Interface	Magnetic recharging port
MIC	Built-in High-Definition Silicon microphone （heard the voice within 10metres）
Sensor	3D G-Sensor
GPS Location Accuracy	Within 10 meters
WIFI Location Accuracy	Within 50 meters
4G LTE location Accuracy	50-200 meters (Depending on the 4G network)
Speed Accuracy	0.1m/s
GPS Positioning Time	Cold Boot-38s(Open sky) Warm Boot-2s(Open sky） The specific time is affected by the environment
Shell Material	PC Material Injection moldin, spraying
4G Antenna	PIFA antenna
Standby Time	About 7 days on base of 30 minutes interval when working in good 4G network environment
Working Voltage	3.5-4.2V（below 3.4V power off automatically）
Charging Current	Recharging 5V 500mAh（recharging current can be adjusted by hardware）
GPS Antenna	Built in passive high performance 15X15 ceramic antenna

We are good at OEM/ODM order! Welcome to contact us for the below services:

1. Custom Logo on the Product

2. Custom BLE Pairing Name

3.Custom Professional Packaging and User Manual

4. Provide Barcode Stickers

5. Provide High- Definition Photograph Service for your Website

Packing

Sample Package: 1. PE bag is for free. 2. With our Retail Package if Customers require.

Customized Package: Welcome ! OEM package MOQ: 1000PCS

Delivery

Sample order: about 3-5 working days depending on the stock status and materials preparing condition;

For bulk order: about 25-35 working days,customized orders acceptable.

More information about products and order, welcome contact us.

Download more information about this product

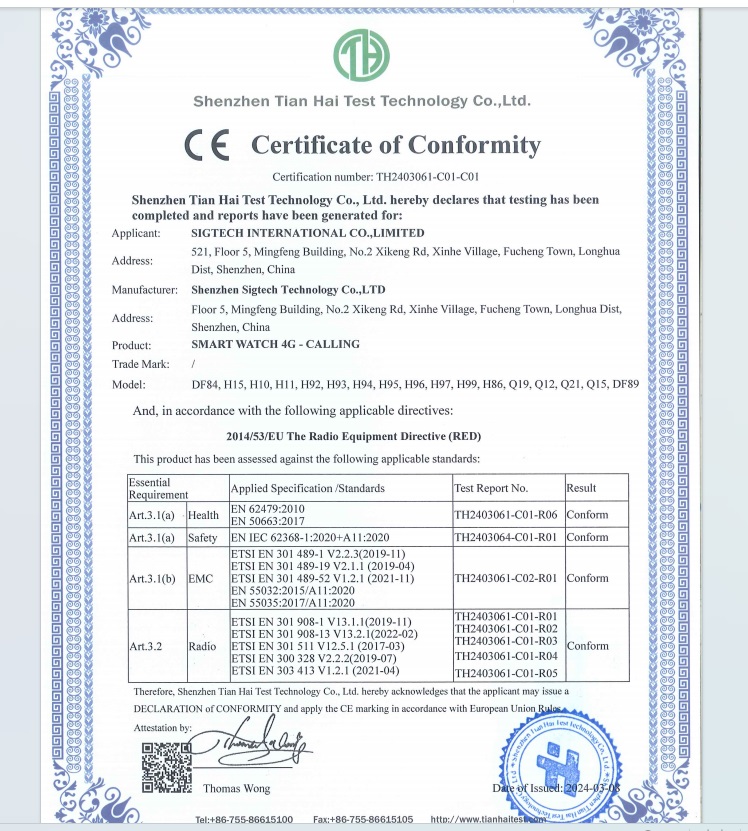

Product Certifications

Certificate Standard	CE
Certificate Image	Click on the picture to see a larger one
Certificate Number	TH2403061-C01-C01
Validity	From 2024/03/08
Issued By	Shenzhen Tian Hai Test Technology Co.,LTD

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

Shipping Information

FOB Port	Shenzhen	Lead Time	5–25 days
Weight per Unit	40.0 Grams	Dimensions per Unit	4.55 x 5.7 x 2.1 Centimeters
HTS Code	8526.91.90 00	Units per Export Carton	100.0
Export Carton Dimensions L/W/H	45.0 x 45.0 x 35.0 Centimeters	Logistics attributes	Charged
Export Carton Weight	1.0 Kilograms

Main Export Markets

Main Export Markets	Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa, North America, Western Europe

Payment Details

Payment Method	Telegraphic Transfer (TT,T/T)
