Product Information

Model Number	MCL-R5-#6118	Brand Name	OEM/NONE
origin	China	Small Orders	Accepted

Key Specifications/ Special Features:

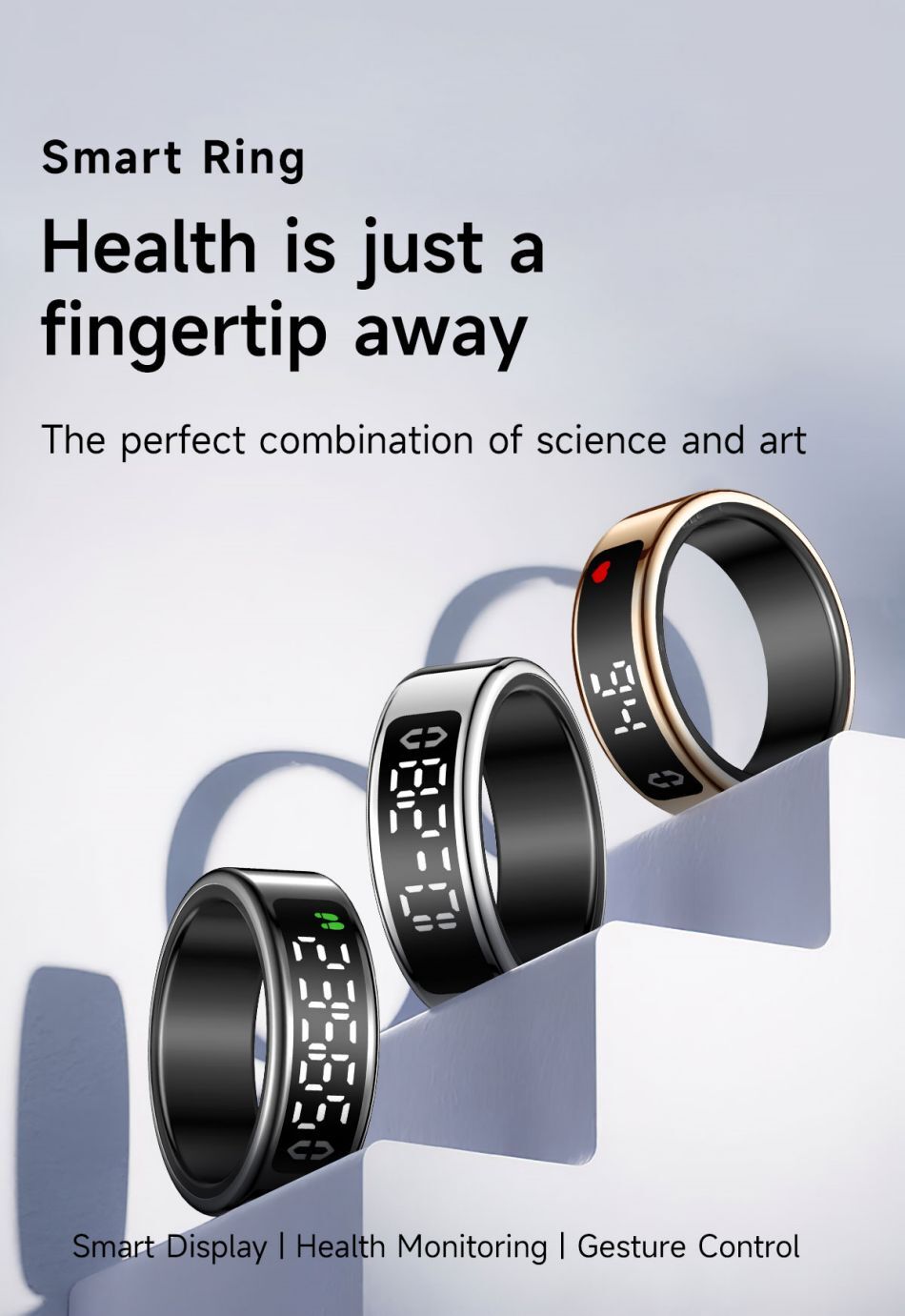

Smart Ring HRV Bluetooth Gesture Control Ring, Waterproof Health Tracker, Blood Oxygen, Gesture Swipe,Message Reminde

Smart Ring MCL-R5 Weight+Package

Model	Product weight (Excluding package)	Small package size	Weight of packaging+charging cable+instruction manual	Weight of packaging+box filling+instruction manual	One carton size	QTY	One carton weight(gross weight)
MCL-R5	3.4g	83* 82* 28.5mm	107g	98.5g	500* 425* 335mm	240	26.6KG

Smart Ring Lead time

qty (pcs)	1-1000	>1000
lead time (days )	5	to be negociated

Smart Ring MCL-R5 Specification:

mode name	MCL-R5
product name	smart ring/bluetooth guesture-control ring

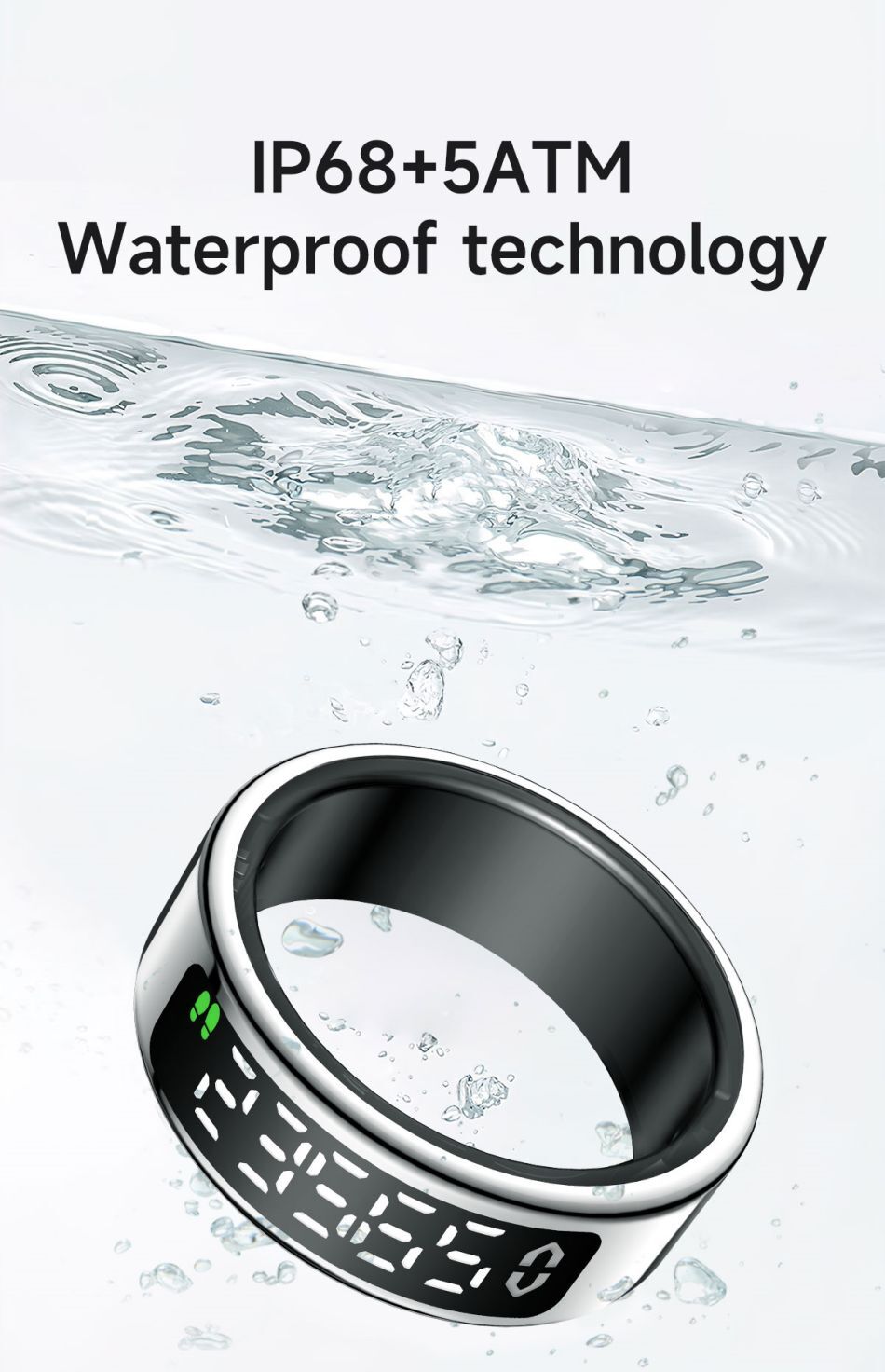

Water Proof	IP68+5ATM class waterproof, diving or snorkeling can be worn to support more than 50 meters depth waterproof

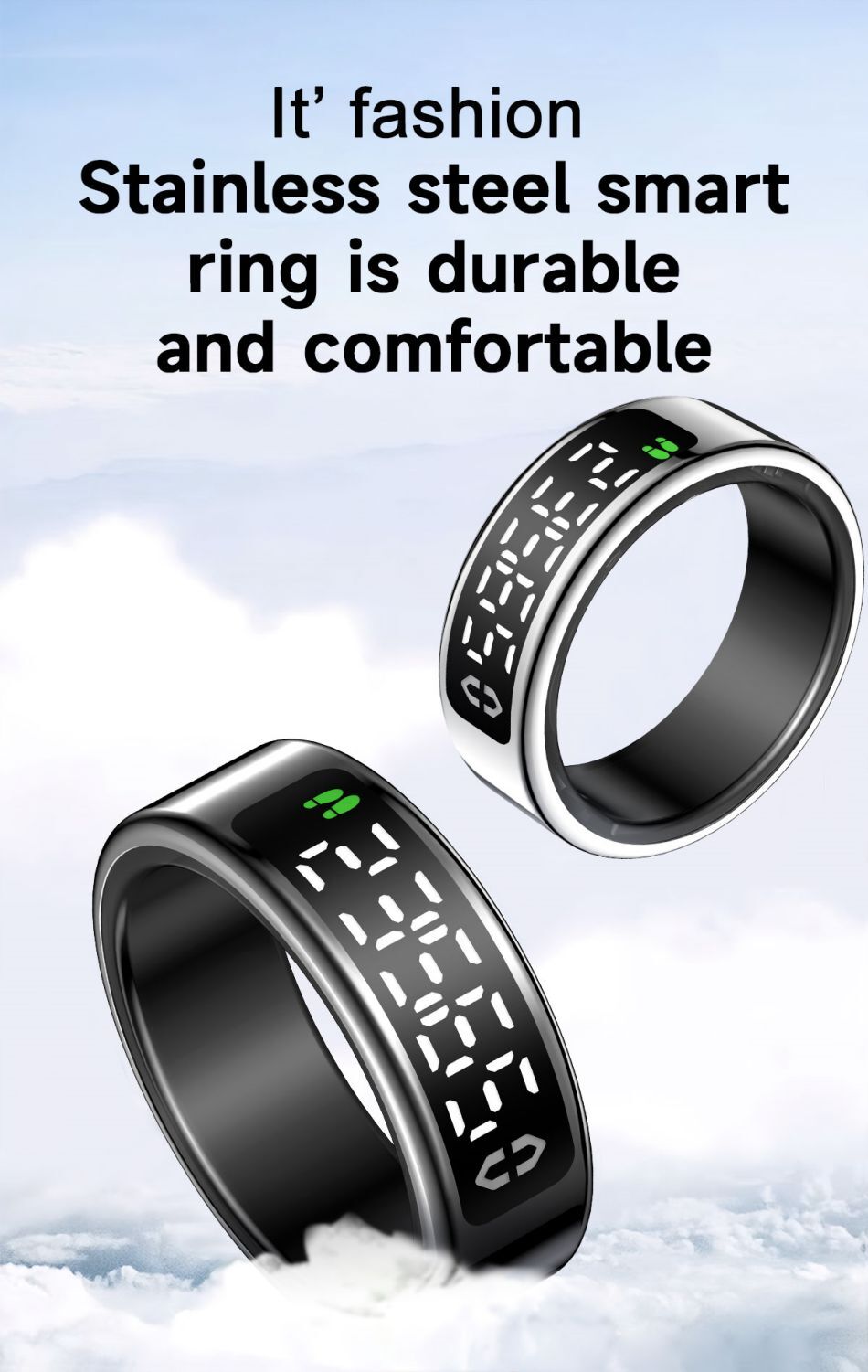

Material process	Stainless steel ten glue pouring process

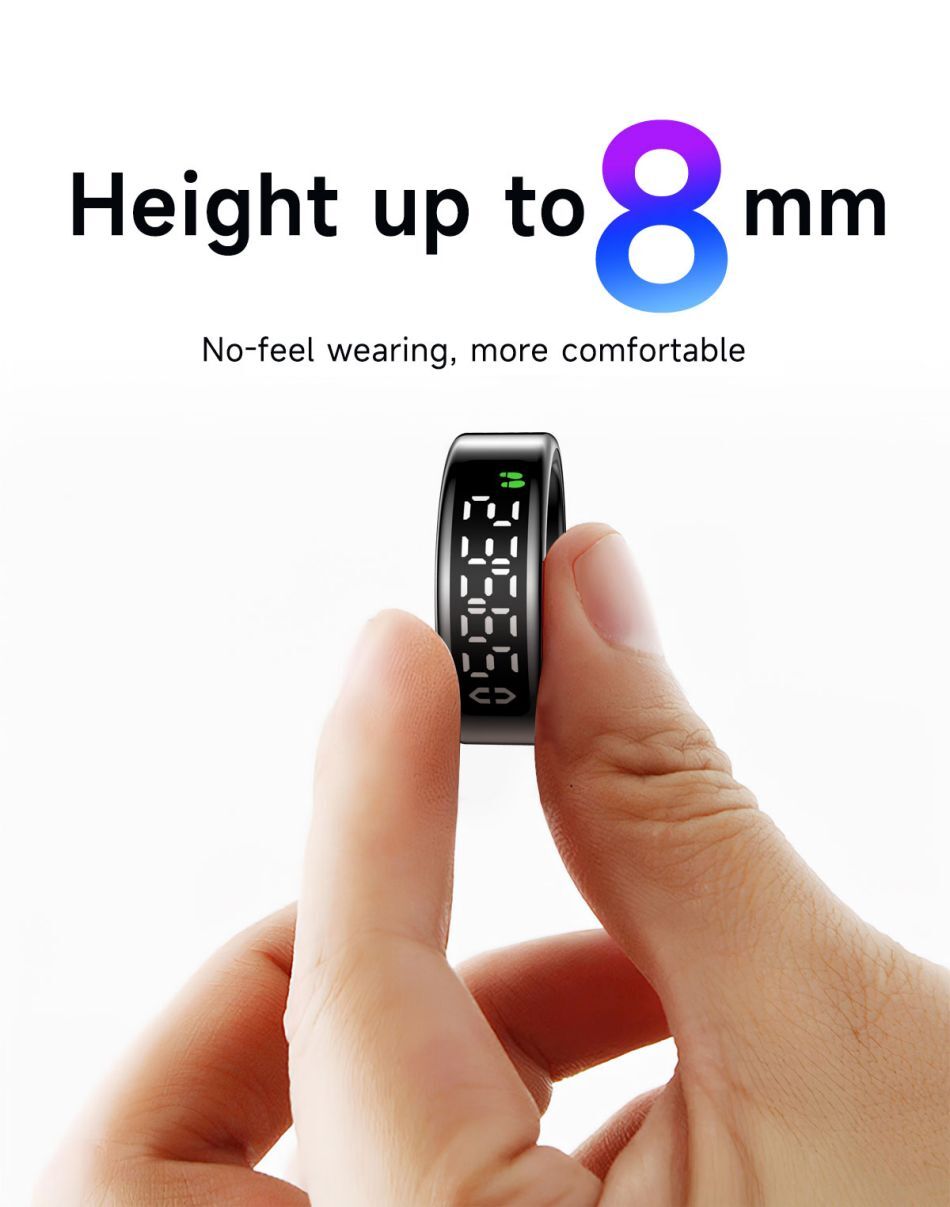

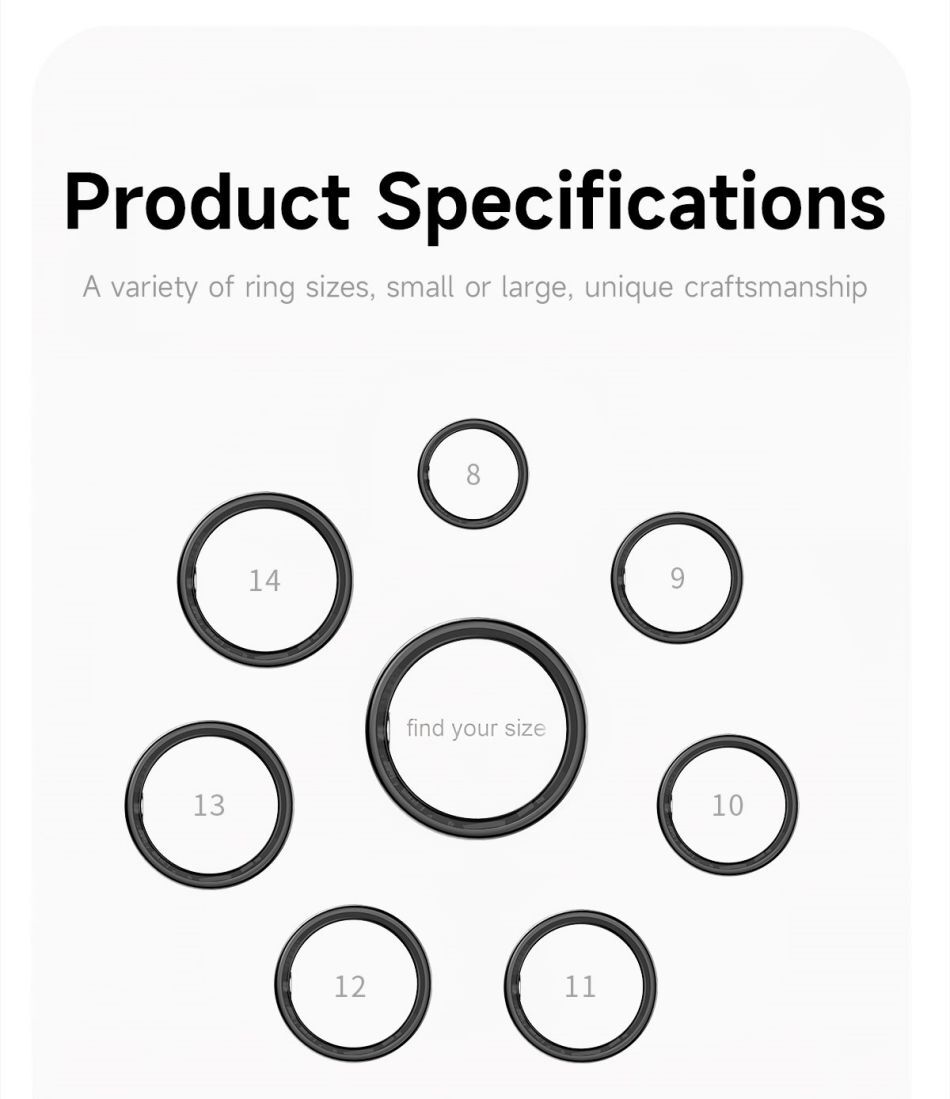

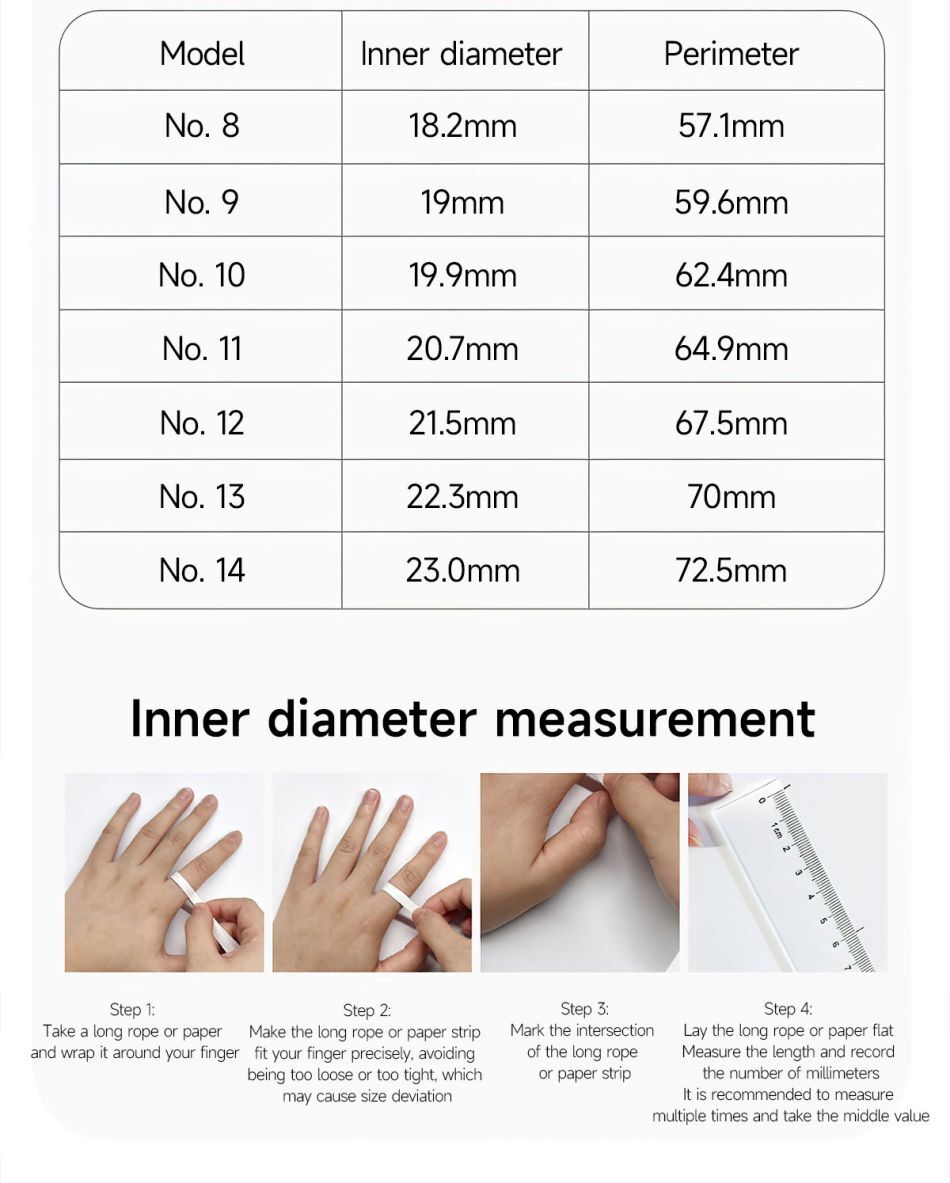

Size	#8(18.2 mm) # 9(19.0 mm) # 10(19.9 mm) # 11(20.7 mm) # 12(21.5 mm) # 13(22.3 mm) thickness 2.6mm

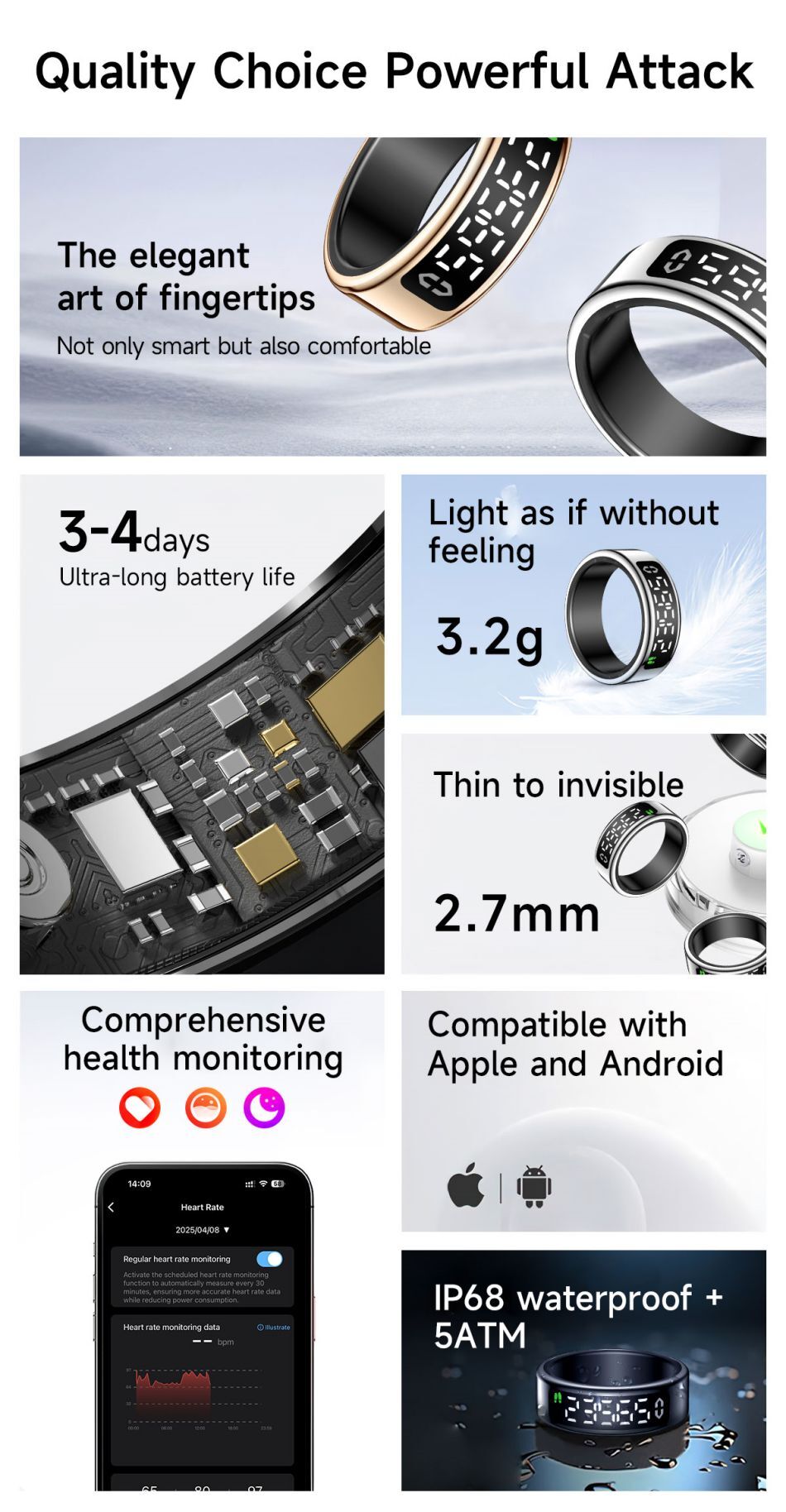

Weight	3.2g or so

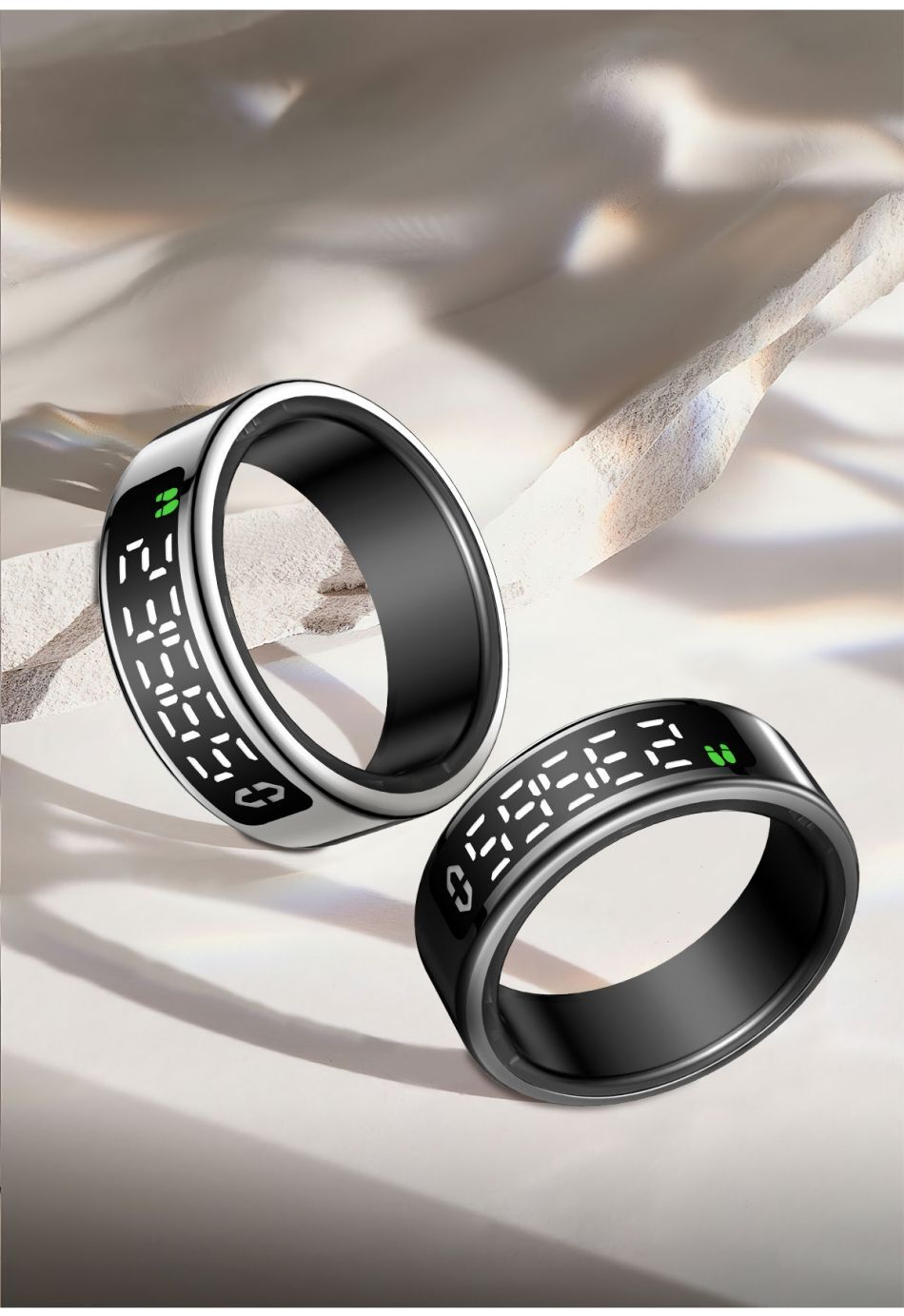

Color	black、Rose gold、sliver
Chipset (main chip model)	PAR2860-ultra-low power, more durable
Memory (ROM+RAM)	512 KB ROM + 32 KB RAM
G-Sensor	SC7A20H
Bluetooth Version	5
MobileAPP-GPS	Yes
Heart rate sensor	Tianyi 3918
Battery Type	Polymer Pure Cobalt Battery
Operating temperature range	0-50℃
Battery Capacity	16mah
Charging time	Two hours
Theory Standby time	16-20 days
Normal using time	4-5 days

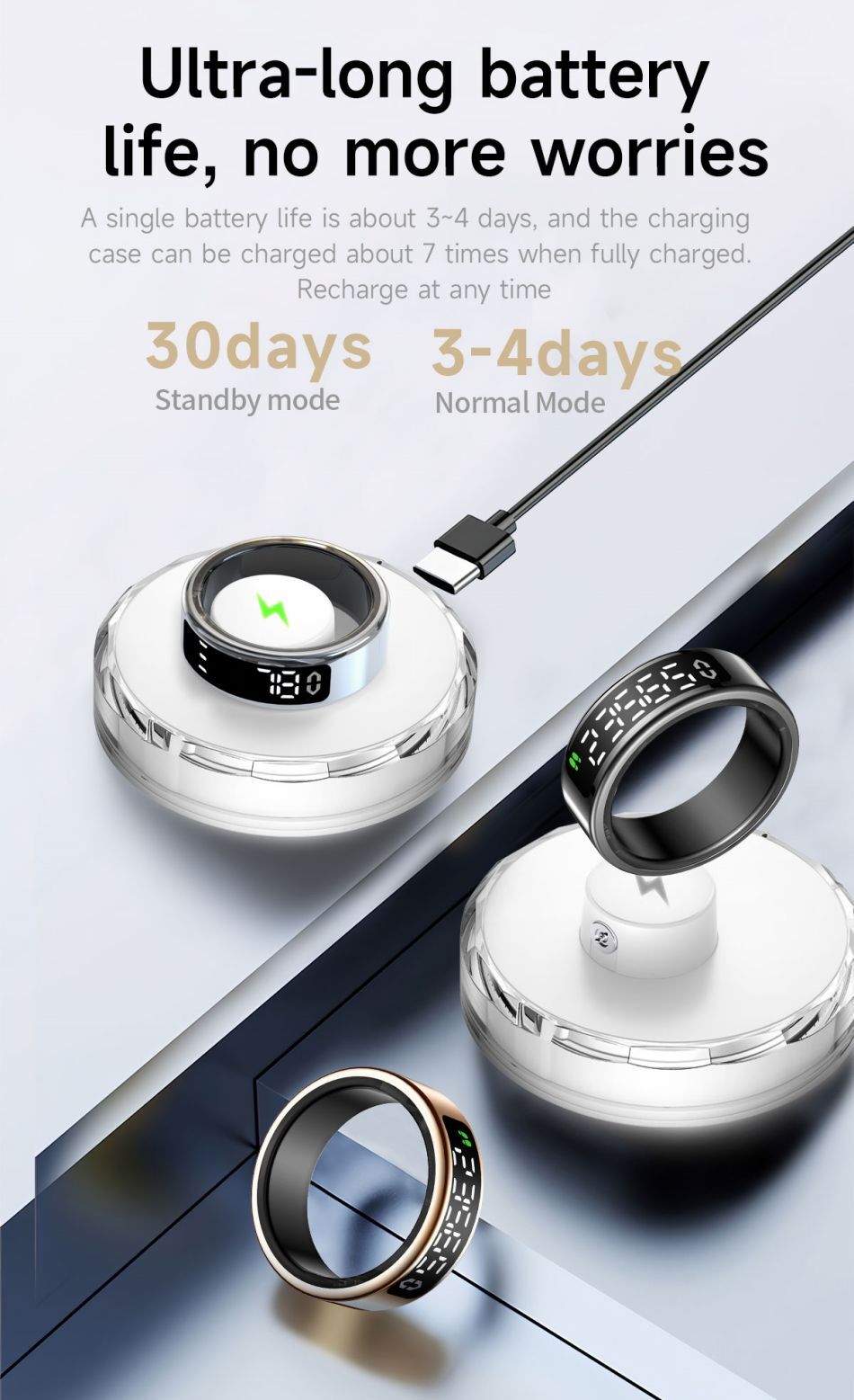

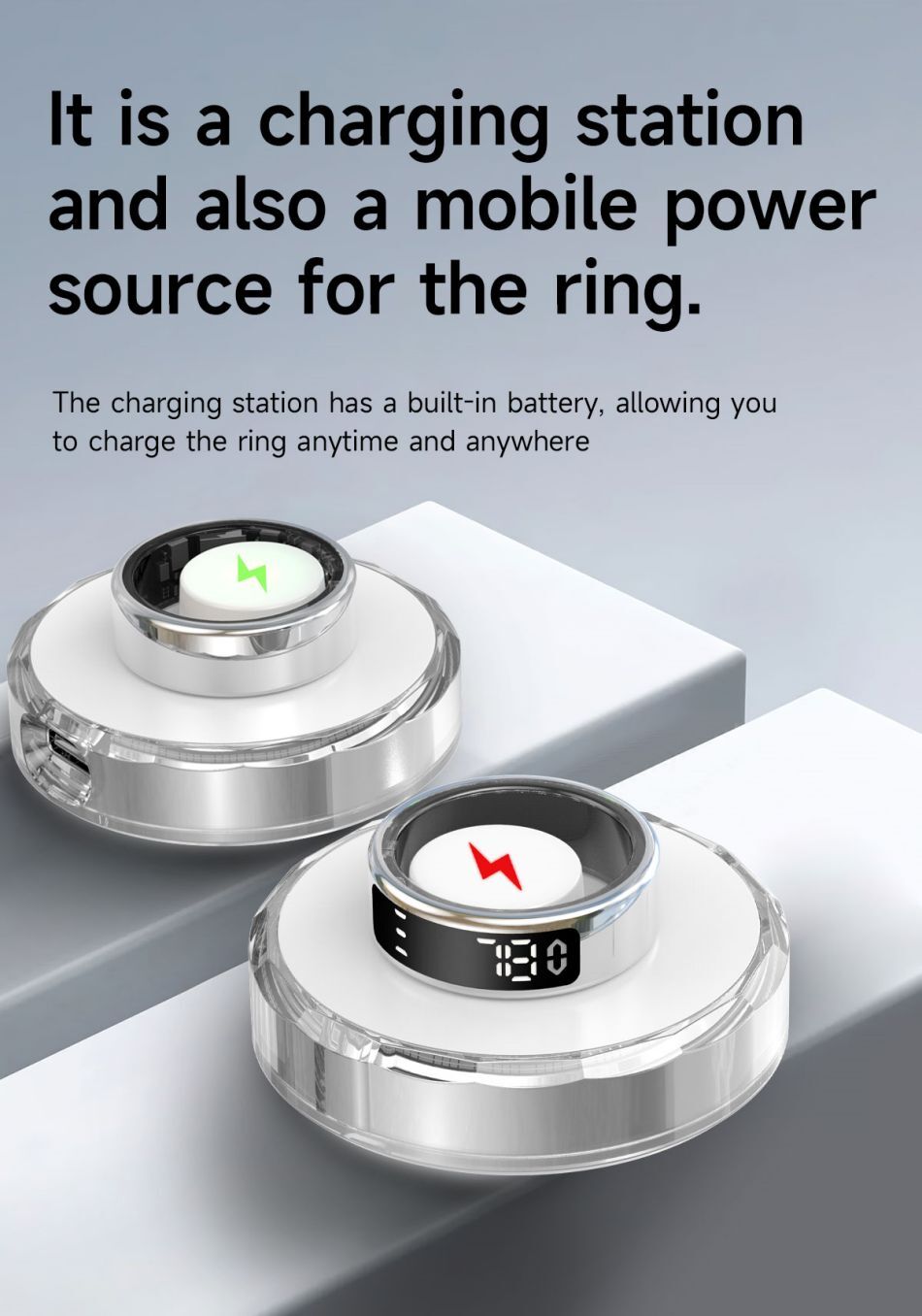

Charging	charging box/magnetic line
Software Function&App
Compability	Android 9.0 and above; Apple IOS 10.0 and above
Compability Software	RWFIT

Operation	Ring touch
APP
Module	Notes
Multisports	Multiple movement modes
Time	Touch to display the current synchronization time
Steps	the green step light will light upand display the actual number of steps.

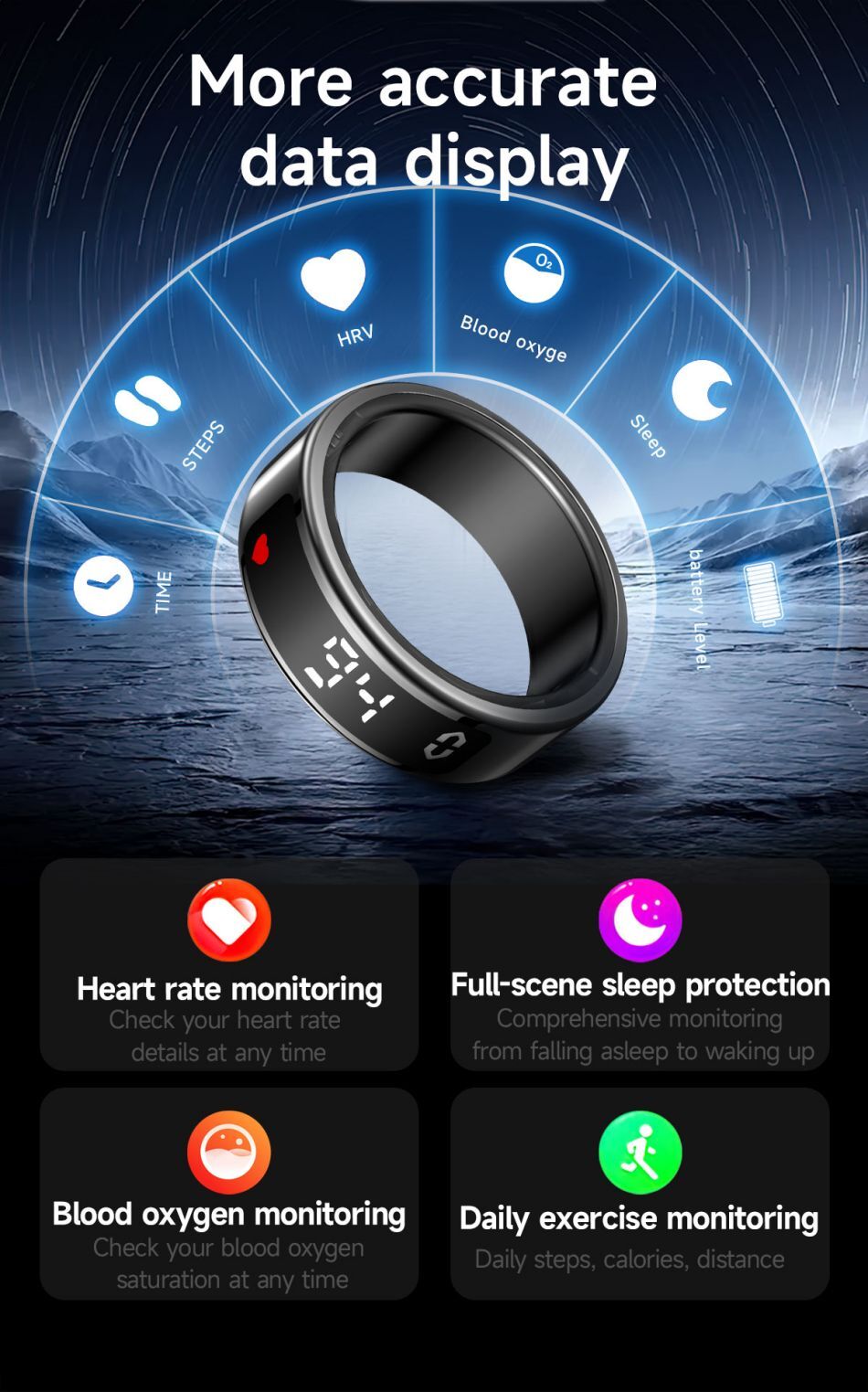

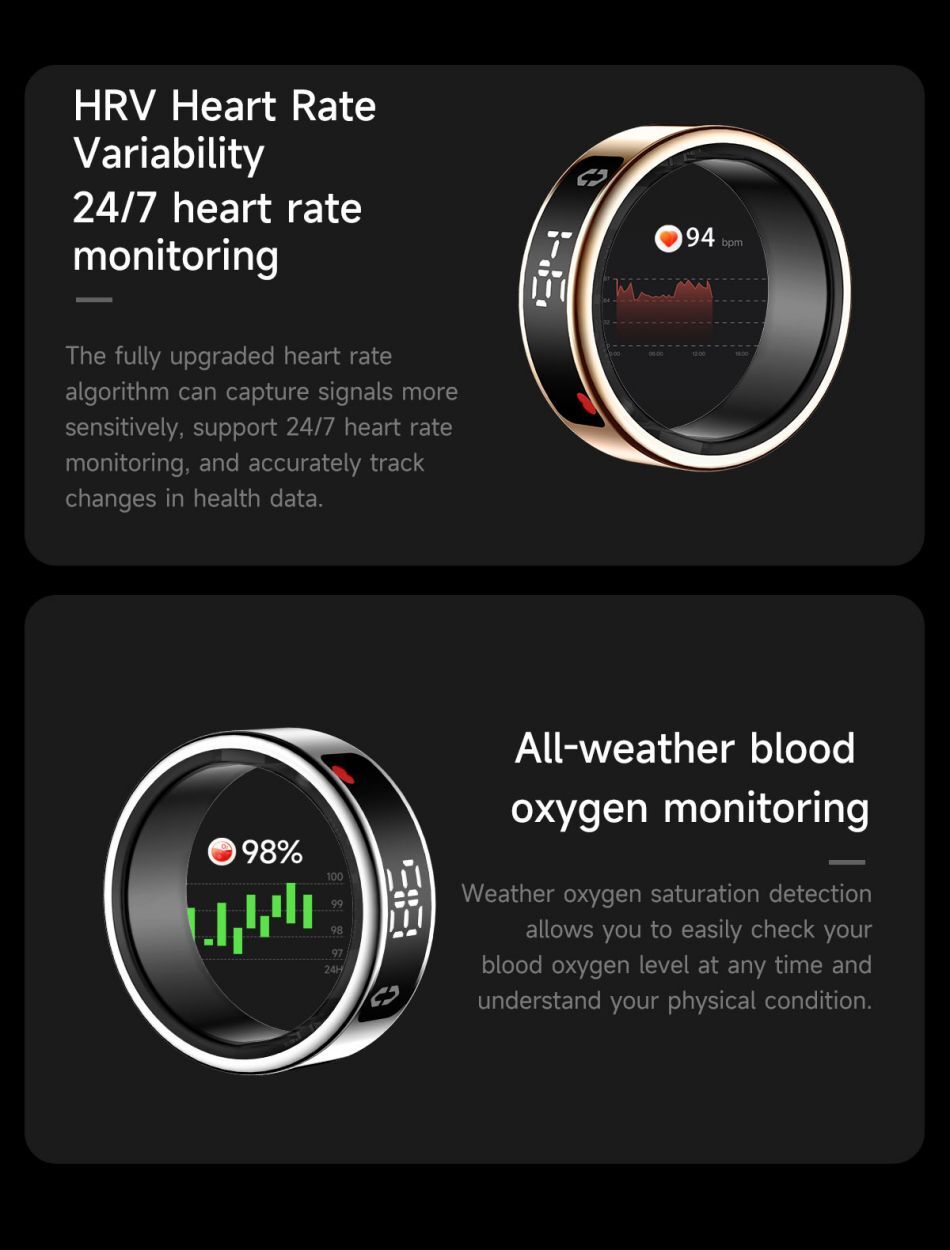

Heart rate	the red heart rate lightwill light up and the last test data will be displayed. Afterstaying on the interface for two seconds, it will enter the heartrate test state and the three middle bars will rotate. After thetest, the test results will be displayed.
Blood oxygen	the red heart rate lightwill light up and the words SOP2 will be displayed. After 0.6seconds, the blood oxygen test state will be switched and thethree middle bars will rotate. After the test, the test result willbe displayed.
Sleep	times to display the word SLEEP, and after0.6 seconds, the sleep duration of last night will be displayed.
Battery level	times to display the current batterylevel, the same as when charging.
Hand gestures brush tiktok	Smart ring brush Tiktok is a new interactive way. Through the connection with the mobile phone or other devices and specific technical support, the smart ring can realize some operation control and page turning of the Tiktok application, which provides users with a more convenient and innovative experience. Without directly touching the mobile phone screen, it can operate Tiktok, various videos, browse the web, shop, etc. to a certain extent

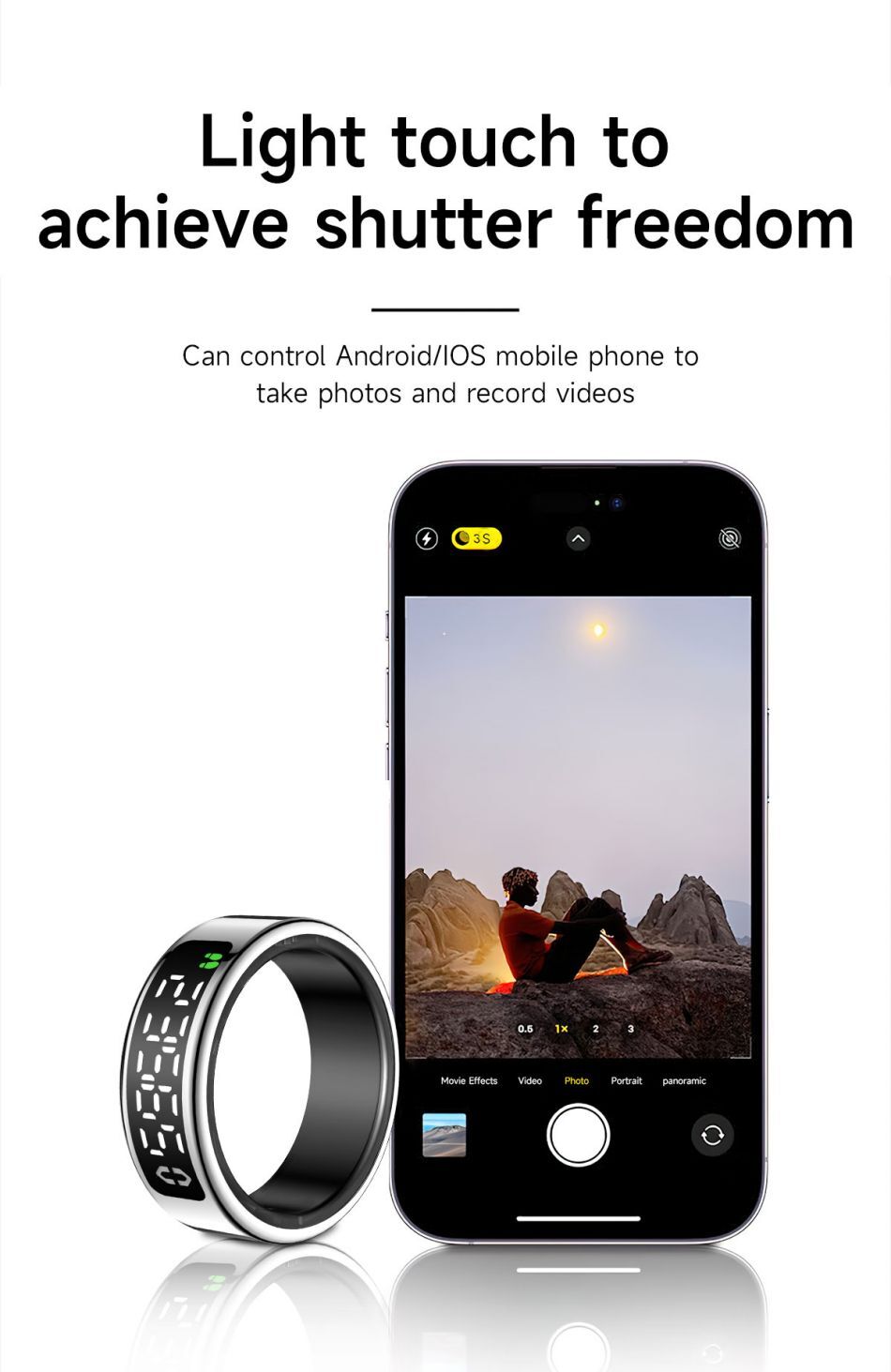

Wave your hand to take a picture immediately	Innovative design, so that you can easily capture the beautiful moment anytime and anywhere. Selfie new height, one finger trigger beautiful smart ring, remote control photography, so that you can easily become their own professional photographer
We-chat&Apple	Access we-chat Sports and Apple Health
APP multi-Language support	National language: multilingual

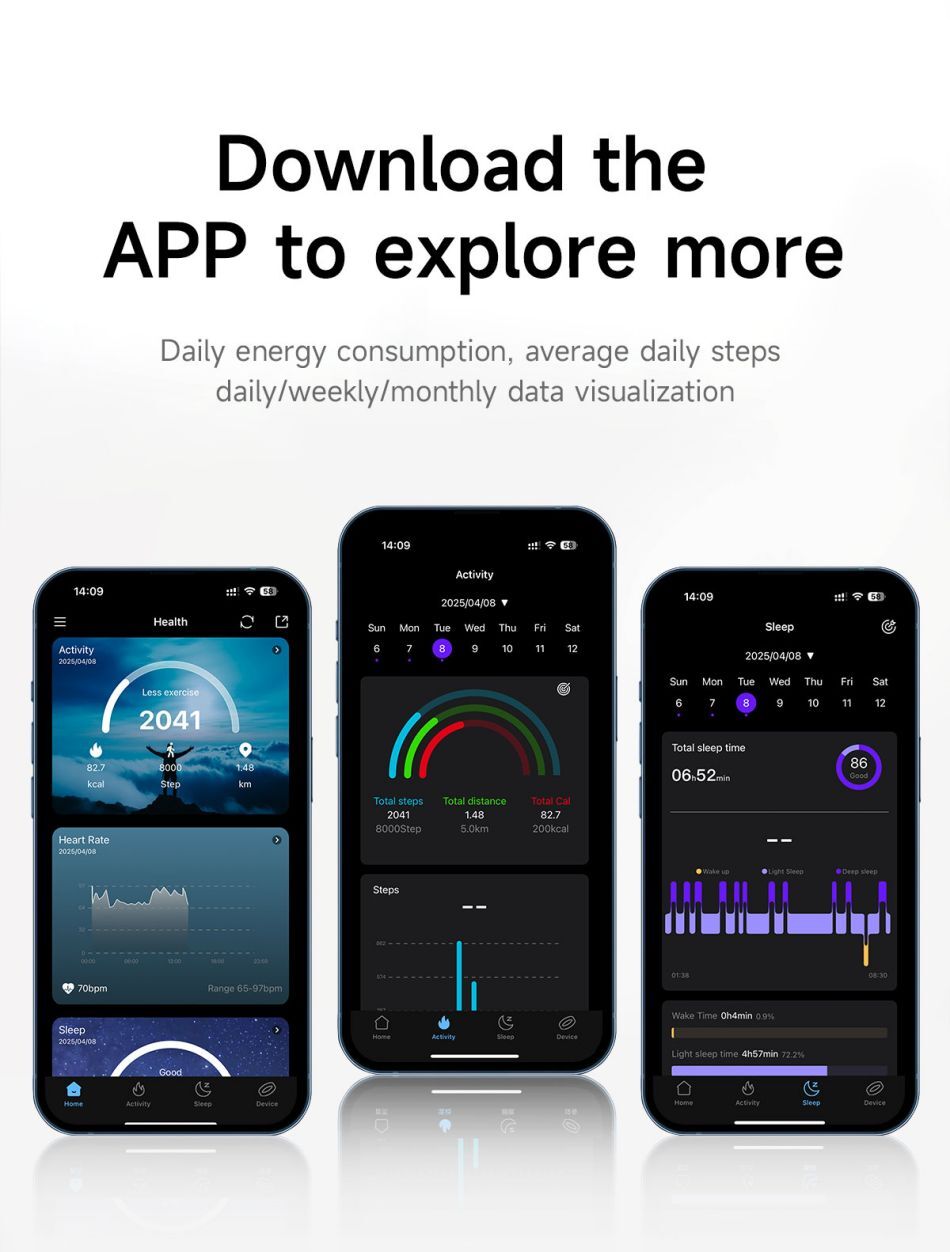

Short Screen for our APP：
Support OTA	Support for FOTA upgrades
APP	RWFIT

Download more information about this product

Product Certifications

Certificate Standard	REACH
Certificate Image	Click on the picture to see a larger one
Certificate Number	QQT202505178RR
Validity	From 2025/05/29
Issued By	shenzhen Qiqing Technology Co.,Ltd

Certificate Standard	ROHS
Certificate Image	Click on the picture to see a larger one
Certificate Number	QQT202505176RC
Validity	From 2025/05/29
Issued By	shenzhen qiqing Technology Co.,Ltd

Certificate Standard	CE
Certificate Image	Click on the picture to see a larger one
Certificate Number	QQT202505175EC
Validity	From 2025/05/29
Issued By	Shenzhen qiqing Technology Co.,Ltd

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

Shipping Information

FOB Port	Shenzhen	Lead Time	5–7 days
Weight per Unit	3.4 Grams	Dimensions per Unit	7.6 x 7.5 x 4.4 Centimeters
Units per Export Carton	50.0	Export Carton Dimensions L/W/H	40.0 x 24.0 x 17.5 Centimeters
Logistics attributes	Charged	Export Carton Weight	200.0 Grams

Main Export Markets

Main Export Markets	North America, Western Europe, Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa

Payment Details

Payment Method	Telegraphic Transfer (TT,T/T)
