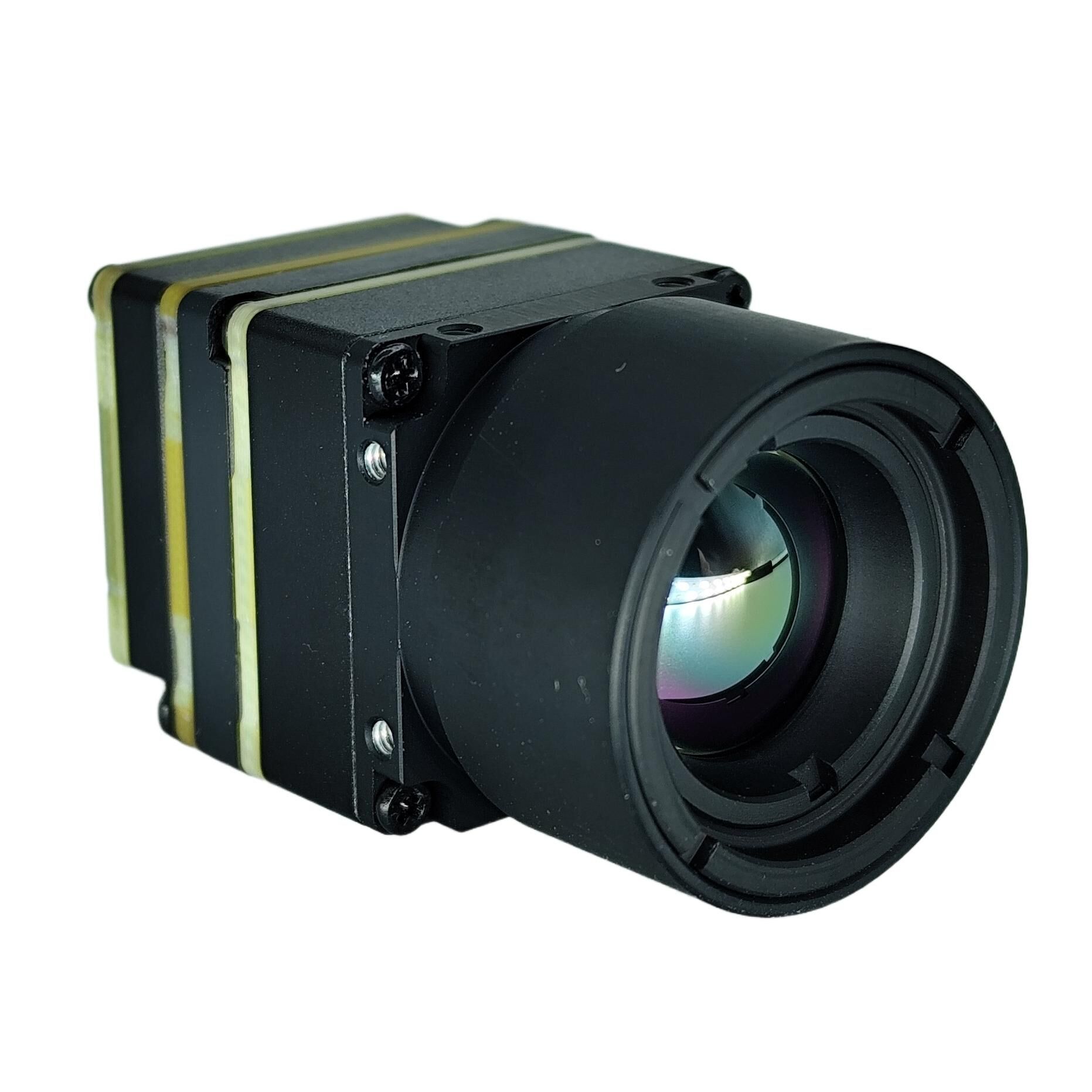

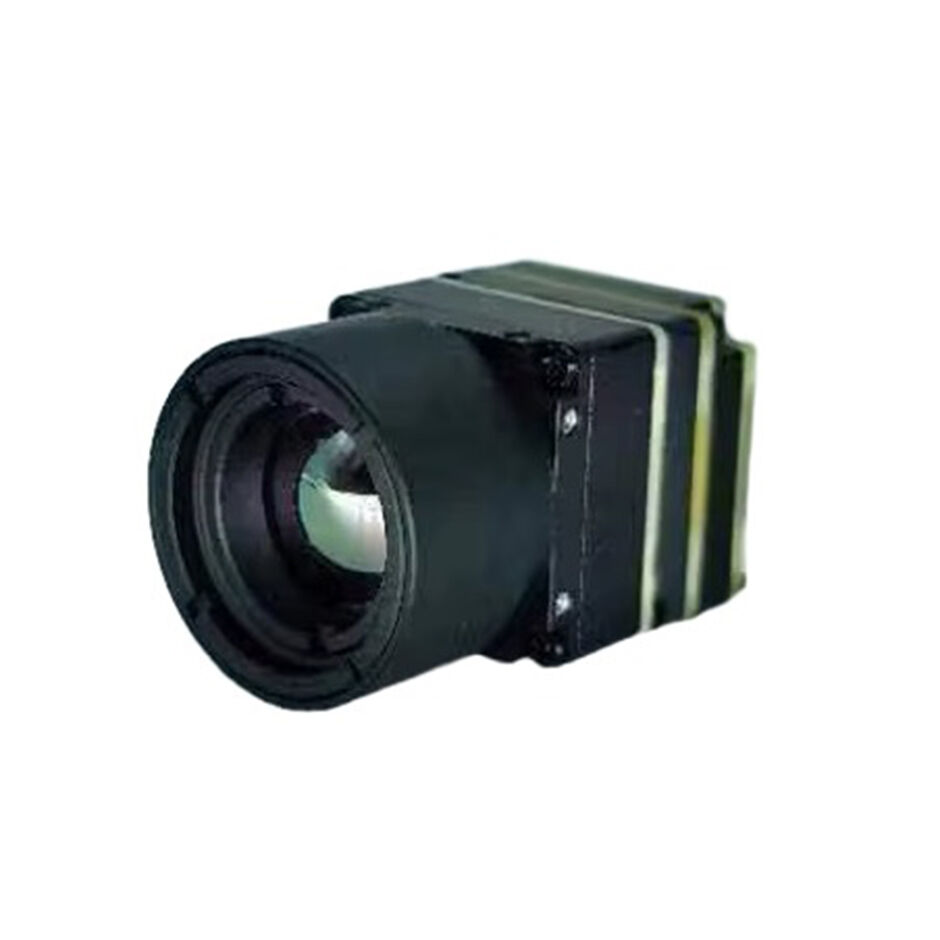

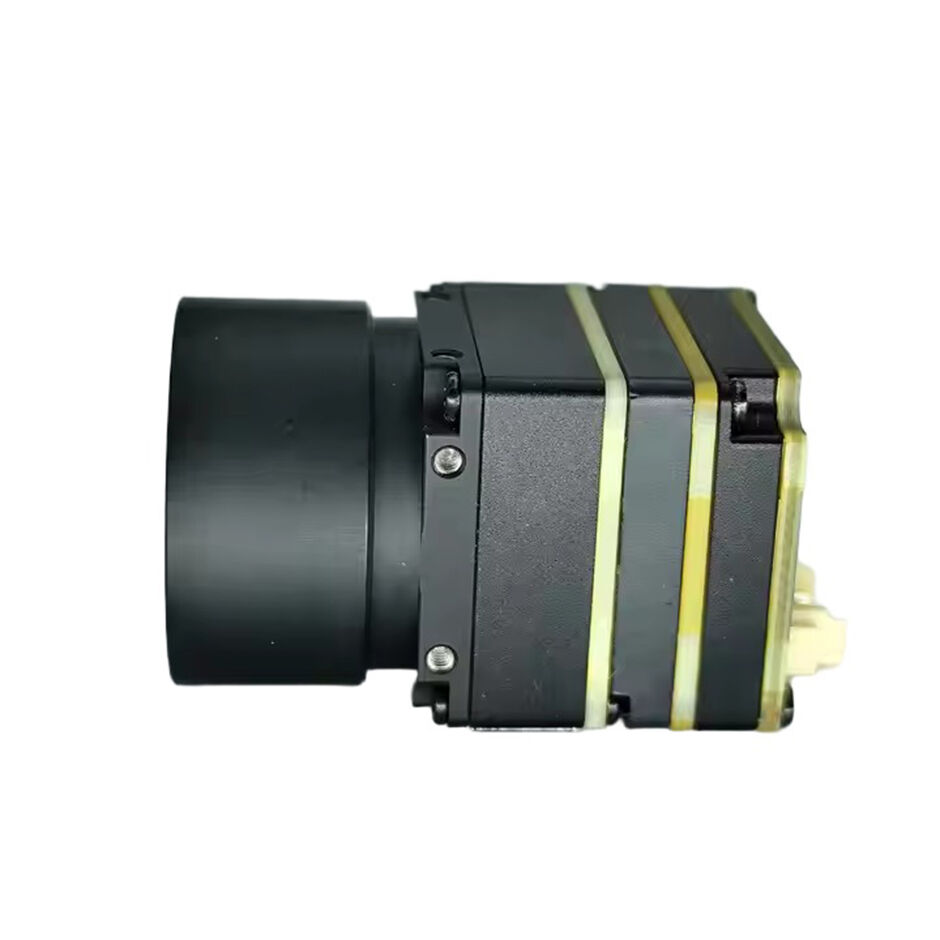

256x192 Thermal Imaging Camera Module Thermal Camera Mainboard with CVBS Output and 4mm Lens for sale at factory direct price
256x192 Thermal Imaging Camera Module Thermal Camera Mainboard with CVBS Output and 4mm Lens
Click image to open expanded view

256x192 Thermal Imaging Camera Module Thermal Camera Mainboard with CVBS Output and 4mm Lens

Lead Time 3–31 days
US$ 160
5–99 Pieces
US$ 150
≥100 Pieces
Product Attribute
Function:
thermal
Shenzhen Joney Security Technology Co., Ltd.

Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.

Product Information
Model NumberJY-TH-M01Brand NameJoneytech
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:

256x192 Thermal Imaging Camera Module Thermal Camera Mainboard with CVBS Output and 4mm Lens




Product Parameters

Model NumberJY-TH-M01
Resolution256*192
Detector TypeVanadium Oxide Uncooled Infrared Focal Plane Detector
Frame rateFrame rate 25fps
Pixel PitchPixel Pitch 12um
NETD40mk
Response BandResponse Band 8-14um
Lens Focal Length4.0mm
Field of view (H*V)45°(H)x33°(V)
PowerPower <=0.8w
Supply Voltage5V-16V
Colour types (5 types available, factory-settable)White Hot, Black Hot, Fusion, Iron Red, Fusion
Output TypeCVBS
Analogue output formatPAL
Size (without lens)20mmx20mm
Weight (without lens)<=23g
Operating Temperature-40°C~+80°C
Storage Temperature-45°C~85°C

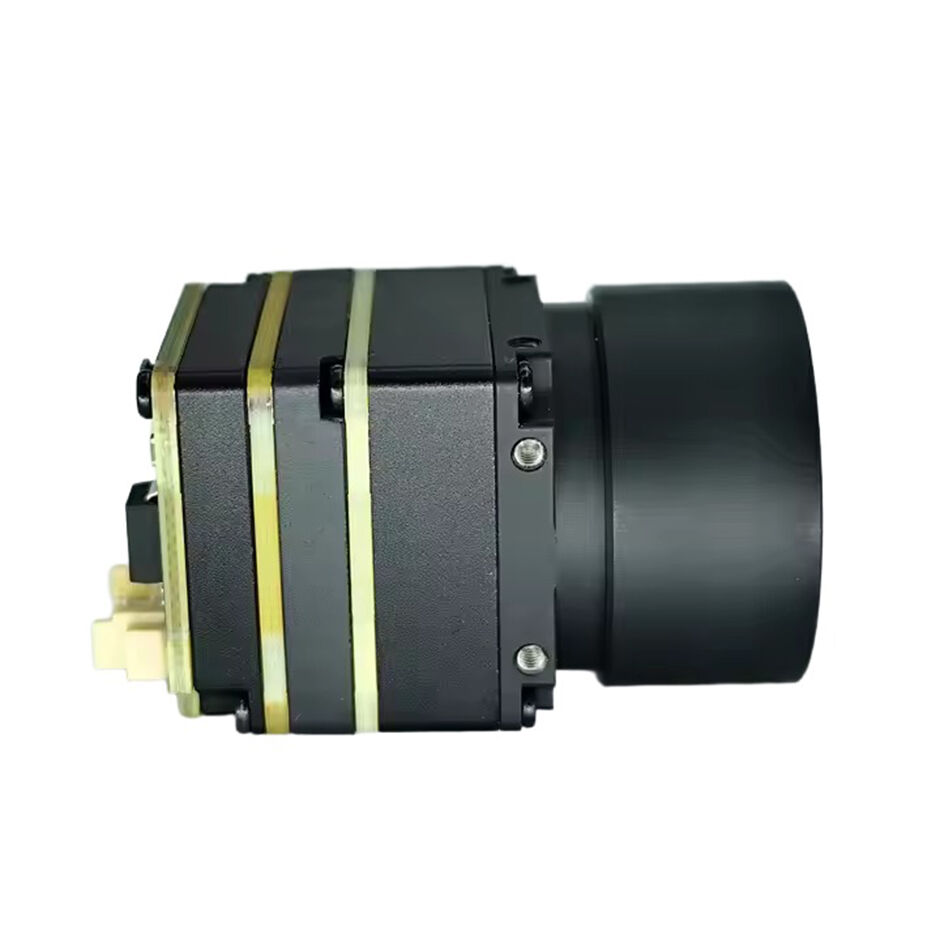

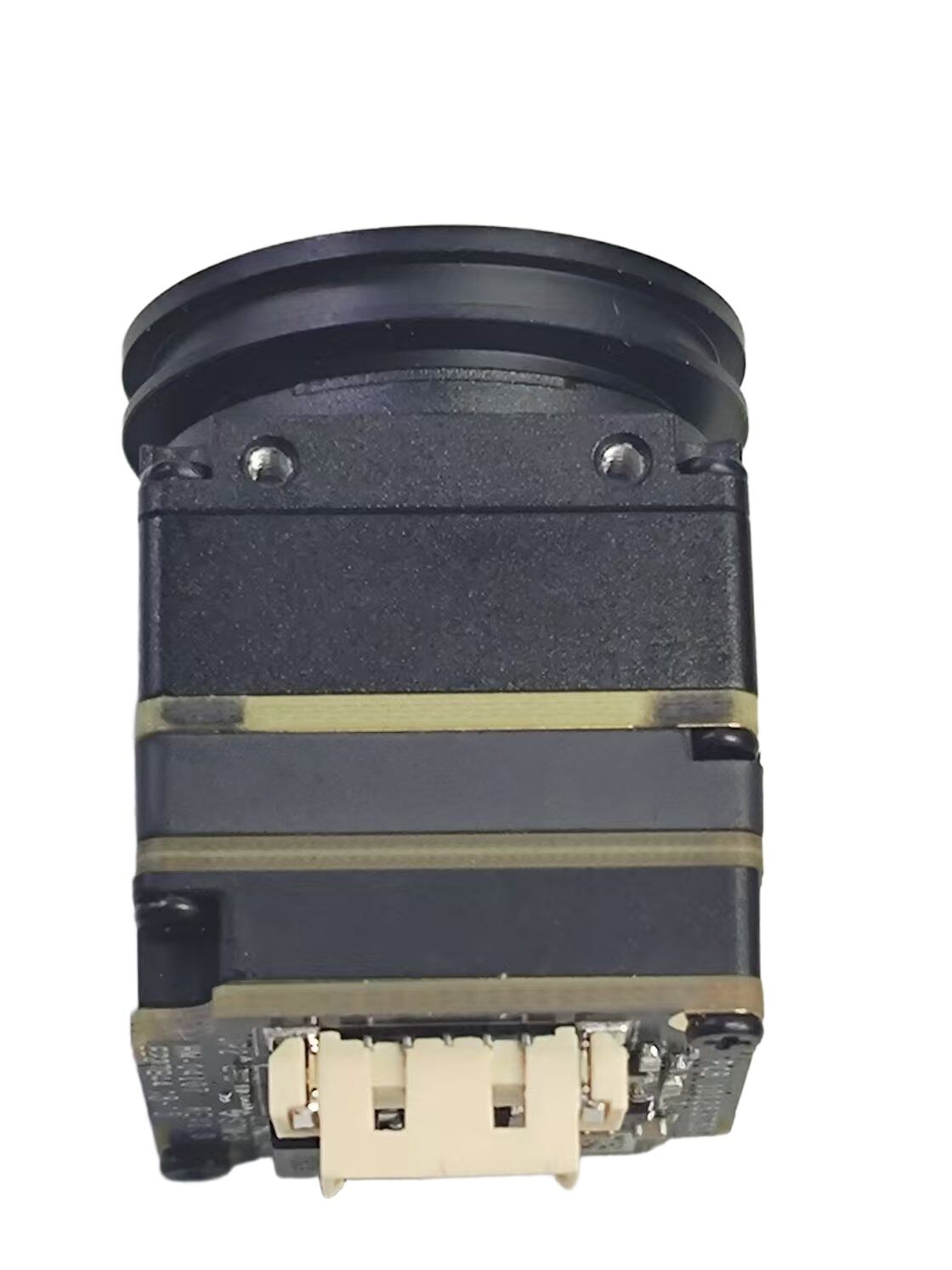

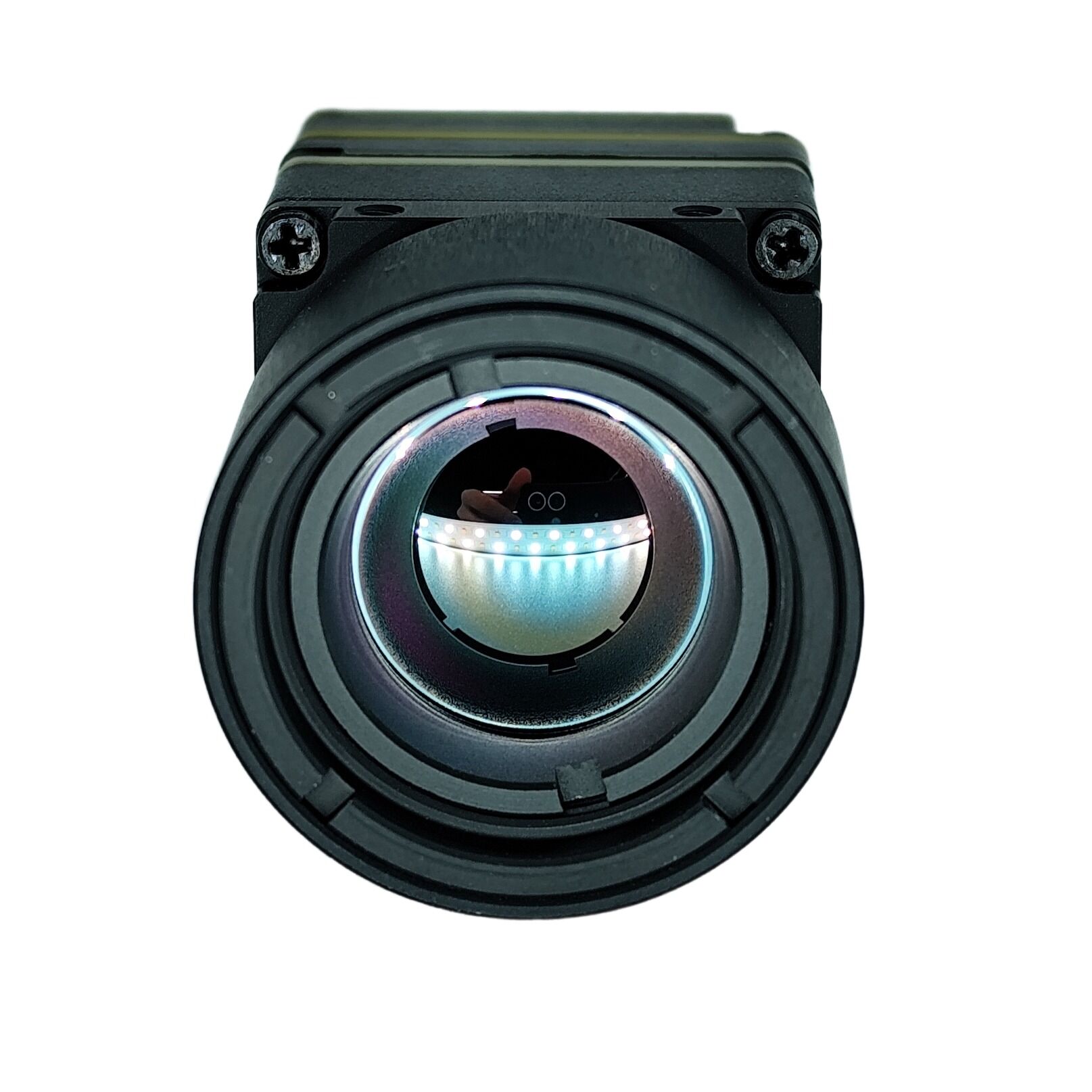

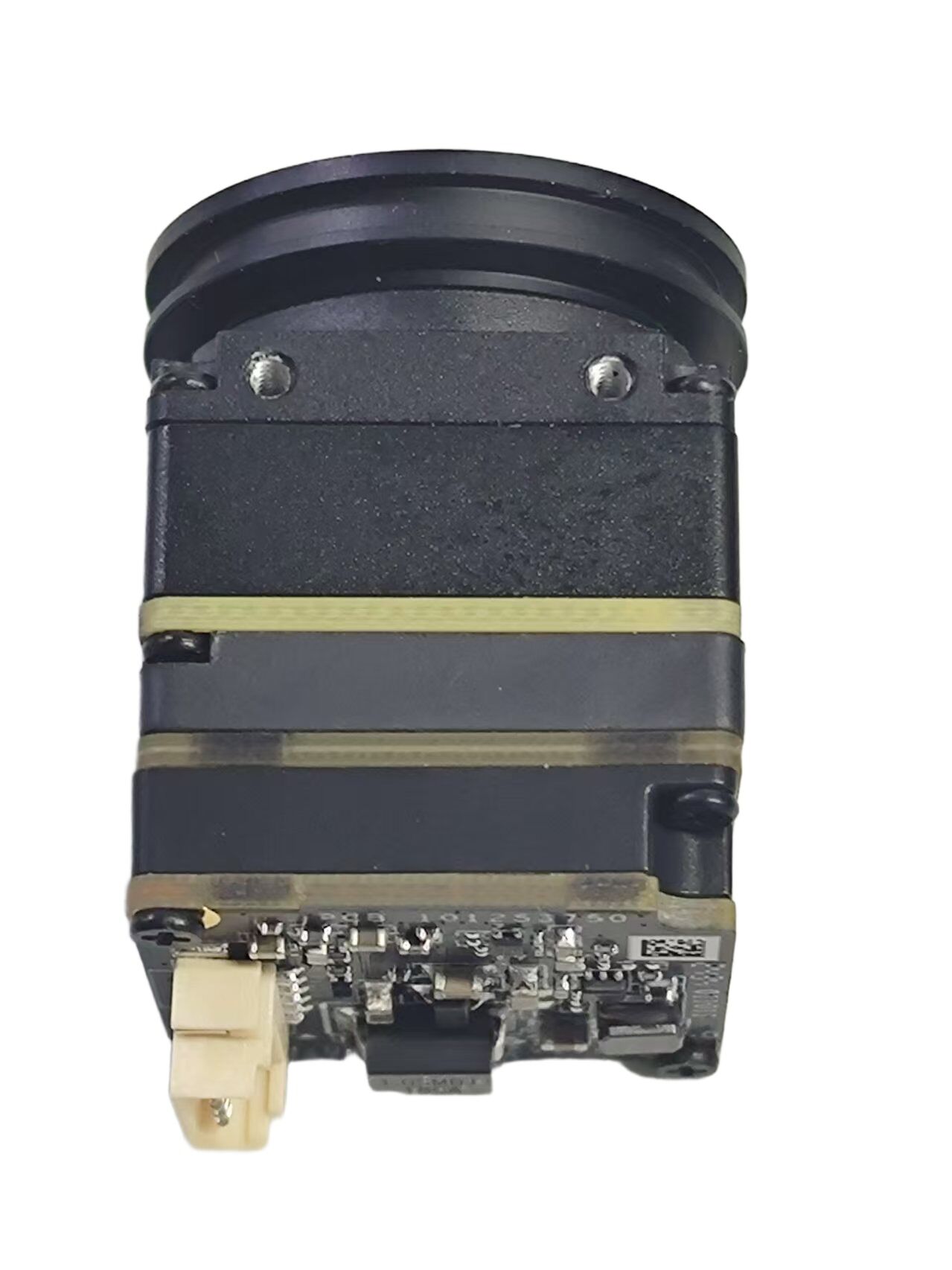

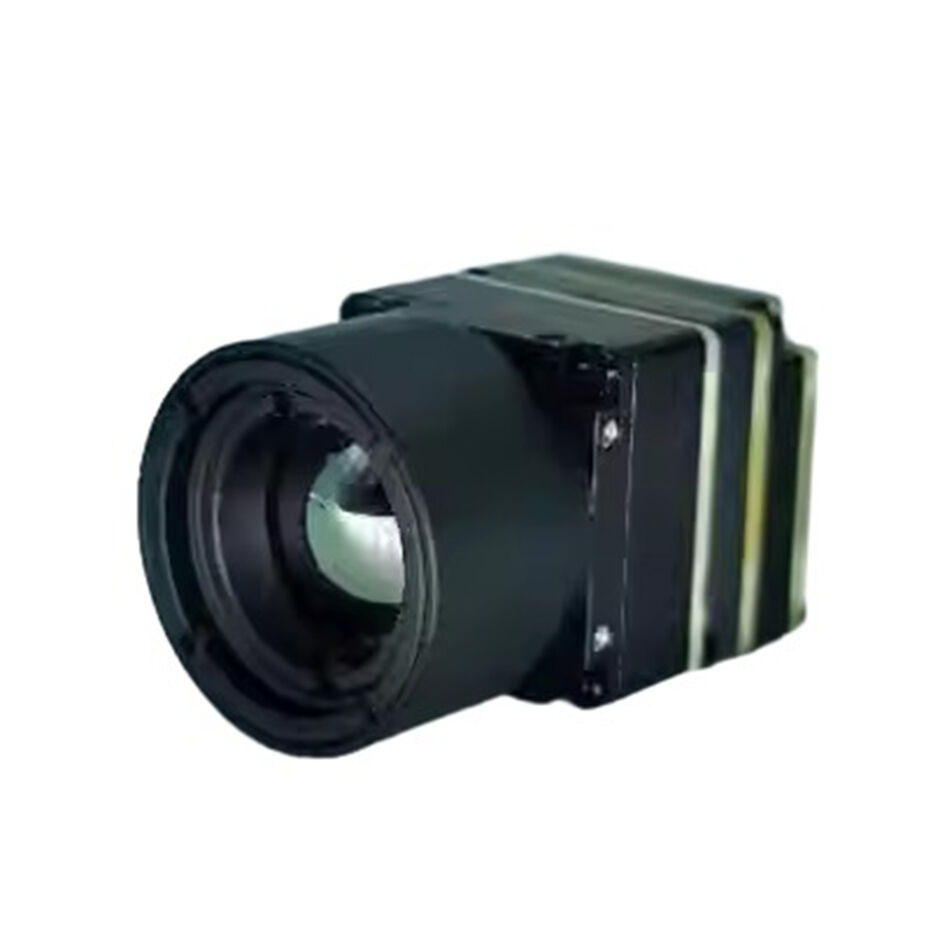

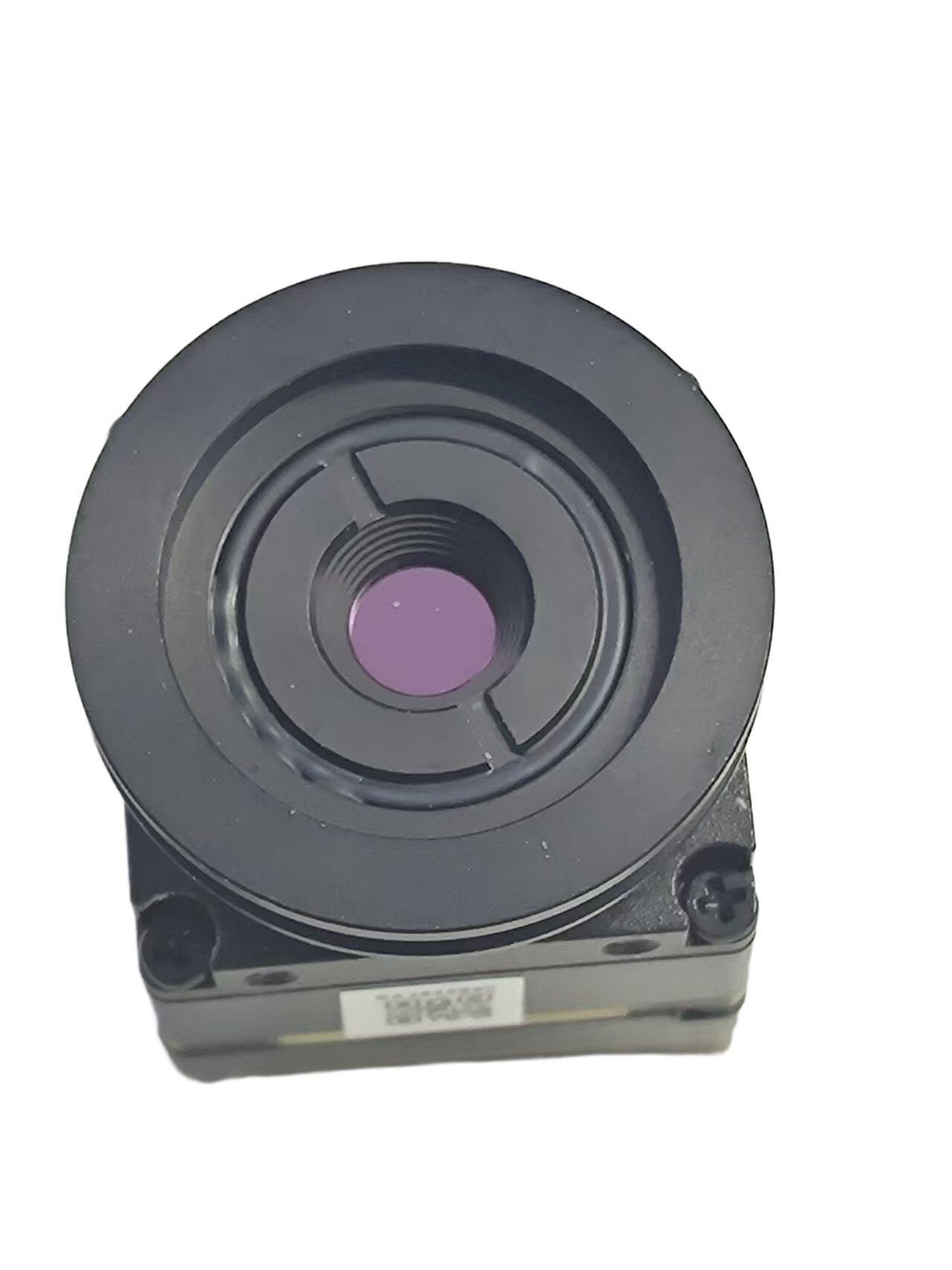

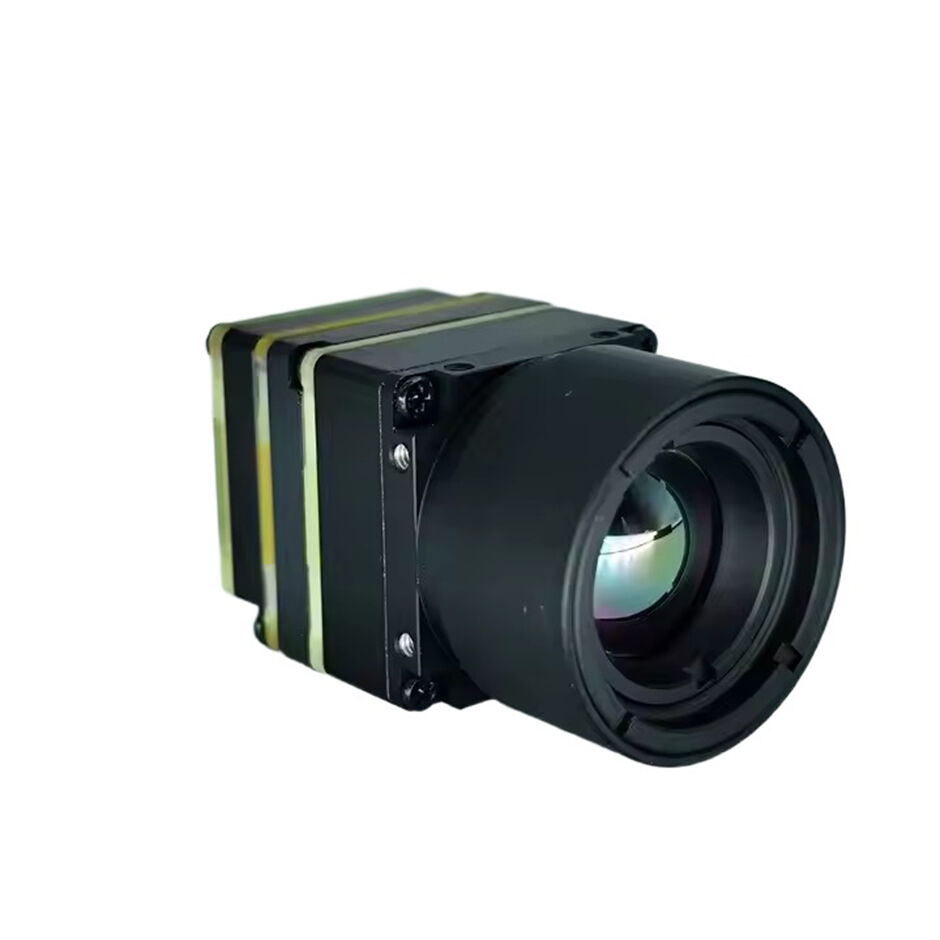

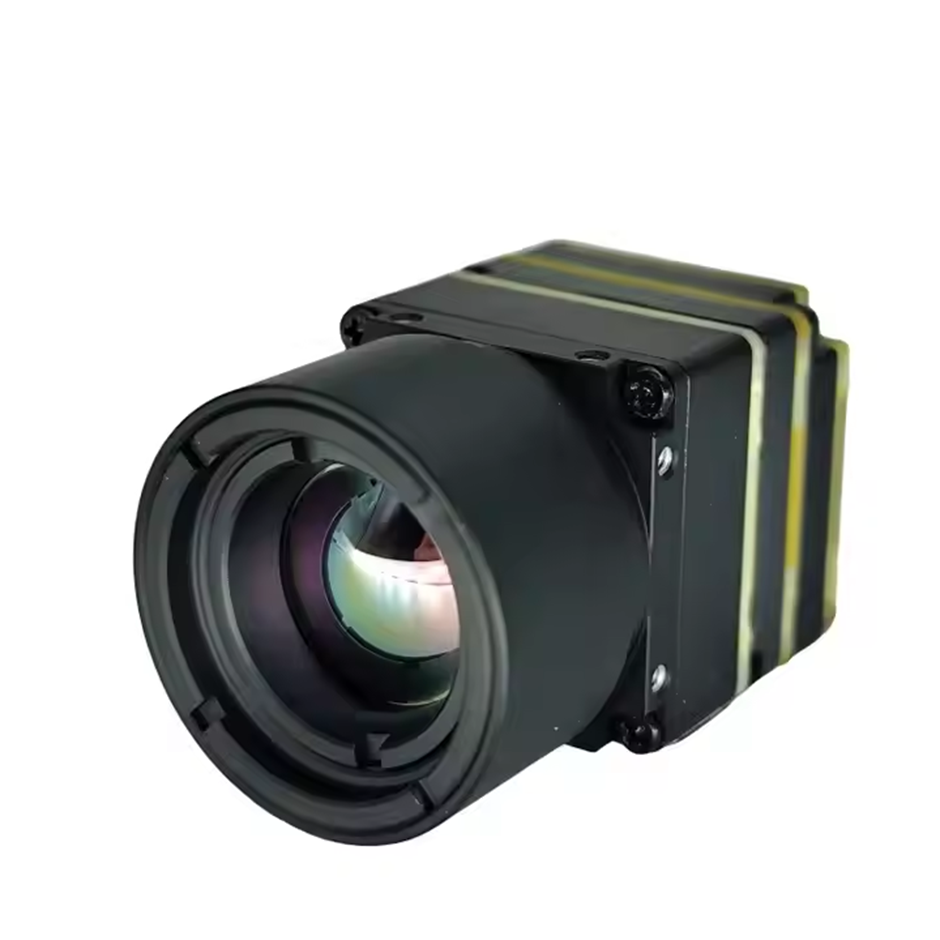

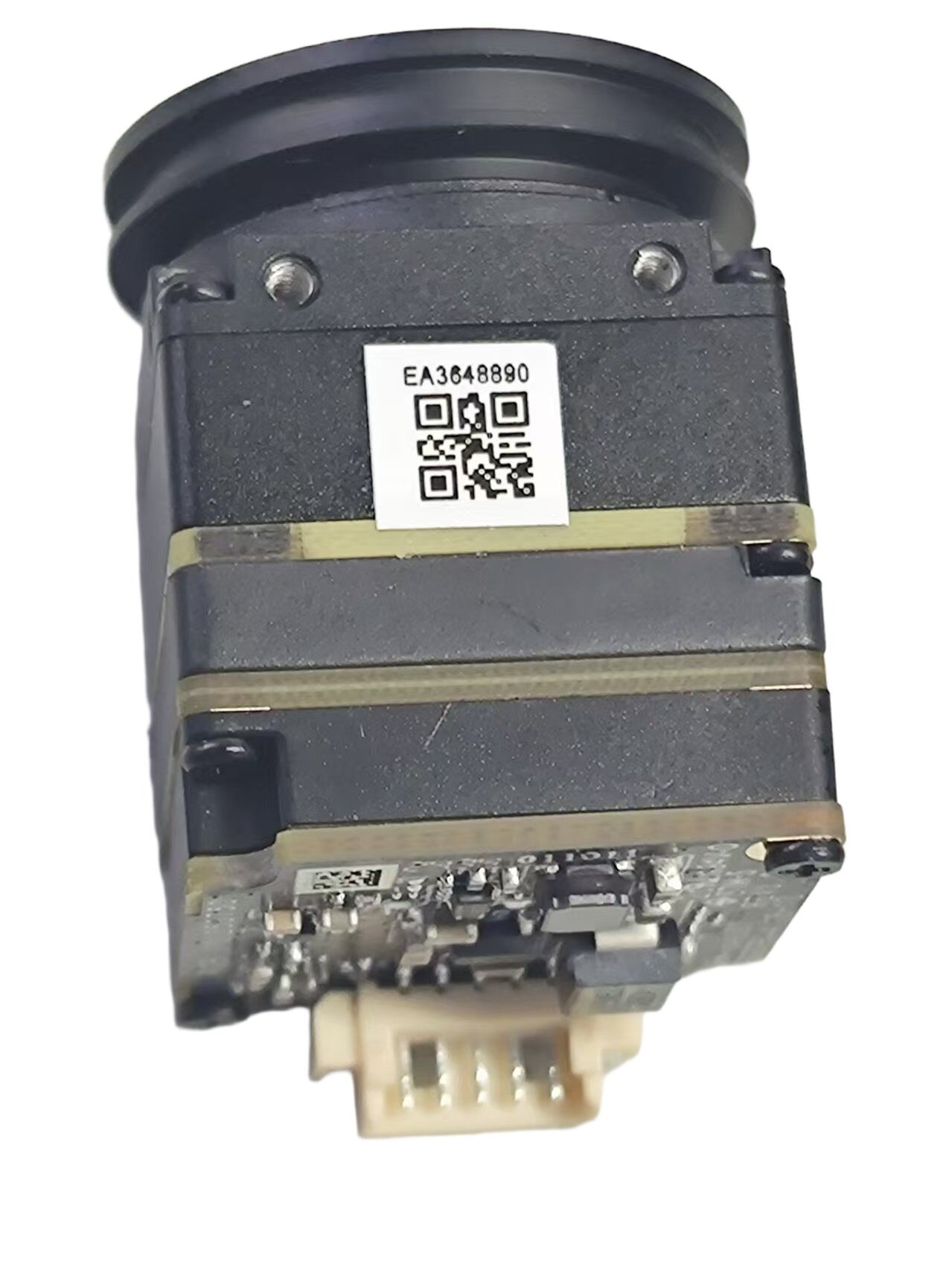

Details Images







Shipping Information

FOB PortShenzhenLead Time3–31 days
Weight per Unit2.5 KilogramsDimensions per Unit10.0 x 20.0 x 20.0 Centimeters
Units per Export Carton1.0Export Carton Dimensions L/W/H10.0 x 20.0 x 20.0 Centimeters
Logistics attributesCommonExport Carton Weight0.5 Kilograms
