New 4G LTE 300Mbps 3G Router Unlocked 5000mAh Battery for sale at factory direct price
New 4G LTE 300Mbps 3G Router Unlocked 5000mAh Battery
Click image to open expanded view

New 4G LTE 300Mbps 3G Router Unlocked 5000mAh Battery

Lead Time 20–25 days
US$ 28.95 - 31.55 / 1 Piece
2 Pieces Minimum order
Product Attribute
Network:
WCDMA
Architecture:
Multi CPU, Shared memory
Shenzhen HTF Electronic Co., Ltd.

Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.

Product Information
Model NumberHT-WRN523-#1949Brand NameOEM
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:










Hardware Feature
CPUMT7628N
ModemZX297520V3
Flash/RAM:  1G Nand Flash
Power supplyPower Jack,DC 12V/1A
RJ45 Port5x RJ-45 port(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u) for WAN/LAN Auto
RESET keyUsing for restore factory default settings.(long press 8 seconds）

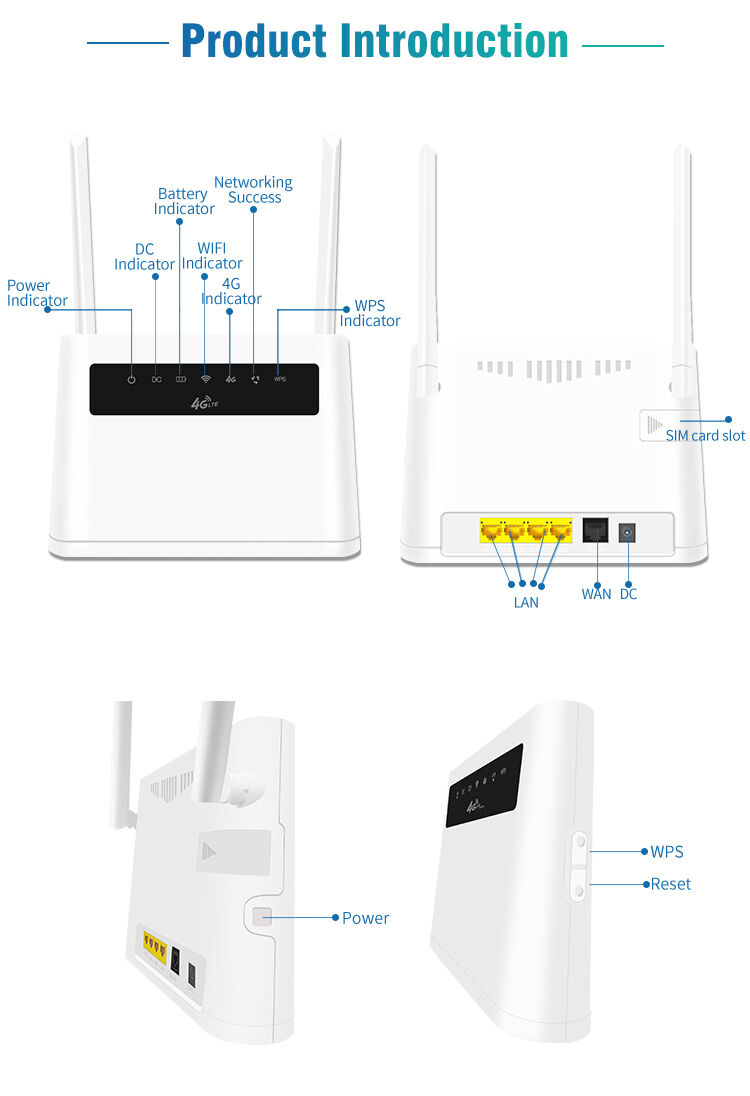

LED indicator1 Power indicator
2 System indicator
3 Modem indicator: 3G with blue,4G with green.
4 WIFI indicator
5 WAN/LAN indicator
SIM cardSupport Micro sim card
AntennaExternal,1 x 5dbi Wifi Antenna;1x 5dbi 4g antenna
Wireless
Work FrequencyFCC: 2412-2462MHz(Ch1-Ch11)
ETSI: 2412-2472MHz(Ch1-Ch13)
Transfer rate11n：270/243/216/162/108/81/54/27Mbps
135/121.5/108/81/54/40.5/27/13.5Mbps
130/117/104/78/52/39/26/13Mbps
65/58.5/52/39/26/19.5/13/6.5Mbps
11g：54/48/36/24/18/12/9/6M（self-adaption）
11b：11/5.5/2/1M（self-adaption）
Work channel13x, Auto-selection or manually
Spread-spectrumDSSS
Data modulationBPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Rx Sensitivity@PER270M：-61dBm@10% PER；130M： -61dBm@10% PER；108M：-61dBm@10% PER；54M：-65dBm@10% PER；11M：-85dBm@8% PER；6M：-88dBm@10% PER;1M：-90dBm@8% PER
Transfer distanceIndoor 30 meters as far as ;
outdoor as far as 50 meters (owing to the different environment)
Tx Power11n: 15±1.0dBm; 11g: 16±1.0dBm; 11b:19±1.0dBm（typical）
FrequencyFDD:B1/B3/B5/B7/B8/B20(bands can be customized)                                                                                                                                                                     WCDMA:B1/B8
4G Transfer rateTDD-LTE: 150Mbps DL / 50Mbps UL
TD-SCDMA: 2.8Mbps DL / 2.2Mbps UL
Software Feature
IP addressStatic or DHCP
MAX. end users number32
Router protocolStatic router，RIP1/RIP2
Management UIBased WebUI(HTTP)
DHCPSupport Server and Client
FirewallBuilt-in NAT Firewall
Network ProtocolTCP/IP, PPPoE、DHCP、ICMP、NAT、NAPT、ARP、PPP、PAP、CHAP、PPTP
ENVIRONMENT & PHYSICAL
Temperature range-10 to 50 ℃ operation; -20 to 70 ℃ storage
Humidity(non-condering) 15% - 95% typical
Size200mmX145mmX48mm













Shipping Information

FOB PortShenzhenLead Time20–25 days
Weight per Unit0.32 KilogramsDimensions per Unit24.5 x 24.0 x 6.5 Centimeters
HTS Code8517.62.39 00Units per Export Carton20.0
Export Carton Dimensions L/W/H64.0 x 50.0 x 25.0 CentimetersExport Carton Weight10.0 Kilograms

Main Export Markets

Main Export Markets
Asia,
Australasia,
Central/South America,
Eastern Europe,
Mid East/Africa,
North America,
Western Europe
Payment Details
Payment MethodL/C, T/T, Western Union, MoneyGram, D/A, D/P
