Product Information

Model Number	HT-CPE508-#6093	Brand Name	HTF
origin	China	Small Orders	Accepted

Key Specifications/ Special Features:

Product Description

Router hardware
Chipset	MT7628D+MT7613B
Power input port	DC 12V---1A
WAN Port	1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)

LAN Port	3 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
WPS/Reset Buttons	Buttons: WPS ,Long press: reset(Used to restore the factory configuration of the router.)
Power button	Router's power switch (not required)
LED indication	1,power supply 2,4G/WIFI Indication 3,WAN Interfaces; 4,LAN1; 5,LAN2; 6,LAN3

Storage	SDRAM: 64MB Nor Flash: 8MB
Wireless parameters
WIFI Frequency range	IEEE 802.11a/n/ac 5 GHz, IEEE 802.11b/g/n 2.4 GHz 300Mbps at 2.4GHz, 867Mbps at 5GHz
Mobile network frequency	FDD: B1 B3 B5 B7 B8 B20 B28TDD: B38 B39 B40 B41WCDMA: B1 B5 B8

Reception Sensitivity	5GHz: 11a 54M: -77 dBm 11ac VHT20 MCS0: -95.5 dBm 11ac VHT20 MCS8: -73 dBm 11ac VHT40 MCS0: -93 dBm 11ac VHT20 MCS9: -68 dBm 11ac VHT80 MCS0: -90 dBm 11ac VHT20 MCS9: -65 dBm 2.4 GHz: 11g 54M: -74.5 dBm 11n HT20 MCS0: -92 dBm 11n HT20 MCS7: -73 dBm 11n HT40 MCS0: -89 dBm 11n HT40 MCS7: -70 dBm
Number of working channels	13
Spread Spectrum Technology	DSSS(Direct Sequence Spread Spectrum)
Data modulation method	BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)

Transmission distance	Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
LTE related hardware

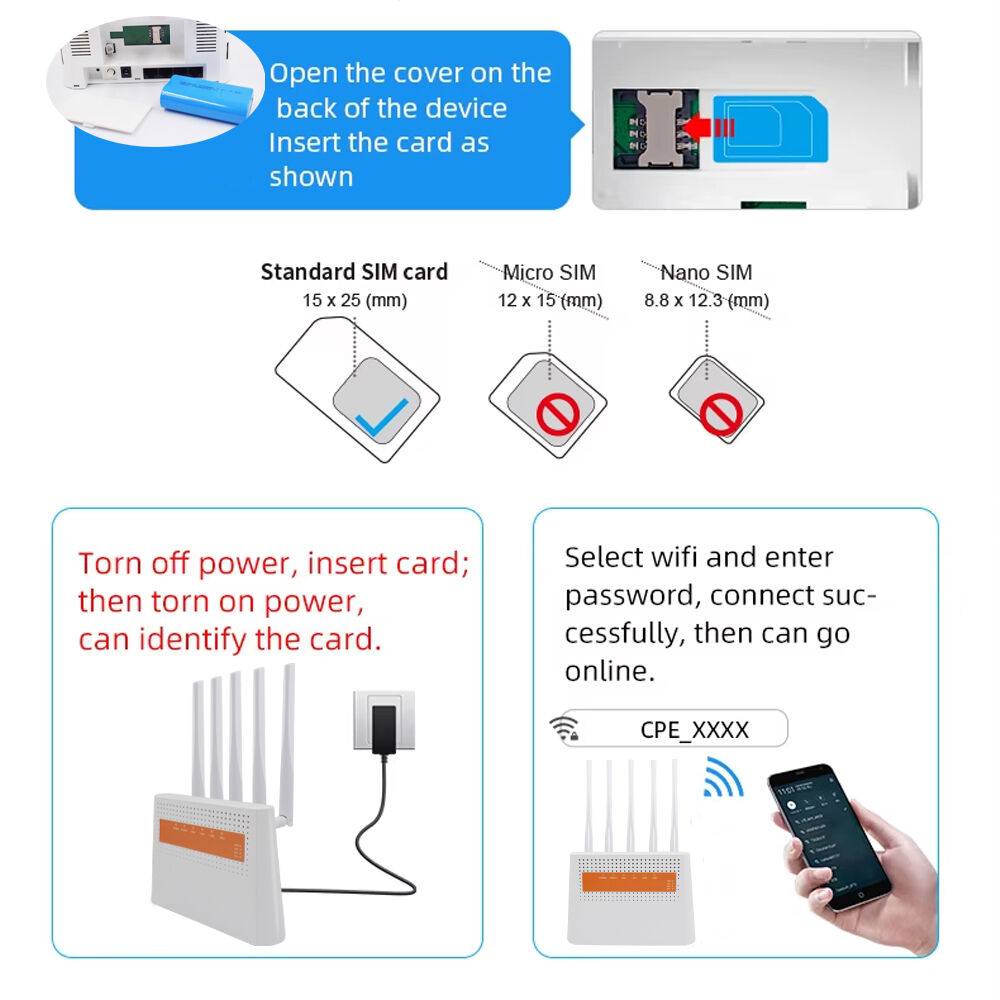

SIM Card Slot	Rear flip SIM card Slot
Antennas	External 5 Detachable antenna With SMA connector, corresponding

Router software features
IP Address	Static or dynamic
WAN Type	Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Routing Protocol	Static route, RIP1/RIP2

Configuration & Management	Based on WEB interface management (HTTP)
DHCP	Support Server and Client
Firewall protection	Built-in NAT firewall
Environment	Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Storage Temperature: -40℃~70℃ (-40℉ ~158℉)Storage Humidity: 5%~90% non-condensing

Features
 Cutting-edge 4G network – share internet access with up to 30+ Wi-Fi devices and enjoy download speeds of up to 150
Mbps and Upload speed to 50Mbps

 Plug a SIM card and play – no configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

 Two advanced LTE antennas and Three WIFI antenna – enjoy stable and efficient
connections to every device thanks to the two external antennas

 Wi-Fi router mode – plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can't get a 4G connection

Description
1) Support 3G, 4G LTE wireless network technology.
2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM Card slot
4) 1200Mbps Dual Band Wireless AC standard
5) 1* WAN port, 3* LAN ports
6) Build in 6000Mha Battery Back up
7) 5* External Detachable Antenna With SMA connector

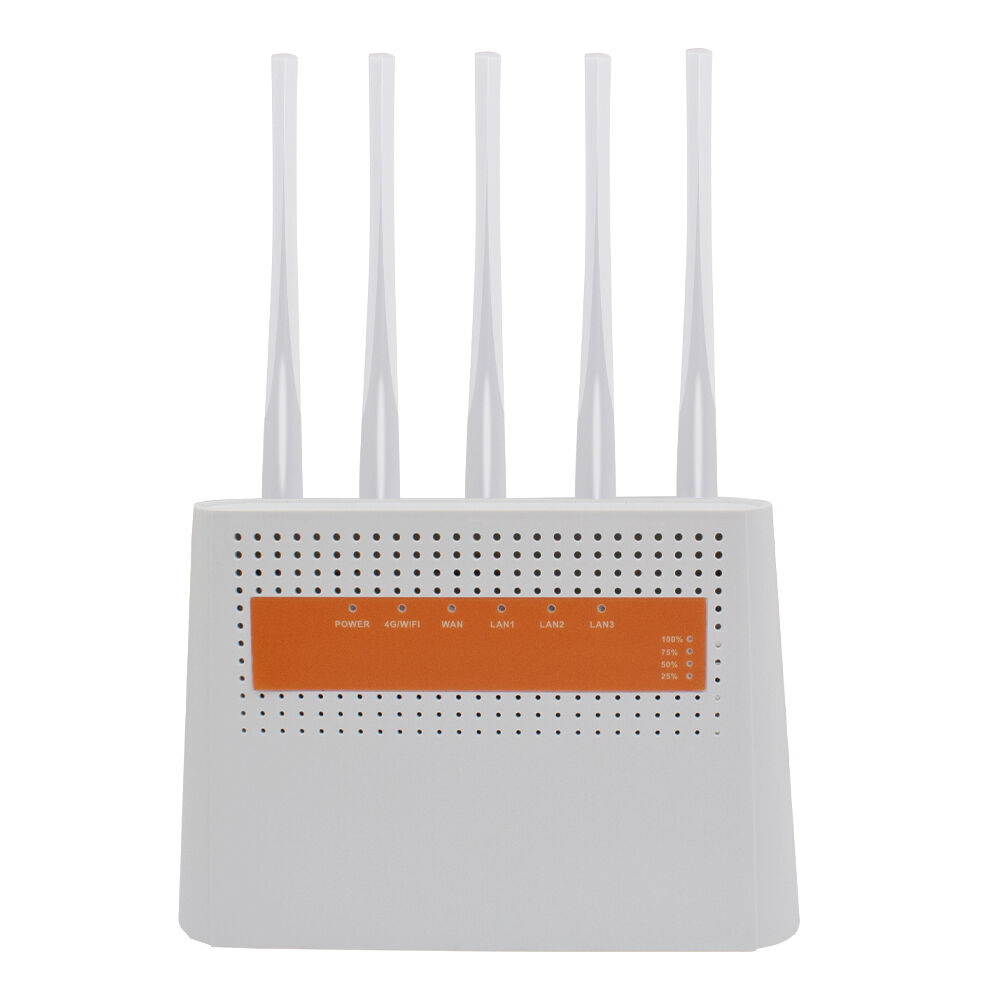

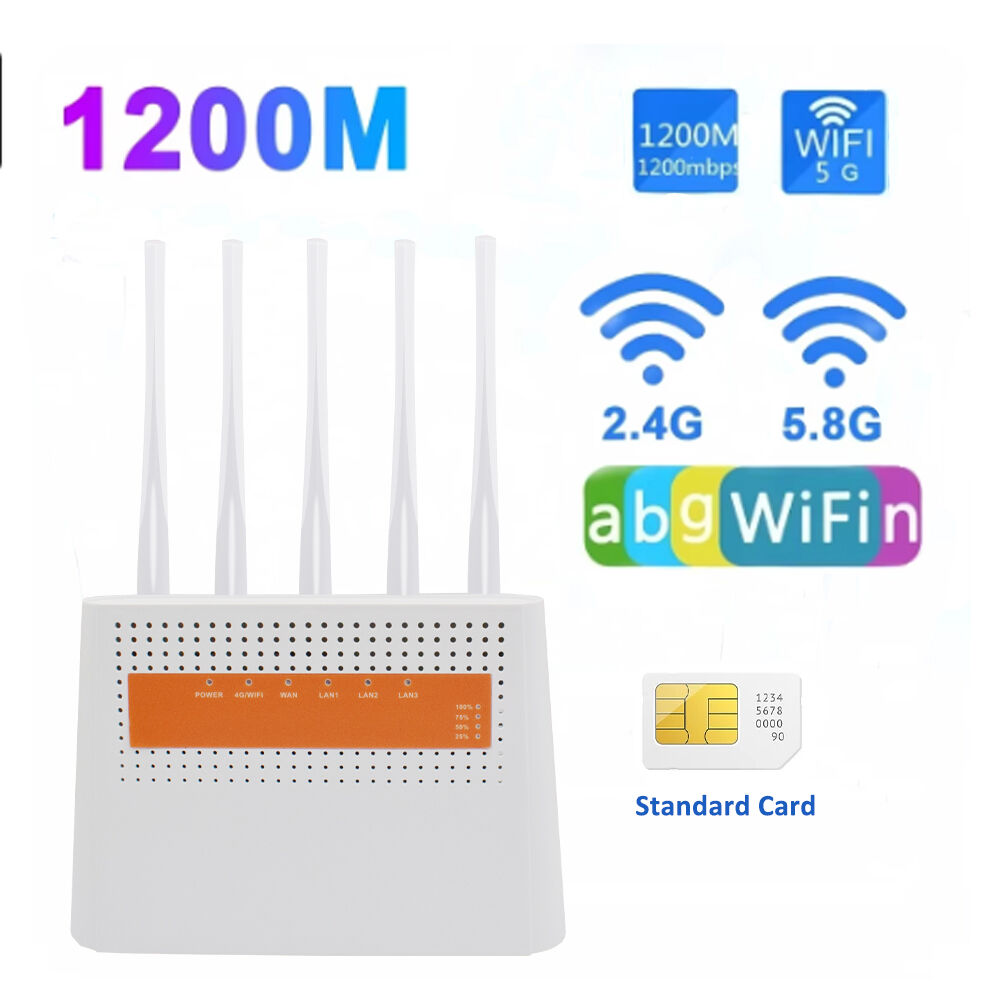

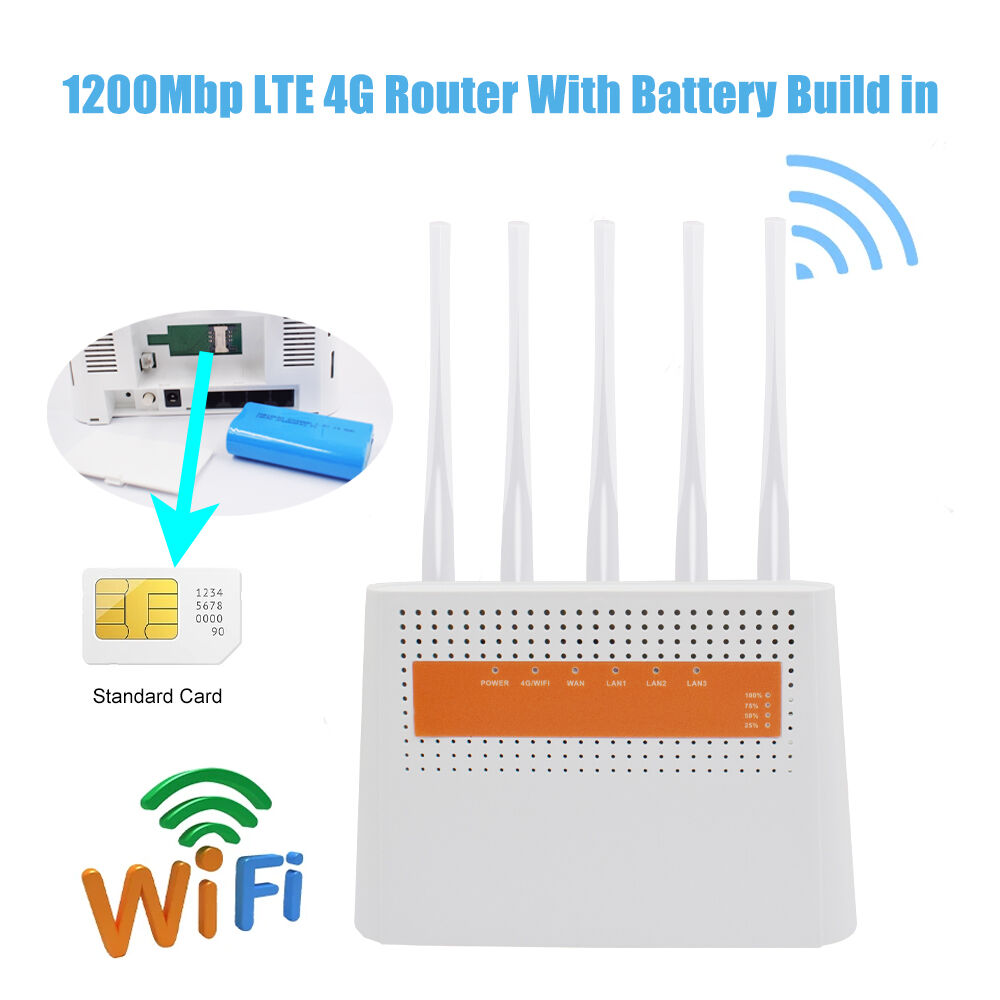

Product Photos

Shipping Information

FOB Port	Shenzhen	Lead Time	15–20 days
Weight per Unit	0.5 Grams	Dimensions per Unit	10.0 x 7.0 x 5.0 Centimeters
Units per Export Carton	40.0	Export Carton Dimensions L/W/H	24.0 x 22.0 x 37.0 Centimeters

Main Export Markets

Main Export Markets	Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa, Western Europe, North America

Payment Details

Payment Method	PayPal

1200Mbps 4G Wireless Router LTE Router Double WiFi Router with Backup Battery
