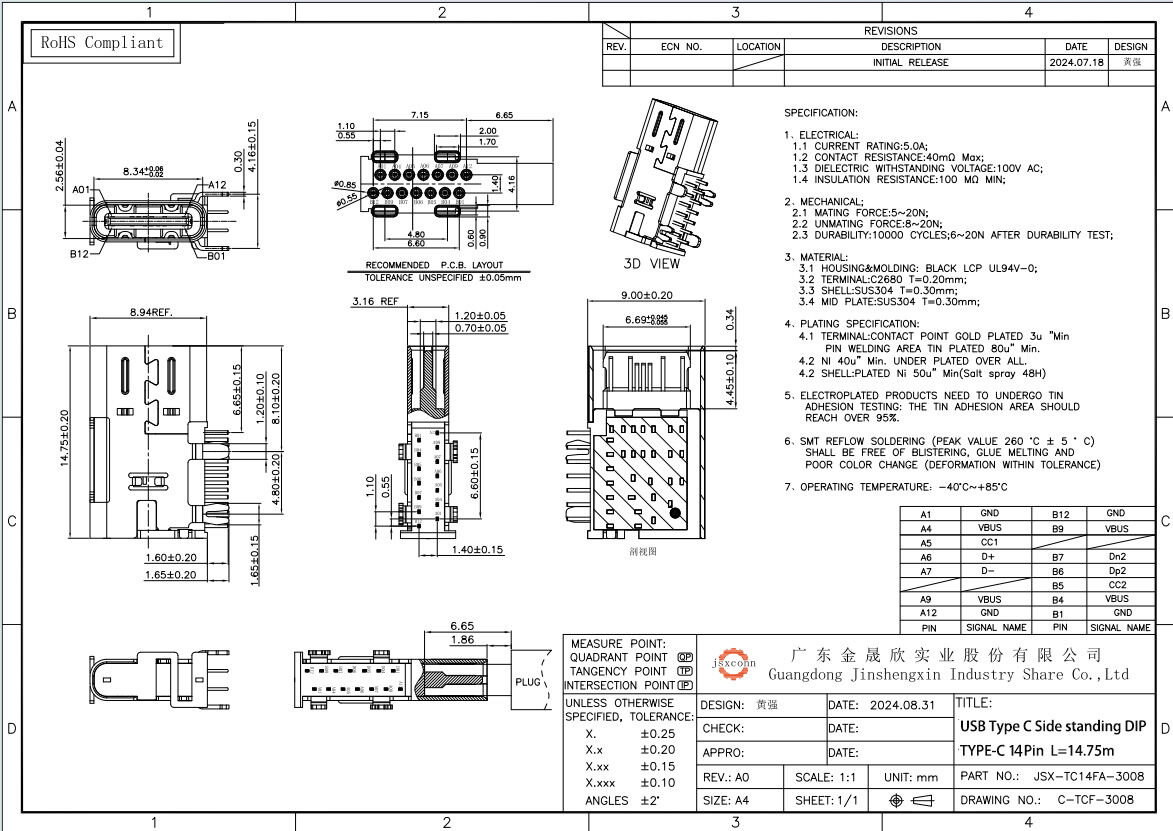

Factory Direct "14-Pin Type-C Vertical DIP Connector L=14.75mm Quick Charge Connector for Electronic Devices"

Type c 16P connector product specifications:

1.electrical: 1.1 currenting rating:5a

1.2 contact resistance:40mΩ max

1.3 dielectric withstanding voltage:100v ac

1.4 insulation resistance:100 mΩ min

2.mechanical

2.1 mating force:5-20n

2.2 unmating force:8-20n

2.3 durability:10000 cycles:6-20n after durability test

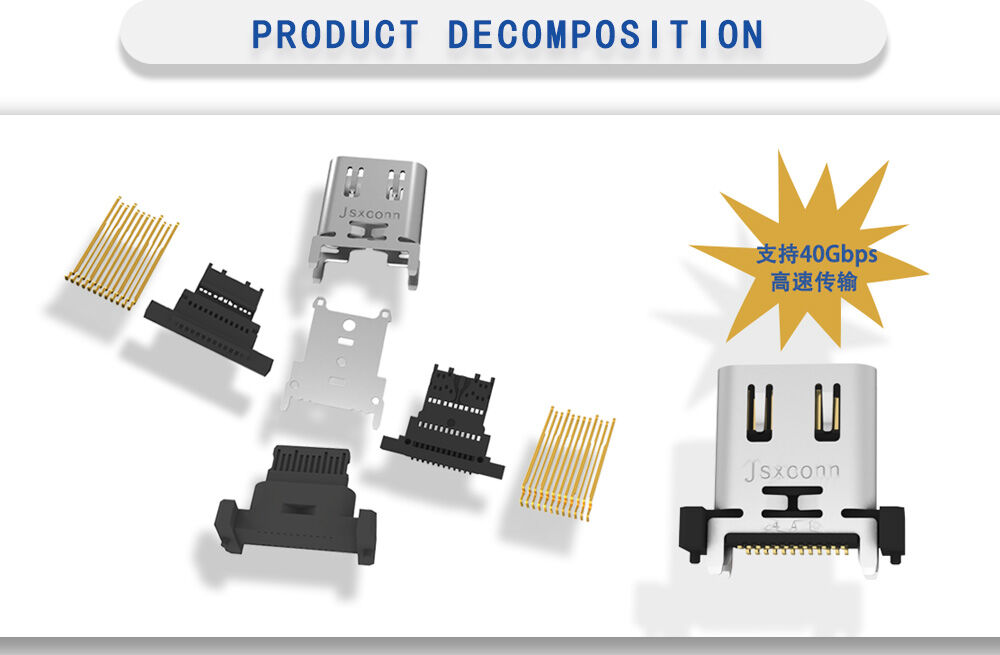

3.material

3.1 housing and molding:lcp ul94v-0

3.2 terminal:c2680

3.3 shell:sus304 3.4 mid plate:sus304

4.operating temperature:-40℃～+85℃

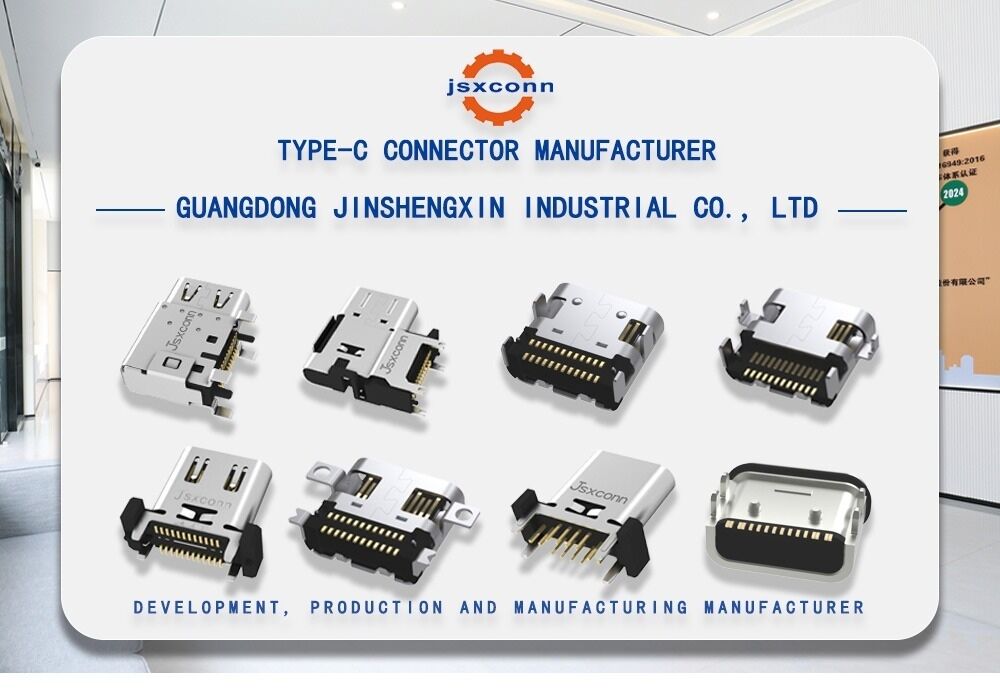

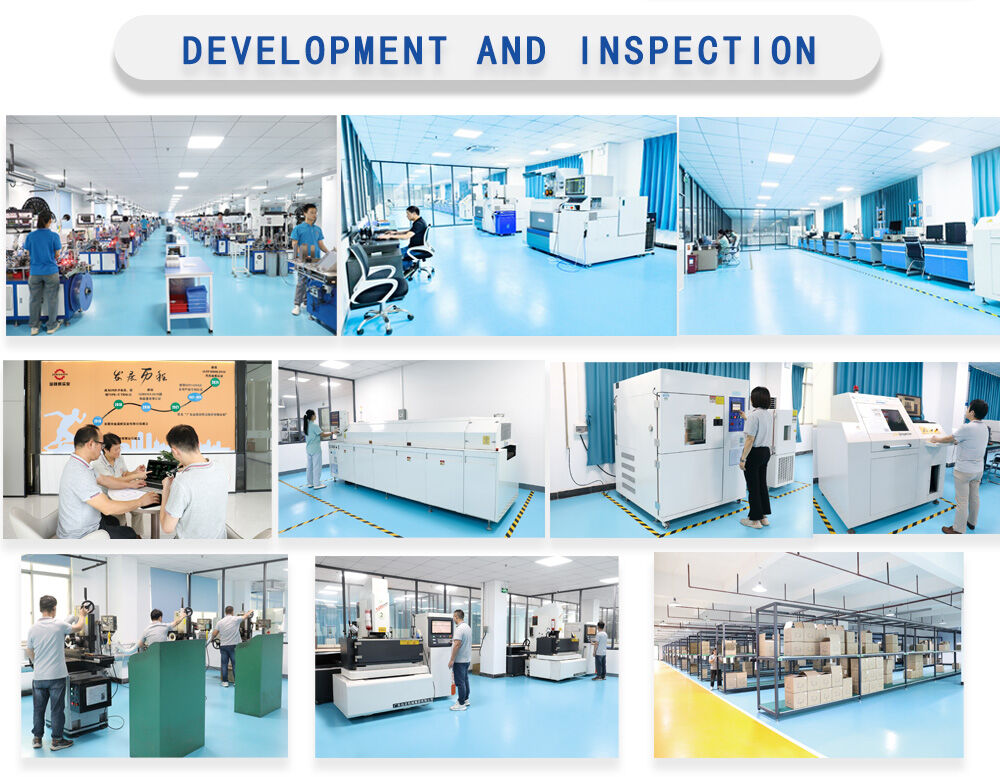

•JSXCONN was founded in 2013 and has years of experience in R & D and manufacturing in the connector industry.

• It provides USB Type - c series products, such as waterproof products like type - c 24P, type - c16P,

• type - c14P. The products are widely used in electronic products such as point - of - sale terminals,

•various chargers, automobiles, mobile power supplies, network communications, and smart meters.

•It has passed ISO9001:2000 and IATF16949 - 2016 automotive system certifications. In 2018, it became

•a member of the USB Association and holds product certifications such as RoHS, TID, and IEC62680.
