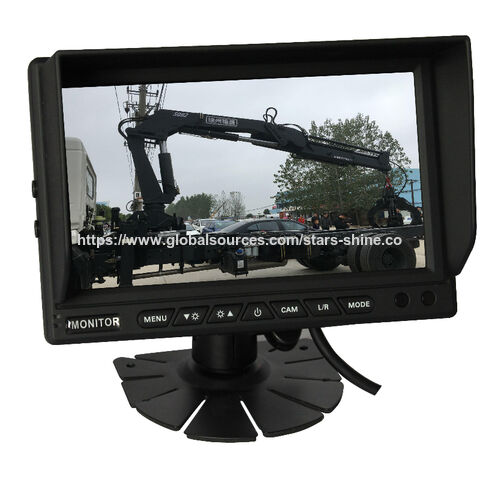

Factory price AHD 7-inch tft lcd screen 9-36v car rearview mirror monitor for bus/van

Lead Time: 3–7 days

US$ 45.6

100–499 Pieces

US$ 44.9

500–999 Pieces

US$ 44.3

1000–1999 Pieces

US$ 43.7

2000–4999 Pieces

US$ 42.9

≥5000 Pieces

Get Latest Price

Product Information

Combination

Backup Camera, Touch Screen, Reversing Aid

Product certifications

CE, ROHS

Function

Remote Control

Type

Rearview Mirror

Add to Cart

Start Order

Payment:

Shipping Notes:

Pls contact us firstly before you pay, thanks.

Sample Policy :

We offer free samples, with shipping and taxes paid by the buyer

Product Information

Model Number	ST-M706AHD-#3627	Brand Name	OEM/ODM
origin	China	Small Orders	Accepted

Key Specifications/ Special Features:

Screen size: 7-inch TFT-LCD (16: 9/4: 3)

Format: PAL/NTSC

Power supply: Input 9-36VDC/Output 12V

Resolution: 1024*R.G.B*600(IPS))

Max power consumption: 5W

Viewing angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)

Key and full function OSD remote control

RCA, BNC,4 pin aircraft connectors are options

U type or butterfly holder are options

Parameters
Screen Ratio	4:3/16 : 9
Back Light Luminance	LED,250-300cd/㎡ (Optional)
Resolution	1024R.G.B600（IPS）)
Compatible system	NTSC & PAL (automatically)
View angle	Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Image reversion	UP/Down and Left/Right
Power requirement	Input 9-36VDC/Output 12V
Power consumption	5W
AV Inputs	2 channel HD video input 2 way audio input，(Optional) single image display, support 720P@25/30, 960P@50/60, 1080P@25/30
Number of Trigger and display	1 triggers
Optional functions	4 PIN connector or RCA connector
Other features	OSD menu, Remoter control, Sunshade design around
Key color	Black
Storage temperature	-30〜80℃
Working temperature	-20℃ to 70℃

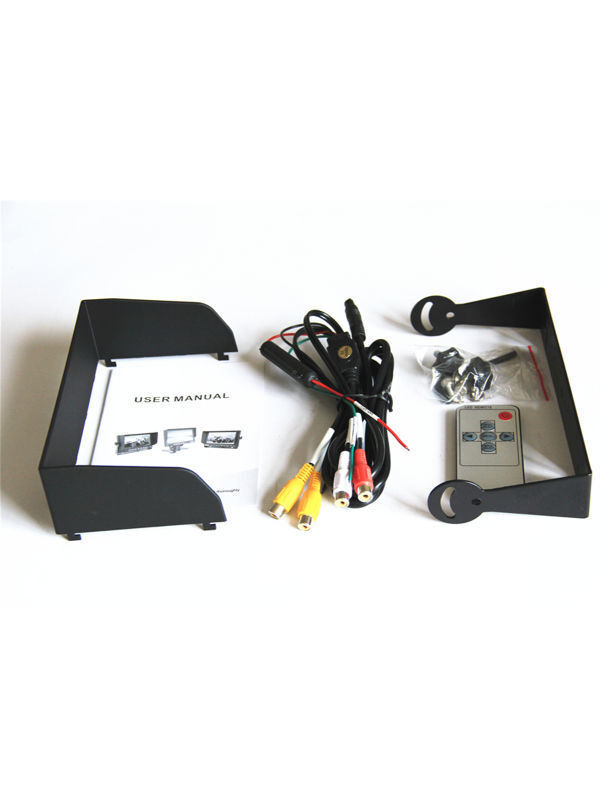

Accessories	Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench

Our Services :

1.All products have been strictly Checked in house before packing.

2.All products have been well packed before shipping.

3.One year warranty is provided for all models.

4.We will provide replacement free of charger during warranty.

Product Certifications

Certificate Standard	EMC
Certificate Image	Click on the picture to see a larger one
Certificate Number	BCTC-LH180400994C
Validity	From 2020/05/09
Issued By	SHENZHEN BCTC TECHNOLOGY CO., LTD

Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

Shipping Information

FOB Port	Shenzhen	Lead Time	3–7 days
Weight per Unit	880.0 Grams	Dimensions per Unit	30.2 x 18.0 x 8.8 Centimeters
HTS Code	8528.59.10 90	Units per Export Carton	10.0
Export Carton Dimensions L/W/H	54.7 x 36.0 x 31.6 Centimeters	Logistics attributes	Common
Export Carton Weight	9.6 Kilograms

Main Export Markets

Main Export Markets	Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa, North America, Western Europe
