6-layer fr4 pcb board TWS Bluetooth impedance circuit pcb board batch pcb

Lead Time: 5–7 days
US$ 5
1–999 Pieces
US$ 0.5
1000–4999 Pieces
US$ 0.4
5000–9999 Pieces
US$ 0.3
10000–49999 Pieces
US$ 0.1
≥50000 Pieces
Get Latest Price
Product Information
View More
Management Certification
ISO, IATF 16949
Product Certification
ROHS, UL, CE, REACH
Application
Electronic Device, Communication, OEM Electronic, Repair, Household, Car, Home, Industrial, Automotive
Color
Black, Red, Blue, Yellow, Green, White, Silver
Shipping Notes:
As prices vary time to time,kindly contact us for final price and shipping details.Thank you.
ShenZhen XinDaXing Electric Technology Co.,Ltd.
Super Supplier

3 years

Verified Maufacturer
China
This supplier has a Global Sources Website for 3 years.
Response Rate:  High
Avg Response Time: ≤24 h
Business Type
Manufacturer,  Exporter,  Online Seller,  Distributor,  Trading Company
Chat
Product Information
Model Numberpcbgate250224123Brand NamePCBgate
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:

E-commerce ERP componentized flexible printed circuit boards handheld terminal data collector main fpc board pcb file


PCBgate Group company introduction


4-layer impedance-selective board (surface treatment: immersion gold + OSP)


Halogen-free board; board thickness 0.8mm;


Minimum hole size 0.15mm;


Minimum trace width/spacing 3mil/3mil, minimum solder mask bridge 3mil




--Written by Miya-250826

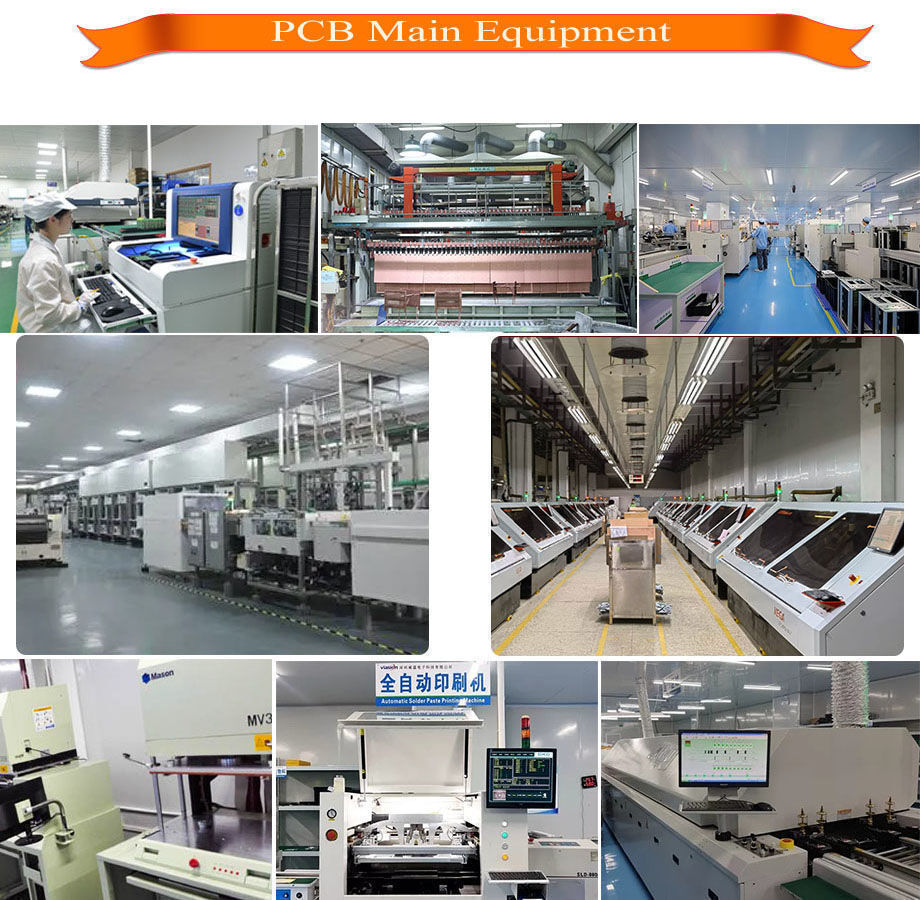

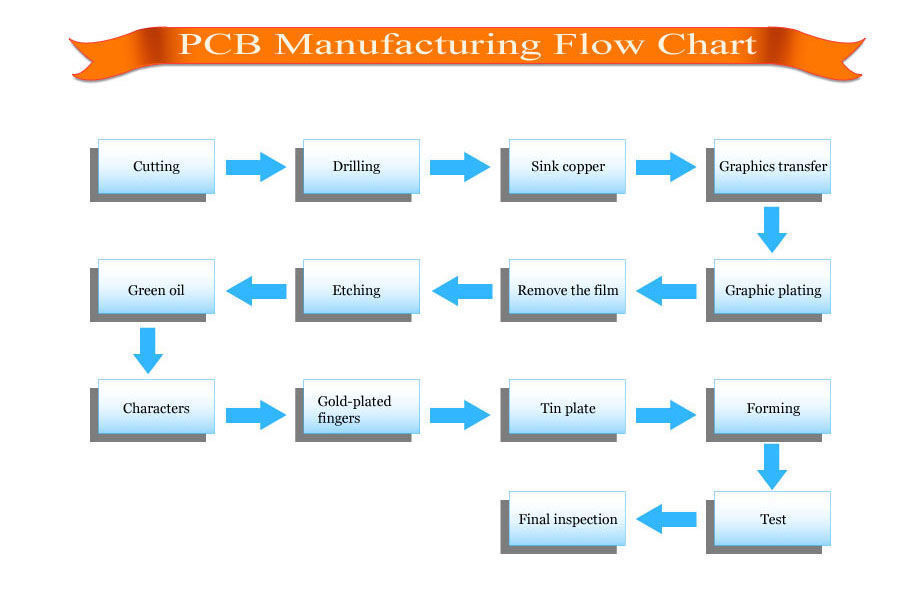

PCB  Manufacturing Capacity


ItemSpecification
MaterialFR-4, FR1,FR2,  CEM-1,CEM-3; Rogers,Teflon,Arlon;
Aluminum Base, Copper Base,Ceramic ,etc.
RemarksHigh Tg CCL is Available(Tg>=180℃)
Finish Board Thickness0.2 mm~6.00mm(8mil-126mil)
Surface FinishGold finger(>=0.13um), Immersion Gold(0.025-0075um), Plating Gold(0.025-3.0um), HASL(5-20um), OSP(0.2-0.5um)
ShapeRouting、Punch、V-cut、Chamfer
Surface TreatmentSolder Mask(black, green, white, red, blue, thickness>=12um, Block, BGA)
Silkscreen(black, yellow, white)
Peel able-mask(red, blue, thickness>=300um)
Minimum Core0.075mm(3mil)
Copper Thickness1/2 oz min; 12oz max
Min Trace Width & Line Spacing0.075mm/0.075mm(3mil/3mil)
Min Hole Diameter for CNC Drilling0.1mm(4mil)
Min Hole Diameter for Punching0.6mm(35mil)
Biggest panel size2000mm * 700mm
Hole Position+/-0.075mm(3mil) CNC Drilling
Conductor Width(W)+/-0.05mm(2mil) or +/-20% of original
Hole Diameter(H)PTHL:+/-0.075mm(3mil)
Non PTHL:+/-0.05mm(2mil)
Outline Tolerance+/-0.1mm(4mil) CNC Routing
Warp & Twist0.70%
Insulation Resistance10Kohm-20Mohm
Conductivity<50ohm
Test Voltage10-300V
Panel Size110 x 100mm(min)
2000 x 700mm(max)
Layer-layer misregistration4 layers:0.15mm(6mil)max
6 layers:0.25mm(10mil)max
Min spacing between hole edge to circuitry pattern of an inner layer0.25mm(10mil)
Min spacing between board outline to circuitry pattern of an inner layer0.25mm(10mil)
Board thickness tolerance4 layers:+/-0.13mm(5mil)

Flexible PCB Capacity


FPC Tech Specification
ItemsCapabilities
LayersFPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers
Regular Base MaterialsKapton,Polyimide(PI), Polyester(PET)
Base Copper Thickness1/3 oz to 8oz
Regular Base Material Thickness12.5um to 50um(FPC)
0.1mm to 3.2mm(Rigid)
Regular Coverlay Thickness27um to 50um
Regular Adhesive Thickness12um to 25um
Blind or Buried ViasYes
Impedance ControlYes
Min.Line Width/Spacing0.04mm/0.04mm
Surface FinishingElectroplate Ni/Au(Flash gold/Soft gold/Hard gold), ENIG, HASL, Immersion Tin,OSP
Outline FabricationDie cut, laser cut, CNC routing, V-scoring
Hole to edge(Hard tool/Die Cut)±0.1/±0.2mm
Edge to edge(Hard tool/Die Cut)±0.05/±0.2mm
Circuit to edge(Hard tool/Die Cut)±0.07/±0.2mm







Shipping Information


FOB Port ShenzhenLead Time 7–15 days
Weight per Unit 1.0 KilogramsDimensions per Unit 7.2 x 3.2 x 0.06 Centimeters
HTS Code 8517.79.90 00Units per Export Carton 36.0
Export Carton Dimensions L/W/H 58.0 x 26.0 x 36.0 CentimetersExport Carton Weight 0.1 Kilograms



Contact us:

Email: sales@pcbgate888.com; bluesky@xdpcba.com

Skype: zenglixia666

Mobile/WeChat/WhatsApp: +86 15919476409

Website: www.pcbgate888.com


Main Export Markets

- North America

- Western Europe

- Asia

- Australasia

- Central/South America

- Eastern Europe

- Mid East/Africa

- Russia; Norway

Download more information about this product



Product Certifications
Certificate Standard REACH
Certificate Image
REACH
Click on the picture to see a larger one
Certificate NumberDL-241114064RR
Validity From ٢٠٢٤/١١/٢٨
Issued ByShenzhen DL Testing Technology Co.,Ltd
Certificate Standard UL
Certificate Image
UL
Click on the picture to see a larger one
Certificate NumberE535137
Validity From ٢٠٢٣/٠٦/١٣
Issued ByUL Solutions
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

Shipping Information

FOB PortShenzhenLead Time5–7 days
Weight per Unit10.0 GramsDimensions per Unit10.0 x 5.0 x 0.16 Centimeters
HTS Code8534.00.90 00Units per Export Carton5000.0
Export Carton Dimensions L/W/H44.0 x 30.0 x 34.0 CentimetersLogistics attributesCommon
Export Carton Weight5.0 Kilograms
