OEM Customized Faucet Seat for American Empire Brass Chrome Faucet stem Assembly Replacement Kit Union Brass Brass Faucet Seat

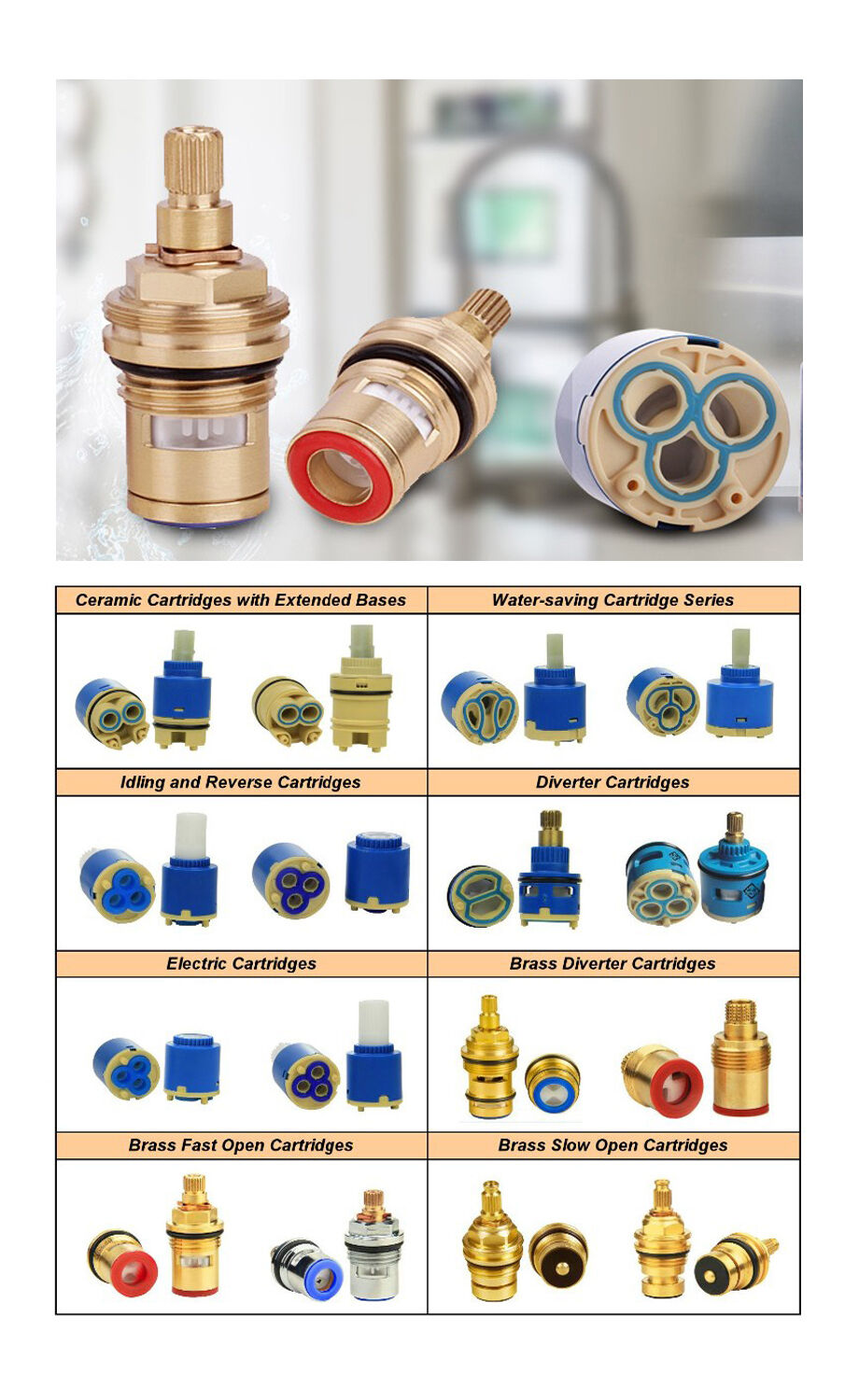

Faucet cartridges brass ceramic cartridges PVC cartridge

Brass cartridge

PE PVC cartridge

Faucet brass cartridge

Ceramic cartridge

Body material: PPO , PE, BRASS

handle material:      PA66

base:       POM

size: 35MM

life test:   7000 times

Flow rate:        21-24L/Min

Burst test:        >25KG

Medium:  Water, non-corrosive liquid, saturated steam(≤0.6MPa)

Accept custom-made

Technical Characteristics of The Ceramic Discs:

Material:AL2O3 92%~96%

Surface Roughness: Ra≤0.25μm

Flatness: ≤0.6μM

Hardness: 1100 HV5

Technical Characteristics of The Cartridge:

Max Opening Angle: 23°

Max Turning Angle:100°

Max.Temperature: 100℃

Min.Temperature: -23℃

Nut lock torque: 8~10N.m

Flow Rate: Water Pressure 14 L/min(1bar)

                                    17.6 L/min(2bar)

                                    20.5 L/min(3bar)

Noise Level: 18-19db(A) bar with filter

Air-Leak est: 8 bar

Burst Test: Static water pressure at Max.35 bar, no deformation on the cartridge

Endurance test: Min.70,000 cycles (EN817,GB18145-2003 standard)
