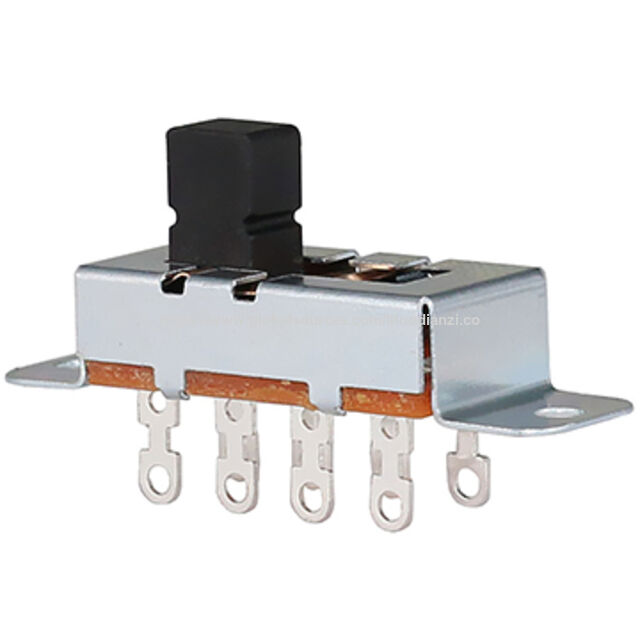

SS-23L08 Vertical slide switch with 10,000 cycles lifespan/rating 1A/125V AC
Click image to open expanded view

SS-23L08 Vertical slide switch with 10,000 cycles lifespan/rating 1A/125V AC

Ready to Order
Lead Time: 7–14 days
US$ 0.06 / 1 Piece
Minimum order: 1000 Pieces
Get Latest Price
Product Information
View More
Application
Home Appliance, Electronic Equipment, Telecommunication, Door, Garage, Hospital, Office building, Mall, Gate, Residential, Industrial, Home, General-purpose, Power, Universal
Function
Spdt, 2p3t, 1p2t, Dpdt, 2p2t, 1p3t, On-off, 2p4t, On/Off/On
Max. Voltage
250v, 125v
Material
plastic, PA66, Copper, Aluminum, stainless steel, Aluminum alloy, Brass
Add to Cart
Start Order
Payment:
Samples:
 $0.01/Piece | 2–30 Pieces |  Buy Sample
Dongguan City Lituo Electronics Co.,Ltd
Tour Now
Super Supplier

9 yrs

Verified Maufacturer
China
This supplier has a Global Sources Website for 9 years.
Response Rate:  High
Avg Response Time: 24–48 h
Trade Shows
We exhibited at 6 Global Sources Trade Shows. View More
Business Type
Manufacturer,  Exporter
Chat
Product Information
Model NumberSS-23L08-#1935Brand NameLT, Lituo
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:

  • Model number: SS-23L08
  • Rating: 125V AC 1A
  • Function: 2P3T
  • Timing: non-shorting
  • Contact resistance: 100mΩ max
  • Insulation resistance: 500V DC/100MΩ min
  • Dielectric strength/withstand voltage: 500V AC
  • Operating force: 500±200gf
  • Terminal strength: 500gf
  • Displacement of actuator (knob): 1 kgf
  • Life: 10,000 cycles
  • Operating temperature: -16 to +60°C


Product Certifications
Certificate Standard CQC
Certificate Image
CQC
Click on the picture to see a larger one
Certificate NumberCQC21002324733
Validity From 2019/01/09 To 2026/12/16
Issued ByChina Quality Certification Centre
Note: Not all certifying agents offer online lookup, and some have a lag time for posting new certificates. If you are unable to find a certificate online, contact the certification agency or supplier for further verification.

Shipping Information

FOB PortChina (Mainland)Lead Time7–14 days
Weight per Unit5.0 GramsDimensions per Unit5.0 x 5.0 x 5.0 Centimeters
HTS Code8536.50.00 00Units per Export Carton5000.0
Export Carton Dimensions L/W/H39.0 x 39.0 x 39.0 CentimetersExport Carton Weight2.0 Kilograms

Main Export Markets

Main Export Markets
Central/South America,
Eastern Europe,
Mid East/Africa,
North America,
Western Europe,
Asia,
Australasia
Payment Details
Payment MethodTelegraphic Transfer in Advance (Advance TT, T/T)
