3.2mm Solar Panel Glass Low Iron Tempered Glass Transparent Glass Solar For Solar Panel

Warranty:1 Year

After-sale Service:Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement

Project Solution Capability:graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application:Outdoor

Design Style:Contemporary

Place of Origin: China(Mainland)

Brand Name:OEM

Model Number:Solar glass

Function:Decorative Glass, Heat Absorbing Glass, Low-E Glass, Solar Glass,Decorative Glass

Shape:Flat

Structure:Solid, Solid

Technique:Clear Glass, Coated Glass, Frosted Glass, Tempered Glass, Tin groove process,Clear Glass

Type:Solar glass

Color:Ultra Clear

Thickness:2mm,2.5mm,3.2mm,4mm

Size:Custom Sizes

Packing:Carton Wooden case

Usage:Solar glass,Decorative Gass ,Coated Glass,Commercial glass

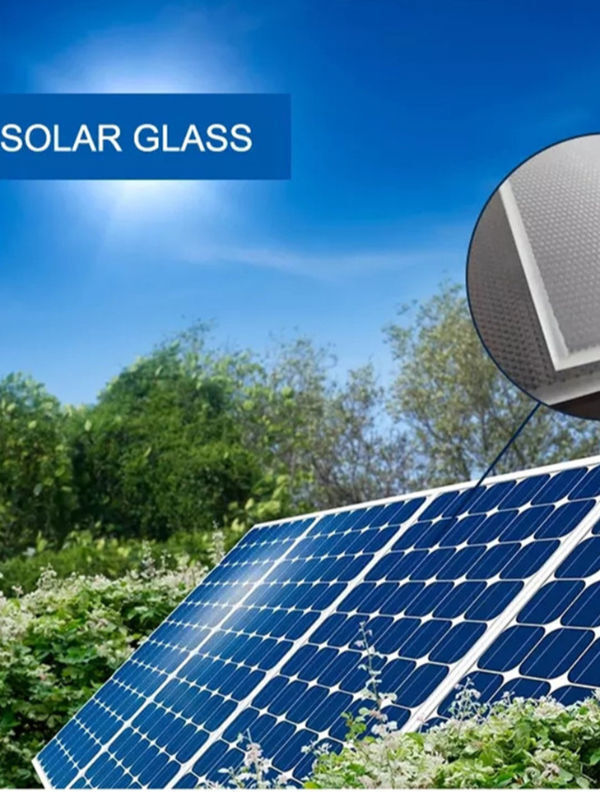

Solar Glass is a high performance low iron glass with high solar energy transmittance. When toughened, its strength and durability make it the ideal choice for crystalline silicon photovoltaic application as well as for solar thermal collectors.In the hurricane, heavy rain, hail and other harsh environment, can still maintain excellent performance. It is mainly used on solar panel because of its super light transmittance rate.It is made of unique formulation and high quality material. By adopting international first-rate production technology and equipment.

Product:solar glass

Color:Ultra Clear

Thickness:3.2mm(widely used), 4mm etc.

Further process:cutting, rough grinding, hole, etc.

Surface:mistlite single pattern, the pattern shape can be made by customer request.

Visible light transmittance:91.60%

Visible light reflectance:7.3%

Solar transmittance:92%

Solar reflectance:7.4%

Total solar heat gain coefficient:92.2%

UV transmittance:86.8%

Shading coefficient:1.04%

CHARACTERISTICS

1. All kinds of deep processing

2. Good light transmittance,can achieve above 91.6%

3. Eliminates color distortion apparent in ordinary clear float glass.

4. Enhanced external viewing of architectures.

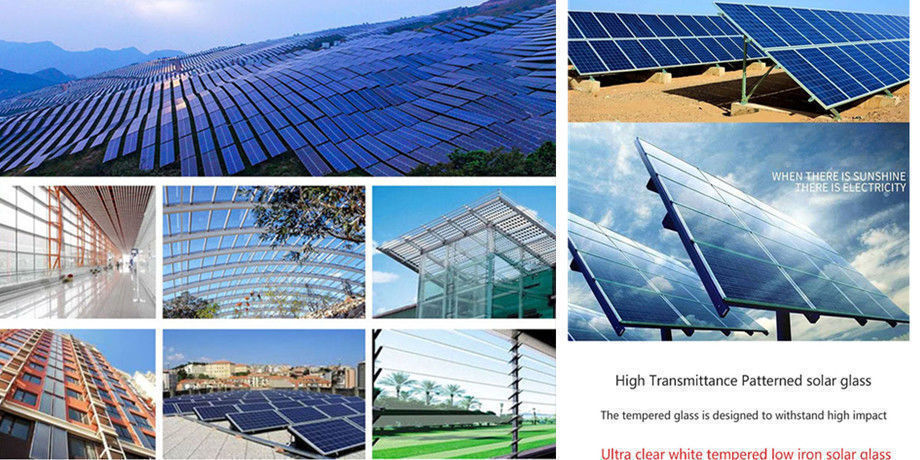

APPLICATION

1. Architectural Curtain Wall and Decoration.

2. Display Window and Show Counter.

3. Modern Art Work, Furniture and Instruments.

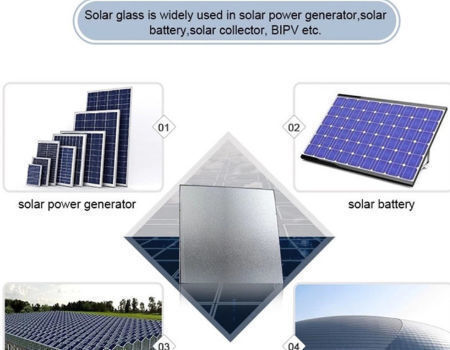

4. Solar Energy

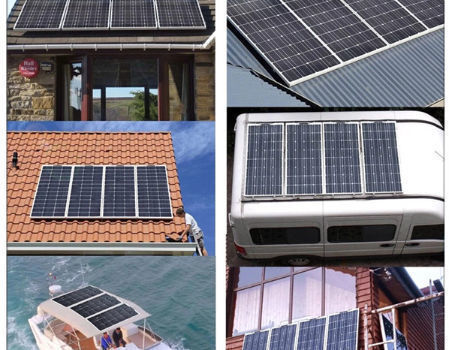

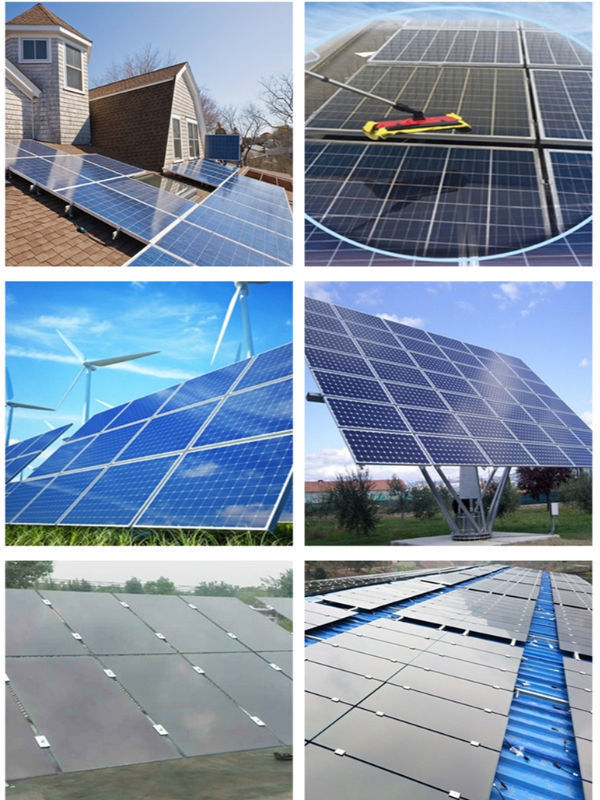

1.                                                                                              ^{Application scenario}

packaging and shipping
