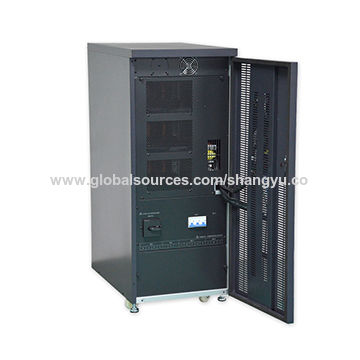

20kVA online UPS for Pakistan, true double-conversion UPS systems for data center

--Advanced DSP digital control technique
 adopts advanced DSP digital control technique, demand to poor environment

 --N+X parallel redundancy (support parallel machine sharing battery)
HP33 series of 20-100 k product can support 6-8 set of UPS parallel machine which is suitable for using in the N + X redundant applications. In the redundant work condition, the system can share a set of batteries saving the investment cost of users

--Reliability, flexibility, economy
Using DSP technology and intelligent CPU, high efficiency, reliability and safety

--Clear and simple operation of the LCD panel in both Chinese and English
HP33 series 20-100kVA adopts large screen LCD graphical display panel in both Chinese and English, which convenient to operate for users

--Excellent industrial environmental protection performance
Providing a wide range of input voltage 210-210V AC can make UPS can adapt generator

--Intelligent charging management
Advanced intelligent charging ways through the control of CPU, according to the different environment conditions, UPS charger can fixed charge parameters and provide a optimized way to battery charge

--Efficient and energy saving
Machine efficiency is as high as 93%, under the ECO mode, the machine efficiency is as high as 98% which reduces the UPS power loss
Intelligent high-frequency rectifier inverter technology, the input power factor is as high as 0.99, input current harmonic is less than 3%

--Abundant monitoring and communication interface
HP33 series of 20-100kva UPS provides Intelligent slot, expansion Slot, the Parallel, Ext battery temp probe, AS400, EPO, RS485, RS232 and service monitoring communication interface which is our company or our company authorized technical personnel dedicated

--Overload capacity
110%< load ≤125% , greater than or equal to 10 minutes transfer to the bypass
125%< load ≤150% , greater than or equal to 1 minutes transfer to the bypass

--Positive operations and maintenance functions
Give full consideration to the effective utilization of user space
Modular design and the positive maintenance, greatly shorten the troubleshooting time of the machine, improve the availability of the UPS system
HP33 series of 20-100kVA UPS has compact structure which meet the requirements of users, and it adopts the built-in battery design which can achieve positive maintenance replacement battery, at the same time, it cover an area of an area small and saves valuable space
