SMD quartz crystal resonator | High precision | High frequency | High stability
US 0.05 / Piece
MOQ: 3000 Pieces
Model: LCC 3225-4P
Lead time: 10 to 30 days
Supplier Profile
Year established: 2016
Export markets: Asia,Australasia,Central/South America,Eastern Europe,Mid East/Africa,North America,Western Europe
Annual sales: US$15,000,000 to 19,999,999
Total staff: 40 to 59

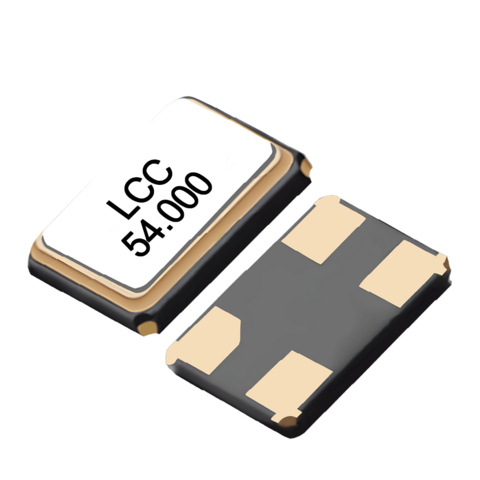

Shenzhen LC Electronic Co. Ltd’s LCC 3225-4P is a quartz crystal resonator in a 3225 SMD package with four pads and measuring 3.2x2.5x0.7mm.
The frequency range is 8 to 54MHz, with ±10 to ±30ppm deviation, the load capacitance 8, 10, 12pF or as specified, the static capacitance <3pF, the typical drive level 100μW and the aging rate ±3ppm per year.
This fundamental-mode component has a -40 to 85 C operating temperature and can be stored in -55 to 125 C.
Shenzhen LC is a high-tech enterprise specializing in frequency control devices. It accepts OEM projects. Sony, JBL, Xiaomi, Lenovo and Philips are some of its major customers.
