Customized brushless DC motor
US 12.00 / Piece
MOQ: 5000 Pieces
Model: W5023BL-001B-#8906
Lead Time: 30-45 days
Supplier Profile
Year Established: 1995
Export Markets: Asia,Eastern Europe,North America,Western Europe
Annual Sales: US$70,000,000 to 74,999,999
Total Staff: 1,500 to 1,999

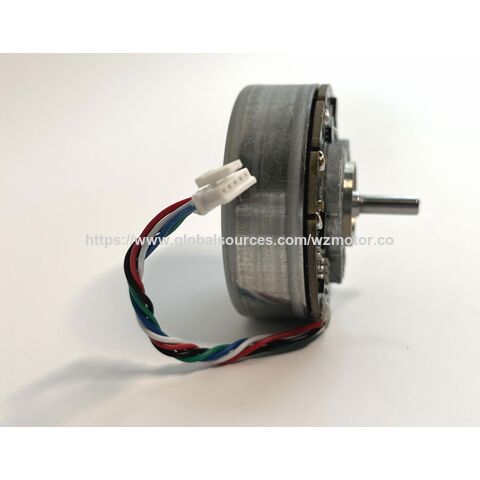

The W5023BL-001B-8906 from Shenzhen Weizhen Motor Development Co. Ltd is a customized brushless DC motor for smart automation applications.
The typical specifications of the W5023BL series include 14.4VDC nominal and 8 to 25.2VDC operating voltage, 0.115A no-load, 0.947A with-load and 5.55A starting current, 5.53W maximum power and 65 percent maximum efficiency ratings. The speed levels are 1,700rpm with no load and 1,440rpm with load, and the starting torque is 40mN.m.
Shenzhen Weizhen specializes in the R&D on and manufacture of DC motors and has two factories with a total of 73 production lines. It has ISO 9001:2015 and IATF 16949:2016 certifications.
