Fast competitive double sided 2 layers
US 4.92 - 5.00 / Piece
MOQ: 100 Pieces
Model: pcb radar-331W
Lead Time: 15-25 days
Supplier Profile
Year Established: 2000
Export Markets: Asia,Central/South America,Mid East/Africa,North America
Annual Sales: US$45,000,000 to 49,999,999
Total Staff: 1,000 to 1,499

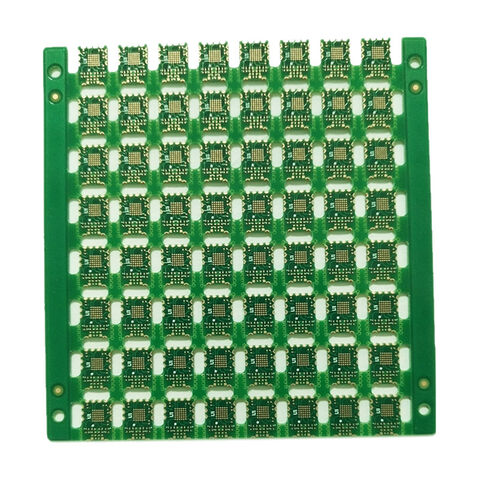

Jinjiang Jiaxing Home Co. Ltd markets the PCB Radar-331W, a double-sided PCB with an immersion gold, silver or tin surface treatment, with HASL and lead-free HASL also available.
This 1.6mm-thick board is made using FR-4 base material and has 1oz copper, 2.952mil minimum line width and spacing, as small as 0.2mm holes and green, white, red, blue, black or yellow solder mask. It is UL94V-0-rated.
The dielectric strength is more than 1.3kV/mm, peel strength over 1.4N/mm and insulation resistance is 10kohms to 20Mohms with 5Mohms being the typical rating.
Jinjiang Jiaxing exports a broad range of products from a 30,000sqm factory.
