Level Up Doors with the Best Hinges

by Cecile de Veyra (Managing Editor)

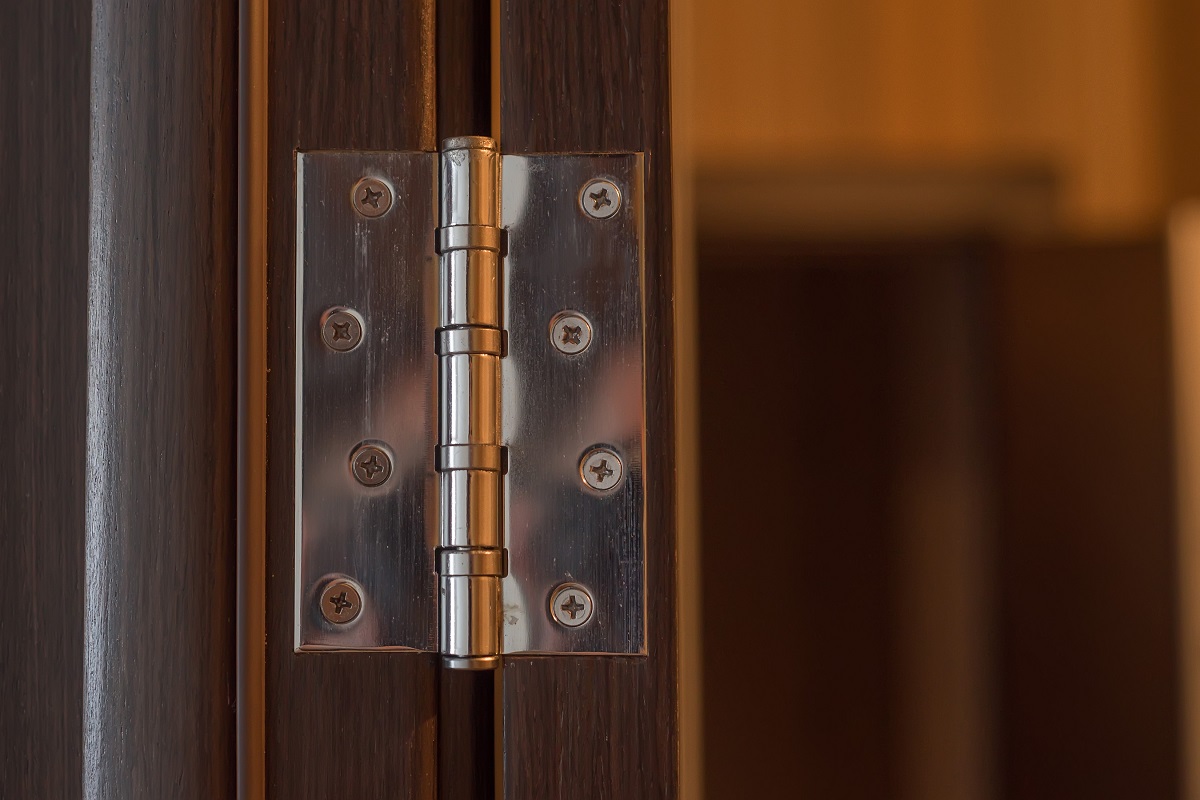

Image from Getty

Doors are entry and exit points to a home or commercial space and come in variety of materials, including wood or timber, aluminum, glass, steel, hybrid fiber-reinforced polymer (FRP) and fiberglass, and are available in a wide range of sizes. They require the best door hinges to carry their weight, endure varying frequencies of use, withstand the environmental conditions where they are installed and, in some instances, add flair to overall entryway design.

With the construction industry on the upswing, driven by demand for more residential housing and commercial spaces and as renovation of aging structures continues, the market for door hinges has been expanding. It reached $275.17 million in 2021 and is projected to be valued at nearly $422.3 million by 2027, at a CAGR of 7.4 percent from 2022, according to Maximize Market Research.

Five common door hinges

Of the many different types of hinges, there are five found on most doors. They are butt, concealed, continuous, pivot and strap hinges.

1. Butt hinges

Butt hinges are categorized into full- and half-mortise, and full- and half-surface kinds with two, three or five knuckles, or swing-clear, wide-throw, spring, electrical-security, nonremovable pin and heavy-duty anchor designs. Further options based on the bearings include oil-impregnated, self-lubricating, nonferrous, and ball, plain and concealed types. These hinges can be used on standard, medium-weight and heavy wooden and metal doors. They are also available in variants with tamper-resistant pins for security.

2. Concealed or hidden door hinges

Concealed or hidden door hinges may be considered high-end but, in exchange, they ensure a clean look on door frames and offer security as they cannot be tampered with from the outside. They can be used on any door but not in high-traffic areas.

3. Continuous or piano hinges

Continuous or piano hinges match the full height of a door and distribute stress uniformly along the length of the door and the frame. As such, they are designed for heavily frequented areas such as retail shops, schools and hospitals.

There are geared and pin-and-barrel continuous types, with the former considered the strongest door hinges because of their construction and because they have teeth that mesh in open and closed positions.

Geared types are also regarded as more secure than standard butt hinges as they eliminate the gap between the door and the frame. This feature also makes them safe, preventing finger-pinch accidents.

Although durable, there are experts that do not recommended continuous hinges for use on ultraheavy doors or those made entirely of glass.

4. Pivot hinges

The best hinges for heavy doors as well as high-traffic entryways are pivot hinges because they provide bottom and top support. The bottom hardware, however, can easily corrode when exposed to the elements and will require replacement when used on exterior doors. In addition to standard designs, pivot hinges are available in self-closing types, mainly for doors in commercial spaces, and offset kinds for single-acting doors.

5. Strap hinges

Strap hinges have longer but narrower triangular leaves than other types and provide added stability and support to barn, shed and garage doors. They are meant to be seen and can have simple or intricate vintage, rustic and modern patterns, making them the most unique hinges.

Ornate engraved designs, which may be on leaves, knuckles or both, are also available in other hinges, especially those intended to be visible.

High-quality door hinges

Hinges are made of various metals, with steel and aluminum the most common.

Those made of cold rolled steel are strong and durable and will last long, while stainless steel versions have the added advantage of rust and corrosion resistance but are more expensive.

Aluminum hinges offer the same immunity when exposed to moisture and are about 40 percent lighter and less expensive too, and while durable, they are not as strong as steel.

There are bronze, and wrought- and cast-iron door hinges as well.

The most commonly used door hinges in homes measure 3.5x3.5in and three of them are enough to provide support. The two other standard sizes are 3x3in and 4x4in, with the latter sometimes adopted for exterior doors.

Architectural hinges, which are made of thicker material than their residential-grade counterparts and have nonremovable pins, are available in up to 6x6in, recommended for ultraheavy doors.

Conclusion

Hinges are critical but sometimes neglected hardware components of doors. Even with the most sophisticated locks, doors will not serve their purpose if the hinges holding them in place are defective. To select the best quality hinges, consider their properties and how they match the material, height, width, thickness, weight and location of the doors they will support.

Brushed stainless steel door hinge

Company: Xian Huan-Tai Technology & Development Corp. Ltd

This door hinge from Xian Huan-Tai is made of 304 stainless steel with a brushed finish. In custom sizes, it can be used on bedroom, bathroom, kitchen, home office and classroom doors as well as in exterior applications such as courtyards, parks and other outdoor spaces. The Huan-Tai-IN-CA-8168 is also available in steel, carbon steel and zinc alloy variants. Price is $1.20. An order of at least 500 pieces is required and has a lead time of 30 to 45 days.

Inquire now

3D adjustable concealed door hinge

Company: Guangdong Reliance Architectural Hardware Co. Ltd

Guangdong Reliance offers a 3D adjustable concealed hinge for bathrooms, bedrooms, home offices, kitchens and living rooms. The model G40, which is made of zinc alloy and finished in silver, matte black or gold color, suits wooden and aluminum doors with minimum thickness of more than 35mm and maximum width of 850mm. Two hinges can support 40kg. A piece is priced $8.75 to $9.60, depending on the order quantity. The supplier requires a minimum of 10 pieces. Lead time is seven to 30 days.

Inquire now

32, 35mm stainless steel door hinge

Company: Dongguan ShuangXin Industry Co. Ltd

Made of 304 or 201 stainless steel, the Sx-ln-19070901 door hinge from Dongguan ShuangXin is available in sizes of 32 and 35mm and versions that use M3, M4 or M5 screws. Tolerance is 0.01mm. Surface treatment is based on customers’ requirements. A box is priced at $1.89. MOQ is 500 boxes and lead time seven to 20 days.

Inquire now

Polished stainless door hinge

Company: Ace Industry Co. Ltd

Ace’s polished stainless door hinge, the W20361, comes in custom sizes and shapes and may have other surface treatment as required. It is priced at $0.20. The supplier requires an order of at least 1,000 pieces. Lead time is 10 to 25 days.

Inquire now

Steel flush door hinge

Company: Kin Kei Hardware Industries Ltd

A flush door hinge, the HD1299 from Kin Kei is made of steel and features an antique brass finish. It measures 3-7/16in in length and 1-1/4in in width.

Inquire now

Fire-rated concealed door hinge

Company: China Arts & Crafts Nanjing I/E Corp.

Part of Unity Series offered by China Arts & Crafts, the HAC206-3301 is a fire-rated stainless steel concealed hinge with a satin finish. It opens 180 degrees, and supports doors with maximum weight of 40 to 60kg, width of 1,000mm, height of 2,100mm and thickness of 30 or 40mm.  This CE-approved hardware is priced $9.47 to $10.47, depending on the order quantity. Variants made of brass and steel are also available. A minimum order of two pieces has a lead time of 15 to 30 days.

Inquire now

Stainless steel door hinge

Company: Chonghong Industries Ltd

For bathroom, kitchen, living room and exterior doors in homes, hotels and hospitals, the CHZNH320910 from Chonghong is made of 201 or 304 stainless steel and has polished wire-drawing finish. It comes in silver, gold and bronze versions. Also available are aluminum alloy, carbon steel, steel, zinc and zinc alloy variants. Price is $0.01. An order of at least 100 pieces is required and has a lead time of 15 to 25 days.

Inquire now

Steel door hinge

Company: Shaoxing Feifan Industrial Co. Ltd

Shaoxing Feifan offers the FF-T, a steel door hinge with zinc or powder-coated surface finish for corrosion resistance. It can be used on interior and exterior doors. Custom specifications are accepted. The minimum order requirement is 5,000 pieces. Lead time is 30 to 60 days.

Inquire now

Zinc-plated steel T door hinge

Company: Shanghai Chingway International Trading Co. Ltd

This T door hinge, Shanghai Chingway’s CH03101, is made of steel that is zinc-plated prior to assembly for enhanced corrosion resistance. It comes with offset screw holes for added strength and to prevent wood from splitting. The bearing design eliminates metal-to-metal contact for smooth and quiet operation, and remains dimensionally and structurally sound in hot and cold weather. This heavy-duty hinge is priced $0.70 to $0.80 per set. A minimum order of 2,000 sets is required and has a 30 to 35 days.

Inquire now

Lift-off door hinge with security pin

Company: Nantong Wellsing Trade Co. Ltd

This lift-off door hinge, the WSJ1007 from Nantong Wellsing, has a security pin. It is made of brass and comes with Phillips screws. Various sizes are available to suit any door. An order of at least 5,000 dozens is required and has a lead time of 30 to 45 days.
