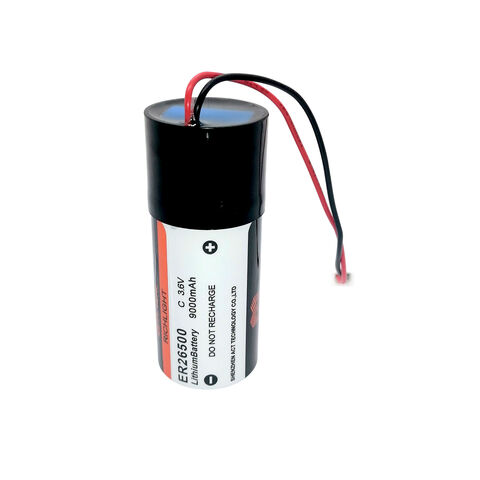

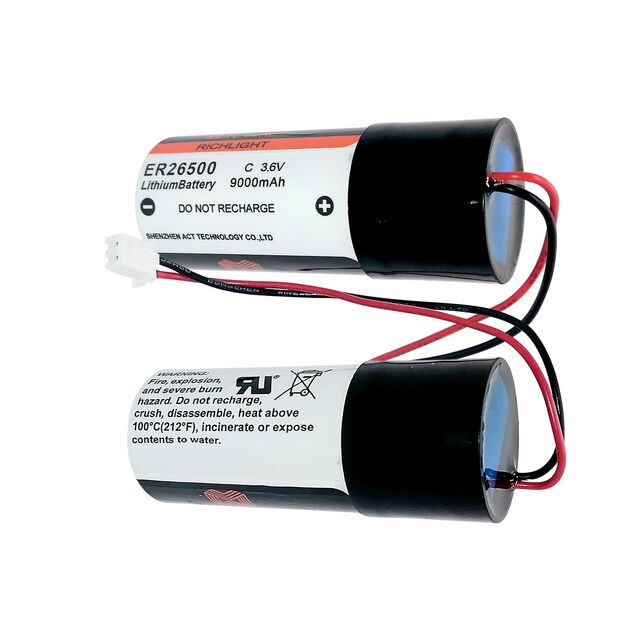

The ER26500/HPC1520-7325 from Shenzhen Richlight Technology Co. Ltd is a lithium-thionyl chloride (Li-SOCl2) battery for water meters. It has 3.6V voltage, 9,000mAh capacity, 8,600±400mAh typical discharge capacity at 2mA and -40 to 85 C operating temperature.
At normal temperature, this primary cell battery has 2A maximum pulse, 230mA maximum continuous discharge and ≤5μA leakage current ratings. It weighs about 70g.
ISO 9001:2015-compliant Shenzhen Richlight has a 100,000sqm factory equipped with six production lines. Huawei, BYD and Maxell are its major customers.
