Factory Price XH-SCT-T10 Split Core CT
US 2.00 - 5.00 / Piece
MOQ: 10 Pieces
Model: XH-SCT-T10
Lead Time: 3-7 days
Supplier Profile
Year Established: 1995
Export Markets: Asia
Annual Sales: US$8,000,000 to 8,999,999
Total Staff: 100 to 149

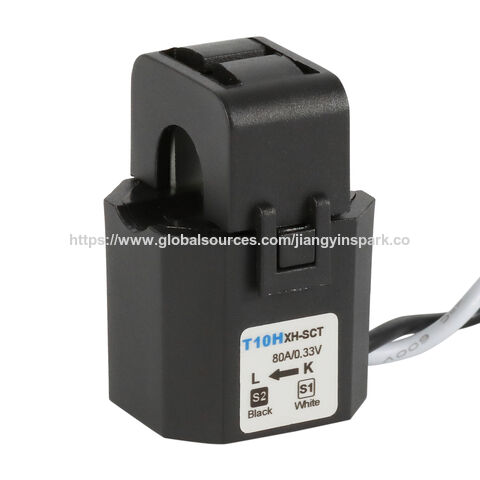

The XH-SCT-T10 is part of Jiangyin Spark Electronic Technology Co. Ltd’s series of split-core current transformers for energy monitoring applications.
This passive component, with 3,000:1 ratio and 10mm clamp diameter, has a rated voltage of 0.66kV, rated frequency of 50/60Hz, insulation voltage of 3,500V and operating temperature of -20 to 70 C. Based on rated current, there are 5, 15, 30, 50, 75 and 80A versions available.
ISO 9001:2015-certified Jiangyin Spark offers current transformers, including split- and solid-core, PCB and wire-lead types, as well as split-core current transducers and mini voltage transformers. Schneider, Eaton and Acrel are among the company’s major customers.
