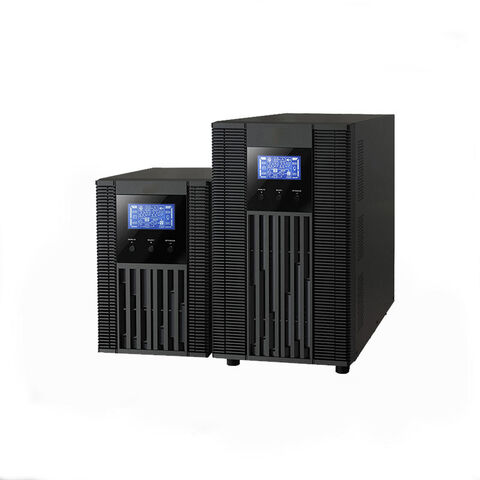

0.5 Kva 1.5kva 1.5kw 1000va Power 10kw 220v 12kva 4kva 7kva Home Ups System for sale at factory direct price
0.5 Kva 1.5kva 1.5kw 1000va Power 10kw 220v 12kva 4kva 7kva Home Ups System
Click image to open expanded view

0.5 Kva 1.5kva 1.5kw 1000va Power 10kw 220v 12kva 4kva 7kva Home Ups System

US$ 125
1–49 Units
US$ 123
50–199 Units
US$ 122
≥200 Units
Unverified Supplier

Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.

Global Sources Exhibitions

Explore Computer Systems & Peripherals Products at Global Sources Hong Kong Shows

Global Sources Hong Kong Show Fall 2026
Phase 1: 11–14 October | Phase 2: 18–21 October
AsiaWorld-Expo, Hong Kong
Register to Attend View similar products at the show
Product Information
Model NumberGH11 1KVA

Key Specifications/ Special Features:

Warranty1 year, 12 months
Place of OriginGuangdong, China
Brand NameSTCB
Model NumberGH11 1KVA
PhaseSingle Phase
ProtectionOvercurrent
Weight24kg
TypeOn-line
ApplicationCOMPUTER
product nameonline ups
WAVE FORMPure sine wave
Frequency factor0.99
Input frequency range40Hz-70Hz
Voltage range110V / 220v ac ±1%
Charging time4 hours charge to 90%
Humidity20-90% RH
CertificationCE
Unit dimension282*145*220mm

0.5 Kva 1.5kva 1.5kw 1000va Power 10kw 220v 12kva 4kva 7kva Home Ups System



Product Description



















Model C1K(S) C2K(S) C3K(S)
Phase  Single phase ground
Rated power 1000VA/800W   2000VA/1600W   3000VA/2400W
Input Frequency range   40Hz-70Hz
Frequency factor   ≥0.99@ Rated voltage  (100% load)
Voltage range Low voltage conversion

160VAC/140VAC/120VAC/110VAC±5%

(Based on the Load Range100%-80%/80%-70%/70%-60%/60%-0)
Low voltage recovery

168VAC/148VAC/128VAC/118VAC±5%

(Based on the Load Range100%-80%/80%-70%/70%-60%/60%-0)
High voltage conversion   300VAC±5%
High voltage recovery 290VAC±5%
Output       Output voltage  200/208/220/230/240VAC
 Wave form  (Batt.mode) Pure sine wave
Voltage range (Batt.mode)    ±1%
Frequency range (Synchronization correction range)   47-534Hz or 57-63Hz
Frequency range  (Batt.mode)   50hz ± 0.2hz or 60hz ± 0.2hz
   Harmonic distortion      ≤3% THD( linear load); ≤5%THD(Non-linear load
Transfer time   Bypass to inverter  0
Inverter to bypass  4ms
Effciency   AC mode   87%      90%
DC mode    83%  87%  89%
Battery          Standard model machine       Battery type   12V7AH
Quantity   2  4                               6
Standard charging time      4 hours charge to 90%
The maximum charge current    1A
Charging voltage     27.3VDC±1%   82.1VDC±1%
Long-term model machine        Battery type   Depending on the application provider
Quantity  3  6  8
The maximum charge current   1.0A/2.0A/3.0A/4.0A
Charging voltage   41.0VDC ±1%   54.7VDC ±1%   109.4VDC ±1%
  Display description LED or LCD     Load size , battery capacity, AC mode,DCmode,bypass mode,
Fault Indication
  Warning sound    DC node        Every 4 seconds a sound
 Warning sound      Every 1 second a sound
    Overload       Every1 second a sound
    Error     Continuous ringing
 Physical properties             Standard models     Dimension(D*W*H)mm      397*145*220 419*190*318
Net weight(kgs)     24  26 28/33
Long-term models      Dimension(D*W*H)mm      282*145*220 397*145*220
Net weight(kgs)     4.6 6.8  7.4
 Environment          Humidity         20-90% RH @ 0-40°C(No condensation)
 Noise       <50dBA@1Meter
Control Management    Smart RS-232/OptionalUSB      Support windows ®   2000/2003XP/Vista/2008,windows®7/8,Linux,Unix,and MAC
Optional SNMP     Power management support SNMP management and network management




company profile








Our Services


1, OEM&ODM services acceptable.



2, Lots of cooperated agent for shipping by sea or by air.


3, 1year warrenty , if it is quality problem , we will provide the parts for free .



Little hint:
1.In the warranty period the machine has a problem, please contact the sales staff, we will be responsible for customer service.
2.Exceed the warranty period, improper operation and man-made damage, we will still give help and support,We will provide spare parts at a cost price.
3.According to the customer's needs, we can provide unconventional, but the cost may be slightly higher than the traditional machine.






Exhibition








Trade Shows








Packaging & Shipping


1,The product manuals, technical documents, CE, ROHS and other certificates (if necessary) will be issued with the goods.
2,invoices, bills of lading, certificate of origin, fumigation certificate (if needed) will confirm with you, through DHL or other means to send.





FAQ


Q1: Why you should choose us?


    ---16 years UPS experiences


    ---Professional team for both oversea and domestic market


     --UPS provider of  SCO meeting 2015 and  Shanghai-Kunming high-speed railway project


    ---Qualified product plus competitable prices


    ---Delivery in time


    ---Sincerely services


Q2: How is your after-sale service?


      ---We provide 12-24 months warranty since the delivery date and free maintenance /


     replacement during  warranty period.


Q3: What kind of certification you have?


    ---ISO9000, CE,ROHS,and so on


    Our products could pass different labor testing according to different countries’ requirements.


Q4: Delivery time:


    ---Standard products could be delivered within 15 days; customized products could be


    developed within 10-40days.
