| Model Number | IRS-770/775 | ||
|---|---|---|---|
| Speed(RPM) | 2500-28000RPM |
| Continuous Current(A) | 0.1-5A |
| Efficiency | IE 1 |
| Warranty | Other |
| Place of Origin | Zhejiang, China |
| Brand Name | Customized |
| Model Number | IRS-770/775 |
| Usage | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Industrial Equipment |
| Type | Brush Motor |
| Torque | 140mN.M |
| Construction | Permanent Magnet |
| Commutation | Brush |
| Protect Feature | Drip-proof |
| Product Name | Micro Dc Motor |
| Motor Type | Bush |
| Rated Voltage | 12-230V |
| OD of Micro DC motor | 42MM |
| Speed | Constant Speed |
| Shaft Diameter | 5MM or D-cut |
| MOQ | 1PCS |
| Application | Power Tools,Transmission Equipment |
| Supply Ability | 100000 Piece/Pieces per Month |

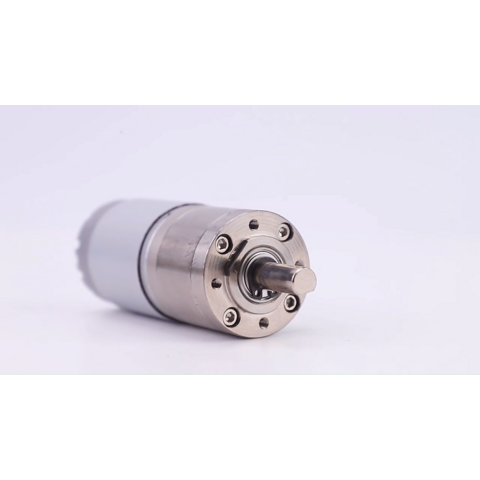

ITO Customized Double Ball Bearing 12V 24V 48V RS-775 Small Brushed Dc Motors For Fascia Gun Garden Tool

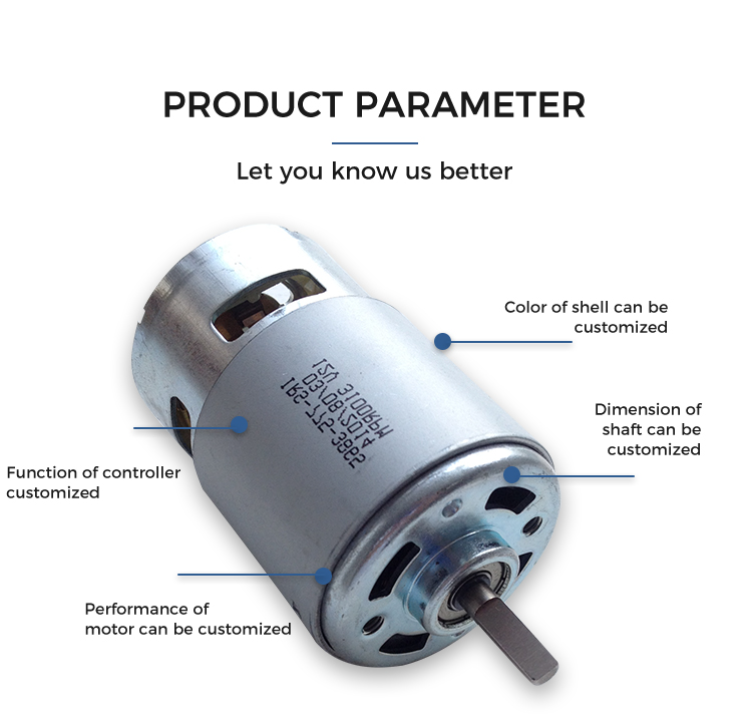

Product Description

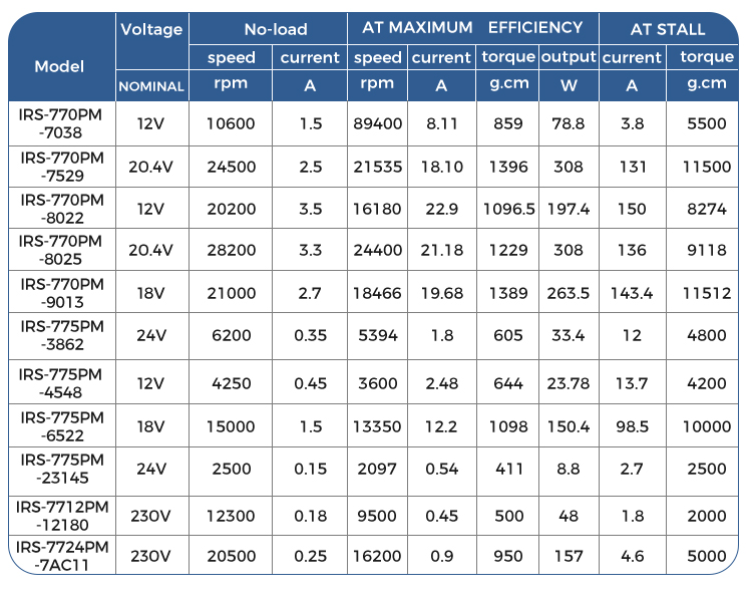

Product Name | Micro DC Motor | No-load Speed | 2500-28000RPM |
Motor Type | Brushed | Voltage | 12V, 18V, 24V, 110V, 220V |
No-load Current | 0.1-5A | Rated Output | 10-300W |
Rated Torque | 140mN.M | Diameter | 42MM |
Recommend Products

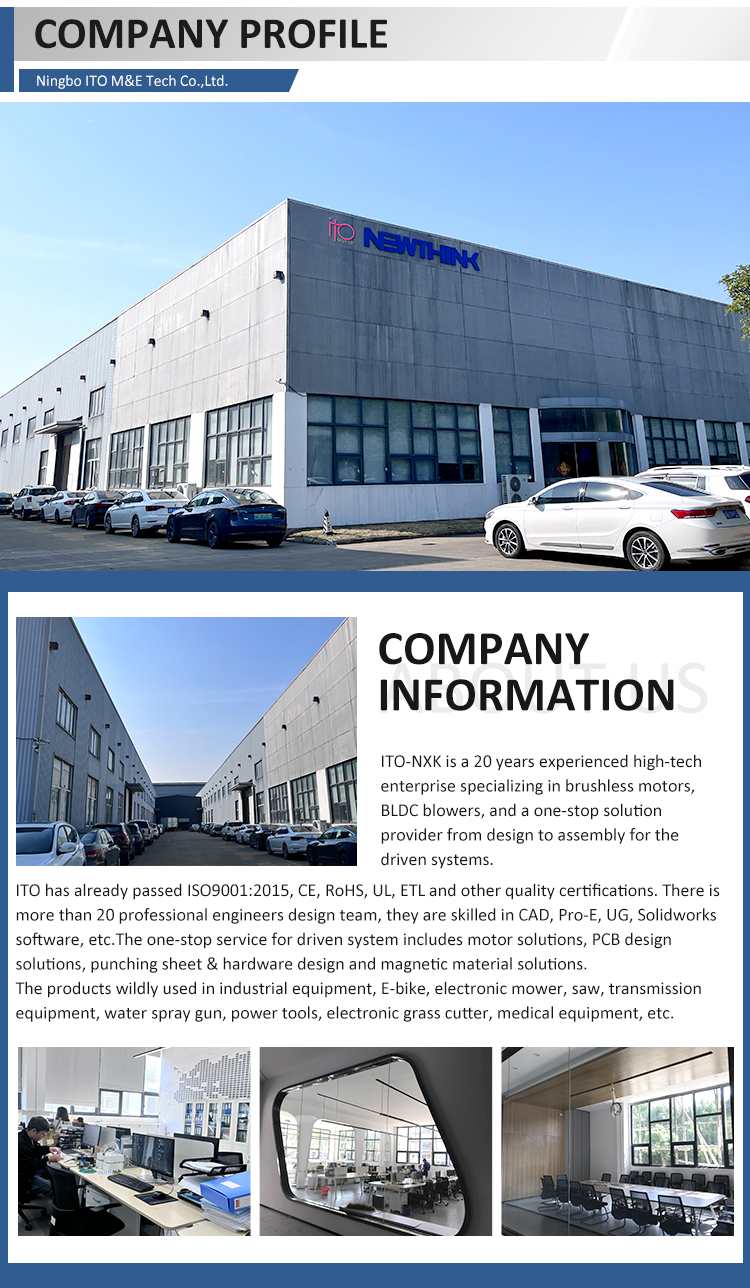

Company Profile
Why Choose Us
Our Advantages

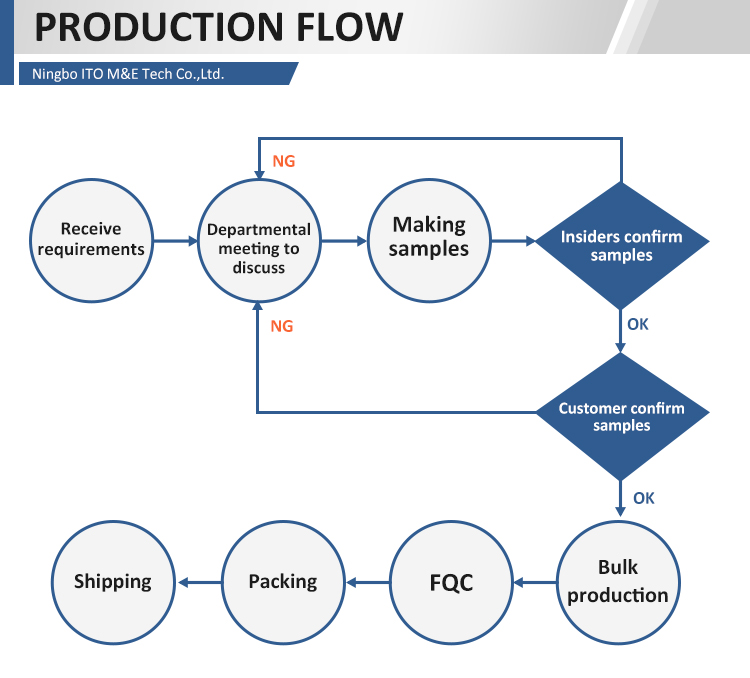

Production Flow
Certifications
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How about Sample order?
A: Sample is available for you. Please contact us for details.
Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit →mass production → cargo ready → balance/delivery → further cooperation
Q:What should I pay attention to before inquiry?
A:1) Most products are customized for customers, kindly send us drawing, sample or data to us, our engineer will make optimal solution for you.
2) If a new design or idea, please send us 3D STEP/IGES/X-T or 2D drawing, then we will do DFM and mold design for you.
Q: How to guarantee the quality of your products?
A:1) The production process is in strict accordance with SOP.

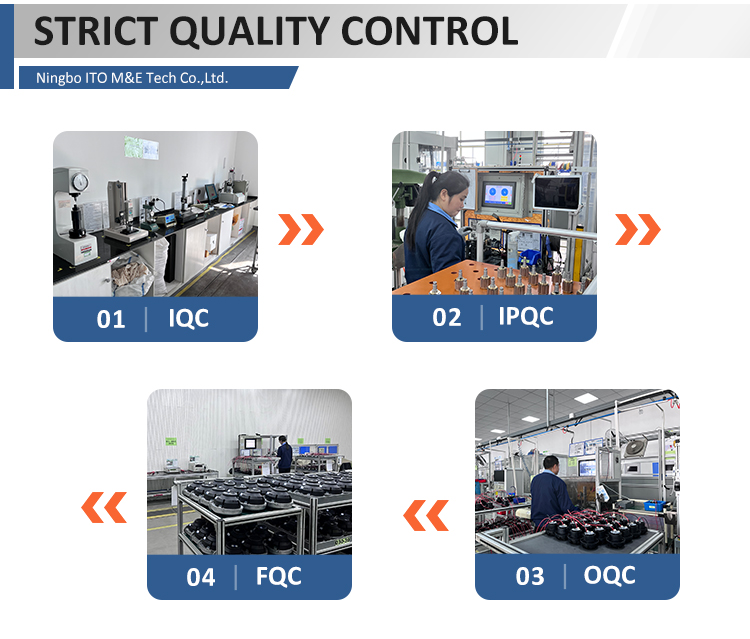

2) Total quality control: IQC, IPQC, OQC, FQC.
3) Unique product serial number ensure quality traceability.

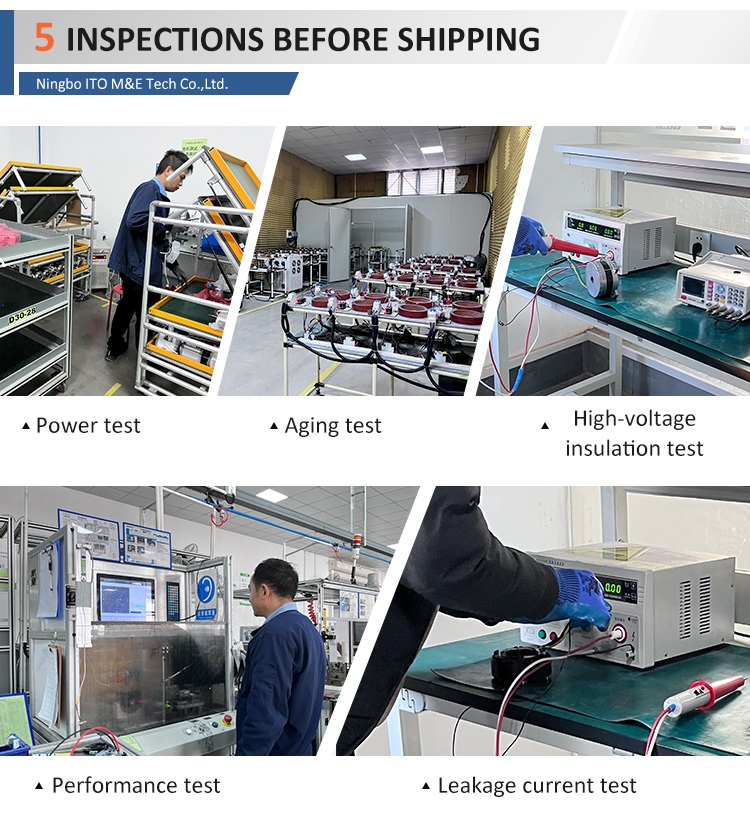

4) 5 Full inspections on products include power test, aging test, high-voltage insulation test, leakage current test and performance test of the overall machine.
Q: Whether I could make our brand on your products?
A:Yes. Our company not only produce products by own brand, but also accept OEM, ODM order by customers.
Q: How long is the deliver and shipping?
A: Deliver time depends on the quantity you order. Usually it takes 20-35 working days.
