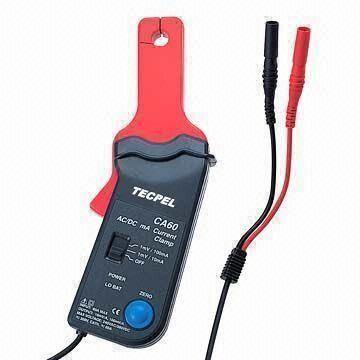

AC/DC Clamp Current Transmitter with 10:1 and 100:1 Transformer Ratio

Miniature clamp meter features two hall effect sensor For use with any multimeter with 200mV or/and 2V ranges for direct readout input impedance of least 1MΩHigh conversion factor for low DC and AC mA measurementWith small jaw size it can fit into tight space in circuit panel or wire bundle to take the readingHigh frequency response at 20kHz is useful for waveform monitoring on an oscilloscopeZero adjustment is made easy by just pushing the zero buttonBest for locating small signal, industrial control, battery leakage and automotive use0 to 60A DC or AC current 9mm 3/8-inch conductor jaw opening capability, fits tight space Transformer ratio: 10:1, 100:1 1mV/10mA or 1mV/100mA conversion Accuracy:

DC A : ±1.5% ACA: ±2% (40Hz to 2kHz) AC A: ±4% (2 to 10kHz) AC A: ±6% (10 to 20kHz) Output: 1mV/10mA, 1mV/100mA Monitor small signal, waveform and leakage Size: 7.7 x 2.8 x 1.3 inchesSafety: designed to meet IEC 100-1 , IEC 1010-2-032 CE CA-06 adapter (optional)BNC-female 4mm banana post adapter for receiving signal output from CA-60 and able to be monitored by oscilloscope
