Breath Alcohol Tester Ignition Interlock Devices (BAIIDs) Alcohol Tester

FiT228LC Breath Alcohol Tester Ignition Interlock Devices (BAIIDs)



Product No:

FiT228-LC, the ignition interlock controller protects prevents a driver from starting a vehicle if his/her breath alcohol concentration is above a certain limit.

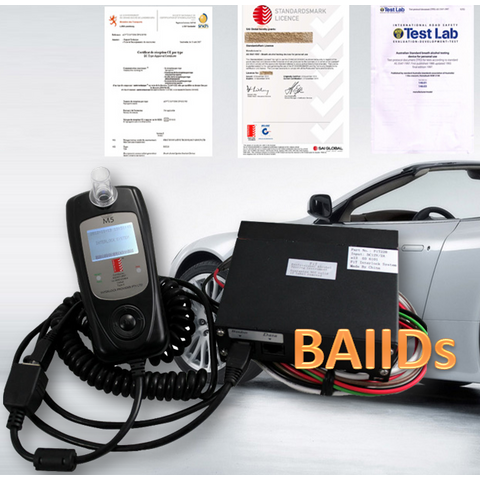

Included tester handset and car controller box

FiT228C: Car Controller Box:

1.Auto ignition control system & Vehicle Starter control port

2.Speedometer/engine running detection (OPTION) / Parking light control port (OPTION)

3.Horn honk control port (OPTION)

4.Relay: DC 12V/40A for starter control (24V option)

5.Power supply: DC12V (10-16V) from vehicle. (24V option)

FiT228-LC Breath Alcohol tester handset unit

1. Display::LCD display with backlight.

2. Keyboard 5 keys operation: ,"Up", "Down", "Left", "Right", "OK"

3. Power Supply  Built-in rechargeable battery; DC 12V/24V (OPTION) from controller unit

4. Heat warm up:: Chamber & Sensor warm up automatically

5. Auto flow monitoring. Flow detect automatically

6. Storage environment -40 Degree C to +85 Degree C.

7. Operating environment -20 Degree C to +70 Degree C. (-20 Degree C to +40 Degree C for optimum operation)

8. PC download PC Download for IBM compatible PC (through RS-232 cable, 9600BPS-Optional)

9. Data Log Data log with real time clock (RTC)

10. Memories 1M Flash memories for Data log

11. Bypass & override Bypass & override with record log

12. Free Start Period after the ignition is switched off during which the vehicle motor may be started again without the presentation of another breath sample.

13. Free Start period

1-255 min (set by supervisor)

14. Random test  After successfully start the vehicle, a random retest is required. The random test timer will activate after the vehicle moved or engine accelerated. There has a random period to perform the retest

15. Indicator  Instructing LED for indication

16. Accuracy: 0.01%BAC

17. Standard white box packing:  Including White box with tester handset and controller; 5pcs wires; charger/data cable; 5pcs blow tubes;

18. Optional accessory: Metal case; PC download cable; mouthpiece (cost refer to our quotation)

19. Standard: eMark, Compile with S&E, AS , NF, DOT

20. Certified AS Australia in 2012; certified US NTHSA in 2013
