Breath Alcohol Tester Ignition Interlock Devices, BAIIDs

Product no: FiT228-LC, the ignition interlock controller protects prevents a driver from starting a vehicle if his/her breath alcohol concentration is above a certain limit

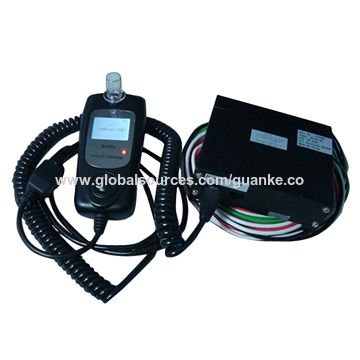

Included tester handset and car controller box
FiT228C: car controller box:
1.Auto ignition control system and vehicle starter control port
2.Speedometer/engine running detection (option)/parking light control port (option)
3.Horn honk control port (option)
4.Relay: 12V DC/40A for starter control (24V option)
5.Power supply: 12V DC (10-16V) from vehicle. (24V option)
FiT228-LC breath alcohol tester handset unit
1. Display: LCD display with backlight
2. Keyboard: 5 keys operation: “up”, “down”, “left”, “right”, “ok”
3. Power supply: built-in rechargeable battery, 12/24V DC (option) from controller unit
4. Heat warm up: chamber and sensor warm up automatically
5. Auto flow monitoring: flow detects automatically
6. Storage environment: -40 to +85°C
7. Operating environment: -20 to +70°C (-20 to +40°C for optimum operation)
8. PC download: PC download for IBM compatible PC (through RS-232 cable, 9600BPS-optional)
9. Data log: data log with real time clock (RTC)
10. Memories: 1m flash memories for data log
11. Bypass and override: bypass and override with record log
12. Free start: period after the ignition is switched off during which the vehicle motor may be started again without the presentation of another breath sample
13. Free start period: 1-255min (set by supervisor)
14. Random test: after successfully start the vehicle, random retest is required, random test timer will activate after the vehicle moved or engine accelerated
There has a random period to perform the retest
15. Indicator: instructing LED for indication
16. Accuracy: 0.01% BAC
17. Standard white box packing: including white box with tester handset and controller, 5 pieces wires, charger/data cable, 5 pieces blow tubes
18. Optional accessory: metal case, PC download cable, mouthpiece (cost refer to our quotation)
19. Standard: eMark, compile with S and E, AS , NF, DOT
20. Certified AS Australia in 2012, certified US NTHSA in 2013
