videoControl
videoControl

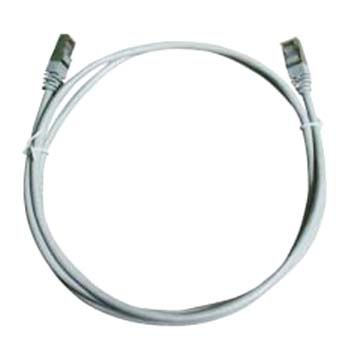

Cat6 Patch Cable, Fluke Test Passed for sale at factory direct price
Cat6 Patch Cable, Fluke Test Passed
Click image to open expanded view

Cat6 Patch Cable, Fluke Test Passed

Lead Time 3–7 days
US$ 0.2 - 0.3 / 1 Piece
500 Pieces Minimum order
Cixi City Flighter Import & Export Co. Ltd

Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.

Product Information
Model NumberFLT-PC002-#4522Brand Namelunge
originChinaSmall OrdersAccepted

Key Specifications/ Special Features:

  • Cat5e/Cat6 patch cord cable 26awg/24awg
  • Certifications: CE, RoHS, ISO, Fluke, UL, CU, CCA, CCAM, CCA+CCS
  • Free OEM design
  • UTP/FTP cat5e/cat6 cable
  • Specification:
    • Rated temperature: 60 or 75°C
    • Unshielded twisted pairs
    • Conductor: 26AWG or 24AWG stranding or solid bare copper
    • Insulation: HD-PE (High density polyethylene), minimum thickness of 0.18mm
    • Jacket: PVC or LSNH, minimum thickness of 0.55mm
    • Impedance: 100± 15%Ω at 1-100MHz
    • Print legend: CM or CMR
    • Reference standard: YD/T1019-2001, ISO/IEC11801, ANSI/TIA/EIA-568B, UL 444
  • Features:
    • Solid copper conductor allows high performance
    • Fast and reliable connection
    • Twisted pairs with bright c olor for easy recognition
    • Ripcord and footmark for convenient use
    • Smooth jacket for easy pulling in tight space
    • Color in light grey, dark grey, blue, white or as per your requirement
  • Applications:
    • Computer network cabling project
    • Broadband network communication
    • Digital ISDN network and ATM 155Mbps network
    • Ethernet network
    • Audio and data transmission
  1. Conductor: 24AWG/26AWG copper, CCA, (8*7*0.12, 8*7*0.16mm)
  2. Insulation: 0.92mm+/- 0.06 HD/PE
  3. Pairs: 4
  4. Jacket: PVC
  5. Packing: 1m, 2m, 3m, 5m, 7m, 10m, 15m, 20m and 100m, 1pc/polybag
  6. Any length is available
  7. Temperature range: -20 up to +75°C
  8. Conductor resistance: maximum 9.38Ω/100m
  9. Resistance unbalance: maximum 2%
  10. Insulation resistance: maximum 150Ω/km
  11. Mutual capacitance: maximum 5600pF/100m
  12. Capacitance unbalance: maximum 330pF/100m
  13. Impedance: 100+/-15
  14. Spark test: 2000V
  15. Velocity of propagation: 67%
  16. Complies with Enhanced Cat5 cabling specification TIA/EIA-568B-2
  17. OEM orders welcomed

Shipping Information

FOB PortNingboLead Time3–7 days
