Name: Shunli Custom 775 DC 12V-24V 4500-8000RPM PMDC Electric Brush Brushless DC Motor Torque High Power Low Noise DC Motor
Brand: Shenzhen Shunli Motor Co., Ltd.

Product Information

Model Number	775

Key Specifications/ Special Features:

Speed(RPM)	6000rpm
Continuous Current(A)	1 AE
Efficiency	IE 1
Warranty	3months-1year
Place of Origin	Guangdong, China
Brand Name	Shunli
Model Number	775
Usage	FAN, Home Appliance, SMART HOME, Shunli Custom 775 DC 12V-24V 4500-8000RPM PMDC Electric Brush Brushless DC Motor Torque High Power Low Noise DC Motor
Type	GEAR MOTOR
Construction	Permanent Magnet
Commutation	Brush
Protect Feature	Drip-proof
Product name	775
Power	3w
MOQ	2
Type	micro dc motor
Usage	Custom
OEM	Accept
Brand	Shunli Motor
Shaft	Custom
Rated Torque	Custom
N*m) Torque	Custom
Package Type	opp

Product Description

775 dc motor for power tools low price motor 12v 24v dc motor

Product Details

Motor Customized Specification, Please contact me.

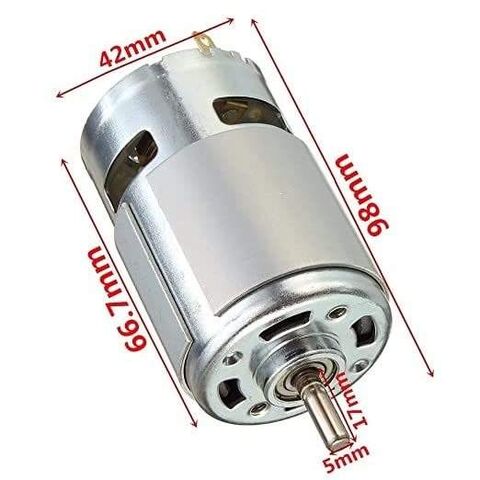

Reference Drawing

------ RS - 755 H

------ RS - 775 H

The length of shaft can be customized, Please contact me.

PMDC MOTOR Technical Date
Model		Rated Voltage (V)		No-Load		Rated				Stall
		Operating Range	Nominal	Speed	Current	Speed	Current	Torque	Power	Current	Torque
		Operating Range	Nominal	RPM	A	RPM	A	mN.m / gf.cm	W	A	mN.m / gf.cm
RS-770H	8523R	6.0~12.0	12 VDC	15000	2.2	13177	15.91	81/826.2	111.8	115	666.9/6802
RS-775H	25110R	6.0~24.0	24 VDC	3478	0.15	2925	0.75	44.4/452.9	13.35	4.07	245.7/2506

RFQ

1.Q: Are you trading company or manufacturer?

A: We're factory. We specialize in micro dc motor and dc gear motor for more than 14 years.

2.Q: What is the payment term for a new customer?

A: We can draw up an Ali Assurance Order Online for our new customer, which can pay online with Master Card, Visa, etc. Customer also can pay with PayPal or TT etc.

3.Q: I can't find a suitable motor on your website, can you customize the motor for me?

A: Yes, we can customize a suitable motor according to our customer's requirements.

4.Q: Do you have certificates for the motors?

A: Yes, we have CE, FCC, ISO, etc. If you have the other certificates requirement, we can apply it for you.

5.Q: How is your Quality Control?

A: We have professional checking staff on every production line process. After finishing the whole motor, we have the entire quality machine to test the motor. Such as Hardness Tester, 2.5D Image Tester, Salt Spray Chamber, Life Tester, Temperature Test Machine, and Noise tester etc.
