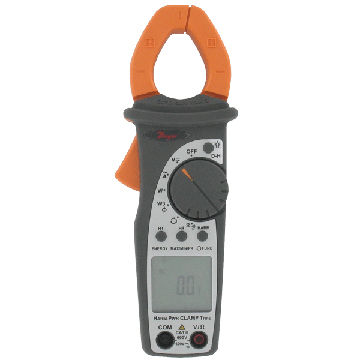

Digital Clamp Meter with True RMS, Peak Hold and Min/Max Measures DC/AC Voltage, DC/AC Current

Our compact, low cost model CM-3 digital Clamp Meter is ideal for general electrical testing and troubleshooting
A few applications include HVAC, automotive, electrical/power, and environmental monitoring uses
The CM-3 measures DC and AC voltage to 600 V, AC current to 400 A, and resistance to 2000Ω
The digital clamp meter features data/range hold and auto range buttons to prevent the screen from updating when gathering values, as well as a zero function
Additional features include single and three phase energy measurement, MIN/MAX and average
The 3-3/4 digit backlit LCD features automatic polarity, overload, low battery indication and a bar graph
The model CM-3 is furnished with red and black test leads, batteries and a carrying case with belt loop

Specifications:

• Over voltage category: CAT III 600V
• AC voltage: 0.1V to 600V ± (1.0% + 3 digit)
• DC voltage: 0.1 V to 600V ± (1.0% + 3 digit)
• AC current: 0.1 A to 400A ± (1.0% + 3 digit)
• Resistance: 0.1 to 2000Ω ± (1.0% + 5 digit)
• Continuity test: audible buzzer
• Max conductor size: 1.18" diameter (30mm)
• Frequency: 40Hz to 400Hz ± (0.5%+1)
• Active power range: 0 to 1000kW ± (3.5% + 3)
• Display: backlit with bar graph, 10,000 counts plus decimal point
• Power requirements: (2) AAA alkaline batteries, included, user replaceable
• Weight: 9.88oz (280g)
