Digital Earth & Ground Resistance Tester Megger 0ohm ~4K ohm With Backlit for sale at factory direct price
Digital Earth & Ground Resistance Tester Megger 0ohm ~4K ohm With Backlit
Click image to open expanded view

Digital Earth & Ground Resistance Tester Megger 0ohm ~4K ohm With Backlit

Lead Time 5–35 days
Shenzhen New Huayi Instrument Co. Ltd

Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.

Product Information
Model NumberMS2302Brand NamePEAKMETER
originChina

Key Specifications/ Special Features:

Item specifics
Display Type: Digital & Analog
Operating Temperature: Normal
Brand Name: PEAKMETER
Accuracy Class:±(2%+6dgt)~±(3% rdg +3dgt)
Measuring Range: 0Ω~4.00kΩ
DIY Supplies: Electrical
Dimensions:180mm x 140mm x65mm
Testing Voltage:0V~200V(50~60Hz)
Model Number:MS2302
Weight: Approx. 950g
Power Supply:6x1.5v AA batteries(not included)

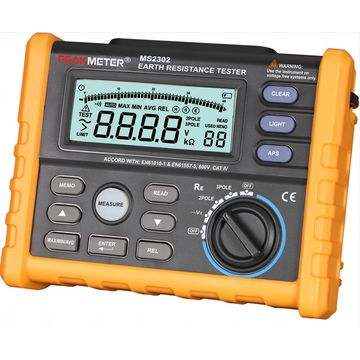

Product DescriptionHYELEC MS2302 DIGITAL EARTH RESISTANCE TESTER

Introduction:
The meter is applicable to the testing of the earth resistance of the power supply wires, distribution wires inside a room, electrical equipment or appliance, which can done in two measurement modes: Bi-poles or Tri-poles, and it also can be used to measure the earth voltage.
Large digital LCD and backlight applied to the meter facilitate users to read the information on LCD. Besides, the meter is capable of storing up to 100 groups of measurement data, which will not be lost even in case of power cuts so that the user can easily consult the historical data. In addition, the meter can also be used to measure maximum, minimum or average and measure relatively. Auto Power-off function has been provided for it.

Features:
Digital Display & Analog Bars Display
2 Pole and 3 Pole Mode
Earth Resistance By Constant Current Inverter 800Hz/3mA
MAX/MIN/AVG/REL Measurement Functions
Data Logging:100 group
Display Back Light
Low Battery Indication
Auto Power Off

Specifications:
Specifications          RANGE            ACCURACY       RESOLUTION
Earth ground Resistance  0Ω~29.99Ω     ±(2%+6dgt)     0.01Ω
                         30Ω~99.9Ω     ±(3%+3dgt)     0.1Ω
                         100Ω~999Ω     ±(3%+3dgt)       1Ω
                         1.00kΩ~4.00kΩ  ±(3%+3dgt)      10Ω
Earth voltage          0V~200V(50~60Hz)   ±(1%+5dgt))    0.1V


Shipping Information

Lead Time5–35 daysExport Carton Weight1 Kilograms
