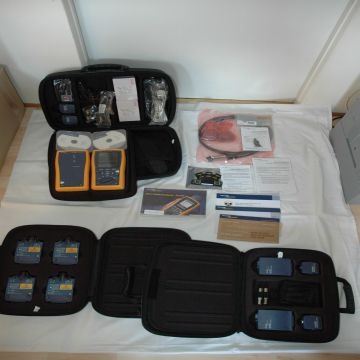

Fluke DTX-1800 Netzwerktester Cat 7 900MHZ Cable Analyzer 10Gig - MEGA SET

Test Standards TIA Category 3, 5e, 6 & 6A per ANSI/TIA-568-C.2 TIA Category 5 (1000BASE-T) per TIA TSB-95 TIA Category 6 per TIA/EIA-568B.2-1 TIA TSB-155 (DTX-1800 only) ISO TR 24750 (DTX-1800 only) ISO/IEC 11801 Class C, D, and E, Ea & F(Ea, F and Fa DTX-1800 only) EN 50173 Class C, D, E, EA & F (Ea, F and Fa DTX-1800 only) ANSI TP-PMD IEEE 802.3 10BASE-T, 100BASE-TX, 1000BASE-T IEEE 802.3an 10GBASE-T Speed of Autotest Full 2-way Autotest of Category 6 Twisted-Pair links in 9 seconds Full 2-way Autotest of Category 6A and ISO/IEC Class F links in 22 seconds Supported Tests Parameters (The selected test standard determines the test parameters and the frequency range of the tests) Wire Map Length Propagation Delay Delay Skew DC Loop Resistance Insertion Loss (Attenuation) Return Loss (RL), RL @ Remote NEXT, NEXT @ Remote
