| Model Number | JQV-20 | ||
|---|---|---|---|
| Max. LAN Data Rate | 1750Mbps |
| With Modem Function | NO |
| Standards And Protocols | Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11n, Wi-Fi 802.11ac, Wi-Fi 802.11a, Wi-Fi 802.11ax |
| Wi-Fi Supported Frequency | 2.4G & 5G |
| Supports WDS | Yes |
| Supports WPS | Yes |
| Wi-Fi Transmission Standard | WiFi 802.11 ax |
| Wired Transfer Rate | 10/100/1000Mbps |
| 2.4G Wi-Fi Transmission Rate | 300 Mbps |
| Encryption Type | WPA2-PSK, WPA2, WPA2-Enterprise, WPA-PSK, WPA, WEP, WPA-Enterprise, WPA2-Personal, WPA-Personal |
| Private Mold | Yes |
| Products Status | New |
| Type | Wireless |
| Application | Network Security |
| Function | FireWall, QoS, VPN, SDK available |

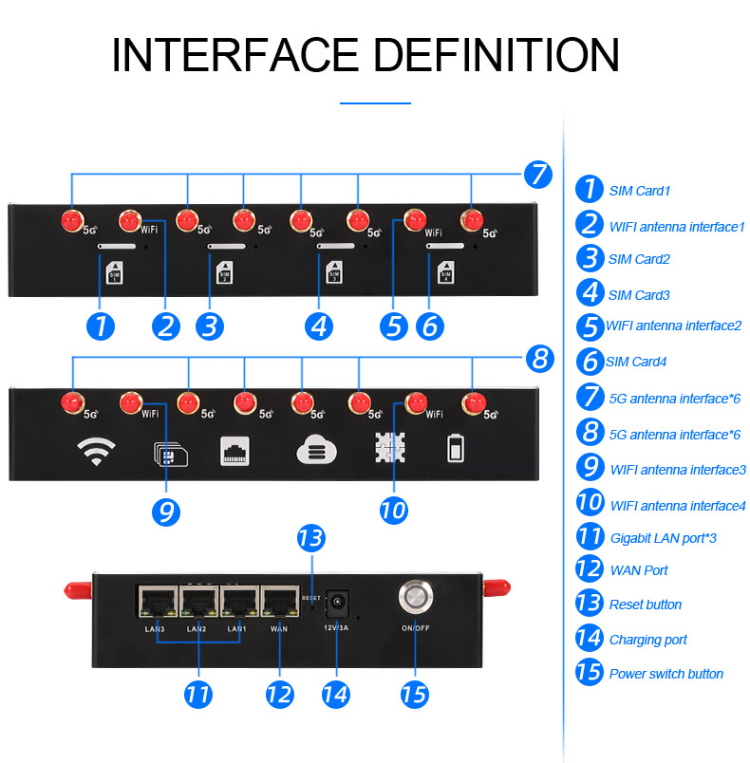

| LAN Ports | 4 |
| WAN Ports | 1 x10/100/1000Mbps |
| Brand Name | QUIC |
| Place of Origin | Guangdong, China |
| 5G Wi-Fi Transmission Rate | 1000Mbps |
| CPU | quad-core 1.80Ghz frequency |
| Memory | Onboard SMD DDR4 1GB |
| Power terminal | 1 pc( DC 5.5* 2.1/2.5 ) |
| Chassis material | All metal chassis |
| Charge | 2000 mA@12V DC battery |
| LAN protocol | Support ARP,Ethernet |
| Network | 4G/5G |
| WAN protocol | Support static IP, DHCP, PPPoE, PPP |
| Network access | Support APN VPDN |
| Power supply | External power adapter (DC 12V 3A) |
Product Description

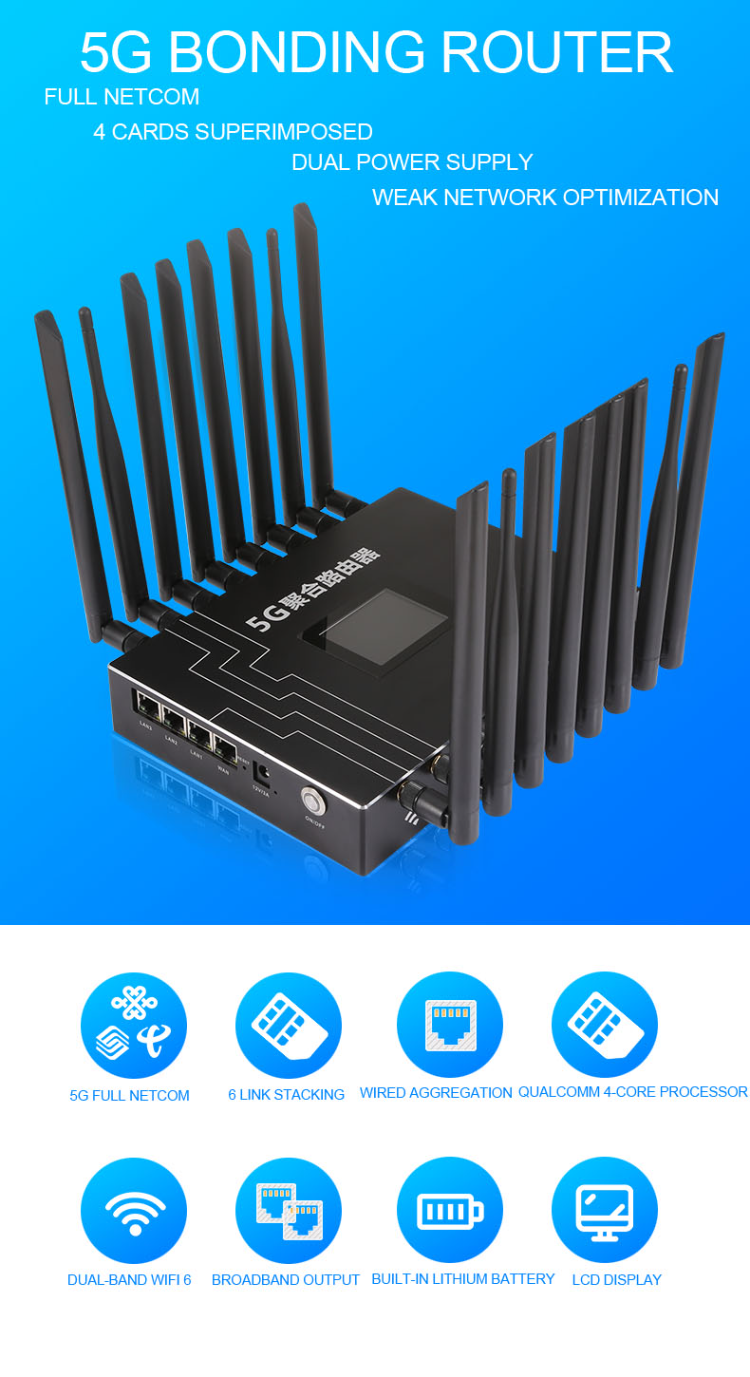

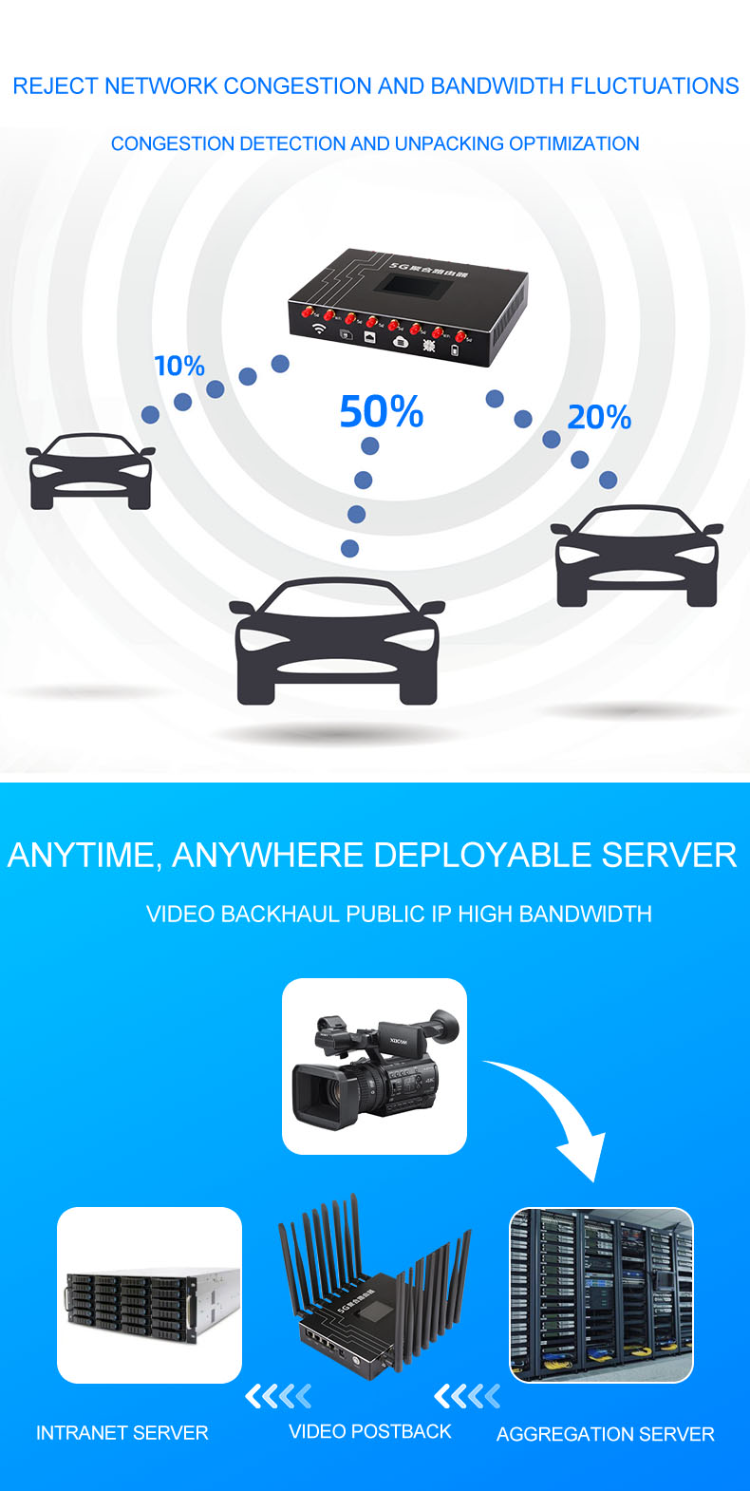

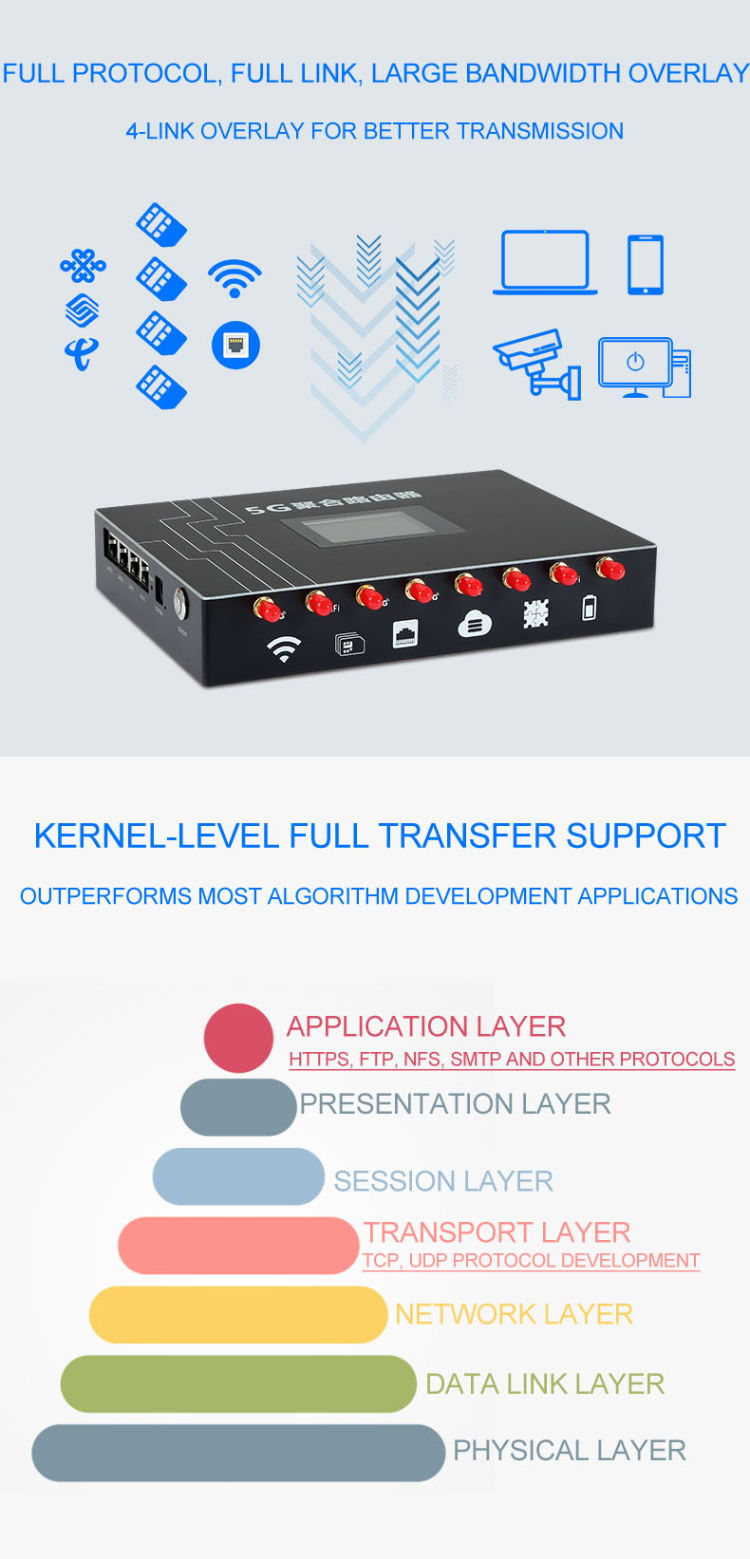

X5 5G aggregation router supports 5G, WiFi6, wired network and other access methods. It has an open architecture design, providing fast and flexible customization; it can realize local real-time data analysis and intelligent processing; it adopts industrial-grade standard design, wide temperature, wide voltage , dustproof, anti-strong electromagnetic interference, equipped with multiple hardware protection, with external watchdog circuit, can run stably even in harsh environments, can adapt to different industry scenarios, use public wireless networks to provide users with wireless data transfer function. Mainly in areas with harsher environments, we provide various network support for everyone. Now it has been widely used in the M2M industry in the IoT industry chain, such as webcasting, outdoor mobile wifi, smart grid, smart transportation, finance, supply chain automation, industrial automation, smart buildings, fire protection, public safety, environmental protection, meteorology, Digital medical treatment, telemetry, agriculture, forestry, water affairs, coal mine, petrochemical and other fields.
Specification
| Hardware parameters | ||
CPU | Qualcomm ARM-A53 quad-core 1.80Ghz frequency | |
Memory | Onboard SMD DDR4 1GB | |
EMMC | 4GB (default) can be customized 16GB-128GB | |
Nand Flash | 2Gb | |
Nor FLASH | 128Mb | |
WIFI | 802.11.ax (Wi-Fi 6), the highest rate can reach 1800Mbps, support 2.4G/5.8G dual-band | |
Network support | Supports 3G/4G/5G networks of China Unicom, China Telecom and China Mobile (customizable network version for overseas users) | |
System time | Time synchronization using NTP technology | |
WIFI performance | ||
Protocol standard | IEEE 802.11b/g/n/ac/wifi6 ax | |
Antenna support | 5.8GHz:2X2/80Mhz 2.4GHz:2*2/40Mhz | |
WIFI frequency band | 2.412GHz-2.47GHz and 5.15GHz-5.85GHz dual frequency synchronization | |
WIFI rate | The onboard wifi 2.4GHz can reach up to 600Mbps, and the TCP data can reach up to 400Mbps.The onboard wifi 5.8GHz can pass up to 1200Mbps, and the TCP data can reach up to 1000Mbps. | |
Output Power | Single channel dual 2.4G WIFI, maximum output power 20dBmSingle-channel dual 5.8GWIFI, the maximum output power is about 23dBm | |
Receive sensitivity | Under the condition of @802.11AX, 2.4G connection gain -78dBUnder the condition of @80.11AX, 5.8G receive gain -77dB | |
5G Module | ||
Band support | Support 5G/4G/3G three Netcom module, or support seven-mode three Netcom (4G module, can replace the global 5G module) | |
Theoretical bandwidth | NR SA: 1.9Gbps(DL)/750Mbps(UL)NR ENDC: 2Gbps(DL)/340Mbps(UL)LTE: 500Mbps (DL)/150Mbps (UL)WCDMA: 42Mbps (DL)/11MbpsThe above data are only theoretical values, and the actual network speed is limited by the local network environment | |
Number of 5G modules | 4 built-in 5G modules (4G modules are optional) | |

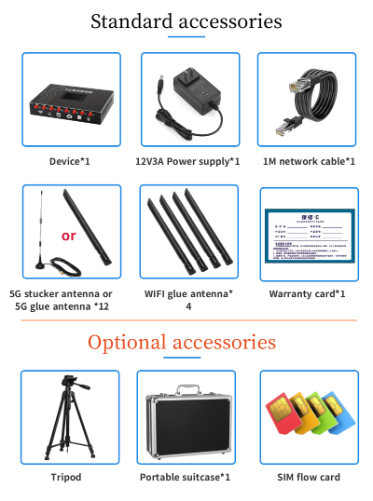

Packing & Delivery

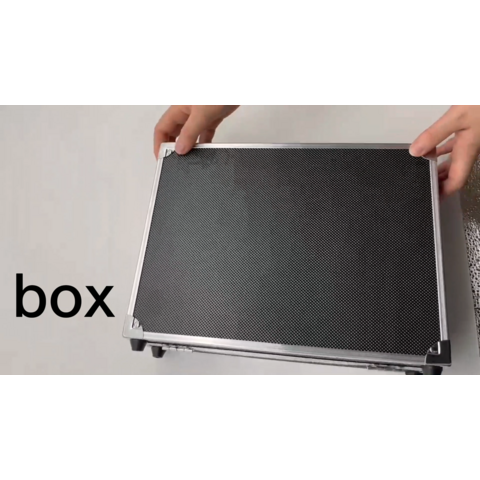

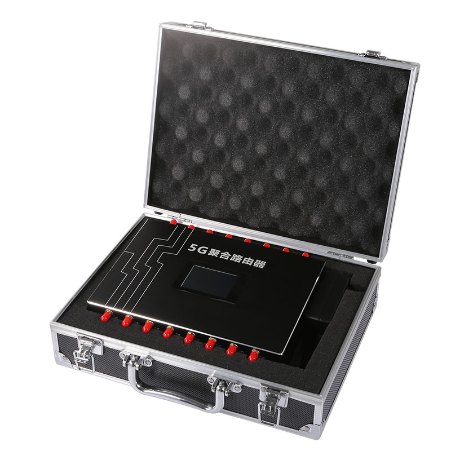

4g wifi router multi sim card Neutral box or OEM packaging
Company Profile
About us
Established in 2012, iyunlink is a professional manufacturer specialized in WiFi networking.Our main products are WiFi Router 4G Router Bonding Router... Our Professional R&D team, well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. With over 10 years’ experience in networking products,we have obtained ISO9001, High-tech Enterprise certificates and our products comply with CE,FCC,RoHS,REACH,Telec,GS certificate...
Services
Our service:
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 6,000,000 pcs
---All our products with 12months guarantee
About sample:
---Sample is available.
---Sample lead time: 2-3 working days, 4-5 days with customized logo
---More details, please contact with us.
Payment methods:
---T/T, Western Union, LC.
---30% deposit, balanced before shipment.
Shipping & Trade terms:
---By sea, air, or UPS, FEDEX, EMS, DHL, etc.
---Payment:T/T, Western Union, LC.
---Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Shipping & Payment
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to North America(1.00%),South America(1.00%),Eastern Europe(1.00%),Southeast Asia(1.00%),Africa(1.00%),Oceania(1.00%),Mid East(1.00%),Eastern Asia(1.00%),Western Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Southern Europe(1.00%),South Asia(1.00%),Domestic Market(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
routers,Ethernet switches,Embedded Industrial Computer
4. why should you buy from us not from other suppliers?
We have 10 years of design and development experience, mainly designing 4G industrial routers, 5g industrial routers, wireless wifi6 routers, switches, AI smart gateways
5. what services can we provide?
Accepted Delivery Terms: null;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:null
