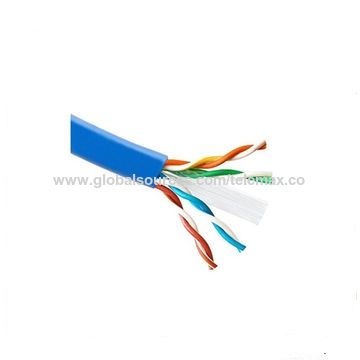

Name: Cat6 UTP network cable,PVC/LZSH,pass fluke test
Brand: Shenzhen Telemax Technology Co. Limited

Cat6 UTP network cable,PVC/LZSH,pass fluke test

Lead Time 10–15 days

US$ 66

200–1999 Cartons

US$ 64

2000–9999 Cartons

US$ 62

≥10000 Cartons

Product Information

Model Number	TM01UTP6305PVC-F	Brand Name	OEM or TELEMAX
origin	China	Small Orders	Accepted

_{Description: 4 Pairs Cat 6 U/UTP 23 AWG LAN Cable PVC Jacket. 305M/carton}
_{Product description}
- _{4 pairs 100 Cat.6 cable, adopt 23AWG bare copper to be the center conduction, PE to be the dielectric and fireproof material to be the jacket.}
- _{This cable is gray and conform to the standards like ISO/IEC, TIA/EIA and EN.}
- _{All the electrical characteristics are even exceed the latest Cat.6a standards of ISO/IEC. The "+" typer inner frame in the center ensures NEXT capacity and reasonable minimum bend radius.}
_{Electrical characteristics}
- _{Impedance: 100±15}
- _{Return resistance: 9.4/100m}
- _{Unbalance resistance: ≤5%}
- _{Static electric capacity: 51pF/m 1KHz}
- _{Unbalance capacity: 73.2pF/100m}
- _{Roted communicate rate: 65%}
- _{Copper diameter: 23AWG}
- _{Impedance: 100±15}
- _{Outer diameter: 6.1±0.2mm}
- _{Weight: 13.5kg/kft}
- _{Minimum bend radius: 6-8×OD}
- _{Maximum pulling tension: ≤10}
- _{Jacket material: PVC/LSZH}
- _{Roted temperature: -20～60 deg. C}
- _{Packing: Telemax brand packing}
- _{10/100/1000Mbps Ethernet;}
- _{100VG-AnyLAN;}
- _{Token ring;}
- _{ATM155/ATM622 etc;}
- _{ISO/IEC-11801 (2nd edition)}
- _{EN (2nd edition)}
- _{TIA/EIA-568B.2-1}
_Remark:
- _{PE, LSZH Jacket is optional}

FOB Port	China (Mainland)	Lead Time	10–15 days
HTS Code	8544.49.19 00	Units per Export Carton	1.0
Export Carton Dimensions L/W/H	35 x 35 x 20 Centimeters	Export Carton Weight	12 Kilograms

Main Export Markets	Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa, North America, Western Europe

Payment Details

Payment Method	Telegraphic Transfer in Advance (Advance TT, T/T)
