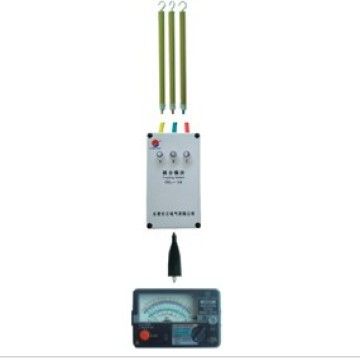

On-Line Style Insulation Resistance Tester for ESP Measure the insulation resistance of the ESP uni for sale at factory direct price
On-Line Style Insulation Resistance Tester for ESP Measure the insulation resistance of the ESP uni
Click image to open expanded view

On-Line Style Insulation Resistance Tester for ESP Measure the insulation resistance of the ESP uni

Lead Time 30–45 days
Dongying OrientSun Electric Co. Ltd

Important: This supplier does not currently advertise with Global Sources. We cannot guarantee the accuracy of their company and product information.

Product Information
Model NumberQYZZC-ΙBrand NameOrientsun
originChina

Key Specifications/ Special Features:

  • The On-Line Style Insulation Resistance Tester is speciallydesigned to measure the insulation resistance of the ESP (ElectricSubmersible Pump) Unit. Measurement of insulation resistance at anearly stage often makes it possible to discover faulty points inthe insulation before they burn through possibly causing seriousproblems.
  • The most important advantage of the on-line style tester isthat it can work when the ESP Unit is running. To put itdifferently, the insulation resistance of the system can bemeasured without power off and will keep the ESP system runningthrough most common failures.
  • â—†Technical Parameters:
  • The tested system voltage :< 2500VAC
  • Insulation resistancerange:0.5MΩ～2000MΩ
  • Measures up to 2500VAC
  • Battery powered （12VDC 8pieces）
  • Accuracy: 2～1000 MΩ±5%
  • Ambient temperature:－25℃～+50℃

Shipping Information

FOB PortQingdaoLead Time30–45 days

Main Export Markets

Main Export Markets
Asia
Payment Details
Payment MethodTelegraphic Transfer (TT,T/T)
