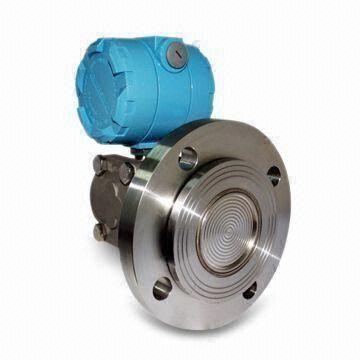

Rosemount 1151DP/GP Series Transmitter, 316SS Fasteners, Square Root Output, Remote Diaphragm Seals

Specifications:

Ranges:
0 to 5 and 0 to 30psi in H2O (range 3) DP and GP 0 to 25 and 0 to 150psi in H2O (range 4) DP and GP 0 to 125 and 750psi in H2O (range 5) DP and GP 0 to 17 and 0 to 100psi (range 6) DP and GP 0 to 50 and 0 to 300psi (range 7) DP and GP 0 to 170 and 0 to 1,000psi (range 8) DP and GP 0 to 500 and 0 to 3,000psi (range 9) GP only Range 0 (1,000 to 6,000psi) GP only
Output:
Analog: 4 to 20mA or 10 to 50mA Smart: 4 to 20mA
Materials:
Diaphragm: 316SS, Hastelloy C, Monel or Tantalum Process flanges and adapters: cadmium-plated carbon steel Wetted O-rings: Viton (standard) or Teflon Diaphragm fill fluid: silicone or inert
Maximum working pressure: 2,000psi

Options: 3 valve manifold (DP only), output meter, side vents/drains Available in new surplus only 316SS fasteners, square root output, remote diaphragm seals With capillary filled systems or (1,151HP) for line pressure up to 4,500psi Standard accessories: specified mounting bracket and SS Tag
