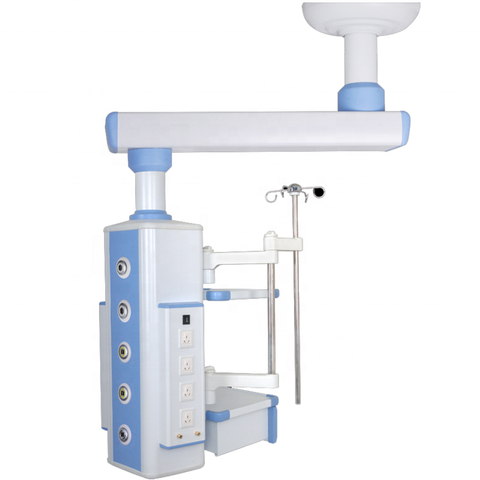

Supplier medical equipment surgical pendant system for operating room

Supplier medical equipment surgical pendant system for operating room

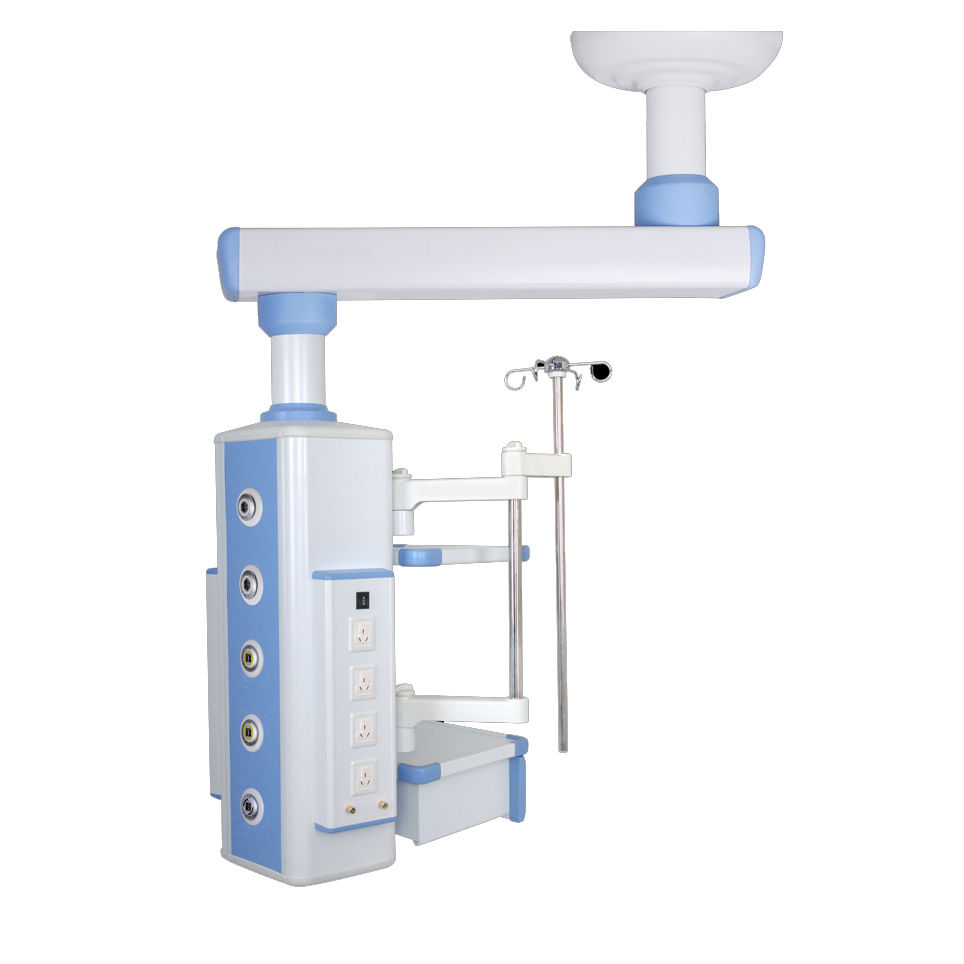

Surgical pendant Introduction:

1)The activity range of Horizontal arm :( radius) 1000mm, horizontal arm and functional box can be simultaneously rotated, each horizontal rotation angle 340 °;

2)Functional box vertical lifting stroke 250 ~ 600mm. Motor power 100W;

3)The rotary joint has oxygen balloon expandable isolation brakes, just hold down the brake button on the device to easily rotate, release the button to secure the device no drift;

4)The gas terminal interface standard configuration: oxygen 2pcs, suction 2pcs;

A. Different colors and shapes, with anti-pick wrong function;

B. more than 20,000 times mating cycles;

C. using the secondary seal, with three states (on, off, pull), can carry air service;

5)Instrument platform: two layers (height adjustable); rounded bumper design, each platform can load 20kg;

6)weight loading: 150kg;

7)Power supply: AC220V, 50HZ; AC110V, 60HZ

8)Electrical outlet: 8 pcs (220V / 10A);

9)Potential ground terminal: 2pcs;

10)The network interface: RJ45 1pc;

11)Drawer: 1pc;

12)Syringe pump rack 1pc, infusion pump rack 1pc;

13)The main material: high-strength aluminum alloy;

14)The surface treatment using imported high-voltage electrostatic powder spray;

15)Ceiling-mounted, high stability;

Surgical pendant Factory Information:

Surgical pendant Package:

Surgical pendant Exibition & Certificates:
