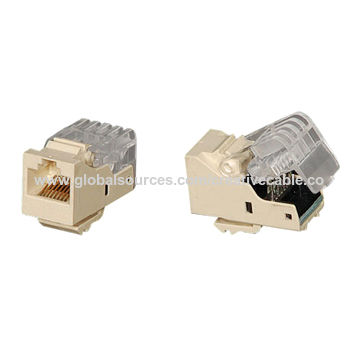

Name: UTP free-tool cat5e RJ45 keystone jack, pass fluke
Brand: Shenzhen Creative Ruby Co. Ltd

Product Information

Model Number	QT-KJ0605	Brand Name	QIN/RUBY/OEM
origin	China	Small Orders	Accepted

Toolless type UTP cat5e/cat6 RJ45 keystone jack, modular jack cat5e
Description: cat5e/cat6 8P8C RJ45 keystone jack
Unshielded toolless type, easy to connect the cable
Electrical:
- Voltage rating: 125V AC RMS
- Current rating: 1.5A
- Contact resistance: 100mΩ maximum
- Insulation resistance: 1000mΩ minimum at 500V DC
- Dielectric strength: 750V AC RMS, 60Hz, 1 minute
Environmental:
- Storage temperature: -40 to 85°C
- Operation temperature: 0 to 70°C
- Conform to TIA/EIA 568B category 5e
- Mates with Cat5e/Cat6 modular plug conforming to FCC part 68, subpart F
Mechanical:
- Housing material: PC UL94V-0
- Inner material: flame retardant, ABS, UL94V-0
- PCB material: FR-4 (thickness: 1.6mm)
- Contact material: phosphor bronze stamp PIN T: 0.35mm
- IDC contact material: phosphor bronze T=0.50mm with nickel plating

FOB Port	Shenzhen	Lead Time	7–10 days

Main Export Markets	Asia, Australasia, Central/South America, Eastern Europe, Mid East/Africa, North America, Western Europe

Payment Details

Payment Method	Telegraphic Transfer (TT,T/T)

UTP free-tool cat5e RJ45 keystone jack, pass fluke
