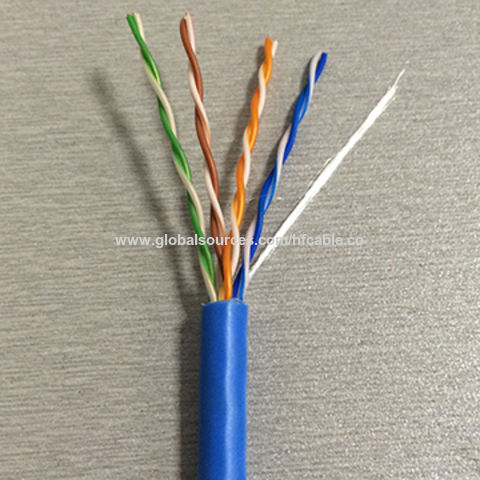

UTP CAT5E Cable, 4-pair 24AWG solid copper, Fluke Test pass, HDPE/PVC/LSZH, Indoor or outdoor used

NETWORK CABLE/LAN Cable
UTP CAT5E

Unshielded Twisted Pairs - 4 Pairs, 24AWG
Category 5e Cable, according to UL444 communication cable standard

Cable Construction:
Conductor: 24AWG (1/0.51mm) Solid Pure Copper
Insulation: HDPE 0.95mm
Nos of Twisted Pairs: 4 Pairs
Assembly: 4 Pairs of dielectric core shall be stranded in circular form, with Rip Cord.
Jacket: PVC, Flame Retardant or CM Grade.
Overall Diameter: 0.195'' (5.1±0.1 mm)

Applications:
Horizontal Wiring in LAN
Surveillance Cameras

Reference Standards:
1. TIA/EIA-568-B.2
2. RoHS Compliant

Insulation Colors:
1. Orange, White/Orange
2. Blue, White/Blue
3. Green, White/Green
4. Brown, White/Brown

Electrical Characteristic:
Capacitance: Nom. 15.2 pf/ft
Velocity of Propagation: Nom. 67%
Operating Temperature: -20℃-60℃
Characteristic impedance: Nom. 100±15Ω
DC(Loop) Resistance of Conductor: Nom. 178.6Ω/km at 20℃

Packing Length:
1. 100M, 305M Pull Box
2. 500FT, 1000FT Pull Box

Cable Marking:
HF Cable Network Cable UTP CAT5E 4 Pairs 24AWG Solid Pure Copper 0001FT
*Or based on customers request.
