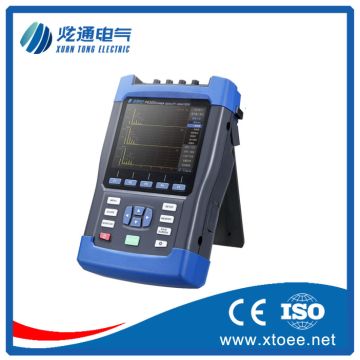

Wholesale Testing Machine 3 Phase Portable Power Quality Analyzer 60Hz Power Electric Instrument

Specification
     P6300  handheld power qualityanalyzer, support to measure the power frequency system of 50Hz/60Hz powergrid, it can record all power quality parameters including of harmonic,voltage, current, frequency, fluctuation, flicker, power and 3-phase imbalance,etc. The 6300 possesses high class power quality measurement function,meanwhile it provides professional host computer analyze software to processsecondary analysis, and provides user the most accurate power fault diagnosisanalysis.

Core technology specifications
Flicker accuracy: ± 5%
Voltage accuracy: 0.1%
Frequency: 50Hz/60Hz
Measurement cycle: 10/12 cycles
Frequency bandwidth: 42.5-69Hz
Voltage unbalance: ± 0.2%
Current unbalance: ± 0.5%
Maximum sampling frequency: 200kHz
Current accuracy: 0.1% + CT accuracy
Power factor accuracy: 0.5% + CT accuracy
Voltage test range: 0-1000V. 6000V
transient voltage
Data storage: 8G
Working hours: ≥5h
IP grade: IP53
Supports manual/automatic waveform recording
Waveform recording time: 10s-10min
Waveform recording cycle: 10/12 cycles
Minimum recording interval: 0.2s
USB transmission speed: ≥17M/S
Harmonics measurement:1-50th/50Hz-2500Hz
Waveform recording sampling point:
128/256/512 points/cycle
Security level: 600 V CAT IV/1000 V CAT III
Interface language setting (Chinese and English)
Supports multi-brand transformer
Inverter measurement: single-phase/
Energy loss analysis: monetary statistics
Professional PC analysis freeware
Transient monitoring: captures 50μs shortest waveform pulse
Complies with IEC61000-4-7 harmonics measurement standard
Complies with IEEE 1459, DIN 40110 algorithm
Complies with IEC61000-4-15 flicker measurement standard
Interharmonics measurement: 50th/25Hz-2475Hz
Higher frequencyharmonics: 35th/2100Hz-8900Hz
