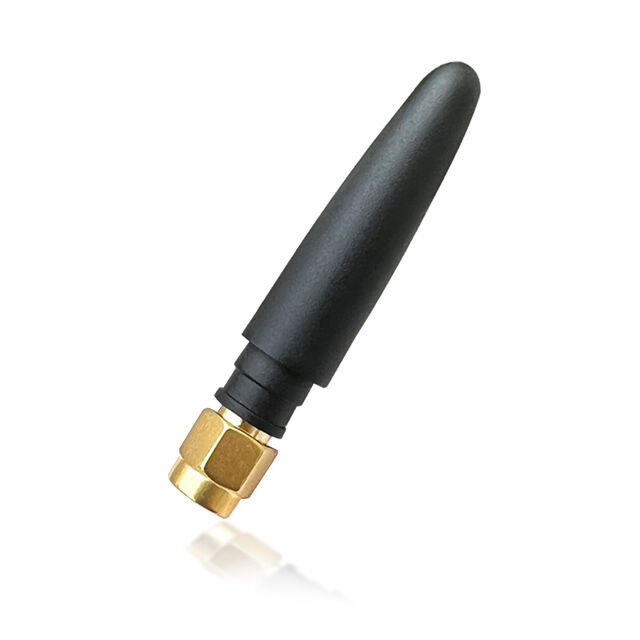

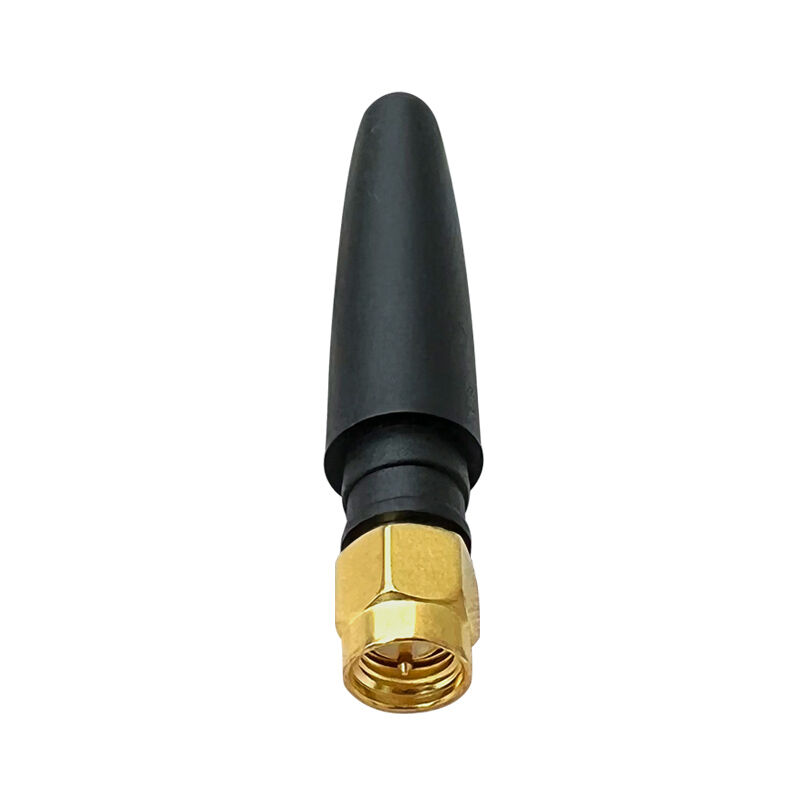

2.4GHz WLAN SMA 55mm External Router Antenna
Product Information
Model Number
AC-Q24-53J
Brand Name
AC
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | PE |
| Mechanical | |
| Dimensions | Φ8x55mm |
| Weight | 5g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
| Electrical | |
| Frequency Range | 2400-2483MHz |
| Band width | 83MHz |
| Gain | 2.5dBi |
| V.S.W.R | ≤2.0 |
| Radiation | Omni-Direction |
| Polarization | Vertical |
| Maximum Input Power | 5W |
| Impedance | 50Ώ |
| Connector | SMA Male |
| Antenna Radome Material | PE |
| Mechanical | |
| Dimensions | Φ8x55mm |
| Weight | 5g |
| Operating Temperature | -40℃ to+70℃ |
| RoHS Compliant | YES |
