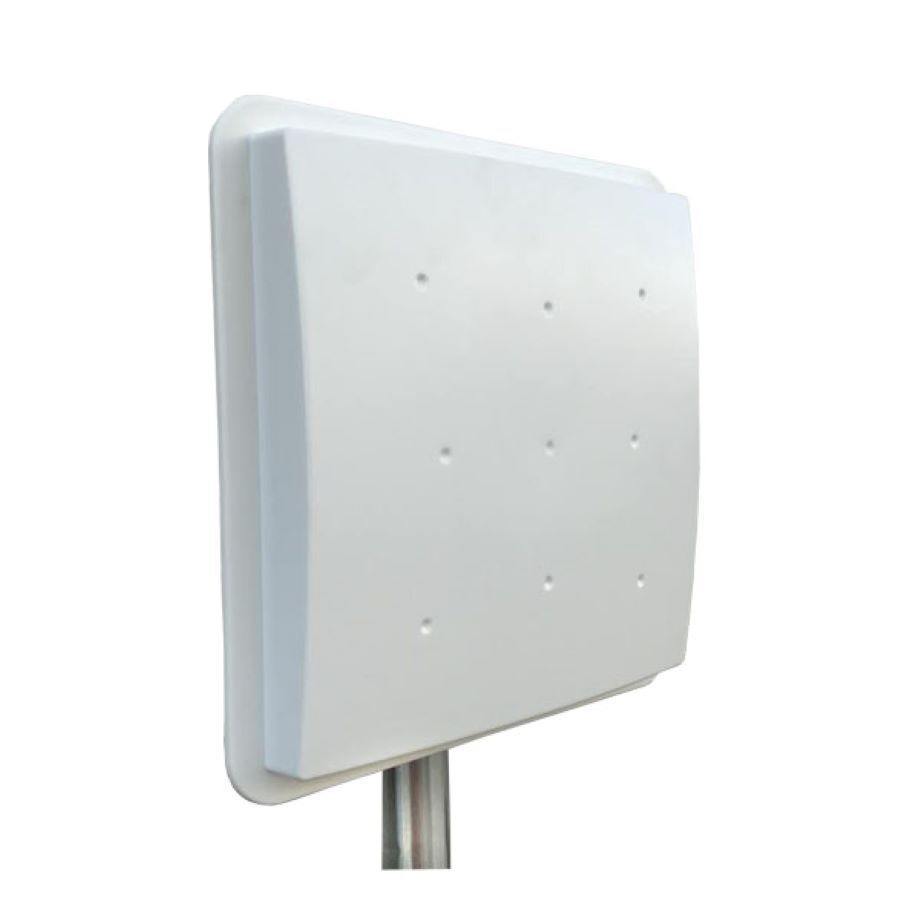

9dBi RFID Panel Directional RHCP Antenna
Product Information
Model Number
AC-D915W09
Brand Name
AC
Origin
China
Small Orders
Accepted
Key Specifications/ Special Features
| Electrical | |
| Frequency Range | 902-928MHz |
| Band width | 26MHz |
| F/B Ratio | ≥15dB |
| Gain | 9dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 60° |
| Vertical Beam width | 70° |
| Polarization | Circular or Linear |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 255x255x45mm |
| Weight | 900g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Electrical | |
| Frequency Range | 902-928MHz |
| Band width | 26MHz |
| F/B Ratio | ≥15dB |
| Gain | 9dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Direction |
| Horizontal Beam width | 60° |
| Vertical Beam width | 70° |
| Polarization | Circular or Linear |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |
| Connector | N Female |
| Antenna Radome Material | ABS |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |
| Dimensions | 255x255x45mm |
| Weight | 900g |
| Operating Temperature | -40℃ to+70℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
