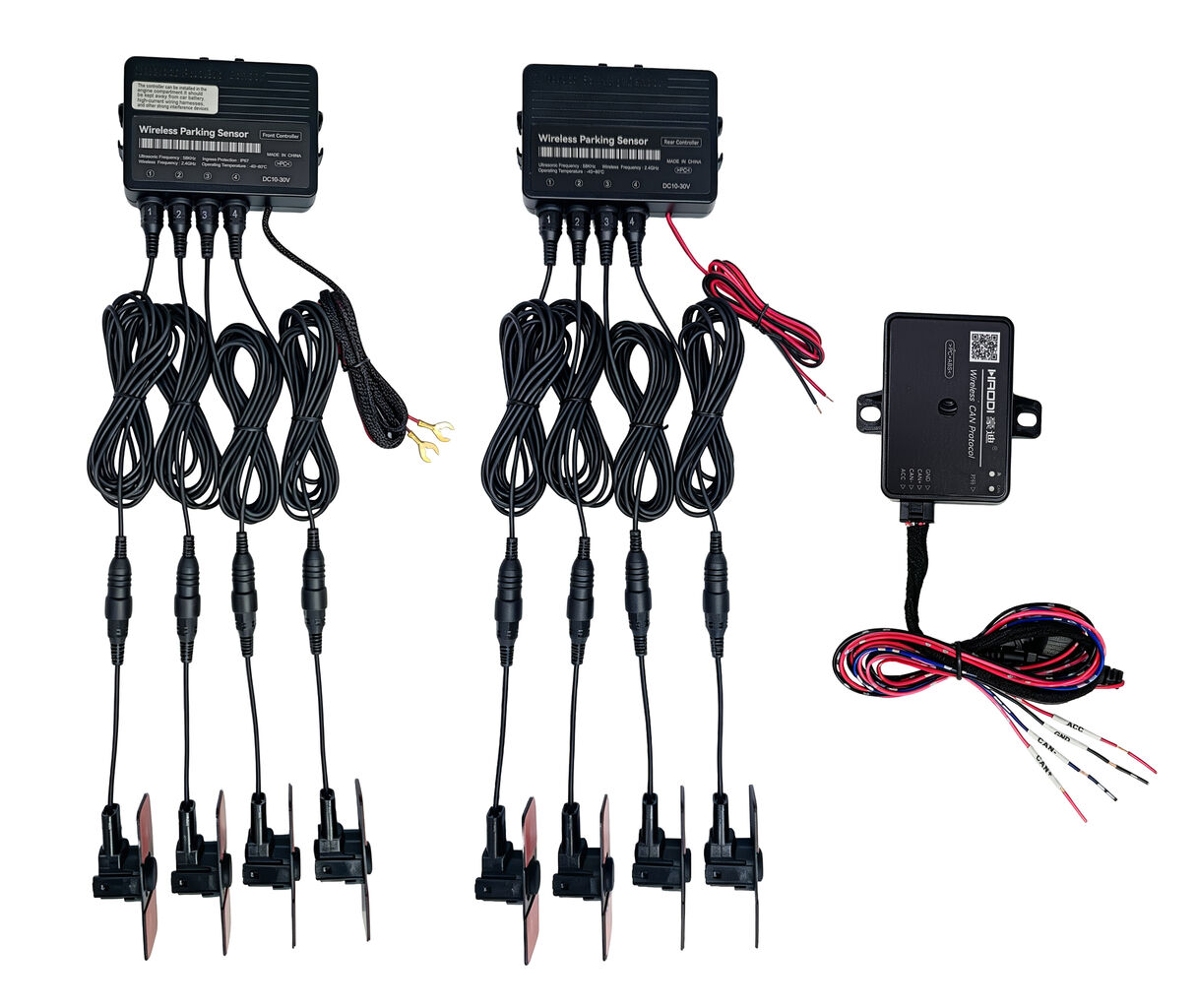

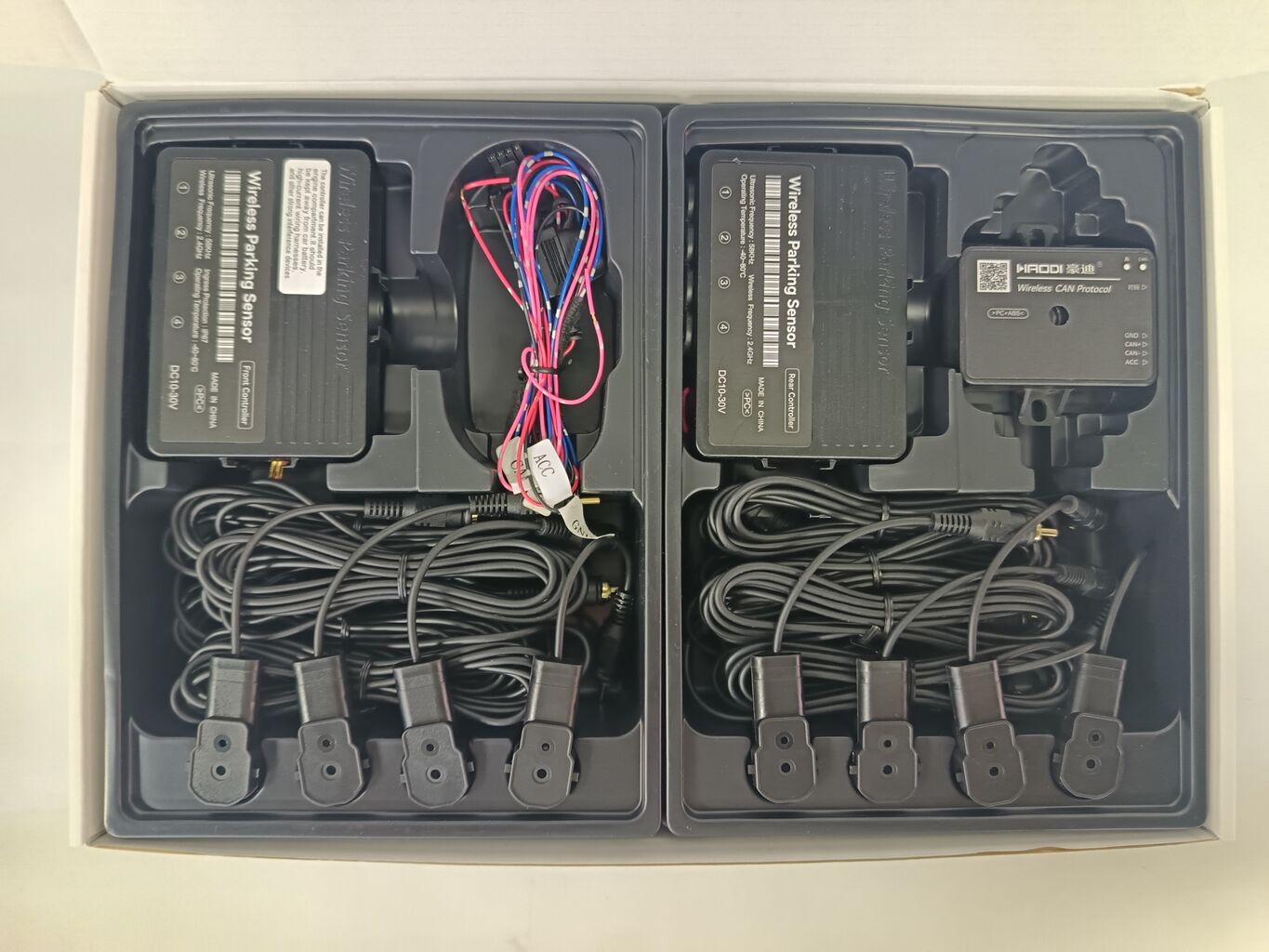

Car original Wireless Front and Rear 58KHz 8 Ultrasonic frequency Parking Sensor Assistant System with CANBUS Protocol box

car original Wireless Front and Rear 58KHz 8 Ultrasonic frequency Parking Sensor Assistant System with CANBUS Protocol box

Features:

1. With Canbus protocol box

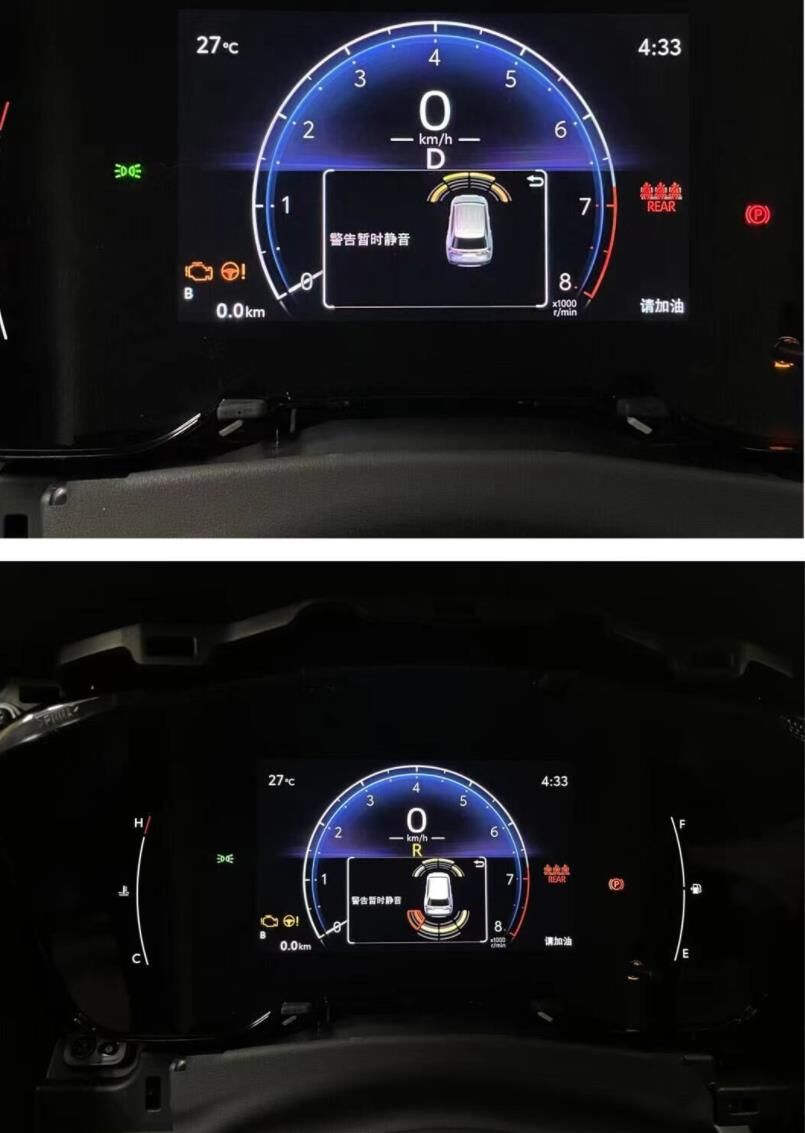

2. Parking sensor display on car original dashboard/Instrument Cluster.

3. Canbus Protocol box/Speaker with 1-3 levels volume setting, low, middle and high volume.

4. Detecting Distance range:

Front middle 2 sensor: 0.30-1.10m

Front side 2 sensor: 0.30-0.70m

Rear middle 2 sensor: 0.30-1.20m

Rear side 2 sensor: 0.30-1.0m

5. Waterproof & high temperature resistant Front ECU main controller, can get power from car battery in engine cabin directly, because the static current of the front controller is less than 0.35mA.

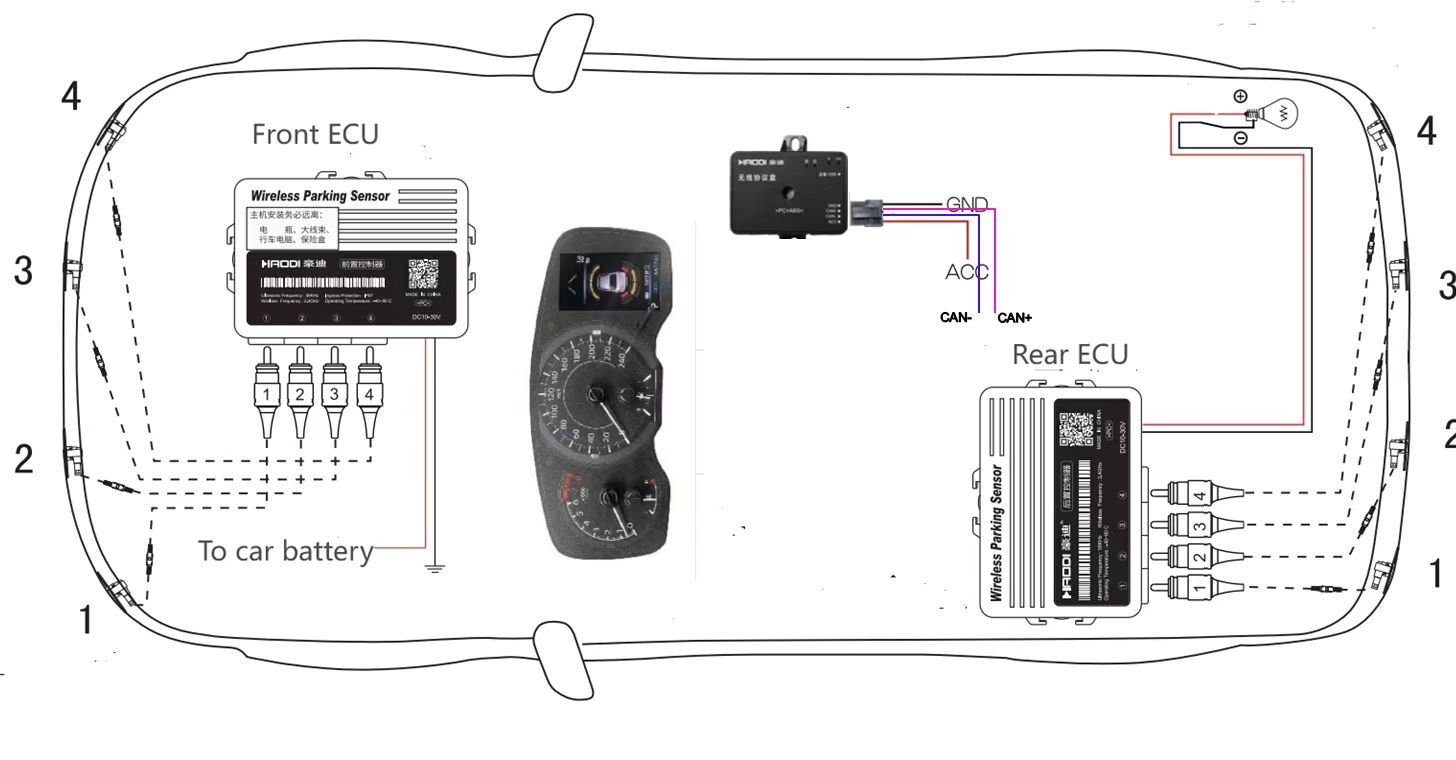

6. Wireless transmission, No cable connection between the CANBUS protocol box & front/rear ECU, easy installation, save labor cost for installation.

Technical Parameters:

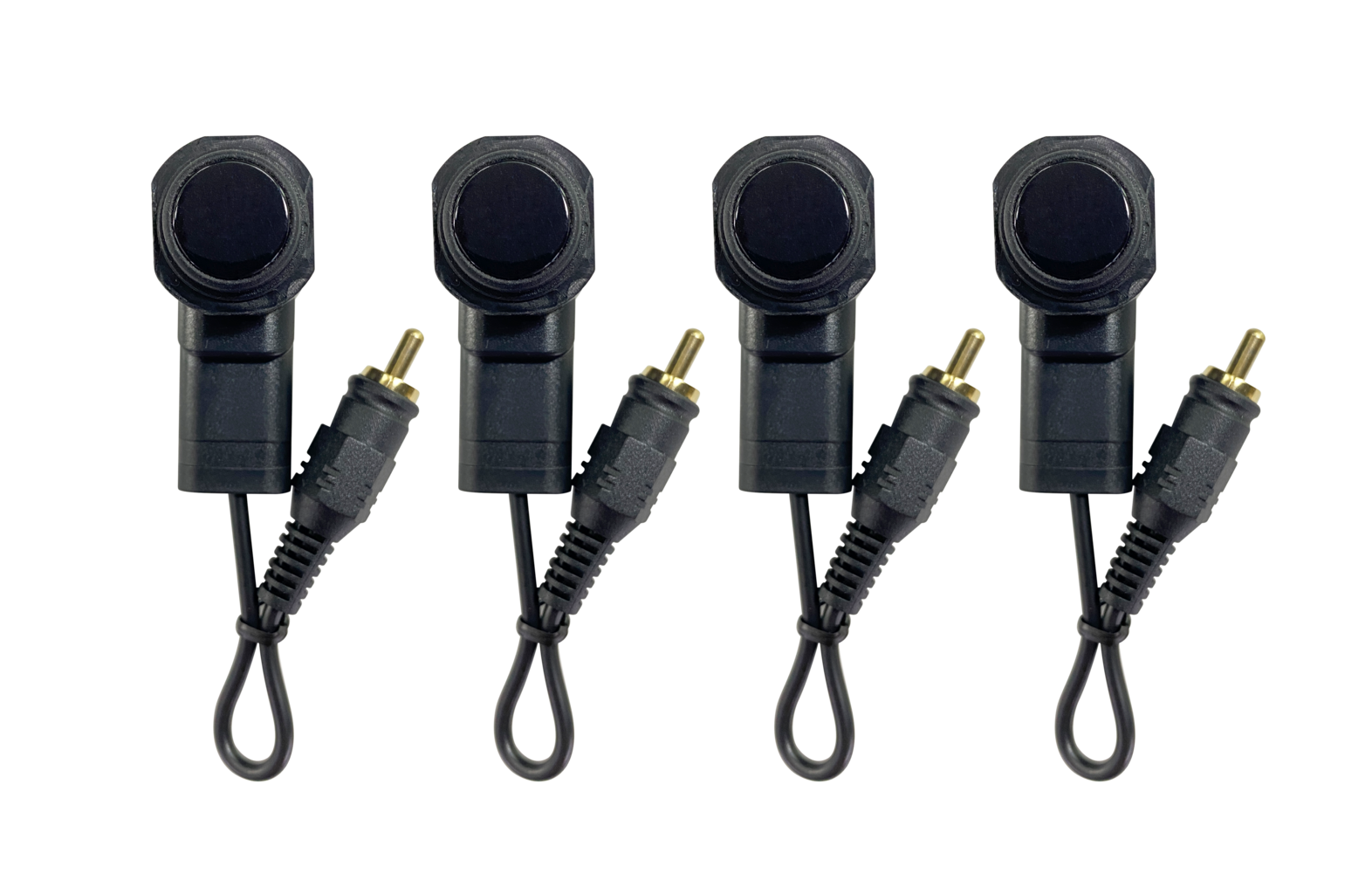

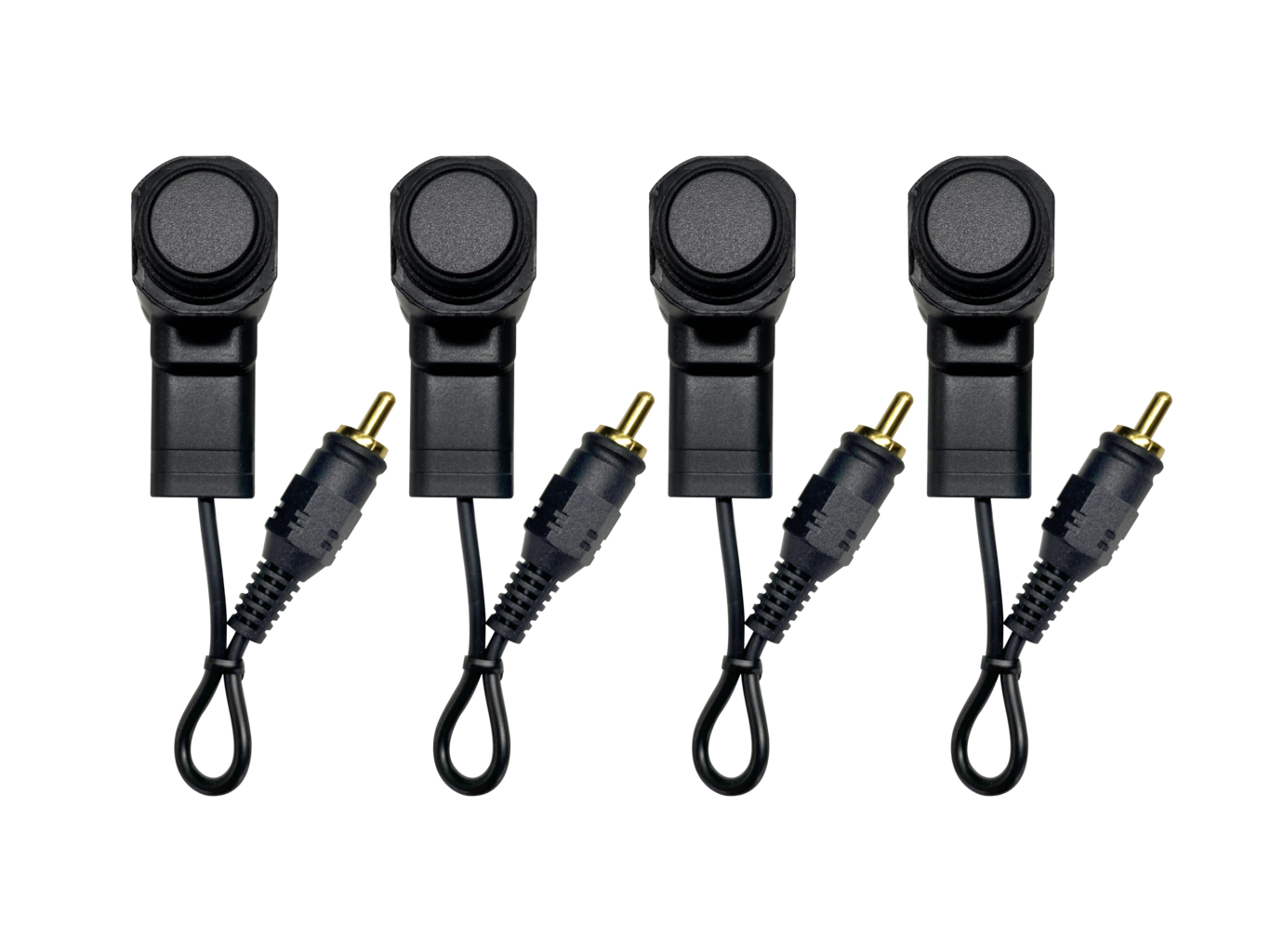

1. With 8 x Ф16.5mm 58KHz Sensors with waterproof cable & connectors (IP67)

2. Sensor cable length: 0.15meters+2.4meter

3. Wireless Frequency: 2.4GHz

4. Front parking sensor standby current: 0.35mA

5. Detecting Distance: 0.30m-1.20meters

6. Ultrasonic Frequency: 58KHz

7. Working current: 350mA @12V

8. Operating Voltage: DC10~30V

9. Working Ambient Temperature: -40°C ~ +80 °C
